Kurbelwelle

Wedge flywheel | Puch / Sachs / Zündapp

Material: Steel · Total length: 9.3 mm · Height: 3.8 mm · Width: 3 mm

swiing® revival plain bearing clutch basket | Puch E50

Manufacturer: swiing® revival parts · Material: special bearing bronze · Nominal diameter: 15 mm · Ø inside: 15 mm · Total height: 21.75 mm · Ø outside: 17 mm

GPO gasket set | Puch E50

Manufacturer: GPO · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Area of application: Standard · Ø outlet inside: 19.9 mm · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm · Number of components: 7 pcs · Decompressor: Yes · Hole spacing inlet: 32 - 38 mm

Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)

Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Width: 7 mm · Material: NBR · Ø inside: 15 mm · Ø outside: 30 mm · Pony spare part no.: A1830 · Sachs spare part no.: 0250 090 000

SKF 6202 C3 ball bearing 15/35/11

Bearing type: Deep groove ball bearing · Stock number: 6202 · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Puch spare part no.: 900.4.6202

Wedge clutch | Puch E50

Total length: 12.1 mm · Width: 3 mm · Height: 4.9 mm · Manufacturer: Puch · Material: Steel

swiing® revival engine overhaul kit (old model) | Puch E50

Manufacturer: NSK · Manufacturer: NTN · Manufacturer: swiing® revival parts · Area of application: Standard · Number of components: 7 pcs

swiing® ingenious crankshaft High End with mounted bearings (Version 2.0) | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 968 g · Number of gears: 1 pcs · Area of application: High End · Area of application: Racing · Area of application: Tuning

NTN 6202 C3 ball bearing 15/35/11

Manufacturer: NTN · Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6202 · Inner ring width: 11 mm · Bearing clearance: C3 · Ø outside: 35 mm · Ø inside: 15 mm · Width: 11 mm · Puch spare part no.: 900.4.6202

Oil seal FPM 17/40/7 DUO VITON | Puch E50

Temperature resistance (min.): -30 - 200 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 40 mm · Width: 7 mm · Manufacturer: Puch · Material: FPM - Rubber · Surface: rubberized · Area of application: Standard

swiing® revival crankshaft standard with mounted bearings (version 2.0) | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Area of application: Standard · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 873 g · Number of gears: 1 pcs

swiing® revival engine overhaul kit (new model) | Puch E50

Manufacturer: swiing® revival parts · Area of application: Tuning · Number of components: 7 pcs

Oil seal NBR 17/40/7 A DUO | Puch E50

Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 40 mm · Manufacturer: Puch · Material: NBR · Surface: rubberized · Area of application: Standard · Width: 7 mm

swiing® revival shim set crankshaft L17 | Puch Z50

Ø inside: 17.1 mm · Nominal diameter: 17 mm · Ø outside: 23.8 mm · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled

Oil seal NBR 17/35/7 A DUO crankshaft | Puch Z50, ZA50

Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm · Manufacturer: Puch · Material: NBR · Surface: rubberized

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Dimension needle bearing: 12/15 x 14.2 · Manufacturer: swiing® ingenious parts · Ø inside: 12 mm · Width: 14.2 mm · Ø outside: 15 mm · Alternative version of the Pony Spare part no.: A4222 · Alternative version of Sachs spare part no.: 0232 157 001 · Tomos spare part no.: 035548

swiing® revival needle roller bearing 12/15/14.2 original

Ø inside: 12 mm · Bearing cage: Sheet steel cage · Ø outside: 15 mm · Manufacturer: swiing® revival parts · Bearing type: Needle sleeve · Dimension needle bearing: 12/15 x 14.2 · Width: 14.2 mm · Alternative version of the Pony Spare part no.: A4222 · Alternative version of Sachs spare part no.: 0232 155 001 · Tomos spare part no.: 035548

NTN 6203 Ball bearing 17/40/12

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: CM (special/noise-reduced) · Material: Steel · Surface: blank · Bearing type: Deep groove ball bearing · Width: 12 mm · Stock number: 6203 · Ø inside: 17 mm · Ø outside: 40 mm · Ball bearing closed: No

swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage

Bearing type: Needle roller and cage assembly · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Ø outside: 15 mm · Ø inside: 12 mm · Width: 16.2 mm · Dimension needle bearing: 12/15 x 16.2 · Tomos spare part no.: 035548

NSK L17 shoulder ball bearing 17/40/10 engine | Puch Z50, ZA50

Bearing type: Shoulder bearing · Stock number: L17 · Manufacturer: NSK · Ø outside: 40 mm · Ø inside: 17 mm · Width: 10 mm

Oil seal FPM 17/40/7 A VITON | Puch E50

Temperature resistance (min.): -30 - 200 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Puch · Material: FPM - Rubber · Surface: rubberized · Ø inside: 17 mm · Ø outside: 40 mm · Width: 7 mm

Shim 17/25/0.1 Crankshaft L17 Bearing | Puch

Manufacturer: Puch · Nominal diameter: 17 mm · Material: Steel · Surface: blank / oiled · Ø inside: 17 mm · Ø outside: 25 mm · Thickness: 0.1 mm

swiing® revival engine overhaul kit small | Puch E50

Manufacturer: Motorex · Manufacturer: swiing® revival parts · Number of components: 42 pcs · Area of application: Standard

NTN 6203 Ball bearing 17/40/12 engine | Puch E50, ZA50

Bearing type: Deep groove ball bearing · Stock number: 6203 · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Manufacturer: NTN

Oil seal FPM 17/35/7 A | Puch Z50

Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Material: FPM - Rubber · Surface: rubberized · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm

Nut M10x1 mm galvanized

Material: Steel · Surface: blue galvanized · Nut type: Hexagon nut · Thread type: MF10x1 (fine pitch thread) · Drive: External hexagon · Height: 8 mm · Width across flats SW: 17 mm · Tomos spare part no.: 215487

Oil seal NBR 17/35/7 AS crankshaft | Puch X30

Temperature resistance (min.): -30 - 100 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Puch · Material: NBR · Surface: rubberized · Width: 7 mm · Place of use: Crankshaft · Ø inside: 17 mm · Ø outside: 35 mm

Shim 17/25/0.15 Crankshaft L17 Bearing | Puch

Manufacturer: Puch · Nominal diameter: 17 mm · Material: Steel · Surface: blank / oiled · Ø inside: 17 mm · Ø outside: 25 mm · Thickness: 0.15 mm

swiing® ingenious puller L17 / BO15 / E15 shoulder bearing

Width across flats (trigger): 8 mm · Width across flats (trigger): 19 mm · Span: 24 mm · Manufacturer: swiing® ingenious parts · Clamping depth: 10 mm · Peel-off tray: BO15 · Peel-off tray: E15 · Peel-off tray: L17 · Total length: 120 mm · Diameter: 24 mm · Diameter: 40.3 mm · Surface: blue galvanized · Number of components: 1 pcs · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Area of application: (Dis)assembly tool

Shim 17/25/0.2 Crankshaft L17 Bearing | Puch

Material: Steel · Surface: blank / oiled · Thickness: 0.2 mm · Manufacturer: Puch · Ø outside: 25 mm · Nominal diameter: 17 mm · Ø inside: 17 mm

Oil seal FPM 22/40/7 A DUO VITON crankshaft | Puch E50

Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Material: FPM - Rubber · Surface: rubberized · Ø inside: 22 mm · Ø outside: 40 mm · Width: 7 mm

swiing® revival engine revision set Z50 | Puch X30 Sport NS/NL

Manufacturer: NSK · Manufacturer: NTN · Manufacturer: swiing® revival parts · Area of application: Standard · Number of components: 16 pcs

Rito crankshaft full cheeks with mounted bearings | Puch E50

Manufacturer: Rito · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 10 mm · Dimension needle bearing: 12 / 15 x 14.2 (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.6 mm · Area of application: High End

swiing® ingenious crankshaft High End (Version 2.0) | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Weight: 968 g · Number of gears: 1 pcs · Area of application: High End · Area of application: Racing · Area of application: Tuning

Oil seal NBR 22/40/7 A DUO crankshaft | Puch E50

Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Temperature resistance (min.): -30 - 100 °C · Material: NBR · Surface: rubberized · Place of use: Crankshaft · Ø inside: 22 mm · Ø outside: 40 mm · Width: 7 mm

Oil seal NBR 17/40/7 AS | Puch E50

Temperature resistance (min.): -30 - 100 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Puch · Material: NBR · Surface: rubberized · Ø inside: 17 mm · Ø outside: 40 mm · Width: 7 mm

MBR plain bearing 15/17/21.75 Clutch basket "Racing" | Puch E50

Manufacturer: MBR · Ø inside: 15 mm · Ø outside: 17 mm · Material: special bearing bronze · Nominal diameter: 15 mm · Total height: 21.8 mm

Nut M8x1 Inox

Material: Chrome steel (stainless steel) · Nut type: Hexagon nut · Thread type: MF8x1 (fine pitch thread) · Drive: External hexagon

swiing® revival connecting rod bushing Ø 12 mm | Puch

Nominal diameter: 12 mm · Manufacturer: swiing® revival parts · Ø inside: 12 mm · Ø outside: 14 mm · Total height: 12 mm

swiing® ingenious set bearings & oil seals C4 High End (old model) | Puch E50

Manufacturer: swiing® ingenious parts · Number of components: 7 pcs · Area of application: Standard

Rito crankshaft Racing (Version 2023) | Puch X30 NS, NL / Velux (Z50)

Manufacturer: Rito · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 58 mm · Total length crankpin ignition side: 67.5 mm · Ø crank webs: 69.8 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 8.5 mm · Thread length: 12 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 34.3 mm · Length 1st paragraph: 19 mm · Length 2nd paragraph: 18.5 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 18 mm · Weight: 913 g · Number of gears: 2 pcs · Area of application: Racing · Area of application: Tuning · Puch spare part no.: 349.1.10.215.0 · Puch spare part no.: 350.7.10.015.0

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Number of components: 7 pcs · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Total length: 130 mm · Area of application: (Dis)assembly tool

swiing® revival crankshaft holder (for mounting the bearings)

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Area of application: Special tool · Width: 80 mm · Height: 130 mm · Thickness: 6 mm

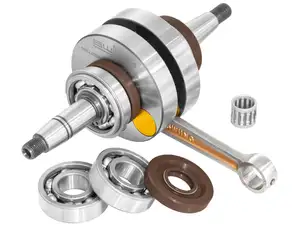

swiing® ingenious crankshaft High End C3/4 & Viton (+1 mm stroke) (Version 2.0) | Puch E50

Manufacturer: swiing® ingenious parts · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 44 mm · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Thread length: 11 mm · Thread length: 15 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 970 g · Number of gears: 1 pcs · Area of application: High End

NTN 6203 NR C3 ball bearing 17/40/12(11) with outer ring (new model) | Puch E50

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: C3 · Groove ring: Yes · Ø inside: 17 mm · Ø outside: 40 mm · Stock number: 6203 · Width: 12 mm

Grinding compound valve 10 g

Manufacturer: Made in Germany · Area of application: Workshop accessories

Oil seal FPM 22/40/7 AS VITON crankshaft | Puch E50

Temperature resistance (min.): -30 - 200 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Puch · Material: FPM - Rubber · Surface: rubberized · Ø inside: 22 mm · Ø outside: 40 mm · Width: 7 mm

NTN 6203 NR C3 ball bearing with outer ring (old model) | Puch E50

Surface: blank · Bearing type: Deep groove ball bearing · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: Yes · Area of application: Standard · Material: Steel · Ø outside: 40 mm · Ø outside: 44 mm · Ø inside: 17 mm · Width: 12 mm · Stock number: 6203 · Ball bearing closed: No
