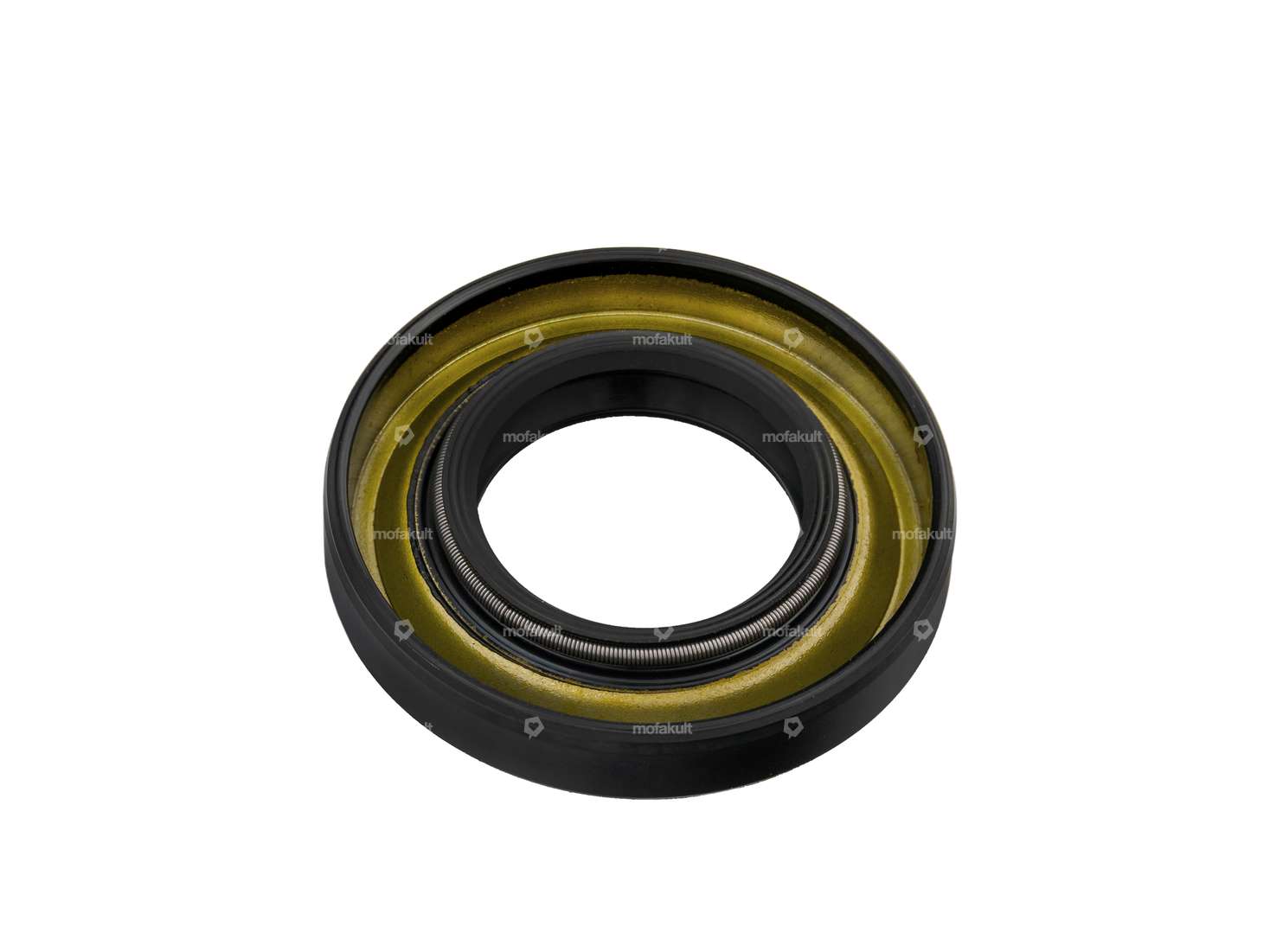

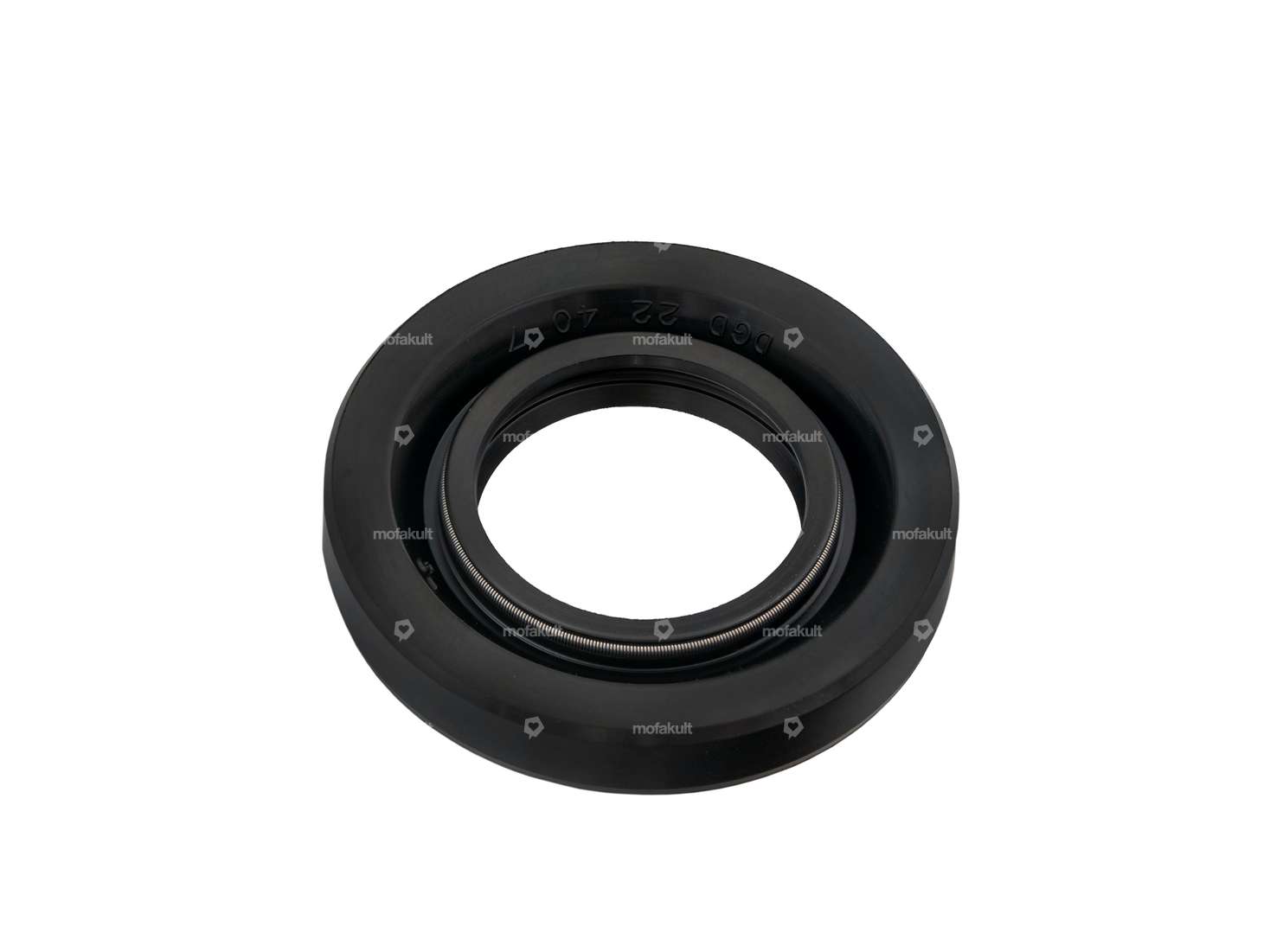

Shaft seal ring 22x40x7 mm for use on the clutch side for your moped or moped with E50 engine.
This radial shaft seal ring (also known under the trademarked brand name Simmerring®) with NBR outer casing is used for crankshafts with a larger seat.
Ø inner: 22 mm
Ø outer: 40 mm
Width: 7 mm
Material: NBR
Temperature resistant: approx. -30 to +100 °C, briefly up to 120 °C
Type: A DUO - With rubberized outer casing and two sealing lips.
Details
| Temperature resistance (min.) | -30 - 100 °C |
| Simmering type | A DUO - With rubberized outer casing / two sealing lips. |
| Manufacturer | Puch |
| Material | NBR |
| Place of use | Crankshaft |
| Surface | rubberized |
| Ø outside | 40 mm |
| Ø inside | 22 mm |
| Width | 7 mm |
Suitable for the following models
| Puch | E50 |
