Bearing puller for BO15, L17 and E15 shoulder ball bearings.
These shoulder bearings were used on mopeds, mokicks and mopeds from the manufacturers Kreidler, Sachs, Hercules and Puch.

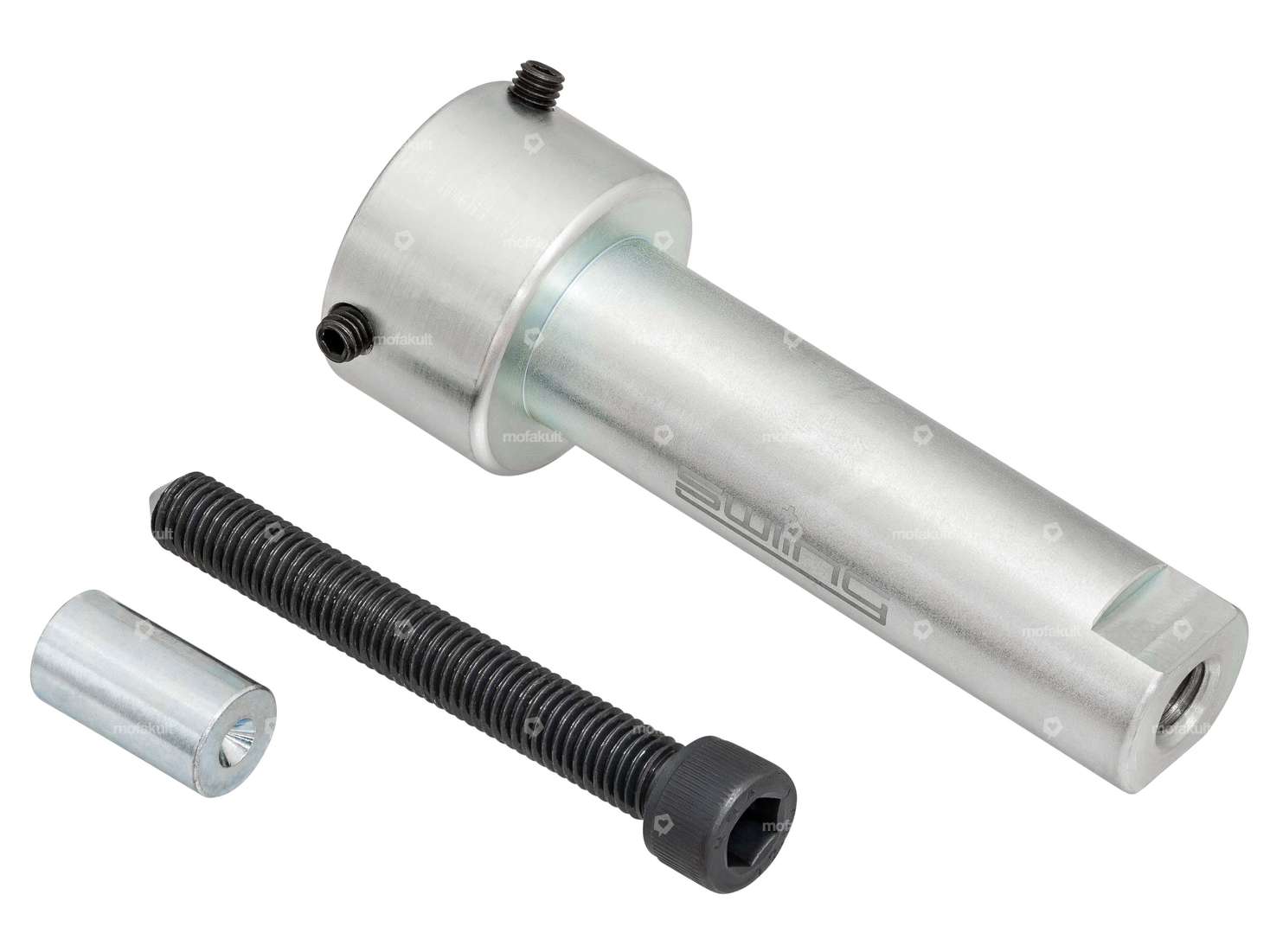

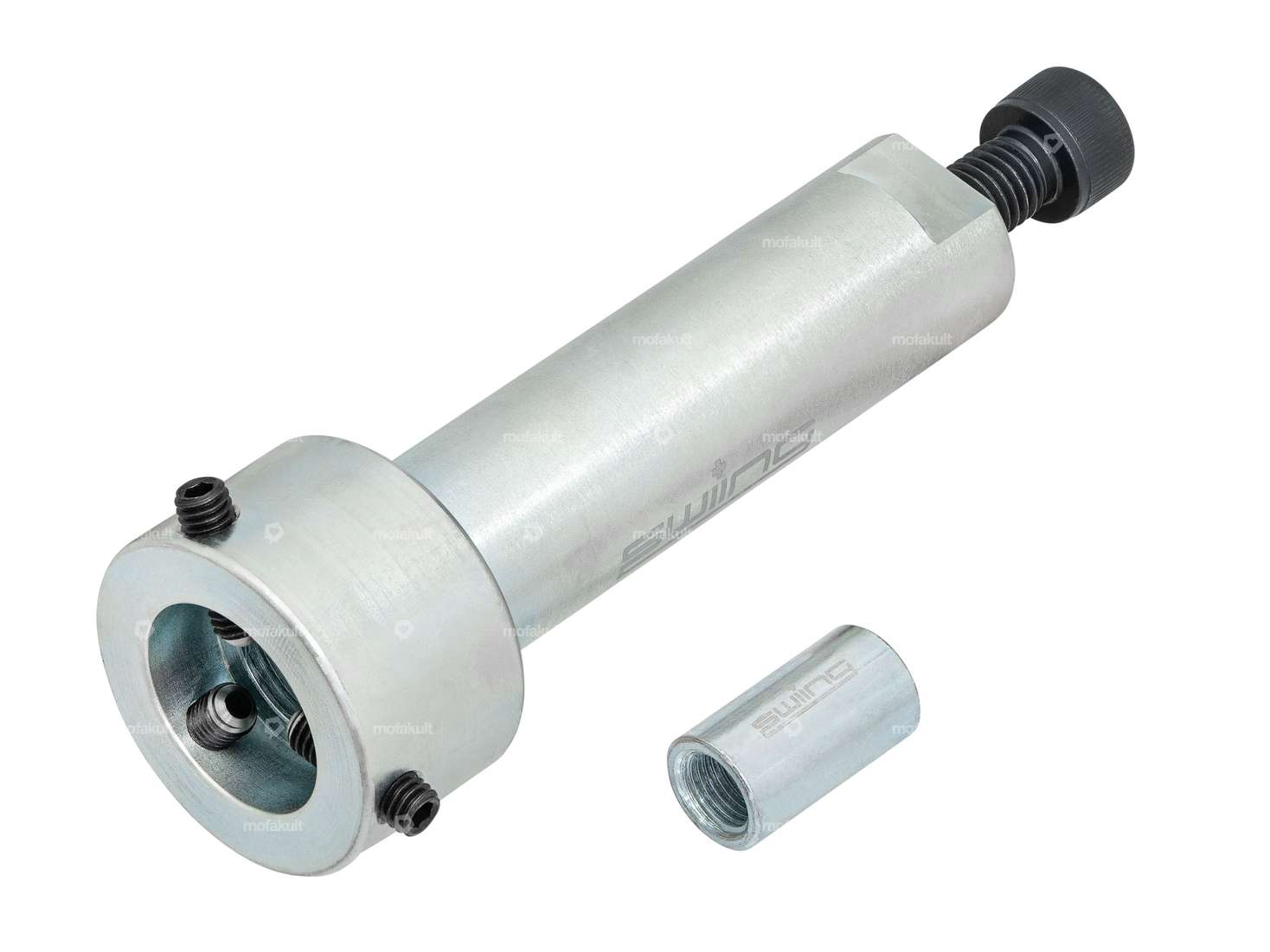

The inner ring is fixed with the three grub screws and pulled off the crankshaft using the screw at the top.
To protect the crankshaft, the enclosed pin is screwed onto the crankshaft.
High-quality & precisely fitting processing of the puller L17.
Exceptional product for the highest demands of the quality brand swiing®.
| Surface | galvanized (blue) |
| Width across flats (trigger) | 8 mm, 19 mm |
| Span | 24 mm |
| Manufacturer | swiing® ingenious parts |
| Clamping depth | 10 mm |
| Diameter | 40.3 mm, 24 mm |
| Peel-off tray | L17, BO15, E15 |
| Area of application | (Dis)assembly tool |
| Thread type | M6x1 (standard thread), M8x1.25 (standard thread) |
| Total length | 120 mm |
| Number of components | 1 pcs |
| Puch | ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 50/5 503 - AAL, ABL, 2AL / 2BL, AB |
Accessories & related products
swiing® ingenious puller flywheel | Piaggio Ciao, SI, Bravo, Boxer
Width across flats (trigger): 10 mm · Width across flats (trigger): 17 mm · Width across flats Screw: 19 mm · Manufacturer: swiing® ingenious parts · Material: Steel · Area of application: (Dis)assembly tool · Surface: blackened · Surface: galvanized (blue) · Diameter: 12 mm · Diameter: 24 mm · Number of components: 2 pcs · Thread type: MF12x1.5 (fine pitch thread) · Thread type: MF17x1 (fine pitch thread) · Total length: 100 mm
CHF 17.90
swiing® revival puller clutch basket manual | Sachs
Thread type: MF12x1.25 (fine pitch thread) · Width across flats Screw: 19 mm · Manufacturer: swiing® revival parts · Thickness: 25 mm · Total length: 106 mm · Area of application: (Dis)assembly tool · Material: Steel · Surface: blackened · Surface: galvanized (blue) · Number of components: 4 pcs
CHF 32.90
swiing® ingenious puller E20 shoulder bearing | Puch
Width across flats (trigger): 22 mm · Width across flats Screw: 8 mm · Manufacturer: swiing® ingenious parts · Clamping depth: 12 mm · Peel-off tray: E20 · Material: Steel · Number of components: 2 pcs · Thread type: M10x1.5 (standard thread) · Surface: galvanized (blue) · Area of application: (Dis)assembly tool
CHF 59.90
swiing® revival ball bearing puller L17 / BO15 / E15 / E20 / 6203 / 6202 (professional tool)
Manufacturer: swiing® revival parts · Peel-off tray: BO15 · Peel-off tray: E15 · Peel-off tray: E20 · Peel-off tray: L17 · Peel-off tray: 6202 · Peel-off tray: 6203 · Area of application: Special tool · Material: Steel · Surface: galvanized (blue) · Surface: gas nitrided · Number of components: 3 pcs
CHF 39.90

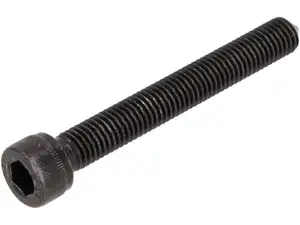

Screw extractor M10x80 cylinder head hexagon socket, burnished (strength 12.9)
