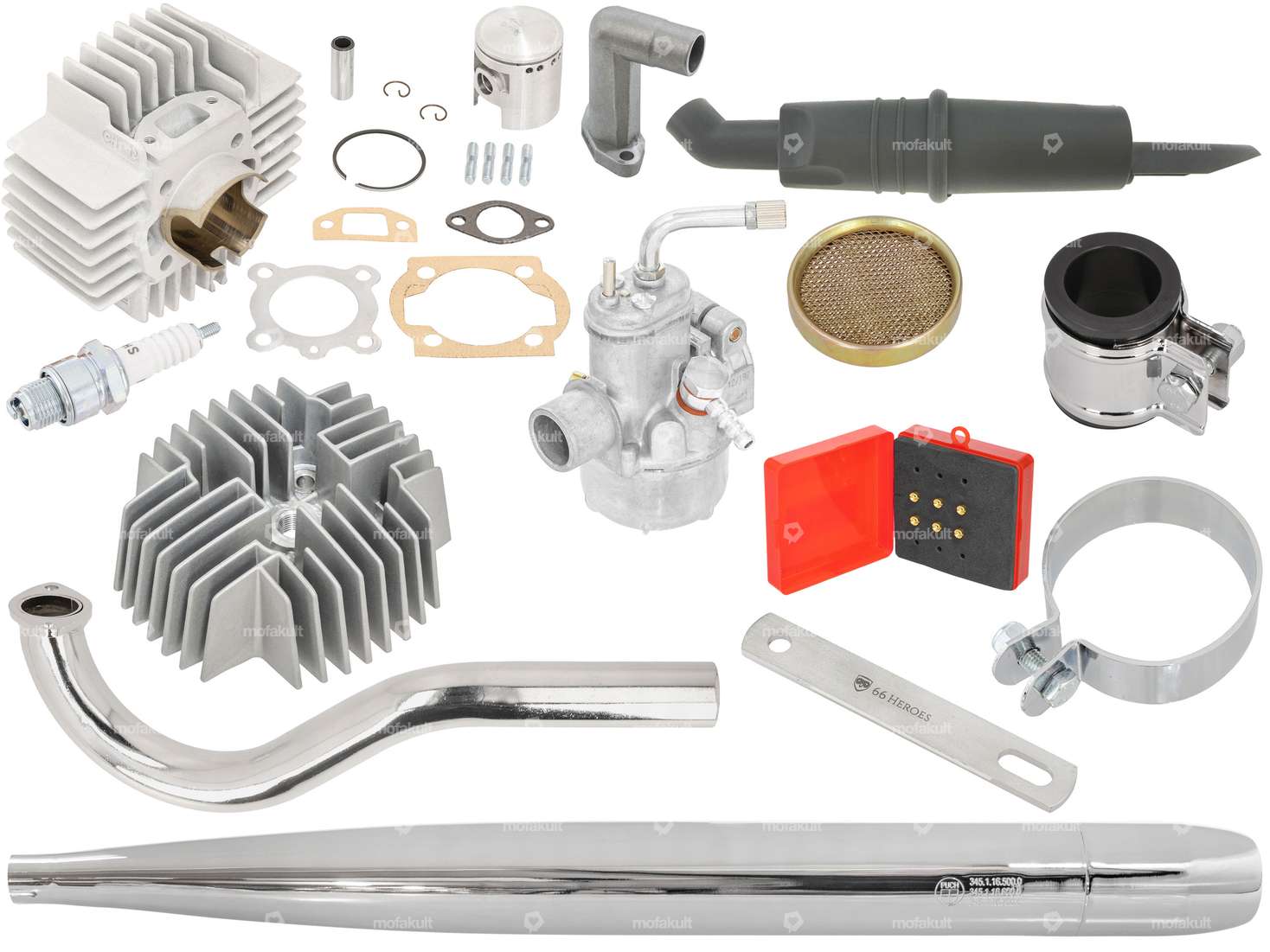

High-quality 45 mm tuning set for your Puch X30 Sport, Turbo and Sprinter moped / moped with 2-speed Z50 engine.
The 45 mm racing kit, the swiing® ingenious 15 mm SRE carburetor as well as the intake manifold and racing exhaust are perfectly matched and guarantee power over the entire speed range.
With the exception of the intake manifold, almost all parts bear the original cast or stamped numbers. For example, the 70 cc cylinder has a CH12, the carburettor has the code number «1/12/197» and the resonance cigar has the Puch logo and engraved numbers.
A düsenset is included for perfect tuning of the tuning carburettor.
Hole pattern [mm]: 44 x 44 · Inlet window: 23.6/21.2 x 14.7 · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 45 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Camouflaged: Yes · Area of application: Tuning
Hole pattern [mm]: 44 x 44 · Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 45 mm · Camouflaged: Yes · Number of fixing points: 4 pcs · Candle thread: short · Decompressor: No · Total length: 135 mm · Width: 125 mm · Height: 55 mm · Area of application: Tuning
Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Nominal diameter: 70 mm · Clamping diameter: 67 - 71 mm · Width: 28 mm · Thickness: 2 mm · Number of fixing points: 1 pcs · Ø mounting hole: 8.2 mm
Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø inside: 25.3 mm · Ø outside: 28 mm · Total length: 302 mm · Mounting type: Stud bolts & nuts · Number of fixing points: 2 pcs · Hole spacing outlet: 42 mm
Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø outside: 70 mm · Total length: 730 mm · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp
Manufacturer: swiing® ingenious parts · Material: Aluminum · Ø inside: 16 mm · Ø External connection: 20 mm · Mounting type: Screws · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 70 mm · Total length: 48 mm · Area of application: Tuning
Nozzle block: 2.17 · Nozzle size: 62 · Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Width: 50 mm · Height: 95 mm · Area of application: Tuning · Component group Carburetor: Carburetor complete · Puch OEM number: 349.9.15.300.0, 349.6.15.400.0, 349.7.15.700.0, 349.4.15.500.0, 349.4.15.000.0, 349.4.15.300.0, 349.1.15.100.0, 349.8.15.400.0, 349.2.15.800.0
Manufacturer: GPO · Camouflaged: No · Color: yellow · Material: Steel · Surface: galvanized (yellow) · Height: 9.7 mm · Ø outside: 52 mm · Area of application: Tuning
Manufacturer: swiing® revival parts · Camouflaged: Yes · Color: gray · Material: Plastic · Filter type: Racing screen · Ø Internal connection: 20 mm · Mounting type: Plug connection clamped · Area of application: Tuning, Standard
Nozzle size: 64, 66, 68, 70, 72, 74 · Manufacturer: swiing® revival parts · Material: Brass · Quantity: 6 pcs · Carburetor type: SRE, SRF, SRA (1/11/35) Velux, SRA (1/11/31) Velux, SRC · Nozzle type: Main nozzle · Nozzle thread: M3.5x0.6 (standard thread) · Total length: 6 mm · Drive: Slot · Component group Carburetor: Spraying
Manufacturer: 66HEROES · Material: Chrome steel (colloquially known as stainless steel) · Surface: electropolished · Total length: 106 mm · Hole spacing: 75 mm · Thickness: 4 mm · Number of fixing points: 2 pcs · Ø mounting hole: 8.3 mm, 20 mm
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Displacement | 70 ccm |
| Nominal diameter | 45 mm |
| Ø piston pin (B) | 12 mm |
| Area of application | Tuning |
| Puch | Z50 (X30 Sport) |
