Puch engine & gearbox

Engine gasket set | Puch MS, VS, DS, MV, M

Area of application: Standard · Number of components: 8 pcs

Oil seal FPM 17/40/7 A | Puch E50

Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Puch · Material: FPM / FKM (colloquially known as Viton) · Width: 7 mm · Ø inside: 17 mm · Temperature resistance (min.): -30 - 200 °C · Ø outside: 40 mm

Oil seal FPM 17/35/7 A | Puch Z50

Shaft seal type: A - With rubberized outer part / one sealing lip. · Place of use: Crankshaft · Material: FPM / FKM (colloquially known as Viton) · Width: 7 mm · Ø inside: 17 mm · Temperature resistance (min.): -30 - 200 °C · Ø outside: 35 mm

66HEROES Centering screw M22x1 Inox | Puch Z50

Manufacturer: 66HEROES · Material: Chrome steel (colloquially known as stainless steel) · Surface: polished · Nominal diameter (thread): 22 mm · Drive: External hexagon · Width across flats: 27 mm · Thread type: MF22x1 (fine pitch thread) · Puch OEM number: 050.1.1233

Driver plate 22 teeth Occ. | Puch ZA50

Manufacturer: Puch · Area of application: Original · Material: Steel · Ø inside: 16.8 mm

NewFren clutch 1st gear automatic | Puch X30 Velux, MS, MV

Manufacturer: NewFren · Area of application: Original · Number of jaws: 3 pcs

swiing® revival decoupling shaft | Puch Z50 engine

Manufacturer: swiing® revival parts · Area of application: Original · Material: Steel · Surface: gas nitrided · Color: black-matt · Ø outside: 8 mm · Ø outside: 10 mm · Total length: 90.2 mm

41 mm Cylinder Head Gasket, 1.2 mm Special | Puch / Tomos

Nominal diameter: 38 mm · Place of use: Cylinder head · Ø cylinder: 38 - 41 mm · Reinforced: Yes · Ø outlet inside: 41.3 mm · Thickness: 1.2 mm · Ø screw holder: 7.9 mm · Hole pattern [mm]: 44 x 44

NTN 6202 C3 ball bearing 15/35/11

Bearing type: Deep groove ball bearing · Bearing cage: Sheet steel cage ball-guided · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: C3 · Width: 11 mm · Ø inside: 15 mm · Ø outside: 35 mm · Puch OEM number: 900.4.6202

Surflex starter disk | Puch X30 Velux automatic

Manufacturer: Surflex · Area of application: Original · Material: Steel

Mazzucchelli crankshaft original E50

Manufacturer: Mazzucchelli · Area of application: Standard

Clutch basket 18 teeth 3-plate version | Puch Z50

Area of application: Standard · Material: Steel · Toothing type: helical toothed · Color: gray · Recording type: Interlocking · Number of teeth: 18 pcs · Height: 32 mm · Ø inside: 17 mm · Ø outside: 75 mm

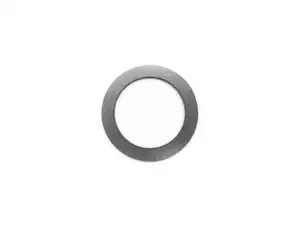

Spacer washer 17/24/0.5 crankshaft L17 bearing | Puch

Nominal diameter inside: 17 mm · Manufacturer: Puch · Material: Steel · Surface: blank / oiled · Thickness: 0.5 mm · Ø inside: 17.2 mm · Ø outside: 23.8 mm

Inlet gasket 3.2 mm | Puch

Place of use: Admission · Thickness: 3.2 mm · Hole spacing inlet: 32 - 38 mm

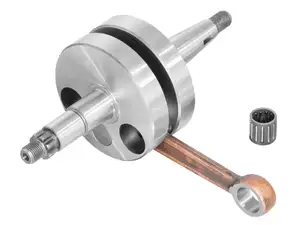

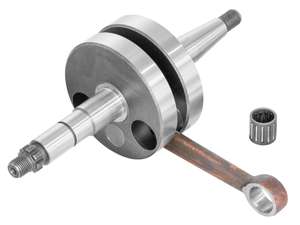

Jasil crankshaft | Puch X30 NS, NL

Manufacturer: Jasil · Area of application: Standard · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 57 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.7 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Thread length: 8 mm · Thread length: 12 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 34.1 mm · Length 1st paragraph: 20 mm · Length 2nd paragraph: 20 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 28 mm · Weight: 910 g · Number of gears: 2 pcs

swiing® revival ignition rubber | Puch X30 Velux

Manufacturer: swiing® revival parts · Material: Rubber · Color: black

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Width across flats: 10 mm · Width across flats: 17 mm · Total length: 130 mm · Number of components: 7 pcs

SKF 6203 C3 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Bearing cage: Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: SKF · Bearing clearance: C3 · Width: 12 mm · Ø inside: 17 mm · Ø outside: 40 mm

swiing® revival Connecting Rod | Puch

Manufacturer: swiing® revival parts · Area of application: Standard · Material: Steel · Surface: copper-coated · Connecting rod length center-center: 90 mm · Ø Connecting rod bolt: 12 mm · Ø lower connecting rod eye outside: 24.6 mm · Ø upper connecting rod eye outside: 20.9 mm · Thickness: 10 mm · Ø lower bearing inside: 21 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 16/21 x 9.75 mm · Dimension upper bearing: 12/15 x 14.7 mm · Ø piston pin (B): 12 mm · Connecting rod pin length: 34 mm · Total length: 114.5 mm

swiing® revival 38 mm gasket set original cylinder | Puch

Manufacturer: swiing® revival parts · Area of application: Standard · Ø cylinder: 38 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes

Malossi needle bearing 12/15/15

Bearing type: Needle roller and cage assembly · Bearing cage: Sheet steel cage · Manufacturer: Malossi · Width: 15 mm · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 15

Starter unit | Puch ZA50

Manufacturer: Made in Austria · Area of application: Original · Puch OEM number: 910.3.18.001.0

Counter screw clutch cable | Puch ZA50

Oil seal FPM 17/40/7 DUO | Puch E50

Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Material: FPM / FKM (colloquially known as Viton) · Width: 7 mm · Ø inside: 17 mm · Temperature resistance (min.): -30 - 200 °C · Ø outside: 40 mm

swiing® ingenious connecting rod "Racing" | Puch

Manufacturer: swiing® ingenious parts · Area of application: Tuning · Material: Steel · Surface: ground · Connecting rod length center-center: 90 mm · Ø Connecting rod bolt: 16 mm · Ø lower connecting rod eye outside: 28.2 mm · Ø upper connecting rod eye outside: 21.5 mm · Thickness: 10 mm · Ø lower bearing inside: 21 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 16/21 x 9.7 mm · Dimension upper bearing: 12/15 x 14.2 mm · Ø piston pin (B): 12 mm · Connecting rod pin length: 34 mm · Total length: 90 mm

swiing® revival crankshaft "original" 10.2 mm journal | Puch ZA50

Manufacturer: swiing® revival parts · Area of application: Standard · Ø piston pin (B): 12 mm · Puch OEM number: 321.3.10.615.0

swiing® revival spacer set crankshaft | Puch ZA50

Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled

swiing® revival press-fit stud bearings & shaft seals | Puch ZA50

Manufacturer: swiing® revival parts · Area of application: Special tool

swiing® revival crankshaft holder (for mounting the bearings)

Manufacturer: swiing® revival parts · Area of application: Special tool · Material: Steel · Surface: galvanized (blue) · Width: 80 mm · Height: 130 mm · Thickness: 6 mm

MBR Spacer plate KTM SX50 Clutch Inox

Manufacturer: MBR · Area of application: Racing · Material: Chrome steel (colloquially known as stainless steel) · Thickness: 0.5 mm

MBR spacer sleeve KTM SX50 clutch hardened

Nominal diameter inside: 6 mm · Manufacturer: MBR · Material: Steel · Surface: galvanized (blue) · Ø inside: 6.1 mm · Ø outside: 7.9 mm · Total length: 19 mm

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Width: 14.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

Circlip 17 mm Inox | Puch E50 / ZA50

Nominal diameter: 17 mm · Fuse type: Outside · Manufacturer: Puch · Place of use: Crankshaft · Material: Chrome steel (colloquially known as stainless steel)

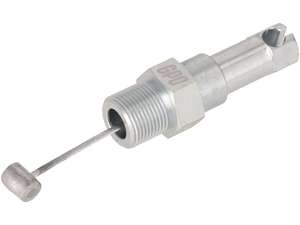

GPO starter unit set | Puch ZA50

Manufacturer: GPO · Area of application: Standard · Material: Steel · Puch OEM number: 910.4.12.001.0

Level screw M8x10 mm Inox | Puch X30 Velux

Manufacturer: Puch · Material: Chrome steel (colloquially known as stainless steel) · Drive: Slot · Screw head: Cylinder head · Thread type: M6x1 (standard thread) · Thread length: 10 mm · Puch OEM number: 900.1342

swiing® ingenious crankshaft "High End" | Puch X30 Velux (Z50)

Manufacturer: swiing® ingenious parts · Area of application: High End · Area of application: Racing · Area of application: Tuning · Material: Aluminum · Cheek type: Full cheeks · Material: Steel · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 58 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 70 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Thread length: 8 mm · Thread length: 13 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Length 1st paragraph: 20.3 mm · Length 2nd paragraph: 19 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 954 g · Number of gears: 2 pcs

Cylinder base gasket 0.5 mm NBR | Puch

Place of use: Cylinder base · Material: NBR · Thickness: 0.5 mm · Ø inside: 48 mm

SKF 6203 NR C4 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Bearing cage: Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: SKF · Bearing clearance: C4 · Groove ring: Yes · Width: 12 mm · Ø inside: 17 mm · Ø outside: 40 mm

NTN 6203 C4 ball bearing 17/40/12 engine | Puch E50

Bearing type: Deep groove ball bearing · Bearing cage: Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C4 · Area of application: Standard · Material: Steel · Width: 12 mm · Ø inside: 17 mm · Ø outside: 40 mm

swiing® ingenious crankshaft "High End" 10.2 mm journal | Puch ZA50

Manufacturer: swiing® ingenious parts · Area of application: High End · Cheek type: Full cheeks · Puch OEM number: 321.3.10.615.0

swiing® ingenious crankshaft "High End" | Puch X30 NS / NL (Z50)

Manufacturer: swiing® ingenious parts · Area of application: Racing · Area of application: Tuning · Material: Aluminum · Cheek type: Full cheeks · Material: Steel · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 57 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 70 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Thread length: 10 mm · Thread length: 13 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 20 mm · Length 2nd paragraph: 19 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 954 g · Number of gears: 2 pcs

NSK 6203 NR ball bearing 17/40/12 with outer ring (old model) | Puch E50

Bearing type: Deep groove ball bearing · Bearing cage: Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NSK · Ball bearing closed: No · Groove ring: Yes · Material: Steel · Width: 12 mm · Ø inside: 17 mm · Ø outside: 40 mm · Ø outside: 44 mm

swiing® revival gasket set cylinder original | Puch X30 Velux

Manufacturer: swiing® revival parts · Ø cylinder: 38 mm · Hole spacing inlet: 32 mm · Hole spacing outlet: 42 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes

Cotter pins Pull pin Puch Z50

Manufacturer: Puch · Ø outside: 2.5 mm · Total length: 32 mm

swiing® ingenious puller E20 shoulder bearing | Puch

Width across flats trigger: 22 mm · Width across flats Screw: 8 mm · Manufacturer: swiing® ingenious parts · Clamping depth: 12 mm · Peel-off tray: E20 · Area of application: (Dis)assembly tool · Material: Steel · Surface: galvanized (blue) · Thread type: M10x1.5 (standard thread) · Number of components: 2 pcs

swiing® ingenious clutch spring reinforced +20% | Puch Z50

Spring design: Pressure spring · Ø wire: 4.6 mm · Manufacturer: swiing® ingenious parts · Area of application: Tuning · Material: Spring steel · Surface: coated · Color: blue · Ø inside: 30 mm · Ø outside: 39 mm · Total length: 20.5 mm · Number of components: 1 pcs

swiing® ingenious clutch spring reinforced +40% | Puch Z50

Spring design: Pressure spring · Ø wire: 4.5 mm · Manufacturer: swiing® ingenious parts · Area of application: Tuning · Material: Spring steel · Surface: coated · Color: red · Ø inside: 30 mm · Ø outside: 39 mm · Total length: 23.5 mm · Number of components: 1 pcs

Locking ring 15 mm clutch basket Inox | Puch E50

Nominal diameter: 16 mm · Fuse type: Outside · Manufacturer: Puch · Material: Chrome steel (colloquially known as stainless steel)

Bearing ring 19.5/28.1/7.5 small NOS | Puch Z50

Manufacturer: Puch · Material: Steel · Surface: hardened & ground · Width: 7.5 mm · Ø inside: 19.5 mm · Ø outside: 28.1 mm

Bearing ring 24/32/7.5 large NOS | Puch Z50

Manufacturer: Puch · Material: Steel · Surface: hardened & ground · Width: 7.55 mm · Ø inside: 23.8 mm · Ø outside: 31.98 mm
