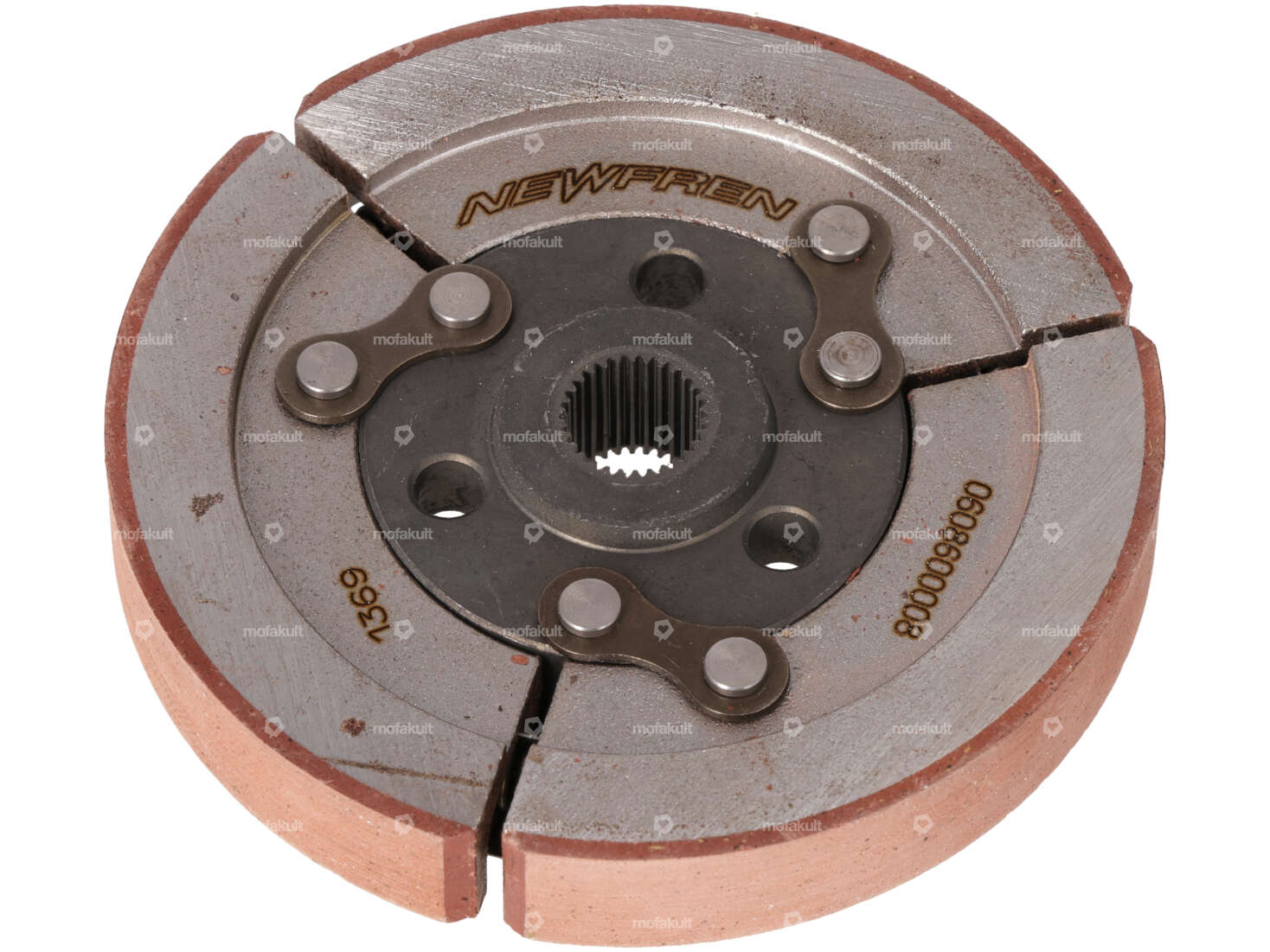

NewFren clutch 1st gear automatic | Puch X30 Velux, MS, MV

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Component group Carburetor: Spark plug connector · Ø cable: 5 mm · Ø cable: 7 mm · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

Main stand black (budget) | Puch Maxi S, P1 / X30 NS, NL, NG

Material: Steel · Surface: varnished · Stand base - center mount (A): 207 mm · Color: black · Total width of stand base (B): 217 mm · Wide receptacle (C): 66 mm · Ø Receptacle (D): 18 mm · Spring nipple distance - center pivot axis (E): 75 mm · Wide upright foot (F): 20 mm · Wide upright foot (F): 50 mm · Total height: 220 mm

Pedestal bearing shell | Puch

Material: Aluminum · Material: Steel · Surface: galvanized (blue) · Surface: raw · Color: silver · Width: 46 mm · Height: 20 mm · Total length: 70 mm · Mounting type: Screws · Number of fixing points: 3 pcs · Hole spacing: 41 mm

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Cable length: 2200 mm · Number of components: 1 pcs

Meteor piston ring 38 x 2 mm (FS)

Manufacturer: Meteor · Diameter: 38 mm · Height: 2 mm · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Thick piston ring: 1.6 mm

Magura adjusting screw brake short

Manufacturer: Magura · Material: Brass · Surface: nickel-plated · Color: silver · Drive: Knurled screw · Ø External head: 9.15 mm · Total length: 31 mm · Total length: 40 mm · Thread type: MF6x0.75 (fine pitch thread) · Ø shaft: 6.1 mm · Thread length: 15 mm · Shank length: 6.9 mm

Meteor piston 38 mm #1 | Puch Supermaxi Cat.

Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.955 mm · Ø piston pin (B): 12 mm · Compression height (C): 24 mm · Curvature (D): 2.3 mm · Total piston height (E): 55.3 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Tolerance group: 1 · Piston weight: 78 g

swiing® revival stand spring Inox | Puch

Spring design: Tension spring · Ø wire: 2.5 mm · Manufacturer: swiing® revival parts · Length spring hook: 19 mm · Length spring hook: 53 mm · Material: Chrome steel (known as Nirosta®) · Surface: raw · Ø outside: 14 mm · Ø inside: 9 mm · Total length: 122 mm
