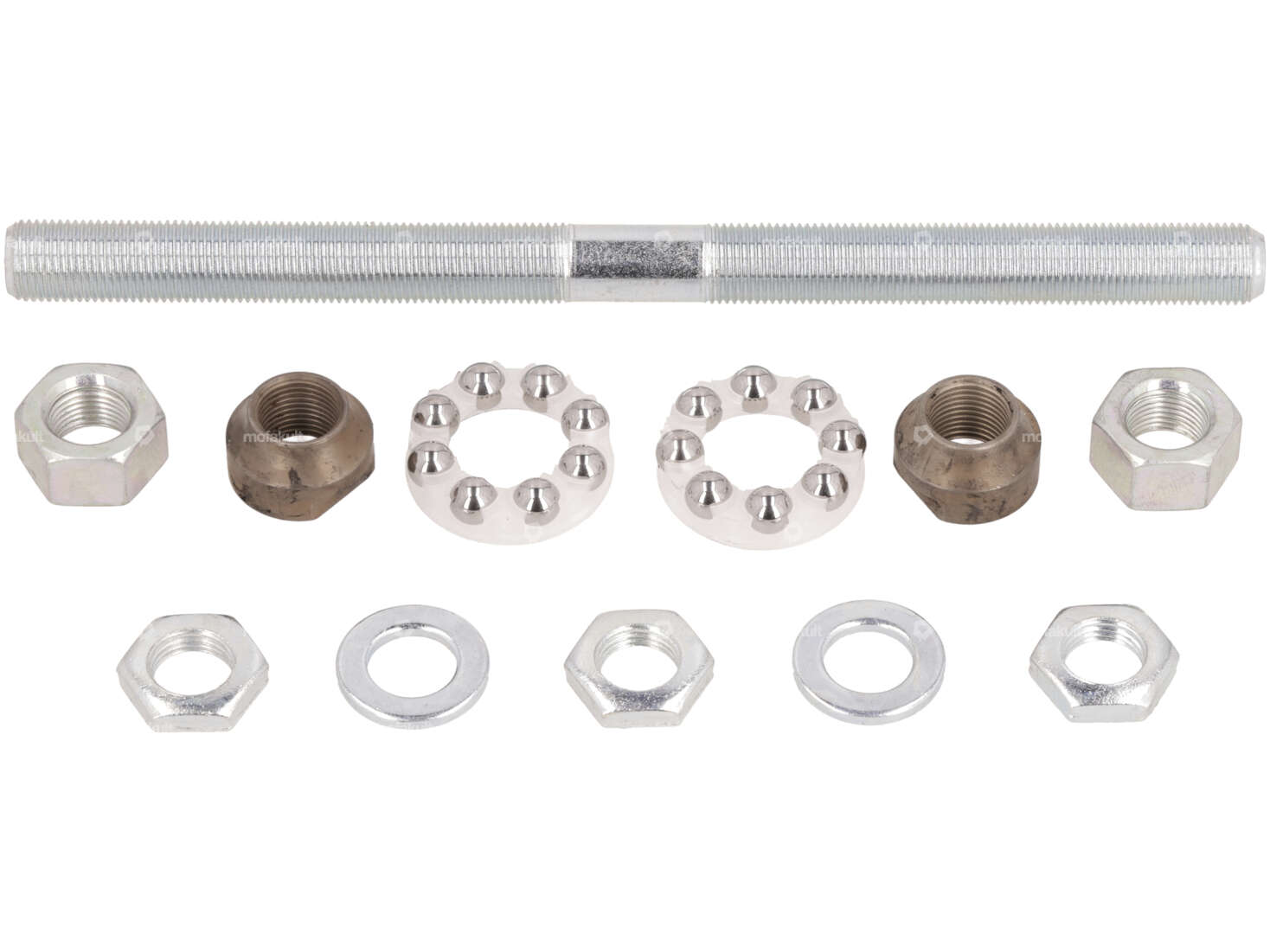

Socket axle M11x165 made of galvanized steel for the front wheel on your Piaggio moped / moped.
The complete axle set is also equipped with the following parts:
- 2 pcs M11 x 1 nuts (SW17 / 10 mm)
- 2 pcs spacer washer (Ø 20 x 2 mm)
- 2 pcs;ck bearing cone (D19 x d13 mm / SW15)
- 3 pcs M11 x 1 nuts (SW17 / 4 mm)
- 2 pcs ball set à 8 balls (Ø 6.32 mm)
Note: On Piaggio Ciao models, this wheel axle is 20 mm (10 mm per side) longer than the original installed at the time.
You can find more threaded shafts and the high-quality alternative in the accessories section.
Made by the Italian brand CIF.
| Manufacturer | CIF |
| Material | Steel |
| Surface | galvanized (yellow), galvanized (blue) |
| Ø shaft | 10.3 mm |
| Total length | 165 mm |
| Height | 10 mm, 4 mm, 2 mm |
| Shank length | 18 mm |
| Width across flats SW | 17 mm, 15 mm |
| Thread type | MF11x1 (fine pitch thread) |
| Ball bearing closed | No |
| Thread length | 73 mm |
| Ø ball [inch] / [mm] | 1/4" (6.35 mm) |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Grillo |
