Membrane system

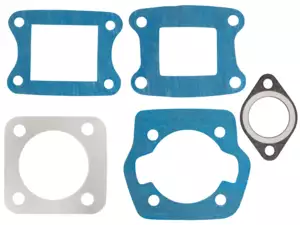

Athena gasket set 45 mm AJH diaphragm | Puch

Manufacturer: Athena · Number of components: 5 pcs · Ø cylinder: 45 mm · Area of application: Tuning · Hole pattern [mm]: 44 x 44 mm / 60 x 40 mm · Hole spacing outlet: 42 mm

Polini 2-folding diaphragm insert

Manufacturer: Polini · Number of flaps: 2 pcs · Mounting type: Screws · Thickness: 2 mm · Area of application: Tuning · Ø mounting hole: 5.3 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 39 x 36/32 mm

Polini lung aluminum

Manufacturer: Polini · Material: Aluminum · Area of application: Tuning · Total height: 40 mm · Total length: 105 mm · Mounting type: Cable ties

Polini gasket diaphragm

Place of use: Admission · Manufacturer: Polini · Ø cylinder: 45 mm

Polini intake system 4-folding diaphragm PHBG | Puch

Manufacturer: Polini · Number of flaps: 4 pcs · Ø outside: 24 mm · Mounting type: Screws · Area of application: Tuning · Ø inside: 19 mm · Hole pattern [mm]: 56 x 30 mm / 39 x 36 mm

Polini intake system 4-folding diaphragm "Big Valve" PHBG / CP carburetor | Puch

Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Material: Plastic · Surface: glass bead blasted · Thread type: M5x0.8 (standard thread) · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Ø inside: 19 mm · Ø mounting hole: 5.2 mm · Ø outside: 24 mm · Area of application: Racing · Area of application: Tuning · Number of fixing points: 4 pcs · Mounting type: Screws

Athena diaphragm seal AJH | Puch

Manufacturer: Athena · Material: Oiled paper · Place of use: Admission · Thickness: 0.5 mm · Area of application: Tuning · Ø screw holder: 6.7 mm · Hole pattern [mm]: 40 x 62

Stage6 lung aluminum

Manufacturer: Stage6 · Material: Aluminum · Camouflaged: No · Surface: chrome-plated · Color: Chrome · Ø inside: 4 mm · Ø External connection: 6 mm · Area of application: Tuning · Total height: 40 mm · Total length: 105 mm · Total length: 125 mm · Mounting type: Cable ties

Intermediate flange cylinder Athena AJH | Puch

Material: Plastic · Color: black-matt · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 · Mounting type: Screws

Malossi intake system 4-folding diaphragm PHBG | Puch / Peugeot 103 RCX, SPX

Manufacturer: Malossi · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Ø outside: 24 mm · Area of application: Tuning · Mounting type: Screws

Malossi 4-folding diaphragm insert Carbon Gilardoni italkit | Puch

Manufacturer: Malossi · Material: Plastic · Number of flaps: 4 pcs · Membrane material: Carbon · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 61 x 39 mm / 58 x 35 mm · Mounting type: Screws

Malossi diaphragm plate 0.3 mm carbonite 10 x 10 cm

Manufacturer: Malossi · Width: 100 mm · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Total length: 100 mm · Area of application: Tuning

Athena gasket set 2-folding diaphragm | Puch / Sachs

Manufacturer: Athena · Material: Sealing paper · Thickness: 0.5 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 33 x 32 mm · Mounting type: Screws

MBR plate inlet Gilardoni italkit steel

Manufacturer: MBR · Material: Steel · Surface: raw · Width: 48 mm · Total length: 72.5 mm · Mounting type: Screws · Thickness: 5 mm · Ø inside: 21 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 mm

Polini gasket set 4-folding diaphragm | Puch

Manufacturer: Polini · Number of flaps: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 39 x 36/32 mm

Athena 22 mm intake manifold Diaphragm Dell'Orto PHBG | Puch

Manufacturer: Athena · Material: Aluminum · Ø inside: 22 mm · Ø External connection: 26 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 · Mounting type: Screws

Membrane box for ADDY GME engine housing "der.pruefstand" | Puch E50

Hole spacing: 52 mm · Material: Aluminum · Thread type: M6x1 (standard thread) · Width: 66 mm · Total length: 48 mm · Hole pattern [mm]: 37 x 55

Polini 20 mm intake manifold 2-folding diaphragm Puch

Manufacturer: Polini · Material: Aluminum · Ø inside: 20 mm · Ø External connection: 25 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Total height: 46 mm · Mounting type: Screws

Gasket set diaphragm Gilardoni italkit Puch

Area of application: Tuning · Number of components: 2 pcs · Hole pattern [mm]: 60 x 35 mm

Malossi gasket set 4-folding diaphragm | Puch, Peugeot

Manufacturer: Malossi · Material: Sealing paper · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Malossi 4-folding diaphragm insert carbonite Gilardoni italkit | Puch

Manufacturer: Malossi · Number of flaps: 4 pcs · Membrane material: Carbonite · Hole pattern [mm]: 61 x 39 mm / 58 x 35 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Malossi diaphragm plate 0.3 mm carbon 10 x 10 cm

Manufacturer: Malossi · Width: 100 mm · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Total length: 100 mm · Area of application: Tuning

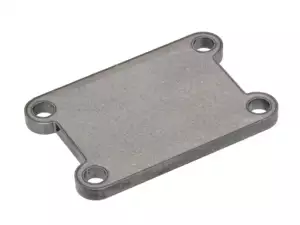

MBR cover diaphragm inlet Gilardoni italkit | Puch

Manufacturer: MBR · Material: Steel · Surface: raw · Thickness: 5 mm · Width: 48 mm · Total length: 72.5 mm · Ø mounting hole: 6.3 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 mm · Mounting type: Screws

2-folding diaphragm insert Athena AJH | Puch

Number of flaps: 2 pcs · Membrane material: Spring steel · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 mm · Mounting type: Screws

Malossi diaphragm plate 0.4 mm carbonite 10 x 10 cm

Manufacturer: Malossi · Width: 100 mm · Membrane material: Carbonite · Thick membrane platelets: 0.4 mm · Total length: 100 mm · Area of application: Tuning

Malossi diaphragm plate 0.35 mm carbonite 10 x 10 cm

Manufacturer: Malossi · Width: 100 mm · Membrane material: Carbonite · Thick membrane platelets: 0.35 mm · Total length: 100 mm · Area of application: Tuning

Membrane transpacer Polini Trapez 12 mm aluminum | Puch ZA50

Material: Aluminum · Surface: blank · Width: 42.5 mm · Width: 46 mm · Total length: 50 mm · Mounting type: Screws · Thickness: 12 mm · Ø mounting hole: 5.4 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 32 / 36 x 39

MLM 19 mm intake manifold Polini 2-folding diaphragm Dell'Orto PHBG, CP | Puch

Manufacturer: MLM · Material: Steel · Surface: varnished · Color: black · Mounting type: Screws · Ø inside: 19 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Total height: 67 mm · Ø External connection: 23 mm

Malossi intake system 4-folding diaphragm SHA | Puch / Peugeot 103 SP, 104, 105

Manufacturer: Malossi · Number of flaps: 4 pcs · Ø inside: 15 mm · Ø outside: 19 mm · Area of application: Tuning · Mounting type: Screws

Malossi diaphragm insert carbon 0.3 mm | Peugeot 103 / BYE BIKE

Manufacturer: Malossi · Camouflaged: No · Material: Plastic · Surface: raw · Number of flaps: 1 pcs · Thickness: 3 mm · Width: 43 mm · Width: 47 mm · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Total length: 50 mm · Ø mounting hole: 5.4 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 32 / 36 x 39 · Mounting type: Screws

DMP 2 hinged membrane insert

Manufacturer: DMP · Number of flaps: 2 pcs · Membrane material: Spring steel · Ø mounting hole: 5.8 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 39 x 36/32 mm · Mounting type: Screws

Parmakit 2-folding diaphragm insert carbon

Manufacturer: Parmakit · Number of flaps: 2 pcs · Membrane material: Carbon · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 mm · Mounting type: Screws

Polini 2-folding diaphragm Puch

Manufacturer: Polini · Number of flaps: 2 pcs · Hole pattern [mm]: 39 x 36/32 mm · Thickness: 2 mm · Ø mounting hole: 5.3 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Gilardoni italkit 4-folding diaphragm original

Manufacturer: Gilardoni italkit · Number of flaps: 4 pcs · Membrane material: Carbon · Ø mounting hole: 6.3 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 mm · Mounting type: Screws

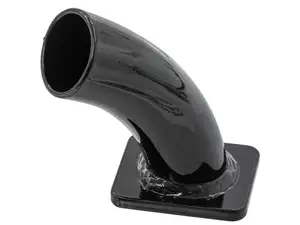

MLM 19 mm intake manifold Polini 4-folding diaphragm Dell'Orto PHBG, CP | Puch

Manufacturer: MLM · Material: Steel · Surface: varnished · Color: black · Ø inside: 25.3 mm · Ø External connection: 28.5 mm · Area of application: Tuning · Total height: 80 mm · Mounting type: Plug connection clamped

Athena 2-folding diaphragm | Puch / Sachs

Manufacturer: Athena · Number of flaps: 2 pcs · Membrane material: Spring steel · Area of application: Tuning · Number of fixing points: 4 pcs · Mounting type: Screws

Polini intake system 4-folding diaphragm SHA | Puch

Manufacturer: Polini · Material: Aluminum · Number of flaps: 4 pcs · Ø inside: 15 mm · Ø outside: 19 mm · Area of application: Tuning · Mounting type: Screws

Malossi 2-folding diaphragm insert carbonite | Puch / Tomos / Peugeot

Manufacturer: Malossi · Number of flaps: 1 pcs · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 39 x 36/32 mm · Mounting type: Screws

Polini diaphragm plate carbon 0.3 / 0.35 mm

Manufacturer: Polini · Hole spacing: 17 mm · Material: Carbon · Camouflaged: No · Number of flaps: 4 pcs · Width: 36 mm · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Total length: 38 mm · Ø mounting hole: 3 mm · Area of application: Racing · Area of application: Tuning · Number of fixing points: 2 pcs · Mounting type: Screws

Malossi 4-folding diaphragm insert carbonite | Puch / Peugeot 103 SP, 104, 105

Manufacturer: Malossi · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Mounting type: Screws

Diaphragm seal | Minarelli, Aprilia, Suzuki

Material: Sealing paper · Place of use: Admission · Thickness: 0.5 mm · Area of application: Racing · Area of application: Tuning · Ø screw holder: 6.3 mm

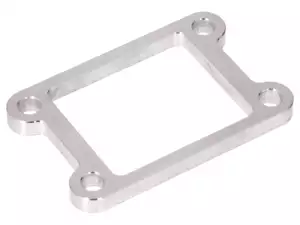

Membrane transpacer Gilardoni italkit rectangle 6 mm aluminum | Puch ZA50

Material: Aluminum · Surface: blank · Thickness: 6.15 mm · Width: 47.8 mm · Total length: 72.8 mm · Ø mounting hole: 5.4 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 59 x 34.5 · Mounting type: Screws

Membrane transpacer Polini Trapez 6 mm aluminum | Puch ZA50

Material: Aluminum · Surface: blank · Thickness: 6.15 mm · Width: 46 mm · Total length: 50 mm · Ø mounting hole: 5.4 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 32 / 36 x 39 · Mounting type: Screws

MBR inclined spacer inlet Gilardoni italkit

Manufacturer: MBR · Material: Aluminum · Area of application: Tuning · Number of fixing points: 4 pcs · Total height: 3 mm · Total height: 8 mm · Hole pattern [mm]: 60 x 35 · Mounting type: Screws

Malossi reed valve carbon 0.3 / 0.35 / 0.4 mm VL6 Gilardoni italkit

Manufacturer: Malossi · Hole spacing: 22 mm · Number of flaps: 4 pcs · Width: 42 mm · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Thick membrane platelets: 0.4 mm · Total length: 37 mm · Area of application: Tuning · Number of fixing points: 2 pcs · Mounting type: Screws

MBR cover aluminum reed valve inlet Gilardoni italkit cylinder kit | Puch

Manufacturer: MBR · Material: Aluminum · Thickness: 8 mm · Width: 48 mm · Total length: 72.5 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 mm · Mounting type: Screws

Polini 4-flap diaphragm insert

Manufacturer: Polini · Camouflaged: No · Material: Plastic · Material: Sheet metal (steel) · Surface: raw · Number of flaps: 4 pcs · Width: 47.9 mm · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Total length: 72.9 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 35 x 60 · Mounting type: Stud bolts & nuts

Malossi gasket set 2-folding diaphragm for Polini 43.5 mm | Puch

Manufacturer: Malossi · Material: Sealing paper · Hole pattern [mm]: 39 x 36/32 mm · Number of fixing points: 4 pcs · Area of application: Tuning

Malossi MHR intake system 4-folding diaphragm PHGB Gilardoni italkit | Puch

Manufacturer: Malossi · Material: Aluminum · Material: FPM / FKM (colloquially known as Viton) · Camouflaged: No · Number of flaps: 2 pcs · Membrane material: Carbonite · Ø inside: 24.5 mm · Ø mounting hole: 6.5 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 35 / 61 x 40 · Mounting type: Screws

Malossi reed valve block MHR TEAM VL16

Manufacturer: Malossi · Hole spacing: 53 mm · Camouflaged: No · Material: Plastic · Number of flaps: 2 pcs · Width: 48.3 mm · Membrane material: Carbon · Thick membrane platelets: 0.35 mm · Total length: 66.2 mm · Ø mounting hole: 6.6 mm · Area of application: Racing · Number of fixing points: 2 pcs · Mounting type: Screws

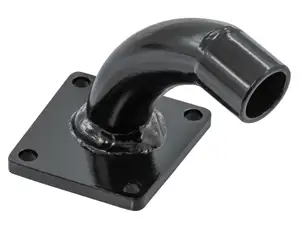

MLM 15 mm intake manifold Polini 2-folding diaphragm Dell'Orto SHA | Puch

Manufacturer: MLM · Material: Steel · Surface: varnished · Color: black · Ø inside: 15 mm · Ø External connection: 18 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Total height: 58 mm · Mounting type: Screws

MLM 15 mm intake manifold diaphragm adapter Bing SRE | Puch

Manufacturer: MLM · Material: Steel · Surface: varnished · Color: black · Ø inside: 15 mm · Ø External connection: 20 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Mounting type: Screws

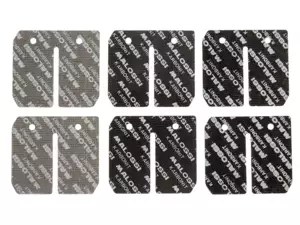

Malossi reed valve carbonite 0.3 / 0.35 / 0.4 mm VL6 Gilardoni italkit

Manufacturer: Malossi · Hole spacing: 22 mm · Number of flaps: 4 pcs · Width: 42 mm · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Thick membrane platelets: 0.4 mm · Total length: 37 mm · Area of application: Tuning · Number of fixing points: 2 pcs · Mounting type: Screws

Polini | Puch Diaphragm Box

Material: Aluminum · Thread type: M6x1 (standard thread) · Mounting type: Screws · Ø inside: 32 mm · Ø inside: 35.95 mm · Ø inside: 39 mm · Ø inside: 44 mm · Area of application: Racing · Area of application: Tuning · Number of fixing points: 8 pcs · Hole spacing inlet: 32 mm · Hole spacing inlet: 36 mm · Hole spacing inlet: 38 mm · Total height: 47 mm · Hole pattern [mm]: 40.85 x 50.9 · Total length: 58 mm

MLM 15 mm intake manifold diaphragm adapter Dell'Orto SHA | Puch

Manufacturer: MLM · Material: Steel · Surface: varnished · Color: black · Ø inside: 15 mm · Ø External connection: 19 mm · Area of application: Tuning · Number of fixing points: 4 pcs · Mounting type: Screws

Polini diaphragm block | Minarelli horizontal

Manufacturer: Polini · Hole spacing: 52.5 mm · Hole spacing: 62 mm · Material: Carbonite · Material: Plastic · Material: Steel · Thread type: M6x1 (standard thread) · Thickness: 3.5 mm · Number of flaps: 4 pcs · Width: 36.3 mm · Width: 39.7 mm · Width: 64.9 mm · Width: 75.2 mm · Membrane material: Carbonite · Thick membrane platelets: 0.35 mm · Total length: 38.9 mm · Ø mounting hole: 6.4 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 52.5 x 62 · Mounting type: Screws

Stage6 8-folding diaphragm by Moto Tassinari (Gilardoni italkit)

Manufacturer: Stage6 · Material: Plastic · Surface: raw · Number of flaps: 8 pcs · Width: 49 mm · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Total length: 77 mm · Ø mounting hole: 6.6 mm · Area of application: High End · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 34.8 mm · Mounting type: Screws

Stage6 reed valve block VForce 3 by Moto Tassinari

Manufacturer: Stage6 · Hole spacing: 52 mm · Number of flaps: 8 pcs

Stage6 reed valve V-Force 3 by Moto Tassinari | Minarelli

Manufacturer: Stage6 · Material: Plastic · Number of flaps: 8 pcs · Width: 68 mm · Membrane material: Carbon · Thick membrane platelets: 0.3 mm · Total length: 76 mm · Ø mounting hole: 6.5 mm · Area of application: Racing · Area of application: Tuning · Number of fixing points: 4 pcs · Mounting type: Screws

Gilardoni italkit Diaphragm Box | Puch

Material: Aluminum · Color: black · Thread type: M6x1 (standard thread) · Ø inside: 32 mm · Ø inside: 35.95 mm · Ø inside: 39 mm · Ø inside: 44 mm · Area of application: Racing · Area of application: Tuning · Number of fixing points: 8 pcs · Total height: 54.1 mm · Hole spacing inlet: 32 mm · Hole spacing inlet: 36 mm · Hole spacing inlet: 38 mm · Total length: 73 mm · Hole pattern [mm]: 34.8 x 59.9 · Mounting type: Screws
