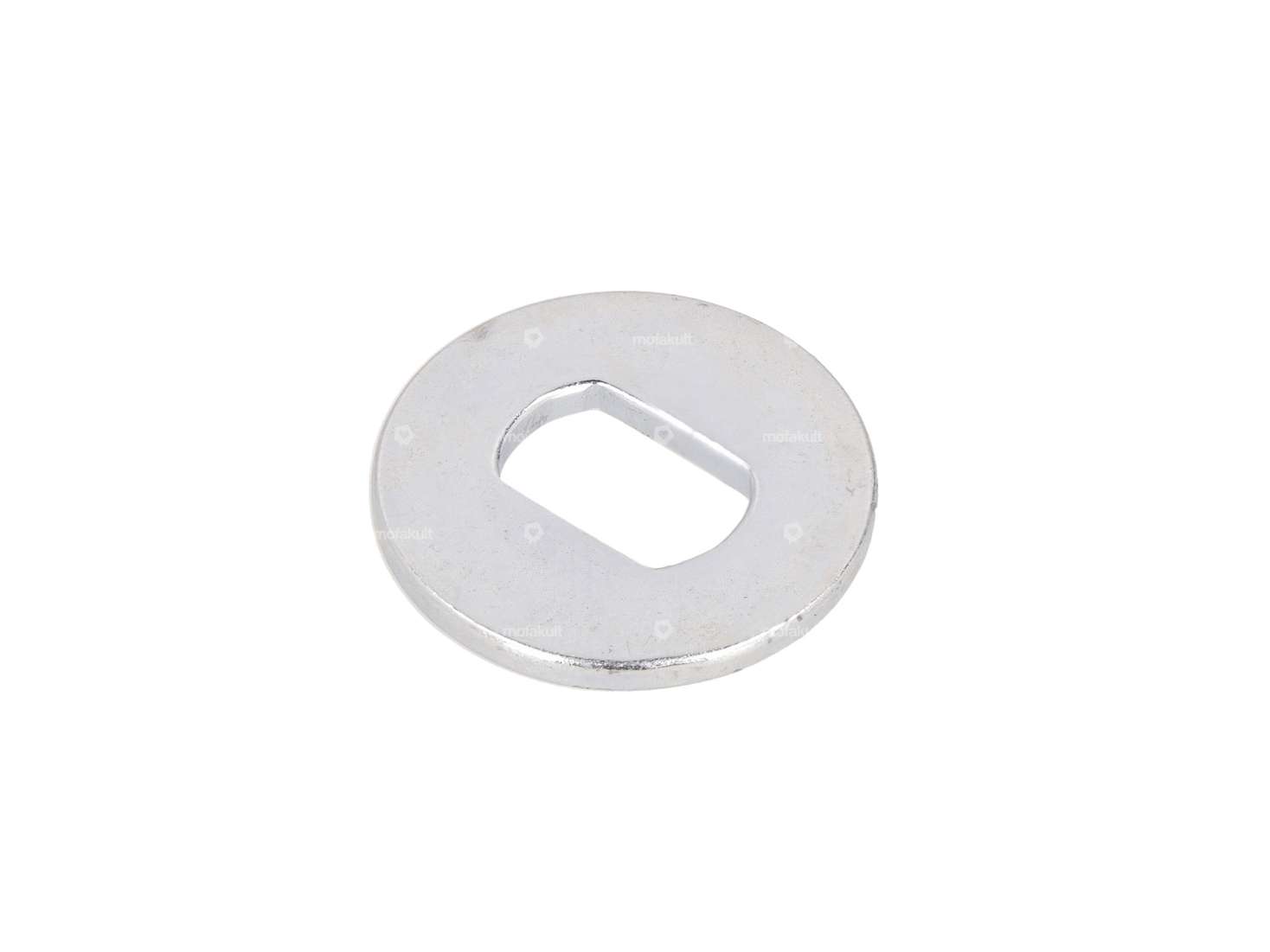

Brake cam shim for the brake cam on the front cast iron anchor plate of your Piaggio Ciao, Si or Bravo moped / moped. In addition, the shim also fits the brake lever on the rear brake anchor plate (P2940) of your Pony GTX 521.
The shim is mounted between the brake anchor plate and the brake lever to prevent damage to the moving parts.
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Surface | galvanized (blue) |
| Ø inside | 10 mm, 6.5 mm |
| Ø outside | 20.5 mm |
| Thickness | 1.7 mm |
| Piaggio OEM number | 184468 |
| Pony / Cilo (Beta 521 & 512) | Pony GTX 521 (frame) |
| Piaggio | Ciao - PX , C24 Si Bravo / Super Bravo |
