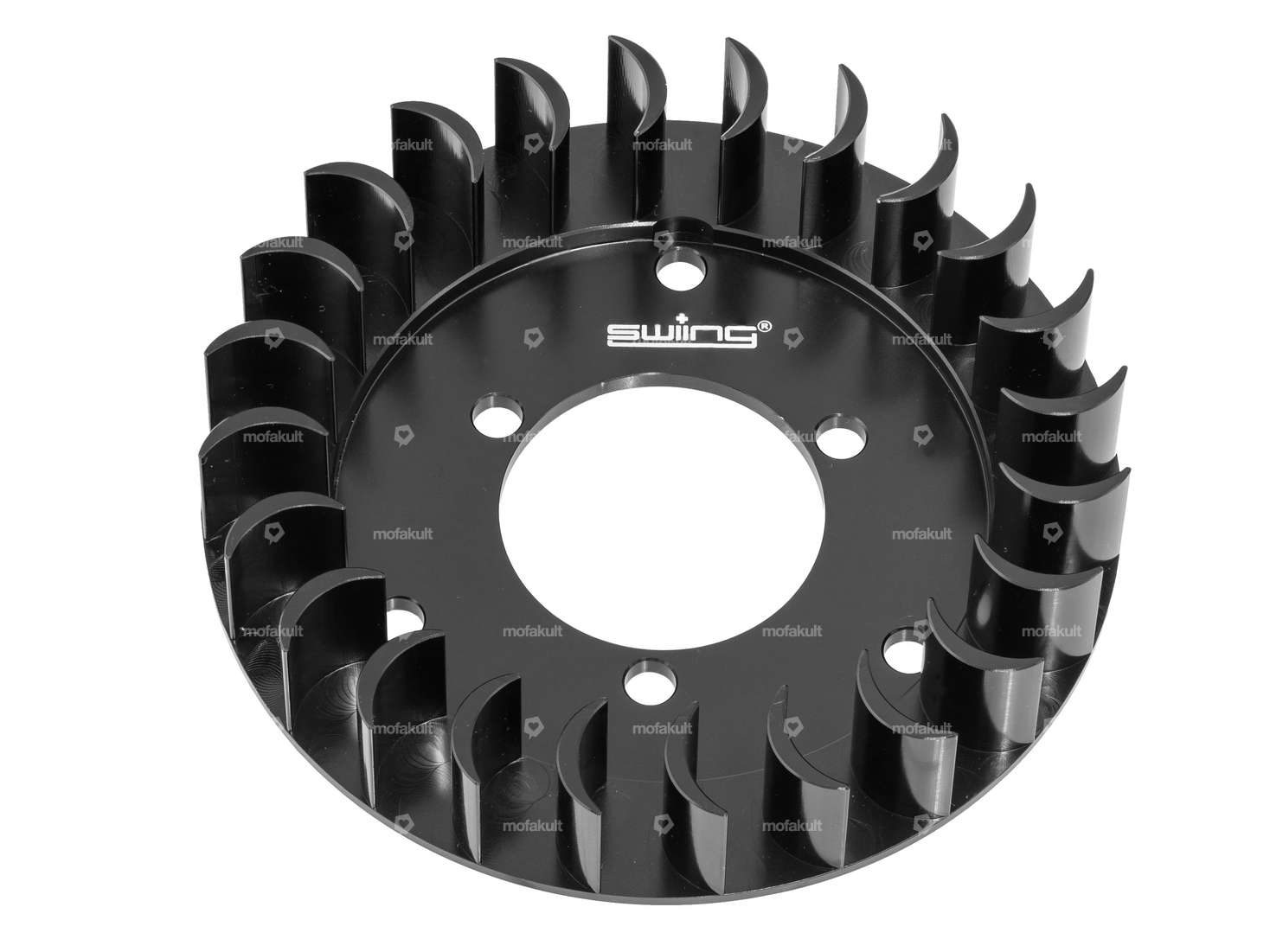

Black anodized fan wheel for your Sachs 50/2 and 50/3 moped / moped.
Due to the different bolt circles, the fan wheel can be mounted on Bosch / Ducati, swiing® ingenious EVO and HPI flywheels.
The wheel is CNC-machined from solid material and is of the highest quality with a perfect fit.
Caution: Under no circumstances should excessively long screws be used for assembly, as otherwise the underlying stator winding may be damaged.
The matching screw set and other mounting parts can be found in the accessories section.
Exceptional product for the highest demands of the quality brand swiing®.
| Height | 25 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Color | black |
| Surface | anodized |
| Ø mounting hole | 6 mm |
| Ø inside | 39 mm |
| Ø outside | 110 mm |
| Ø bolt circle | 48 mm |
| Number of fixing points | 6 pcs |
| Weight | 116 g |
| Alternative version of the Pony OEM number | A1026 |
| Alternative version of the Sachs OEM number | 0211 070 105 |
| Sachs | 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
Accessories & related products
BERU spark plug connector / 1 kΩ interference suppressed
Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Component group Carburetor: Spark plug connector · Ø cable: 5 mm · Ø cable: 7 mm · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00
CHF 8.80
GPO flywheel trigger M26x1.5 / M22x1.5 | Puch, Sachs, Beta 521
Thread type: MF22x1.5 (fine pitch thread) · Thread type: MF26x1.5 (fine pitch thread) · Width across flats (trigger): 27 mm · Width across flats Screw: 19 mm · Manufacturer: GPO · Clamping depth: 10 mm · Total length: 55 mm · Total length: 75 mm · Strength class: 8.8 · Area of application: (Dis)assembly tool · Material: Steel · Surface: blackened · Number of components: 1 pcs
CHF 9.90
HPI flywheel (Bosch/Ducati)
Manufacturer: HPI · Material: Steel · Direction of rotation: left · Direction of rotation: right · Ø cone small inside: 10.9 mm · Ø cone large inside: 15.8 mm · Ø Flywheel outside: 71.5 mm · Cone length: 28 mm · Thread type: MF27x1 LH (fine/left-hand thread) · Cone ratio: 1:5 · Weight: 337 g
CHF 95.90

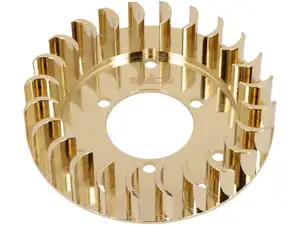

swiing® ingenious fan wheel gold (EVO, HPI, Bosch, Ducati) | Sachs 50/2, 50/3
