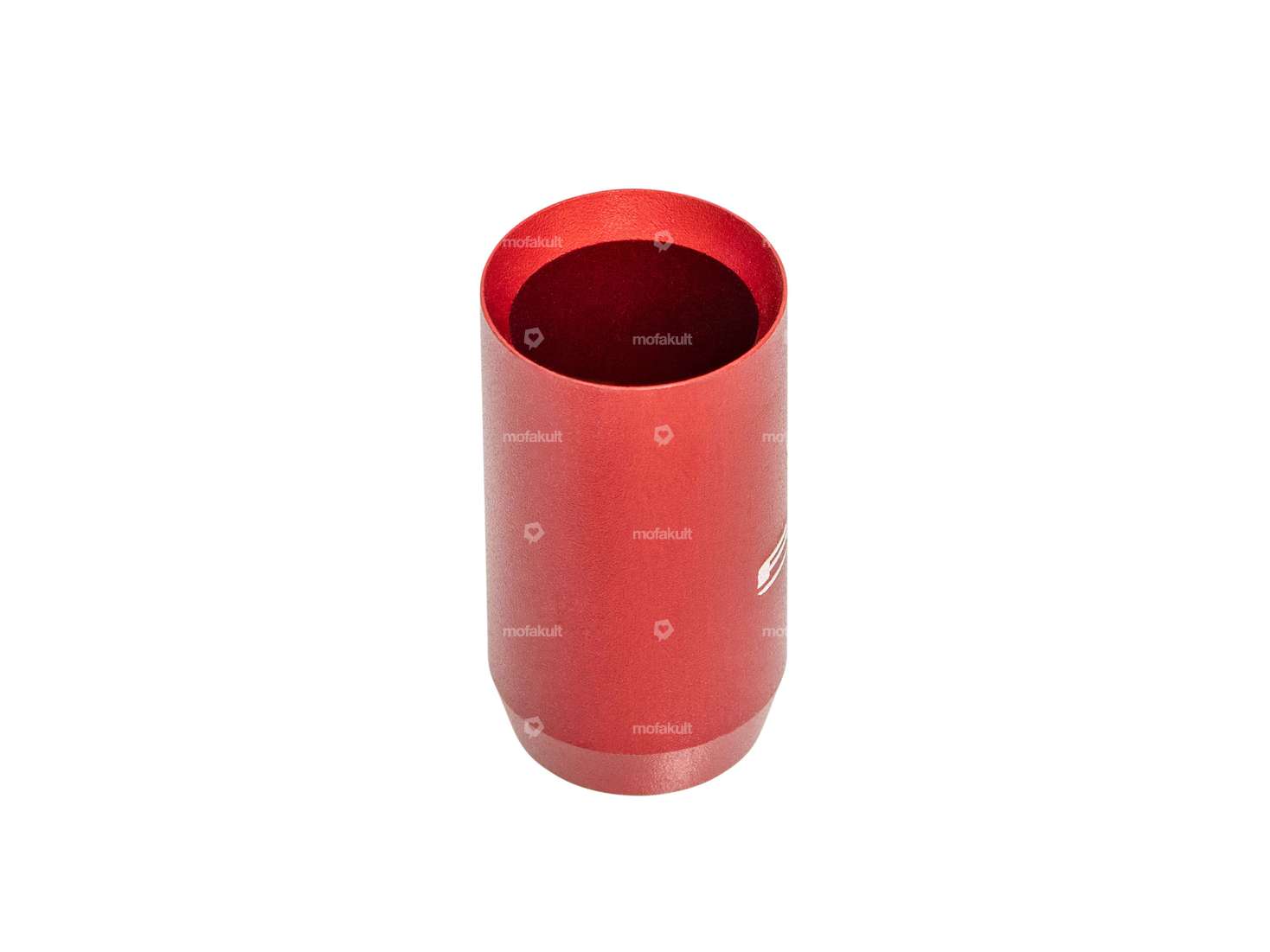

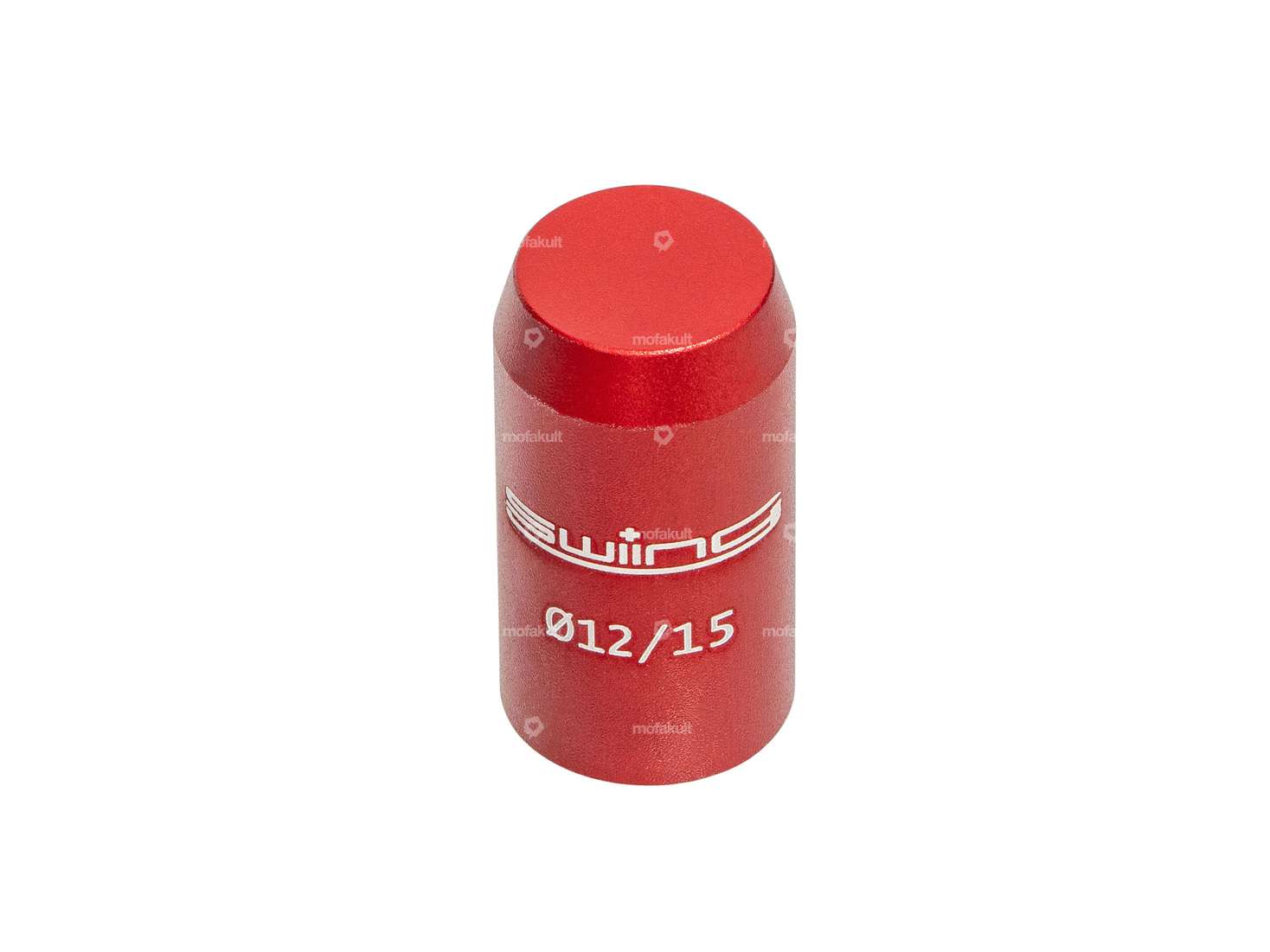

Red anodized aluminium bushes for gentle installation of the KW oil seal on your Sachs moped, moped and small motorcycle.

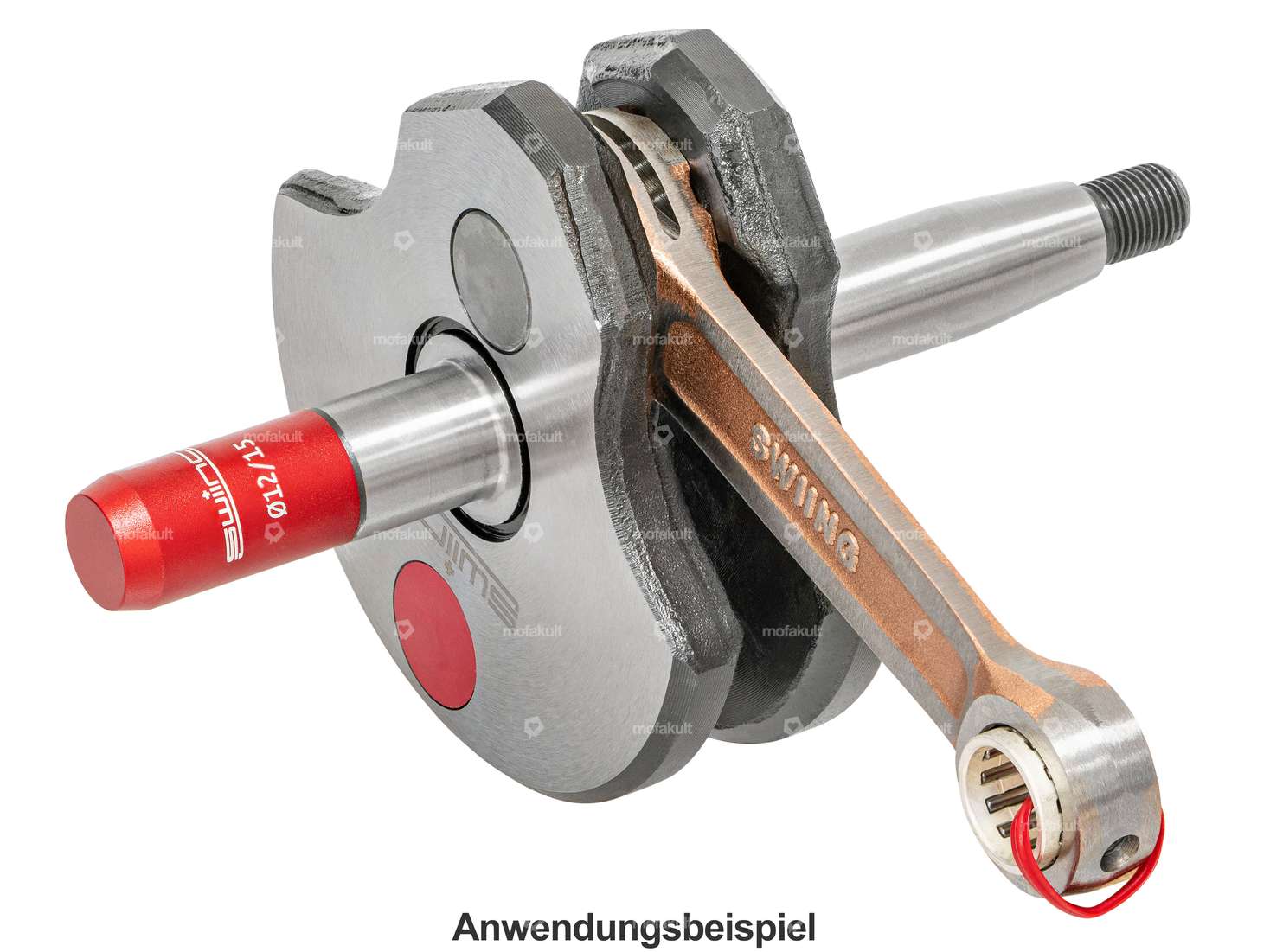

The mounting attachment is used for professional installation of the clutch-side oil seal (also known under the trademarked brand name Simmerring®) on crankshafts with BO15 shoulder ball bearings from Sachs 50/2, 50/3 and 503 engines. Without this mounting aid, the oil seal is often damaged by the sharp-edged shoulder on the crankshaft. With the shaft attachment, the oil seal glides gently over the delicate area.
Ø inner: 12 mm
Ø outer: 15 mm
Made by the quality brand swiing – swiss ingenious.
Details
| Manufacturer | swiing |
| Area of application | Special tool |
| Material | Aluminum |
| Number of components | 1 pcs |
| Surface | anodized |
| Ø inside | 12 mm |
| Ø outside | 15 mm |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 503 - 2AL / 2BL |
Accessories & related products

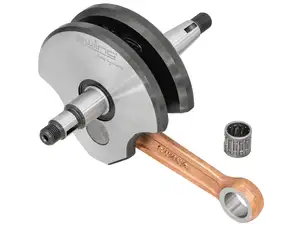

swiing® revival crankshaft standard | Sachs 50/2, 50/3
Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 42 mm · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 40.6 mm · Total length crankpin ignition side: 63.2 mm · Weight: 901 g · Ø crank webs: 30 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 8 mm · Thread length: 11 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Length 1st paragraph: 18.7 mm · Length 2nd paragraph: 14 mm · Area of application: Standard · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Length of shoulder (ignition side): 34 mm · Number of gears: 1 pcs · Number of gears: 3 pcs · Pony OEM number: A2565 · Sachs OEM no.: 0286 139 400
CHF 112.90
Not so nice
Jasil crankshaft | Sachs 503, 50/2, 50/3
Manufacturer: Jasil · Material: Steel · Cheek type: standard · Crankshaft stroke: 42 mm · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 41.2 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 84.5 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 6 mm · Thread length: 10 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 30 mm · Length 1st paragraph: 15.5 mm · Length 2nd paragraph: 13 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Length of shoulder (ignition side): 34.5 mm · Weight: 893 g · Number of gears: 2 pcs · Area of application: Standard
CHF 139.90

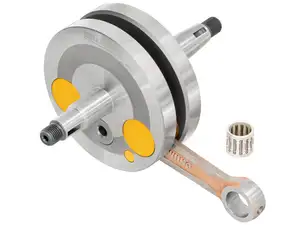

swiing crankshaft High End (Version 2.0) | Sachs 503 2AL, 2BL
Manufacturer: swiing · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 42 mm · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 43.5 mm · Total length crankpin ignition side: 63.4 mm · Ø crank webs: 85 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 8 mm · Thread length: 11 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 30.1 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 13 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Length of shoulder (ignition side): 35 mm · Number of gears: 2 pcs · Area of application: High End · Area of application: Racing · Area of application: Tuning
CHF 184.90
Not in stock
Hot

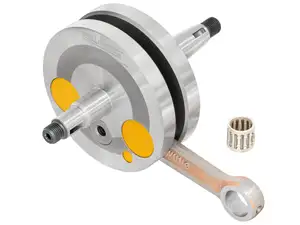

swiing crankshaft High End (Version 2.0) | Sachs 50/2, 50/3
Manufacturer: swiing · Cheek type: Full cheeks · Crankshaft stroke: 42 mm · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 40.7 mm · Total length crankpin ignition side: 63.4 mm · Ø crank webs: 85 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: MF10x1 (fine pitch thread) · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 30.1 mm · Weight: 1038 g · Area of application: High End
CHF 184.90
Not in stock
Moped fans like you also bought:
BING O-ring Bing SRE & 85, Ø 20 mm
Cord thickness: 1.4 mm · Manufacturer: BING · Place of use: Carburetor · Material: Rubber · Surface: raw · Area of application: Standard · Ø inside: 17.2 mm · Ø outside: 20 mm · Number of components: 1 pcs · Color: black · Sachs OEM no.: 0250 160 101 · Pony OEM number: A4281
CHF 2.90
NSK E15 shoulder ball bearing 15/35/8 (A1149)
Bearing cage: Brass cage ball-guided · Inner ring width: 8 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Groove ring: No · Material: Brass · Material: Steel · Surface: blank · Stock number: E15 · Area of application: Standard · Bearing type: Shoulder bearing · Ø inside: 15 mm · Ø outside: 35 mm · Width: 8 mm · Ball bearing closed: No · Sachs OEM no.: 0232 017 006 · Pony OEM number: A1149
CHF 24.90
NSK BO15 shoulder ball bearing 15/40/10 (A4502)
Bearing type: Shoulder bearing · Stock number: BO15 · Ø inside: 15 mm · Ø outside: 40 mm · Width: 10 mm · Inner ring width: 10 mm · Manufacturer: NSK · Ball bearing closed: No · Bearing cage: Brass cage ball-guided · Material: Brass · Material: Steel · Surface: blank · Area of application: Standard · Pony OEM number: A4502 · Sachs OEM no.: 0932 007 001
CHF 24.90

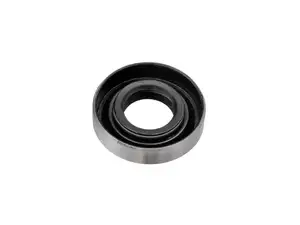

Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)
