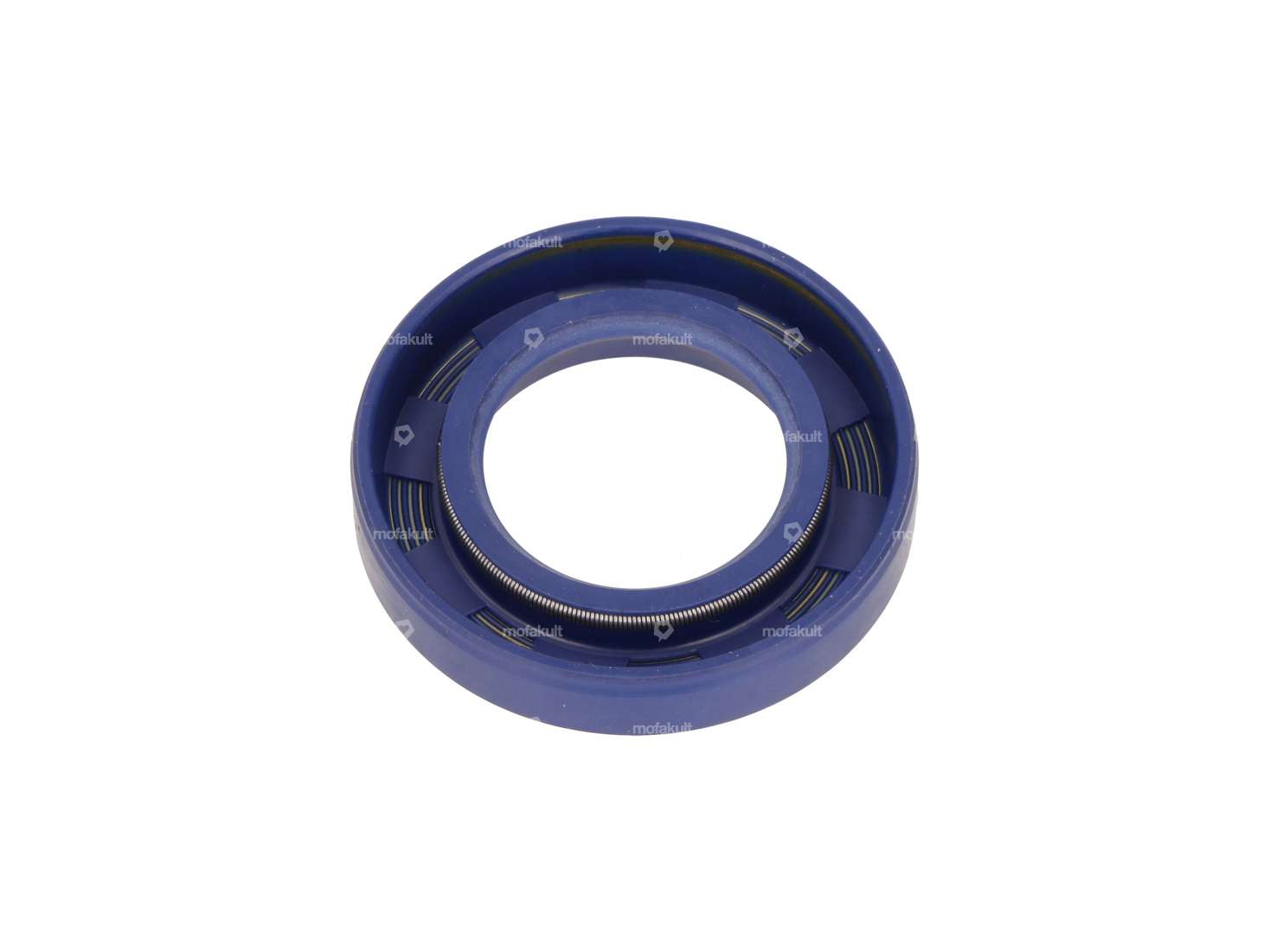

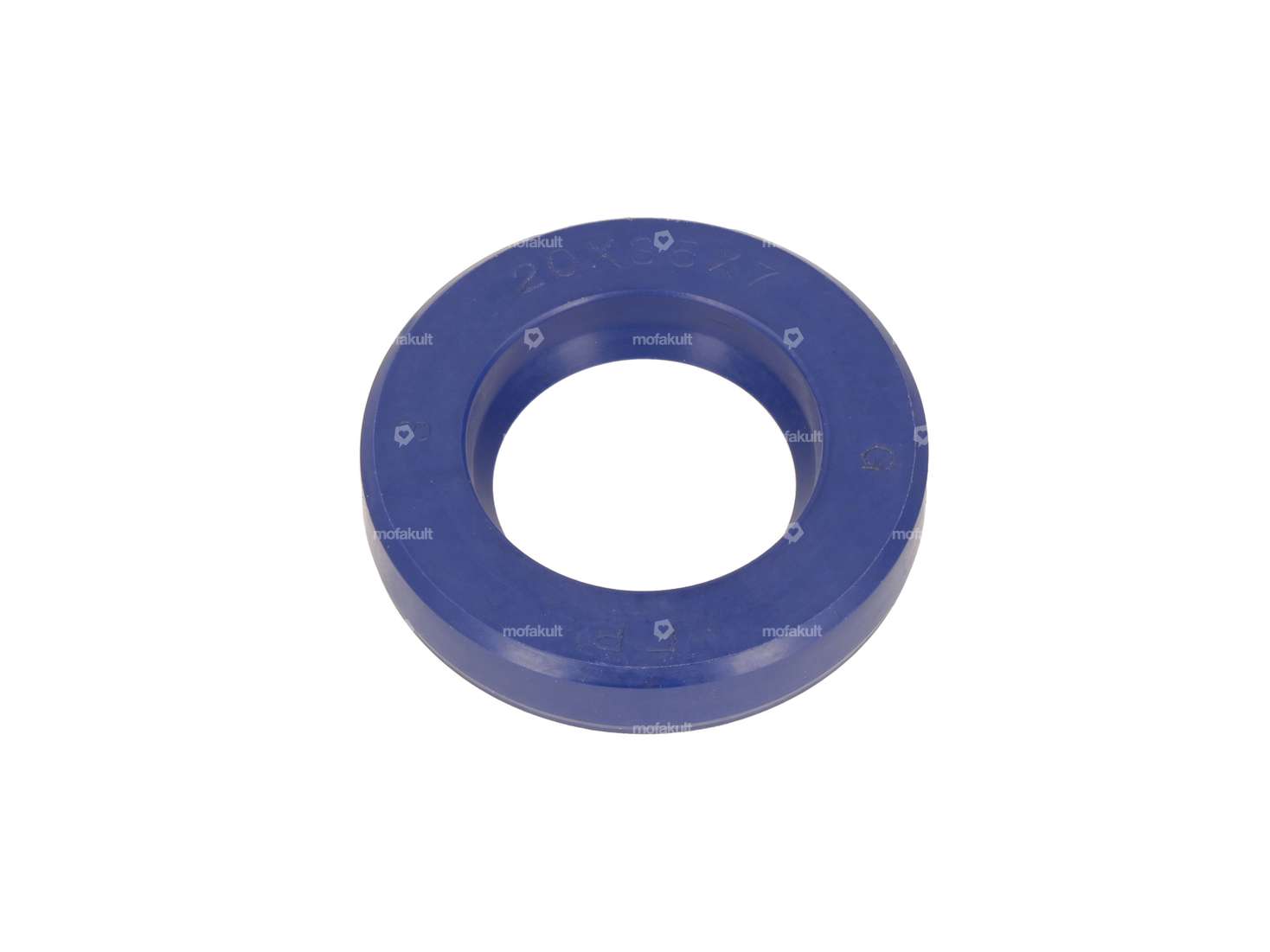

Radial shaft seal 20x35x7 mm for use on the crankshaft of your Puch moped / moped with ZA50 engine
.This shaft seal (colloquially known as a radial shaft seal) made from nitrile rubber is temperature-resistant up to 100°C.
Temperature resistant: approx. -30 to +100 °C, briefly up to 120 °C
Type: A - With rubberized outer casing and a sealing lip.
Note: This type of oil seal was originally installed on your ZA50 engine, but if you want something of a higher quality, you should switch to the AS design.
You can find the aforementioned oil seal in a different design and a complete revision set in the accessories section.
| Place of use | Crankshaft |
| Temperature resistance (min.) | -30 - 100 °C |
| Surface | rubberized |
| Shaft seal type | A - With rubberized outer part / one sealing lip. |
| Width | 7 mm |
| Manufacturer | Puch |
| Ø inside | 20 mm |
| Ø outside | 35 mm |
| Material | NBR |
| Puch | ZA50 (air-cooled) ZA50 (fan-cooled) |
