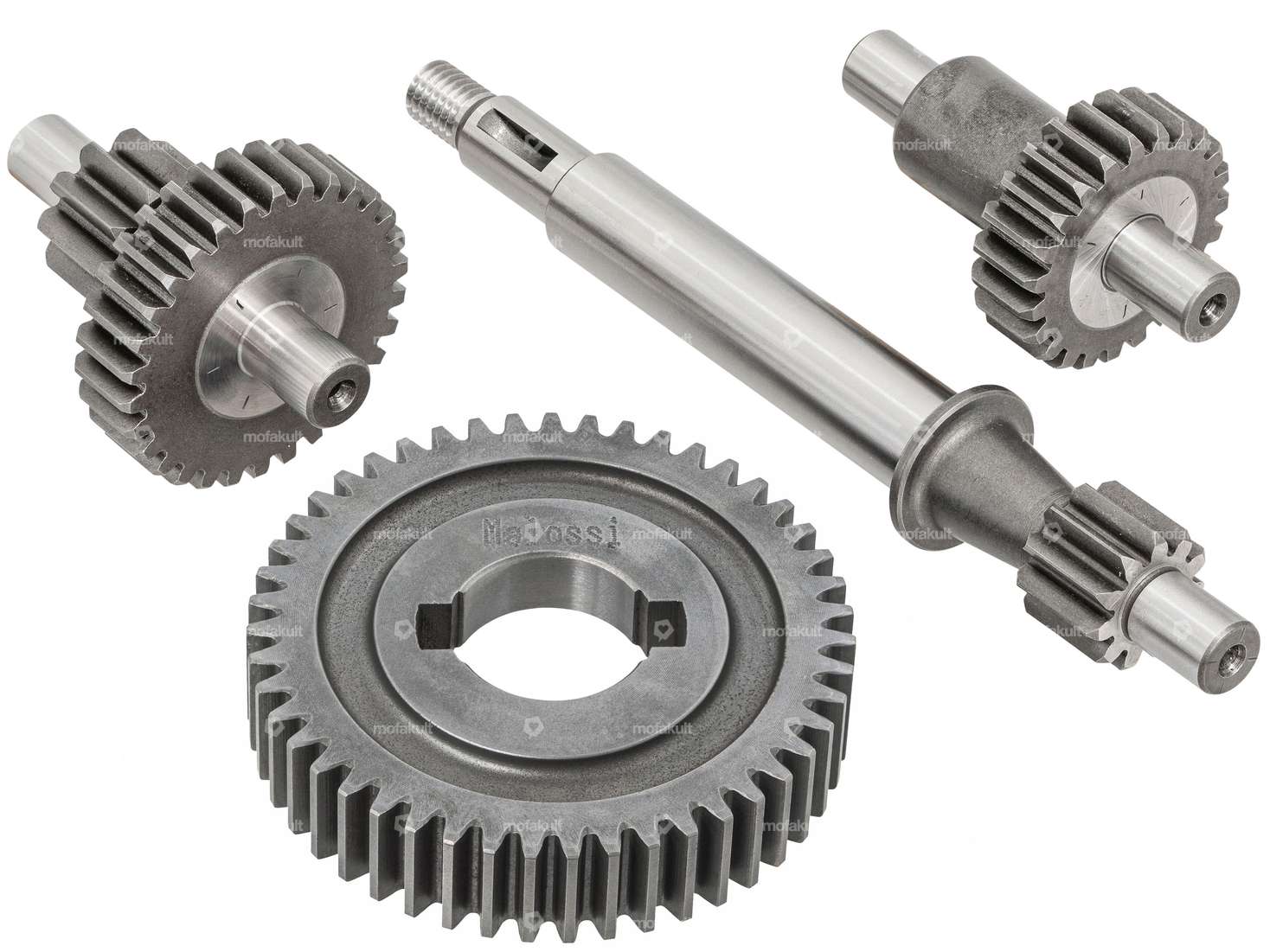

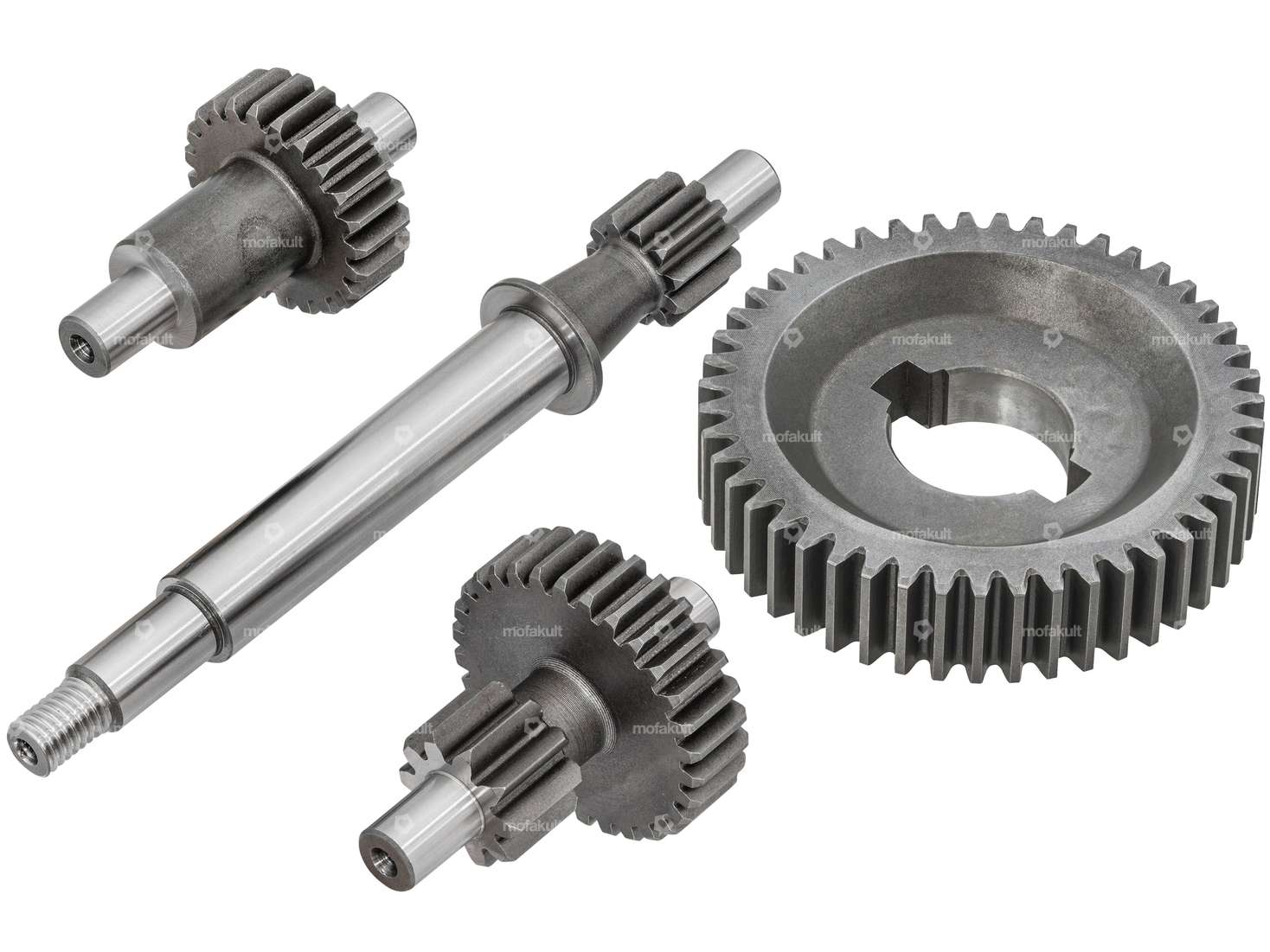

Gearbox set for conversion to the short 1:13 ratio on your Piaggio Ciao, Si, Bravo, Boxer and Grillo moped / moped with variomatic drive.
The total ratio of 13:1 is achieved by replacing the gearbox. This is ideal for use in the mountains or in racing.
This is the new reinforced version of the HTQ gearbox. The thickness of the output gear has been increased to provide more contact area for the meshing flanks. This is particularly advantageous in the case of heavy loads, such as in the cross area, and has a positive effect on durability. Unfortunately, however, this means that the Velo gear can no longer be used.
Number of teeth large gear: 47
Number of teeth small double gear: 10 / 30
Number of teeth intermediate gear: 23
Number of teeth input shaft: 11
Toothing: Straight toothed
Ø Bearing shaft input shaft (drive shaft): 13.0 mm
Overall gear ratio: 13:1
For matching accessories such as gearbox, gearbox or mounting material, see accessories.
Quality product from the Italian manufacturer Malossi.
| Manufacturer | Malossi |
| Material | Steel |
| Toothing type | straight toothed |
| Translation | 12.82 / 1 |
| Gearbox type | Vario |
| Area of application | Tuning, Racing |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Ratings
Accessories & related products
swiing® ingenious rear wheel nut M14x1 SW19 Inox | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: swiing® ingenious parts · Height: 24 mm · Material: Chrome steel (colloquially known as stainless steel) · Drive: External hexagon · Width across flats: 19 mm · Thread type: MF14x1.5 (fine pitch thread)
CHF 13.30
Malossi SAE 80W-90 gear oil "SPORT" 250 ml
Manufacturer: Malossi · Viscosity (SAE): 80W-90 · Oil type: GL4 · Oil type: GL5 · Contents: 250 ml · Area of application: Gearbox lubrication without clutch · Gearbox type: Foot control · Gearbox type: Manual gearshift · Gearbox type: Mono · Gearbox type: Vario
CHF 8.90
CHF 35.60/l

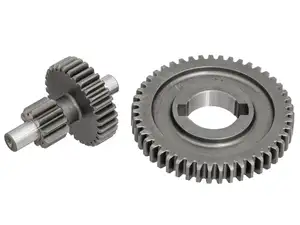

Malossi HTQ gearbox conversion kit Vario | Piaggio Ciao, SI, Bravo, Boxer, Grillo
