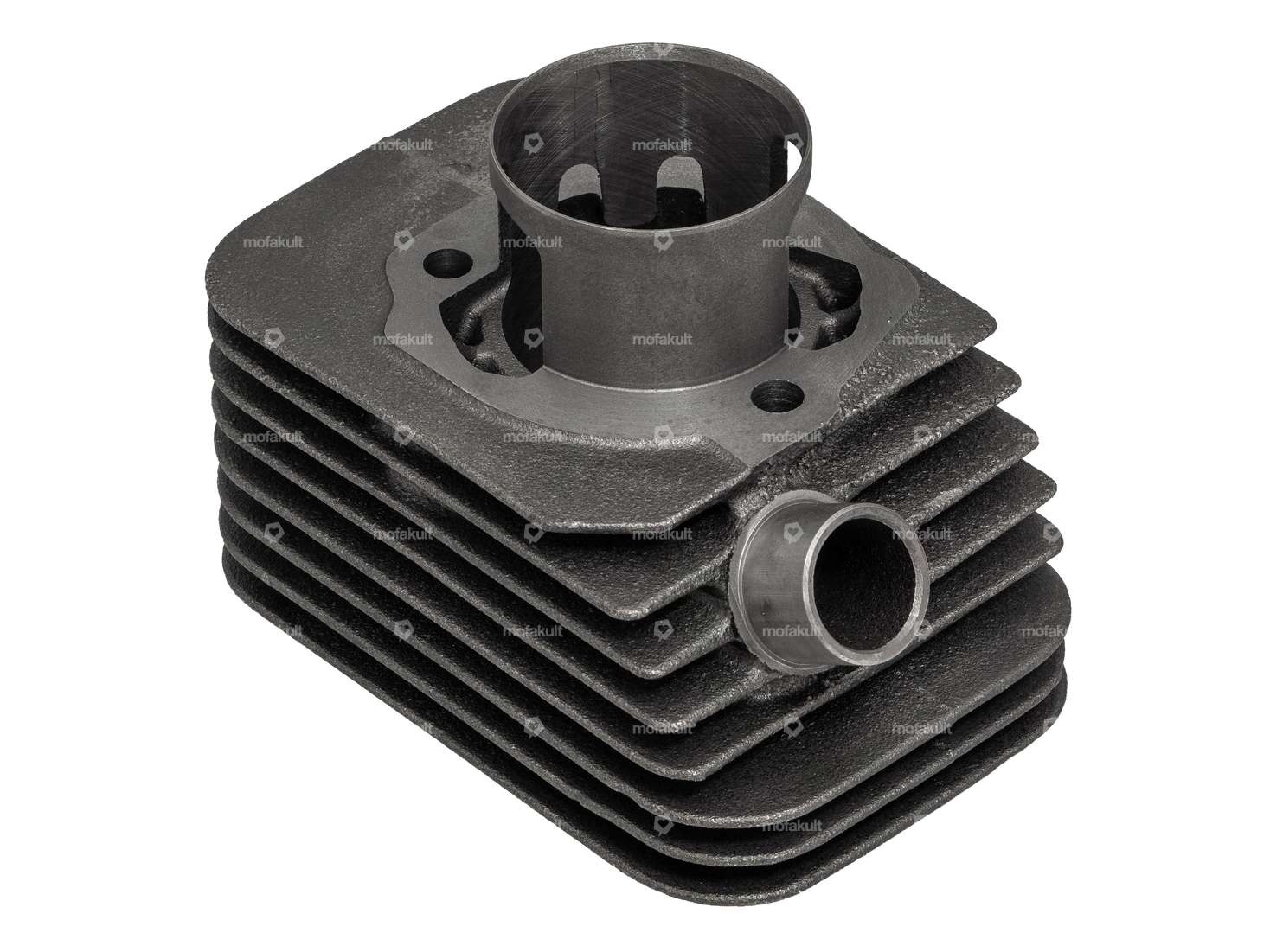

Revised 2021 version of one of the best available cylinder kits for Piaggio mopeds / mopeds.
This is the version with 10 mm piston pin.
This cast iron cylinder offers a very good increase in performance over the entire speed range and makes it one of the most popular 63 cc racing cylinders for Piaggio.
The workmanship is very clean and the matching of the piston windows to the overflow channels and boost parts is also very good. The webs in the area of the cylinder skirt significantly reduce the risk of piston jamming and make the cylinder extremely durable.
With the reworking, the triangular shape of the transfer ports was adapted to a longitudinal shape. As a result, the cylinder fits much better on racing gear such as the Polini Speed Engine, but less well on the original gear. Fortunately, there is enough sealing surface available so that you can also bring the channels back into a triangular shape on the cylinder if necessary.
In addition to installing a larger cylinder, we always recommend adapting the carburetor and exhaust accordingly. Ideally, you should also modify the intake and the overflow ducts or go straight for a racing case.
Because the combustion chamber is optimally matched to the cylinder, we recommend using the Malossi cylinder head. Alternatively, the cylinder can also be operated with the original head.
Further add-on parts and other versions of the cylinder can be found under accessories.
Quality product from the Italian manufacturer Malossi.
| Nominal diameter | 43 mm |
| Manufacturer | Malossi |
| Material | Gray cast iron |
| Surface | sandblasted |
| Displacement | 63 ccm |
| Area of application | Tuning |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 45.6 mm |
| Ø Outlet outside | 22.5 mm |
| Ø outlet inside | 18.3 mm |
| Number of fixing points | 3 pcs |
| Ø piston pin (B) | 10 mm |
| Outlet type | clamped |
| Hole pattern [mm] | 55 x 34 |
| Decompressor | Yes |
| Camouflaged | No |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
Ratings
Accessories & related products
SITO Plus exhaust Ø 24 mm | Piaggio Ciao, Bravo
Manufacturer: SITO · Material: Steel · Color: black · Surface: varnished · Total length: 690 mm · Mounting type: Welded lug · Ø Silencer: 70 mm · Number of fixing points: 1 pcs · Ø Internal connection: 22 mm · Ø Flame tube outside: 24 mm · Exhaust type: Cylindrical · Ø outside: 14 mm · Flame tube attachment: Plug connection clamped
CHF 74.90
SITO Plus exhaust Ø 24 mm | Piaggio SI, Grillo
Manufacturer: SITO · Material: Steel · Surface: varnished · Color: black · Total length: 720 mm · Mounting type: Welded lug · Ø Silencer: 70 mm · Ø outside: 14 mm · Number of fixing points: 1 pcs · Ø Flame tube outside: 25 mm · Exhaust type: Cylindrical · Ø Internal connection: 22.3 mm · Flame tube attachment: Plug connection clamped
CHF 79.90
Malossi cylinder head for 41 - 43 mm cylinder kit | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Material: Aluminum · Area of application: Racing · Surface: sandblasted · Ø cylinder: 41 - 43 mm · Width: 87 mm · Height: 60 mm · Total length: 122 mm · Number of fixing points: 3 pcs · Candle thread: long · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Camouflaged: No
CHF 72.90
Polini Speed Engine engine case breaker ignition | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Material: Aluminum · Surface: sandblasted · Color: silver · Stock number: 6202 · Crankshaft stroke: 43 mm · Ignition type: Breaker · Total length: 215 mm · Width: 175 mm · Height: 104 mm
CHF 209.90
Malossi tuning set 43 mm | Piaggio Ciao, Bravo, Boxer
Nominal diameter: 65 mm · Manufacturer: Dell'Orto · Manufacturer: Malossi · Manufacturer: NGK · Manufacturer: SITO · Manufacturer: swiing® revival parts · Area of application: Tuning · Displacement: 65 ccm · Ø piston pin (B): 10 mm · Ø piston pin (B): 12 mm · Camouflaged: No
CHF 354.90
Malossi cylinder head for 41 - 43 mm cylinder kit | Piaggio SI, Bravo
Manufacturer: Malossi · Material: Aluminum · Ø cylinder: 41 - 43 mm · Total length: 134 mm · Candle thread: short · Width: 94 mm · Height: 52 mm · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Number of fixing points: 3 pcs · Camouflaged: No · Area of application: Racing
CHF 69.90
Not in stock
Mazzucchelli crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Thread type: M8x1.25 (standard thread) · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Weight: 698 g · Number of gears: 1 pcs · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Thread length: 16 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø piston pin (B): 10 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Area of application: Racing · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 °
CHF 149.90
Malossi tuning set 43 mm | Piaggio SI, Bravo, Grillo
Nominal diameter: 44 mm · Manufacturer: Dell'Orto · Manufacturer: Malossi · Manufacturer: NGK · Manufacturer: SITO · Manufacturer: swiing® revival parts · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 10 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Decompressor: Yes · Camouflaged: No · Area of application: Tuning
CHF 374.90
Dell'Orto 13/13 SHA carburetor & racing air filter set | Piaggio Ciao PX, C24
Nominal diameter: 13 mm · Manufacturer: Dell'Orto · Manufacturer: Malossi · Component group Carburetor: Carburetor complete · Area of application: Tuning · Width: 60 mm · Carburetor type: SHA (Piaggio) · Height: 96 mm · Mounting type: Plug connection clamped · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 18 mm · Total length: 46 mm · Ø Inside entrance: 13 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø Internal connection: 16 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 66
CHF 66.90
swiing® ingenious stud bolt M7x120 / Ø 7.3 shank (10.9 strength)
Total length: 120 mm · Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Thread type: M7x1 (standard thread) · Diameter: 7.3 mm · Thread length: 20 mm · Thread length: 30 mm · Strength class: 10.9
CHF 4.90

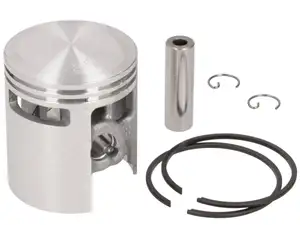

Malossi piston 43 mm (10 mm KoBo) new version | Piaggio Ciao, SI, Bravo, Boxer
