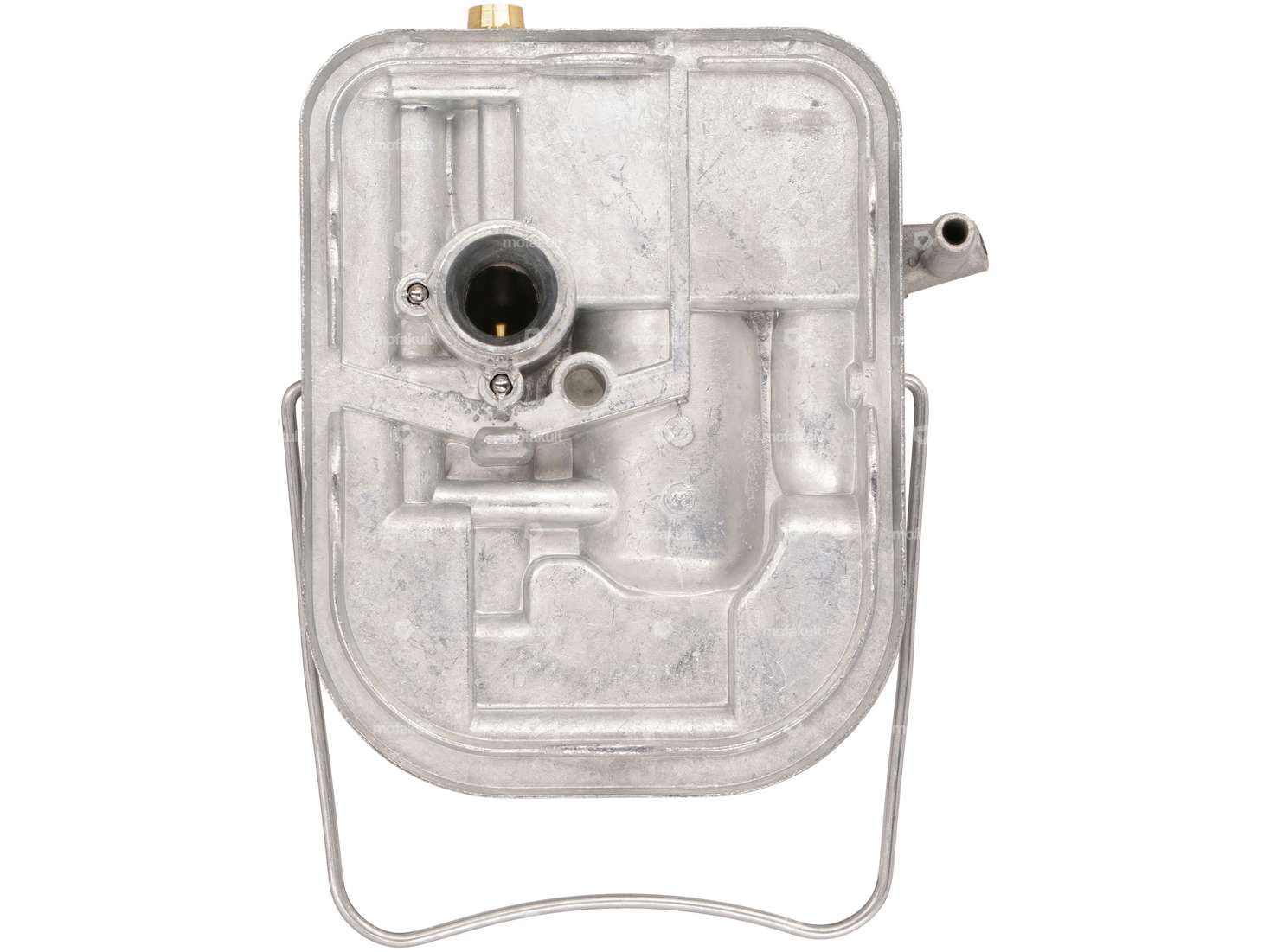

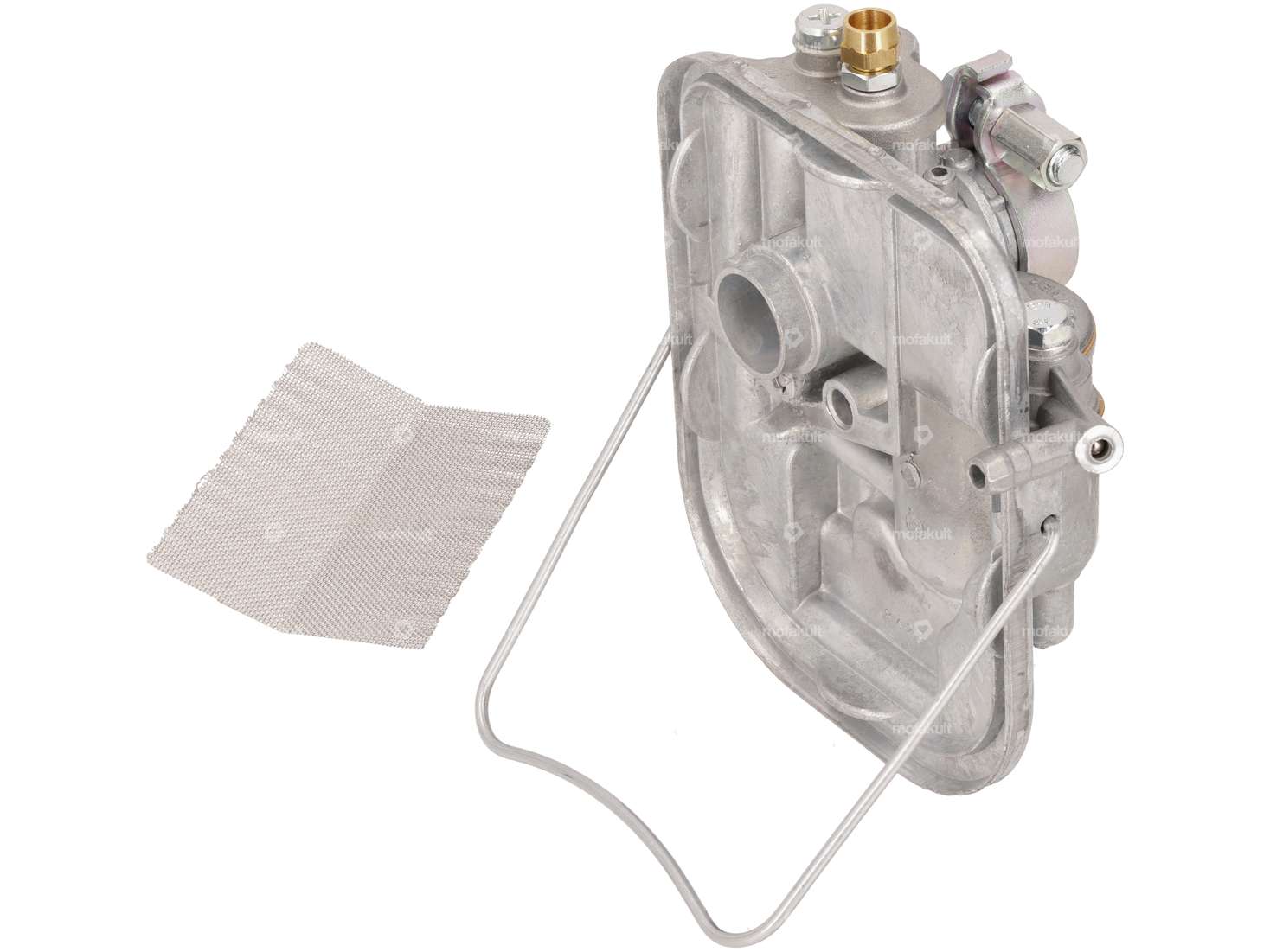

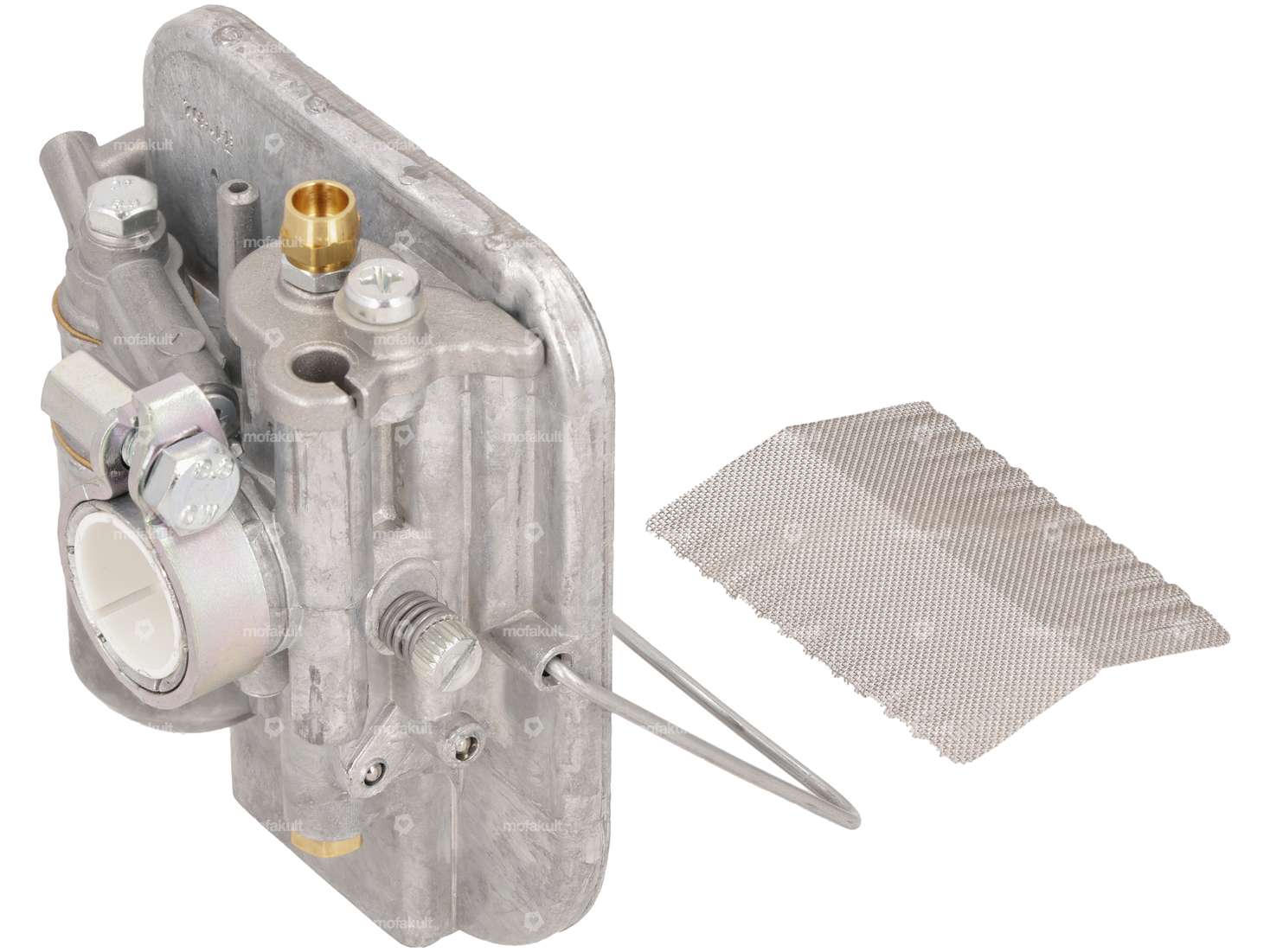

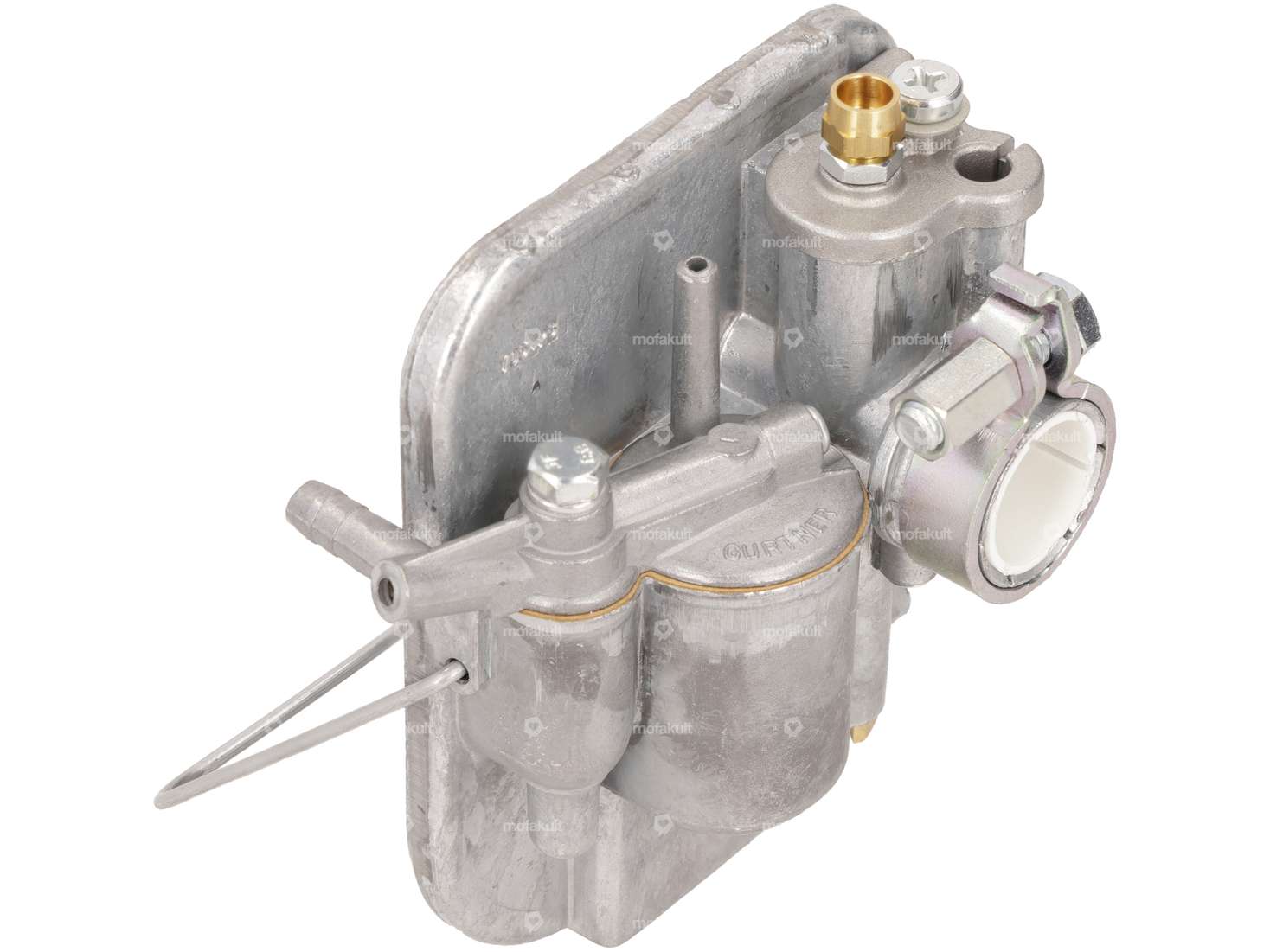

Complete AR 2/12 - 705 carburetor incl. screen suitable for your MBK Motobecane (AV7) moped / moped.
The complete set, as shown in the pictures, is included in the scope of delivery.
You can find more carburetors in the accessories section.
French quality product from the manufacturer Gurtner in first-issue quality.
| Manufacturer | Gurtner |
| Material | Aluminum |
| Component group Carburetor | Carburetor complete |
| Total length | 50 mm |
| Width | 80 mm |
| Nominal diameter | 12 mm |
| Height | 101 mm |
| Nozzle size | 54 |
| Ø without reducing sleeve | 19 mm |
| Mounting type | Plug connection clamped |
| Ø Inside entrance | 12 mm |
| Ø Output inside | 12 mm |
| Ø Internal connection | 17 mm |
| Ø fuel hose connection | 6 mm |
| Choke control | Cable choke |
| Area of application | Standard, Original |
| MBK / Motobécane |
