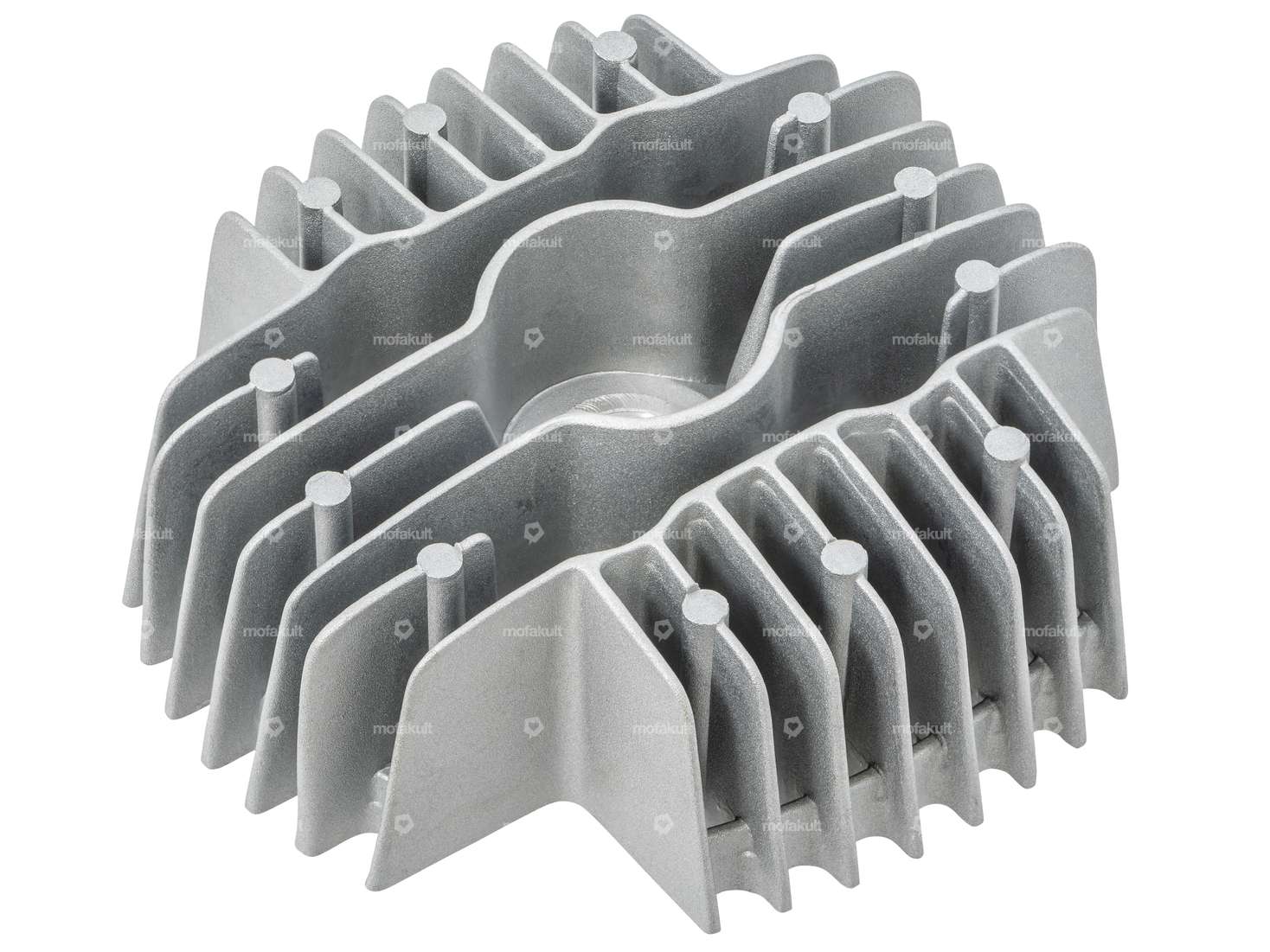

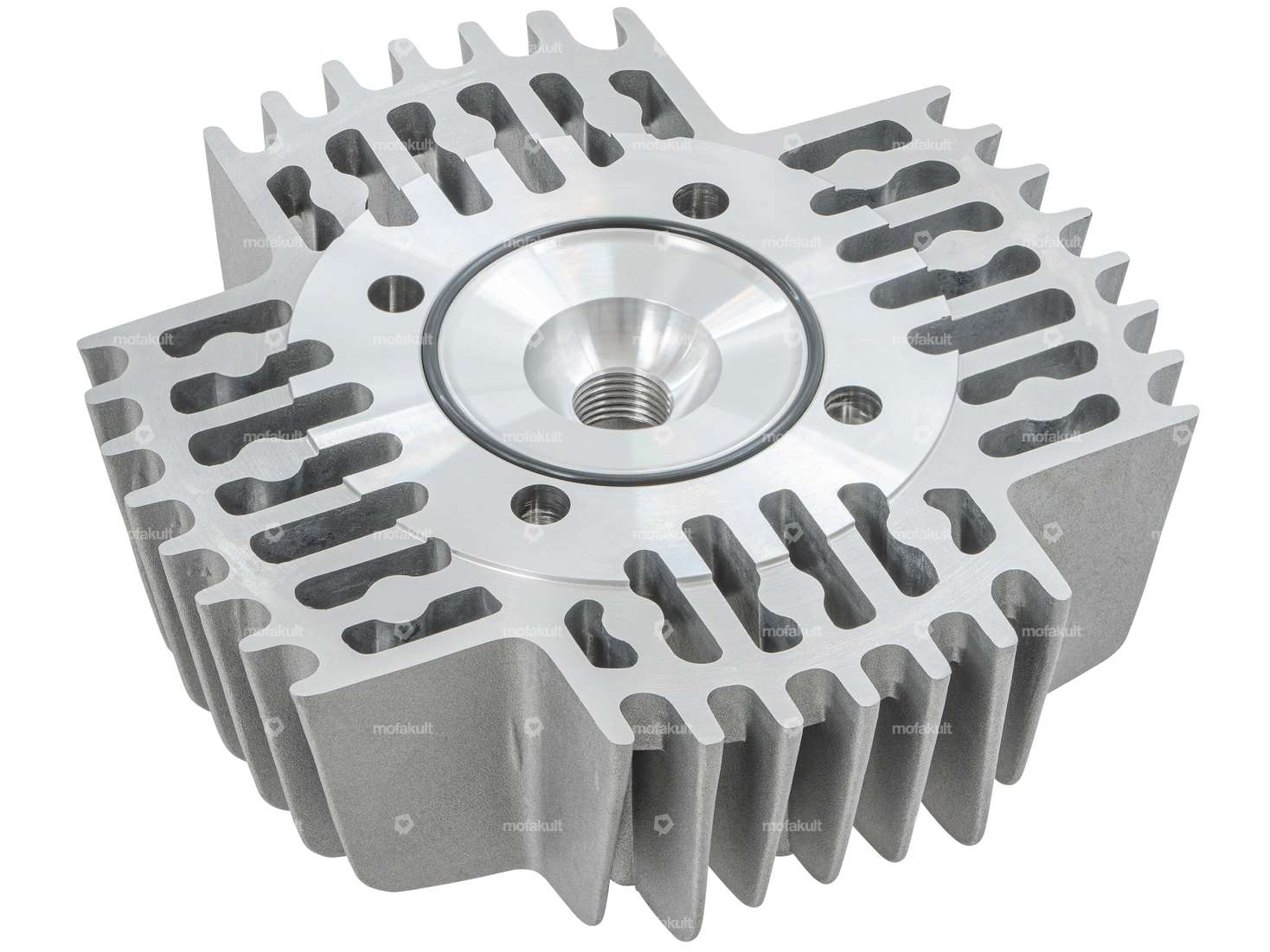

GPO 45 mm cylinder head with O-ring, AT model new version | Puch

Athena 45 mm cylinder kit 70 ccm camouflaged | Puch

Manufacturer: Athena · Number of fixing points: 4 pcs · Camouflaged: Yes · Material: Aluminum · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 45 mm · Hole spacing inlet: 38 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 23.5 mm · Inlet window: 22.3 x 14 · Thread inlet: M6x1 (standard thread) · Hole spacing outlet: 42 mm · Decompressor: No · Ø piston pin (B): 12 mm · Hole pattern [mm]: 44 x 44 · Area of application: Tuning · Outlet type: straight · Thread outlet: M6x1 (standard thread)

Athena gasket set 45 / 47 mm slot

Manufacturer: Athena · Area of application: Tuning · Ø cylinder: 45 mm · Ø cylinder: 47 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Number of components: 4 pcs

O-ring cylinder head FPM (up to 200°C) 47 x 2 mm | Puch

Place of use: Cylinder head · Material: FPM - Fluororubber · Color: black · Ø inside: 47 mm · Ø outside: 51 mm · Cord thickness: 2 mm · Temperature resistance (min.): 0 - 200 °C

swiing® ingenious 45 mm cylinder kit CH12 camouflaged | Puch

Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Material: Aluminum · Surface: sandblasted · Nominal diameter: 45 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Ø piston pin (B): 12 mm · Inlet window: 23 / 21 x 14 · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Area of application: Tuning · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Decompressor: No · Hole spacing inlet: 38 mm

GPO gasket set cylinder 45 mm Puch

Manufacturer: GPO · Material: Aluminum · Material: Sealing carton · Ø cylinder: 45 mm · Hole spacing inlet: 38 mm · Number of components: 4 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Area of application: Tuning

BAD ASS Lucifer BigBore cylinder kit Ø 45 mm | Puch X30 Velux, NG-2AH

Nominal diameter: 45 mm · Manufacturer: BAD ASS · Material: Gray cast iron · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 49 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 25 mm · Ø Inlet inside: 19 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Area of application: Tuning · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44

Airsal 45 mm cylinder kit 70 ccm camouflaged | Puch

Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Nominal diameter: 45 mm · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Hole spacing inlet: 38 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Inlet window: 23.5 / 20 x 15 · Hole spacing outlet: 42 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Area of application: Tuning · Number of fixing points: 4 pcs · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Decompressor: Yes · Camouflaged: Yes

GPO sprocket 15 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: Hardened · Recording type: Interlocking · Ø inside: 13.7 mm · Number of teeth: 15 pcs · Ø inside: 16.9 mm · Total thickness: 4.6 mm

Dell'Orto 19 mm PHBG CS carburetor hand choke

Manufacturer: Dell'Orto · Camouflaged: No · Component group Carburetor: Carburetor complete · Color: black · Material: Aluminum · Carburetor type: PHBG CS · Nominal diameter: 19 mm · Ø without reducing sleeve: 26 mm · Ø Inside entrance: 19 mm · Total length: 82 mm · Ø Output inside: 19 mm · Height: 124 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Width: 70 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Mounting type: Plug connection clamped · Ø Internal connection: 24 mm · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Area of application: Racing · Area of application: Tuning · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 75 · Size of secondary nozzle: 45

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Thread type: MF12x1 (fine pitch thread) · Installation direction: horizontal / horizontal · Outlet direction: below · Mounting type: Union nut · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm

18.5 mm intake manifold Dell'Orto PHBG | Puch E50

Material: Aluminum · Color: Chrome · Surface: polished · Ø inside: 18.8 mm · Hole spacing inlet: 38 mm · Ø External connection: 23.9 mm · Mounting type: Screws · Total height: 57 mm · Area of application: Tuning · Number of fixing points: 2 pcs · Height flange center hole: 45 mm · Total length: 40 mm · Camouflaged: No

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø Stranded wire: 1.2 mm · Nipple shape: Ball · Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Cable length: 1650 mm · Number of components: 1 pcs · Area of application: Standard

Continental 2.00 - 2.50 x 17" tube

Manufacturer: Continental · Tire width [inch]: 2 - 2.5 " · Tire width [inch]: 2.25 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Tire height [%]: 100 · Valve type: TR6 car valve · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5 · Wheel size [inch]: 17 "

Airsal 45 mm cylinder kit large ribs

Manufacturer: Airsal · Material: Aluminum · Camouflaged: No · Crankshaft stroke: 43 mm · Nominal diameter: 45 mm · Displacement: 70 ccm · Surface: sandblasted · Ø piston pin (B): 12 mm · Ø cylinder neck: 50 mm · Ø outlet inside: 25 mm · Number of fixing points: 4 pcs · Inlet window: 23.8 / 21.4 x 16 · Hole spacing outlet: 42 mm · Thread inlet: M6x1 (standard thread) · Area of application: Tuning · Hole pattern [mm]: 44 x 44 · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Decompressor: No · Hole spacing inlet: 38 mm

O-ring cylinder head FPM (up to 200°C) 47 x 2 mm | Puch

Place of use: Cylinder head · Material: FPM - Fluororubber · Color: black · Ø inside: 47 mm · Ø outside: 51 mm · Cord thickness: 2 mm · Temperature resistance (min.): 0 - 200 °C

GPO secondary nozzle PHBG (size 30 - 62.5) of your choice

Drive: Slot · Manufacturer: GPO · Component group Carburetor: Spraying · Material: Brass · Carburetor type: PHBG · Carburetor type: PHBG AD · Carburetor type: PHBG AS · Carburetor type: PHBG BD · Carburetor type: PHBG CS · Carburetor type: PHBG DS · Total length: 9.5 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 30 · Nozzle size: 32 · Nozzle size: 35 · Nozzle size: 37 · Nozzle size: 38 · Nozzle size: 40 · Nozzle size: 42 · Nozzle size: 44 · Nozzle size: 45 · Nozzle size: 46 · Nozzle size: 48 · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 60 · Nozzle size: 62.5
