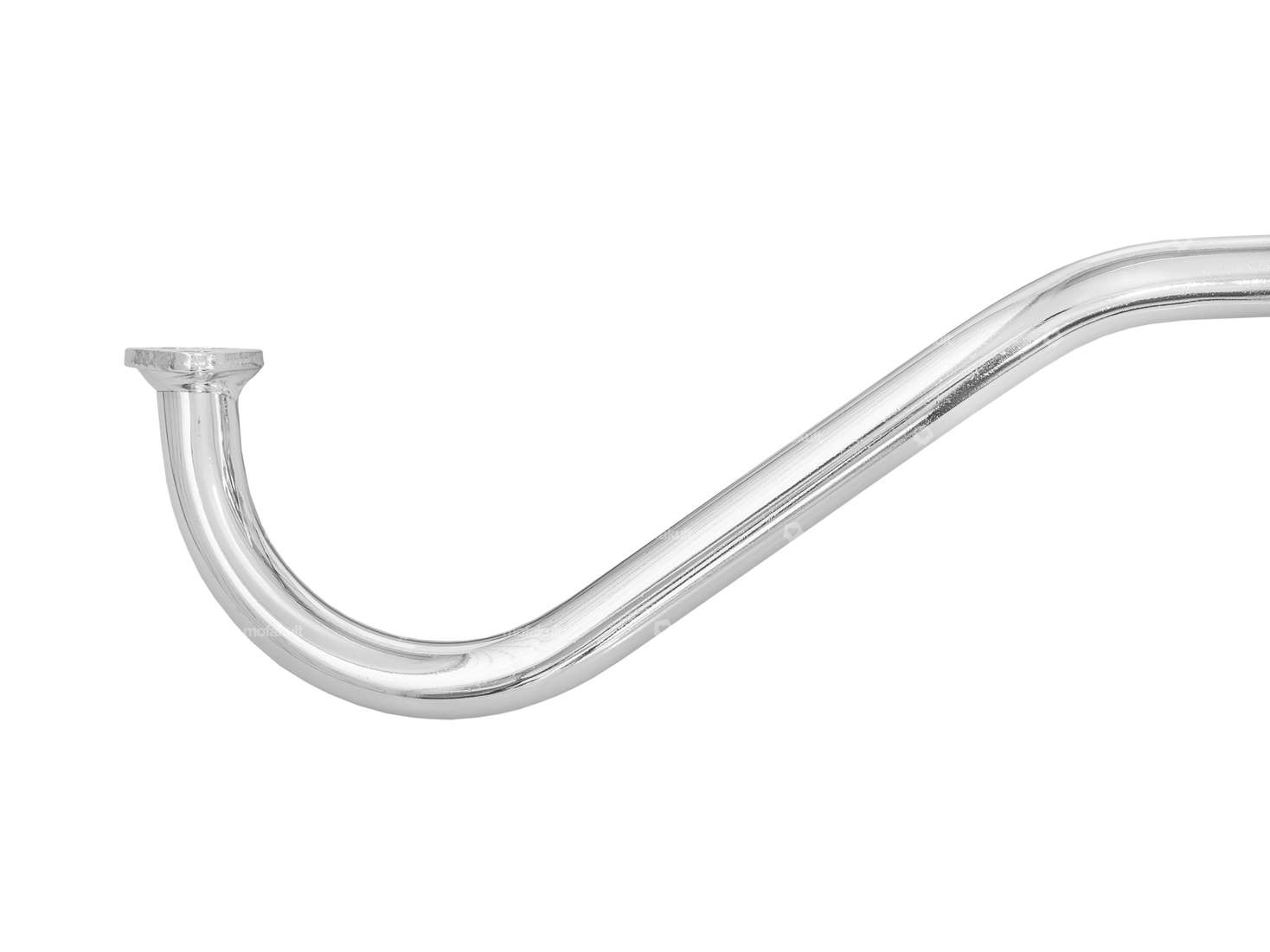

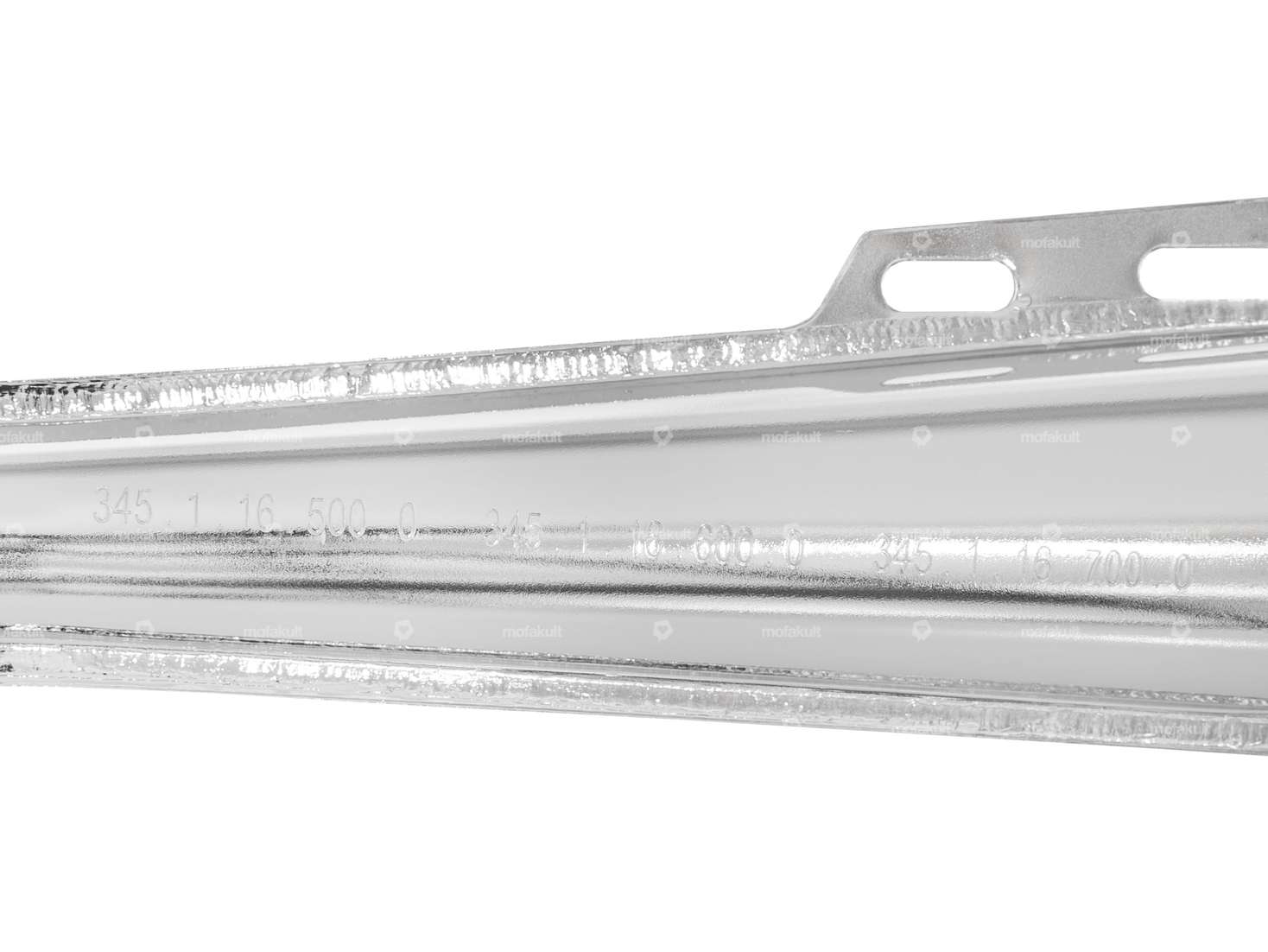

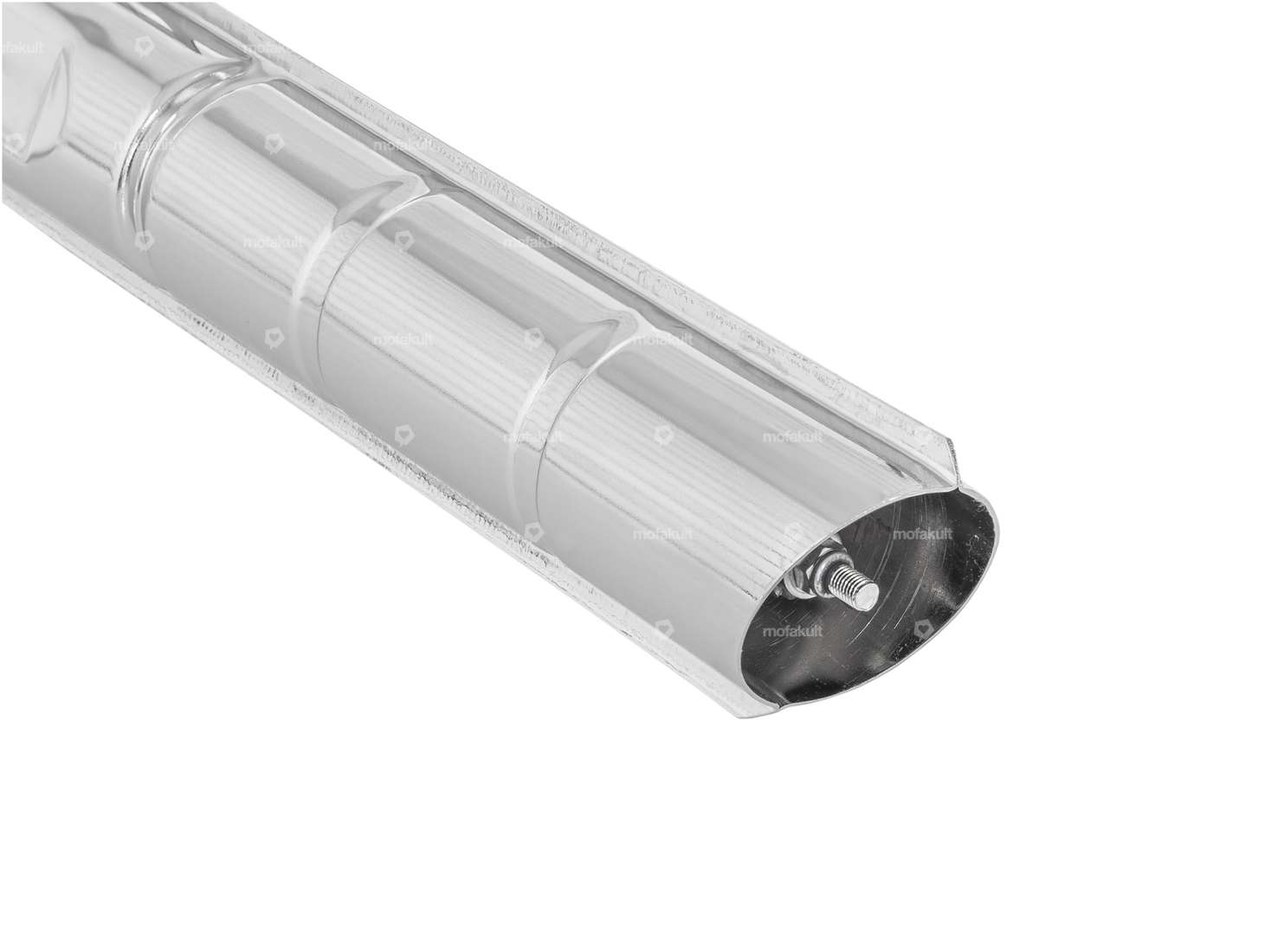

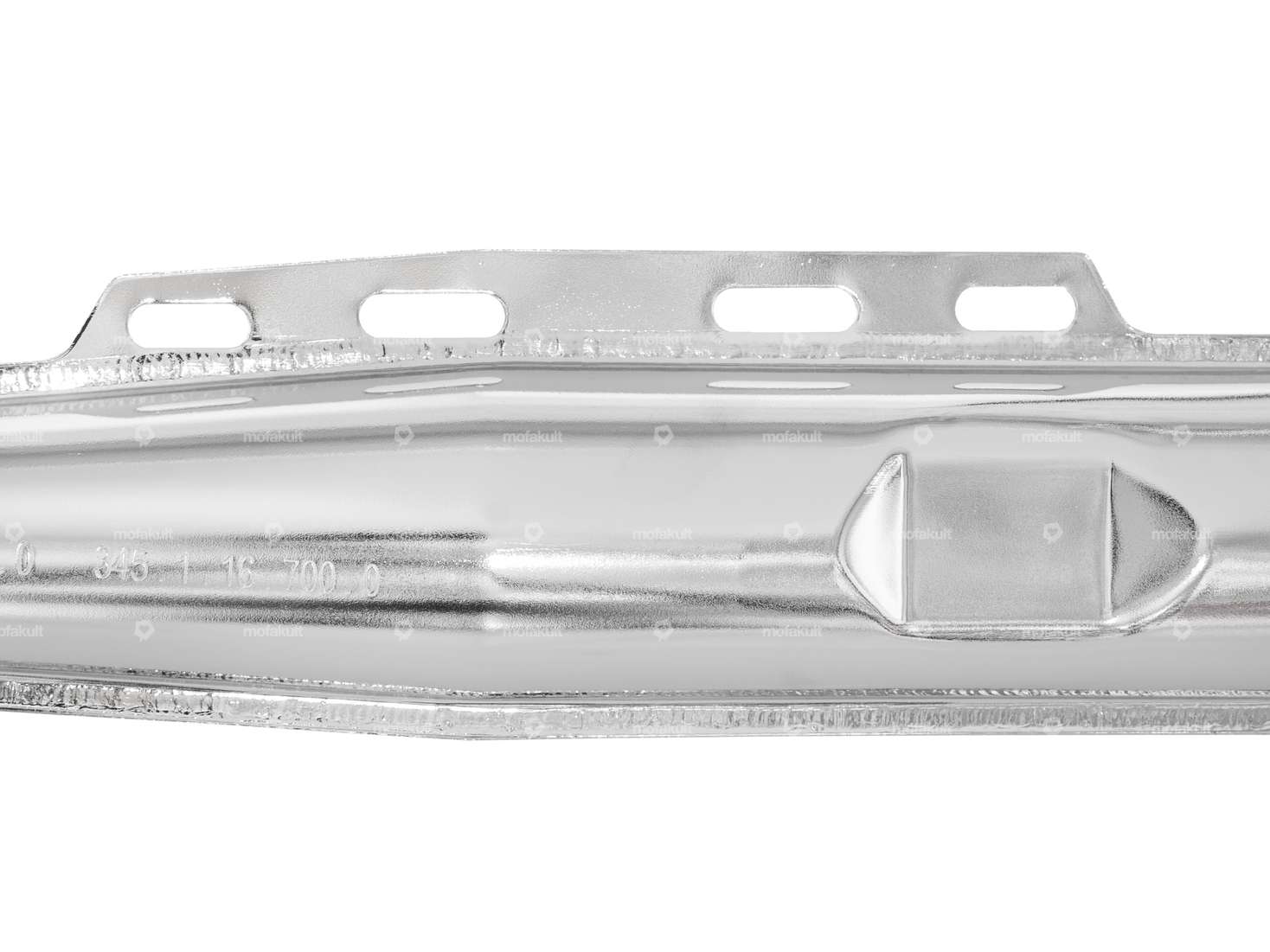

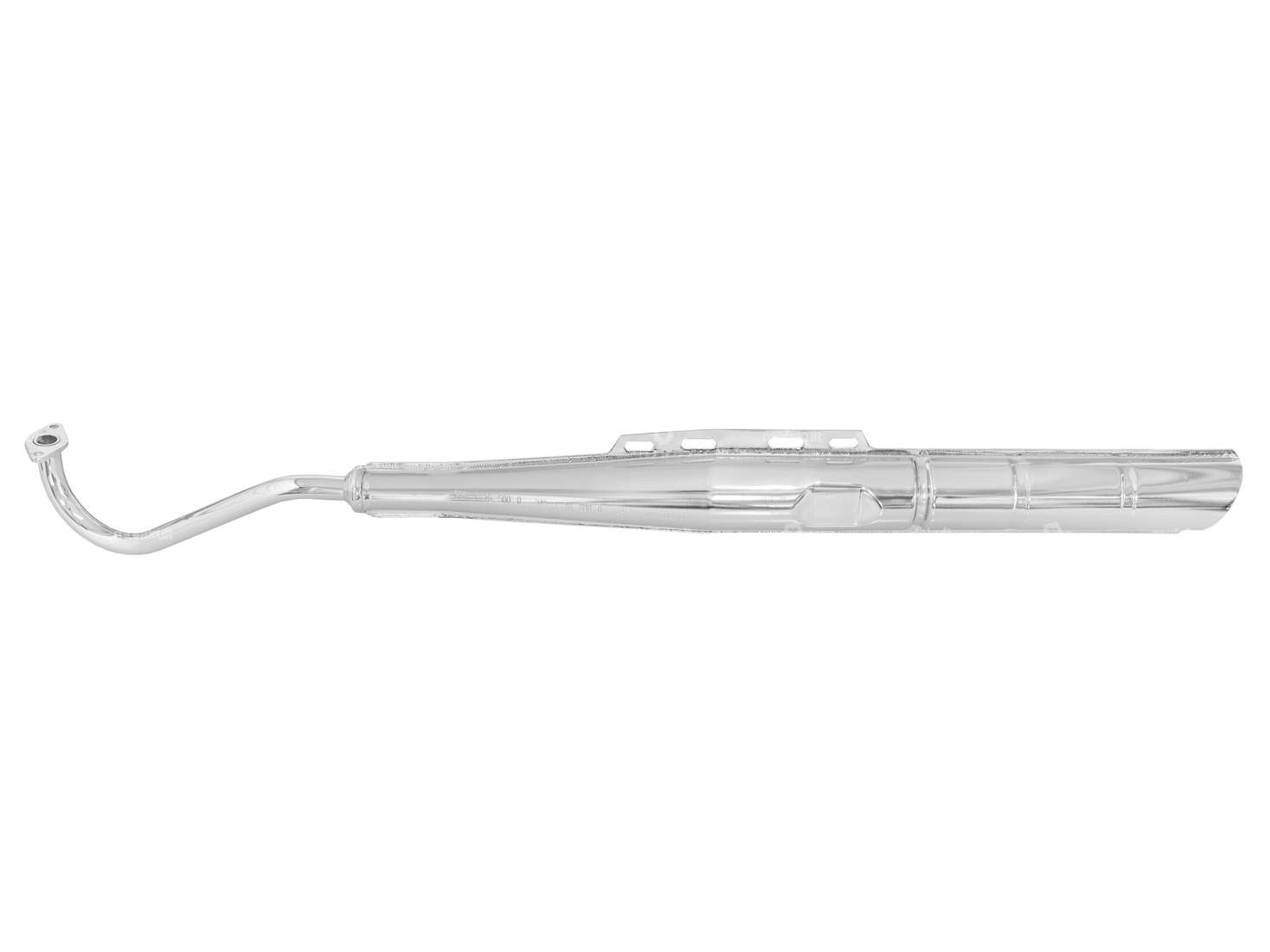

Exhaust 18 mm replica (with number) | Puch Maxi S, N

Stop nut M7 galvanized

Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Thread type: M7x1 (standard thread) · Nut type: Self-securing nut · Nominal diameter (thread): 7 mm · Width across flats: 11 mm · Drive: External hexagon · Height: 7.3 mm · Strength class: 8 · Thread depth: 4.8 mm

Silicone seal Ø 45 x 2 mm silencer | Puch

Manufacturer: Puch · Material: Silicone · Area of application: Standard · Nominal diameter: 45 mm · Thickness: 2.9 mm · Place of use: Exhaust · Ø inside: 45 mm · Ø outside: 52 mm

Flute insert replica | Puch

Material: Steel · Surface: galvanized (blue) · Color: silver · Ø inside: 11.8 mm · Ø outside: 13.8 mm · Total length: 102 mm

Washer special silencer | Puch

Thickness: 2.9 mm · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Nominal diameter inside: 7 mm · Nominal diameter (thread): 7 mm · Ø inside: 7 mm · Ø outside: 16 mm · Thread size: M6

Insulating wool exhaust 25 x 40 cm

Thickness: 10 mm · Width: 400 mm · Material: Ceramics · Color: white · Height: 220 mm

Outlet gasket 18 - 22 mm metal ring

Manufacturer: GPO · Material: Sealing carton · Material: Sheet metal (steel) · Ø inside: 22 mm · Thickness: 2 mm · Place of use: Outlet · Ø mounting hole: 6.7 mm · Number of fixing points: 2 pcs · Hole spacing: 38 - 42.5 mm

Insulating wool (balls)

Manufacturer: Made in Portugal · Material: Fabric insert · Surface: raw · Color: beige · Total length: 26 mm · Ø inside: 39 mm · Ø outside: 45.5 mm

TECNO Exhaust insulating wool 39 x 61 cm

Manufacturer: TECNO · Material: Ceramics · Color: white · Width: 610 mm · Height: 390 mm · Thickness: 10 mm

Stop nut M7 Inox

Material: Chrome steel (colloquially known as stainless steel) · Nut type: Self-securing nut · Drive: External hexagon · Thread type: M10x1.5 (standard thread) · Thread type: M4x0.7 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Thread type: M7x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Nominal diameter (thread): 4 mm · Nominal diameter (thread): 5 mm · Nominal diameter (thread): 6 mm · Nominal diameter (thread): 7 mm · Nominal diameter (thread): 8 mm · Nominal diameter (thread): 10 mm

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Area of application: Standard · Ø cylinder: 38 mm · Total length: 135 mm · Width: 125 mm · Hole pattern [mm]: 44 x 44 · Height: 55 mm · Candle thread: short · Number of fixing points: 4 pcs · Decompressor: No

swiing® revival side protection screw set black | Puch Maxi S

Manufacturer: swiing® revival parts · Material: Plastic · Material: Steel · Surface: galvanized (blue) · Surface: raw · Color: silver · Thread type: M5x0.8 (standard thread) · Thread length: 35 mm · Thread length: 50 mm · Drive: Slot · Drive: Triangular head · Total length: 47 mm · Total length: 60 mm

swiing® revival 12 mm carburetor "original" | Puch

Manufacturer: swiing® revival parts · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Area of application: Standard · Color: gray · Nominal diameter: 12 mm · Carburetor type: SRE · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 52 · Total length: 65 mm · Ø Inside entrance: 12 mm · Width: 50 mm · Ø Output inside: 12 mm · Height: 108 mm · Ø Air filter connection: 20 mm · Ø Internal connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Mounting type: Plug connection clamped · Choke control: Hand choke · Nozzle block: 2.15 · Clamping screw torque (max.): 4 N/m · Puch OEM number: 349.6.15.400.0 · Puch OEM number: 349.7.15.700.0

swiing® revival 12 mm intake manifold | Puch E50

Manufacturer: swiing® revival parts · Material: Aluminum · Camouflaged: No · Area of application: Original · Ø inside: 12 mm · Ø External connection: 20 mm · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 53 mm · Height flange center hole: 43 mm · Total length: 45.5 mm · Mounting type: Screws

swiing® revival 38 mm cylinder kit 1.6 hp CH12 "original" | Puch

Manufacturer: swiing® revival parts · Material: Aluminum · Camouflaged: Yes · Surface: sandblasted · Area of application: Standard · Nominal diameter: 38 mm · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 19 mm · Ø Inlet inside: 9 mm · Hole spacing inlet: 38 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Decompressor: Yes · Alternative version of the Puch OEM number: 349.7.10.105.0

swiing® revival nozzle set M3.5 (50 - 60) Bing SRE, SRA, SRC, SRF

Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 11 pcs · Carburetor type: SRA (1/11/31) Velux · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Nozzle type: Main nozzle · Nozzle thread: M3.5x0.6 (standard thread) · Total length: 6 mm · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60 · Drive: Slot

swiing® revival 50 ccm 1.6 hp cylinder set "original" | Puch E50

Manufacturer: GPO · Manufacturer: swiing® revival parts · Material: Aluminum · Surface: sandblasted · Nominal diameter: 38 mm · Displacement: 50 ccm · Number of fixing points: 4 pcs · Outlet type: straight · Decompressor: No

GPO air filter "original" mounted & sealed (1A quality) | Puch Maxi S, N

Manufacturer: GPO · Area of application: Original · Area of application: Standard · Color: black · Filter type: Standard sieve · Ø Internal connection: 20 mm · Mounting type: Plug connection clamped
