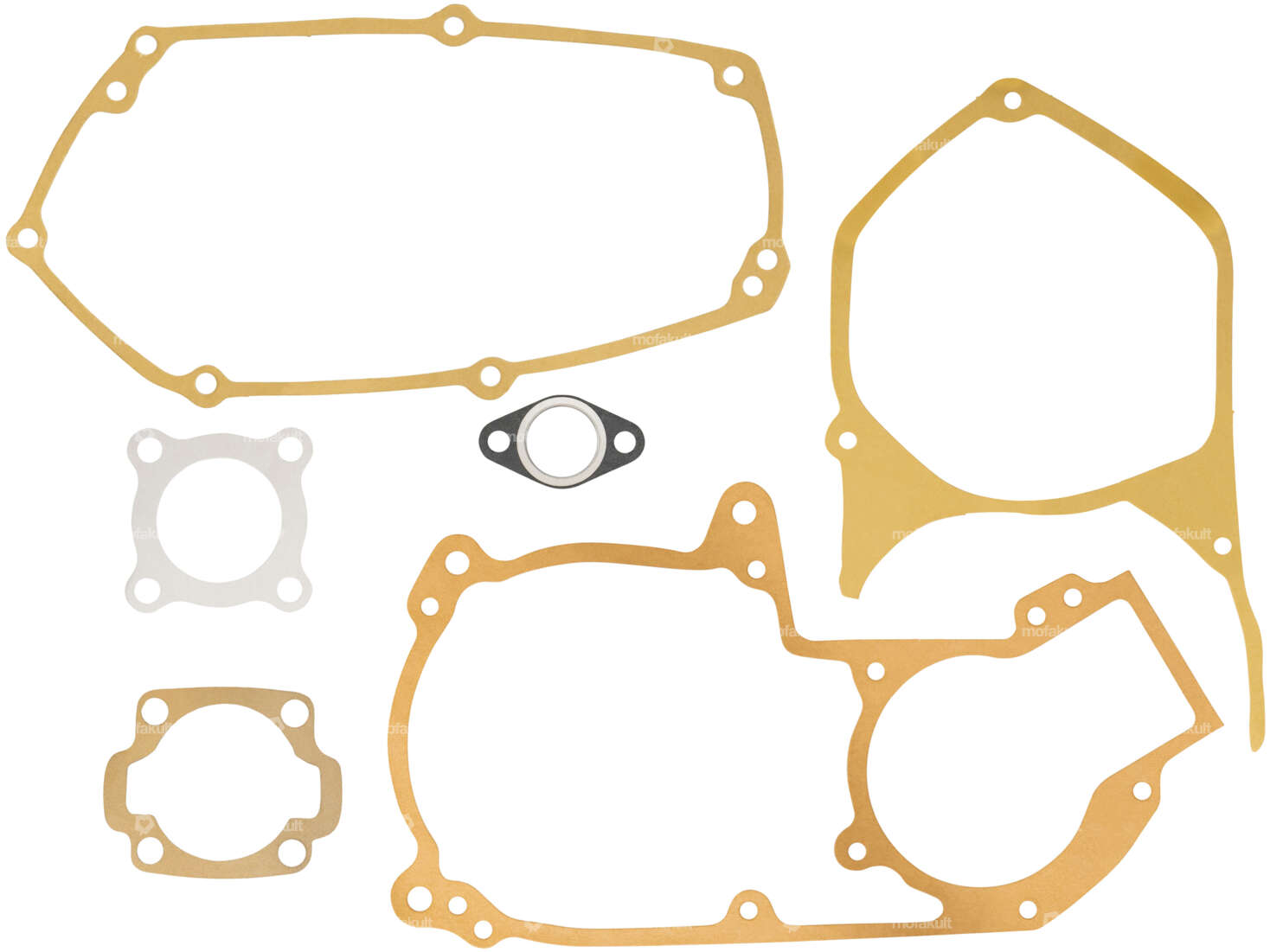

Engine gasket set | Tomos A3

Airsal 38 mm cylinder kit 12 mm KoBo | Tomos A35

Manufacturer: Airsal · Area of application: Tuning · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Ø cylinder neck: 47 mm · Nominal diameter: 38 mm · Ø outlet inside: 25 mm · Inlet window: 28 / 24 x 38 · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Hole spacing inlet: 32 mm · Hole spacing inlet: 35 mm · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: No

Main stand 24 cm black | Tomos A3 / A35

Surface: varnished · Manufacturer: Made in Portugal · Material: Steel · Total height: 240 mm · Stand base - center mount (A): 205 mm · Total width of stand base (B): 220 mm · Color: black-matt · Wide receptacle (C): 52 mm · Ø Receptacle (D): 7.8 mm · Spring nipple distance - center pivot axis (E): 7.5 mm · Wide upright foot (F): 25 mm · Tomos OEM number: 237153S91

Rear light | Tomos A3, A35

Test mark: none · Material: Plastic · Width: 115 mm · Height: 70 mm · Color: black · Color: red · Bulb holder: BA15s · Mounting type: Nuts & bolts · Brake light: Yes · Battery operated: No · Reflectors: Yes · Number of fixing points: 2 pcs

GPO 44 mm cylinder kit tuning 12 mm KoBo | Tomos A35

Manufacturer: GPO · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Nominal diameter: 44 mm · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Ø cylinder neck: 47.8 mm · Surface: sandblasted · Ø outlet inside: 22.8 mm · Hole spacing inlet: 36 mm · Hole spacing inlet: 39 mm · Inlet window: 35.5 x 29.5 · Thread inlet: M5x0.8 (standard thread) · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Outlet type: slanted · Number of fixing points: 4 pcs · Thread outlet: M6x1 (standard thread) · Decompressor: No

TECNO Circuit Exhaust blank | Tomos A3

Surface: varnished · Manufacturer: TECNO · Material: Steel · Mounting type: Welded lug · Ø Flame tube outside: 25 mm · Exhaust type: Snail · Flame tube attachment: Flange · Number of fixing points: 1 pcs

Parmakit 45 mm cylinder kit tuning 12 mm KoBo | Tomos A35

Surface: sandblasted · Nominal diameter: 45 mm · Manufacturer: Parmakit · Camouflaged: No · Material: Aluminum · Displacement: 70 ccm · Area of application: Tuning · Crankshaft stroke: 43 mm · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 44 x 44 · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs

Tomos A35 ignition plate (for electric starter)

Material: Aluminum · Number of cables: 4 pcs · Tension: 12 V · Number of fixing points: 2 pcs

Intake manifold 19 mm PHBG aluminum welded | Tomos A35

Surface: sandblasted · Material: Aluminum · Area of application: Tuning · Mounting type: Screws · Hole pattern [mm]: 39 x 32 · Ø inside: 19 mm · Ø External connection: 25 mm · Number of fixing points: 4 pcs

GPO gasket set 45 mm | Tomos A3 / A35

Manufacturer: GPO · Area of application: Tuning · Number of components: 3 pcs · Ø cylinder: 45 mm · Hole pattern [mm]: 44 x 44 mm · Hole spacing outlet: 42 mm

Bearing & oil seal set engine | Tomos A35, A52, A3

Manufacturer: NTN · Manufacturer: SKF · Number of components: 10 pcs

NTN 6203 C3 Ball bearing 17/40/12

Surface: blank · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Groove ring: No · Material: Steel · Ø outside: 40 mm · Bearing type: Deep groove ball bearing · Area of application: Standard · Width: 12 mm · Ø inside: 17 mm · Ball bearing closed: No

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Oil seal NBR 17/35/7 A DUO

Surface: rubberized · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Material: NBR · Ø outside: 35 mm · Width: 7 mm · Temperature resistance (min.): -30 - 100 °C · Ø inside: 17 mm

Airsal 44 mm cylinder kit tuning 12 mm KoBo | Tomos A35

Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Nominal diameter: 44 mm · Ø cylinder neck: 47.4 mm · Inlet window: 29.5 x 37.5 · Thread inlet: M5x0.8 (standard thread) · Ø outlet inside: 22 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Outlet type: slanted · Hole spacing inlet: 31.5 mm · Hole spacing inlet: 36 mm · Hole spacing inlet: 39 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Area of application: Tuning · Decompressor: No · Camouflaged: No

Speedometer drive 16" left with grease nipple holder

Material: Aluminum · Total height: 52 mm · Place of use: left · Ø axle: 11 mm · Ø outside: 42 mm · Color: gray · Thread type: MF10x1 (fine pitch thread) · 4-edge speedometer cable: 1.8 mm · Overall width outside: 48 mm · Ø mounting hole: 11.2 mm · Wheel size [inch]: 16 "

Airsal gasket set 38 / 44 mm Tomos A35 mm Tomos

Manufacturer: Airsal · Area of application: Tuning · Number of components: 4 pcs · Ø cylinder: 38 mm · Ø cylinder: 44 mm · Hole pattern [mm]: 44 x 44 mm / 39 x 36/32 mm · Hole spacing outlet: 42 mm

GPO oil seal set | Tomos A35

Surface: rubberized · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: GPO · Material: NBR · Ø outside: 24 mm · Ø outside: 35 mm · Ø outside: 47 mm · Width: 7 mm · Temperature resistance (min.): -30 - 100 °C · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 35 mm

NTN Bearings & Oil Seals Engine | Tomos A35

Manufacturer: NTN · Area of application: Standard · Number of components: 6 pcs

swiing® ingenious crankshaft "High End" | Tomos Classic, Quadro, Sprint, Fun Sport'R

Manufacturer: swiing® ingenious parts · Cheek type: Full cheeks · Area of application: Racing · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Thread type: MF10x1 (fine pitch thread) · Ø piston pin (B): 12 mm · Wide crank webs: 34 mm · Tomos OEM number: 223421

Set of clutch shoes | Tomos Classic, Quadro, Sprint, Fun Sport'R

Ø outside: 90 mm · Area of application: Standard · Number of jaws: 3 pcs · Thickness: 14.9 mm · Tomos OEM number: 223432
