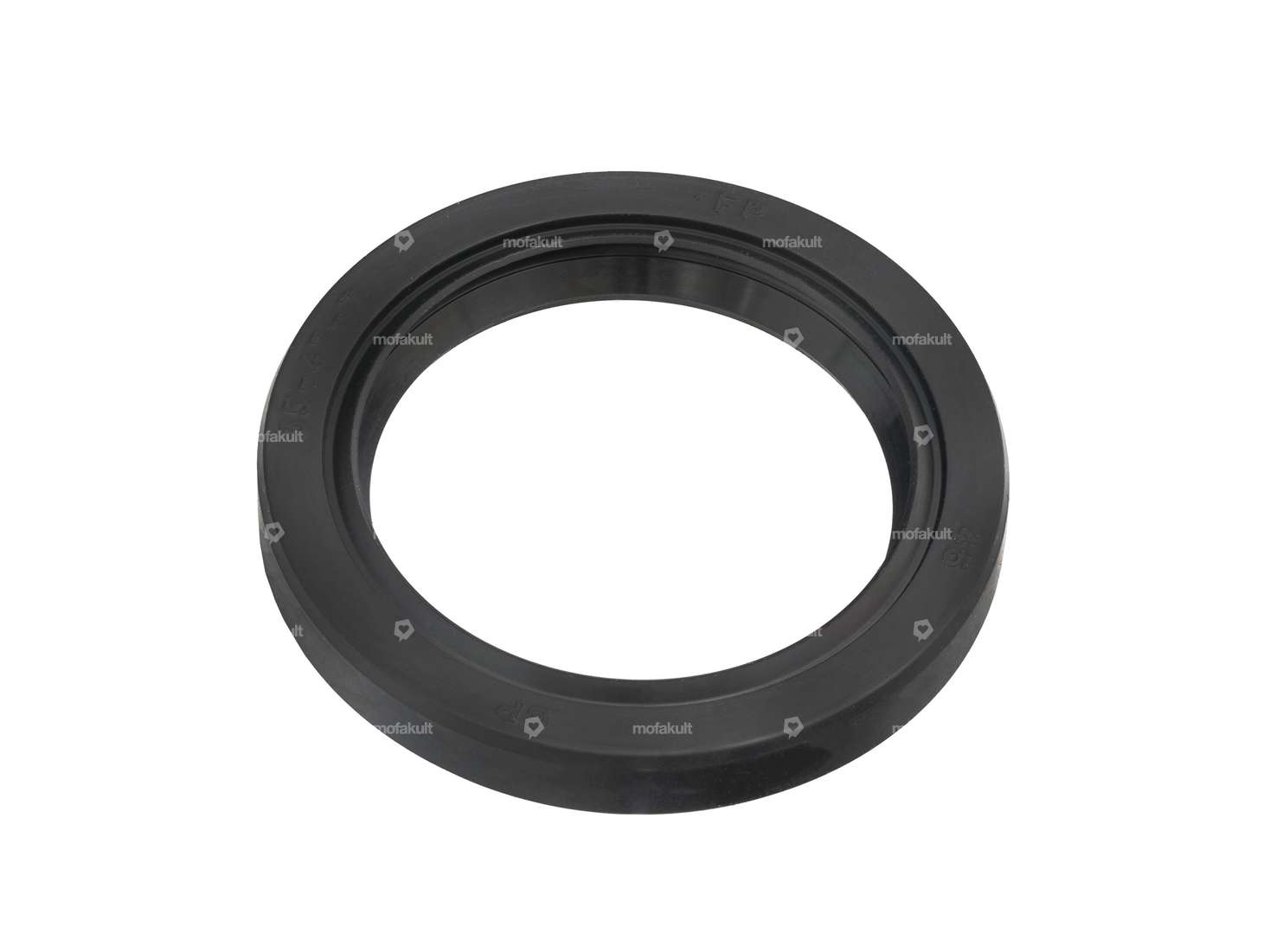

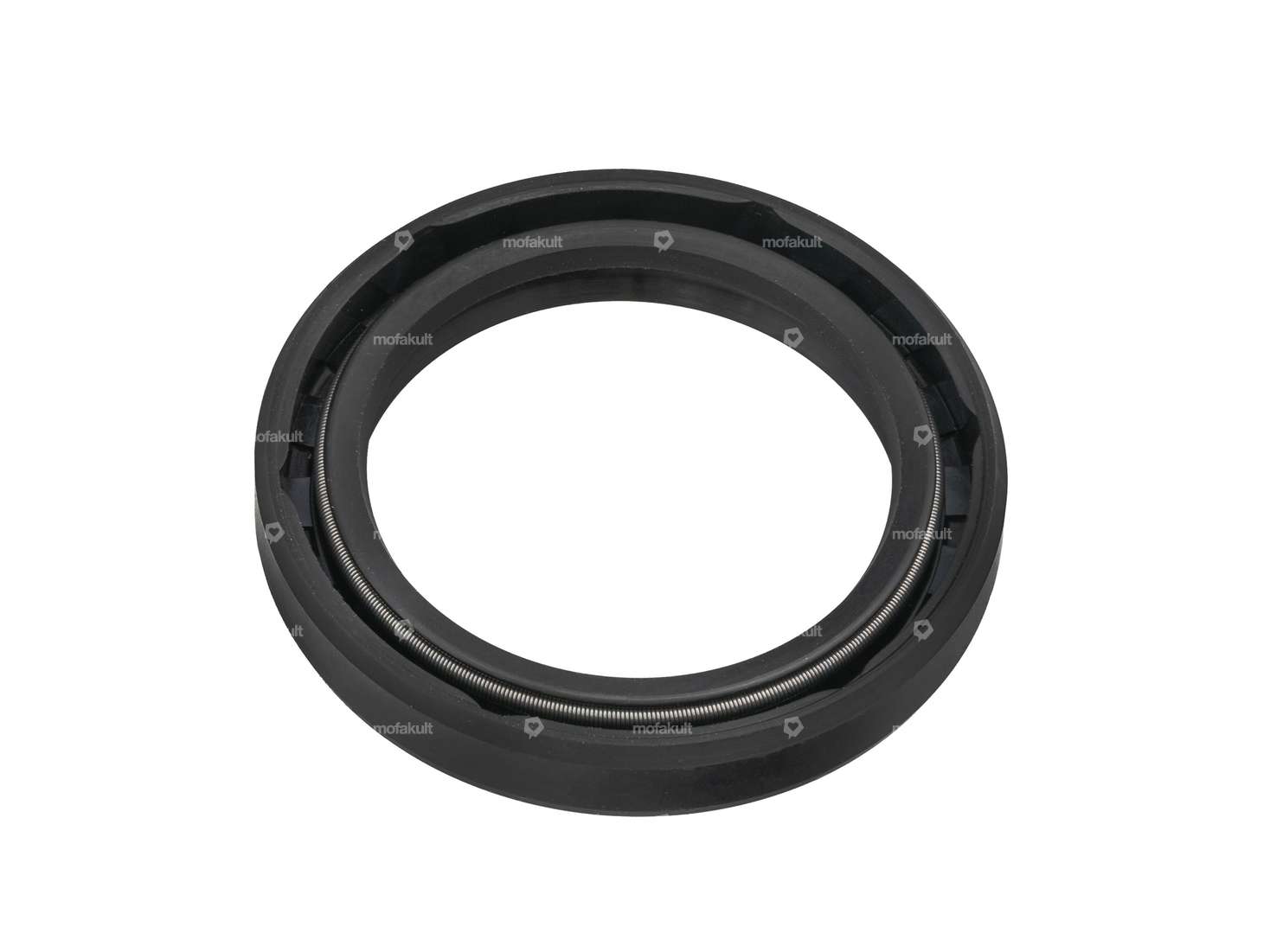

Shaft seal NBR 35/47/7 AS Pinion shaft | Tomos

Loctite 243 medium-strength threadlocker 10 ml

Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents [ml]: 10 ml · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Area of application: Chemistry · Adhesion: medium strength · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

Loctite 638 High-strength adhesive 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Contents [ml]: 10 ml · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Color: green · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Temperature resistance (min.): -75 - 150 °C · Gap dimension (max.): 0.25 mm · Type of application: 1K · Alignment time: 300 sec · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m

Buzzetti bearing & oil seal assembly tool 40 - 65 mm

Manufacturer: Buzzetti · Total length: 140 mm · Area of application: Special tool

GPO oil seal set | Tomos A35

Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: GPO · Material: NBR · Surface: rubberized · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 35 mm · Ø outside: 24 mm · Ø outside: 35 mm · Ø outside: 47 mm · Width: 7 mm

NTN Bearings & Oil Seals Engine | Tomos A35

Manufacturer: NTN · Number of components: 6 pcs · Area of application: Standard

Gear shaft 11 teeth | Tomos

Manufacturer: Tomos · Material: Steel · Surface: Hardened · Number of teeth: 11 pcs · Toothing type: straight toothed · Ø outside: 10 mm · Ø outside: 12 mm · Ø outside: 15 mm · Ø outside: 20 mm · Ø outside: 25 mm · Thread type: MF14x1 (fine pitch thread) · Total length: 124 mm · Tomos OEM number: 223458

NTN 6006 ball bearing 30/55/13 pinion shaft | Tomos

Bearing type: Deep groove ball bearing · Stock number: 6006 · Ø inside: 30 mm · Ø outside: 55 mm · Width: 13 mm · Inner ring width: 13 mm · Manufacturer: NTN · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided · Tomos OEM number: 035037

NTN needle roller bearing 16/20.7/13 pinion shaft | Tomos

Bearing type: Needle sleeve · Ø inside: 16 mm · Ø outside: 20.7 mm · Dimension needle bearing: 16/20.7 x 13 · Manufacturer: NTN · Width: 13 mm · Tomos OEM number: 035503

Spacer washer 10.1/16/2 gear shaft | Tomos

Ø inside: 10.1 mm · Nominal diameter inside: 10 mm · Ø outside: 16 mm · Thickness: 2 mm · Manufacturer: Tomos · Material: Steel · Surface: blank / oiled · Tomos OEM number: 223469

NTN 6203 C3 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Material: Steel · Surface: blank · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Stock number: 6203 · Ball bearing closed: No · Area of application: Standard

Oil seal NBR 17/35/7 A DUO

Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Material: NBR · Surface: rubberized · Width: 7 mm · Ø inside: 17 mm · Ø outside: 35 mm

NTN 608 Ball bearing 8/22/7

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 7 mm · Manufacturer: NTN · Bearing clearance: CN (standard) · Bearing type: Deep groove ball bearing · Width: 7 mm · Ø outside: 22 mm · Ø inside: 8 mm · Stock number: 608

Engine gasket set | Tomos A35

Number of components: 6 pcs · Area of application: Standard

NSK 6000 ball bearing 10/26/8

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6000 · Inner ring width: 8 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Ø inside: 10 mm · Ø outside: 26 mm · Width: 8 mm

swiing® ingenious crankshaft High End | Tomos Classic, Quadro, Sprint, Fun Sport'R

Manufacturer: swiing® ingenious parts · Cheek type: Full cheeks · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Wide crank webs: 34 mm · Area of application: Racing · Tomos OEM number: 223421

Spring freewheel Tomos

Spring design: Ironing spring · Manufacturer: Tomos · Material: Spring steel · Tomos OEM number: 223121

Gearbox cover gasket | Tomos

Manufacturer: Tomos · Material: Sealing paper · Number of components: 1 pcs · Number of fixing points: 9 pcs · Tomos OEM number: 209083

Oil seal NBR 17/35/7 A DUO crankshaft | Tomos

Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm · Manufacturer: Tomos · Material: NBR · Surface: rubberized · Tomos OEM number: 044838

Shaft seal NBR 16/24/7 AS Pedal axle | Tomos

Temperature resistance (min.): -30 - 100 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 16 mm · Ø outside: 24 mm · Width: 7 mm · Manufacturer: Tomos · Material: NBR · Surface: rubberized · Area of application: Standard · Tomos OEM number: 200266
