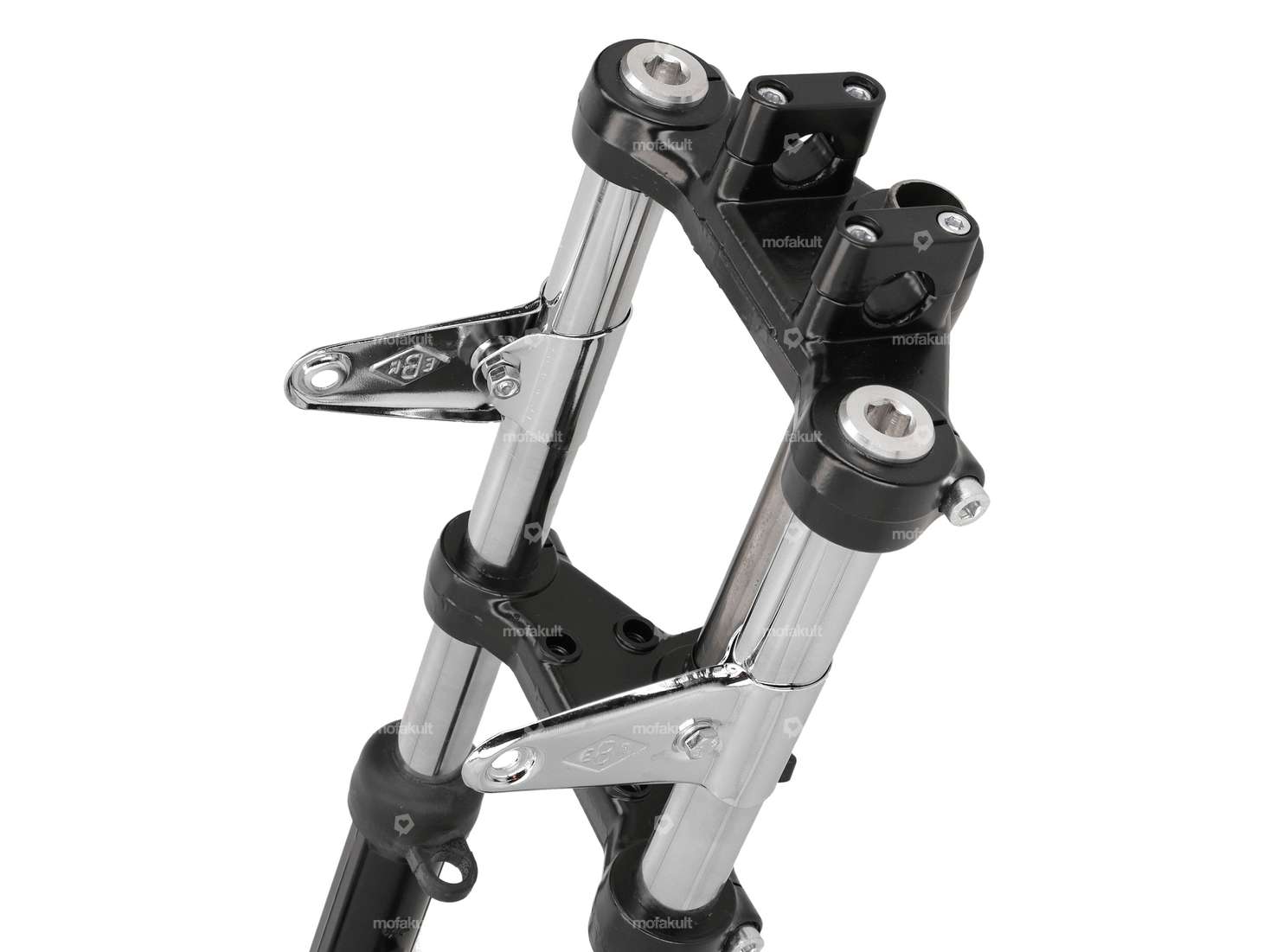

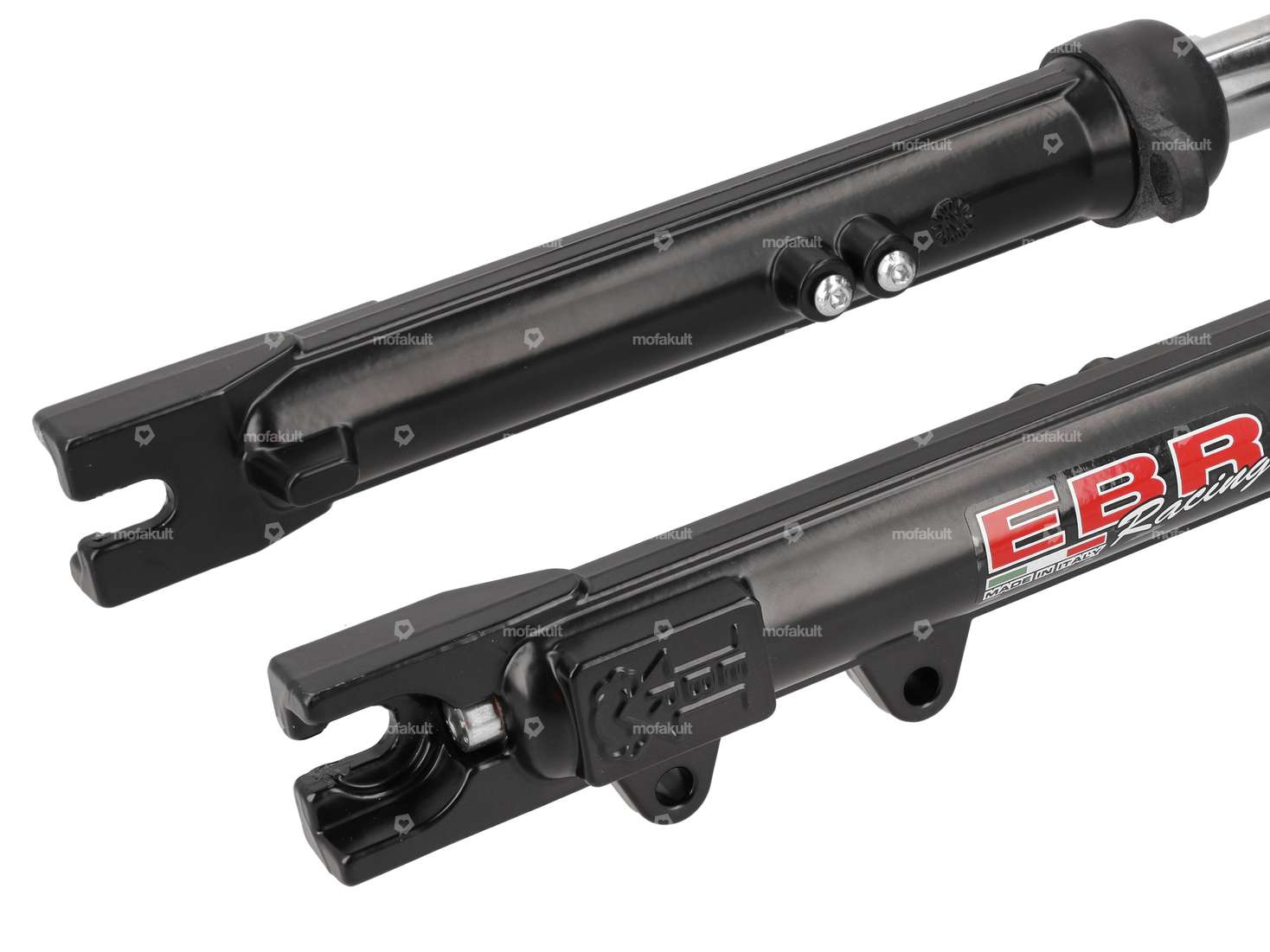

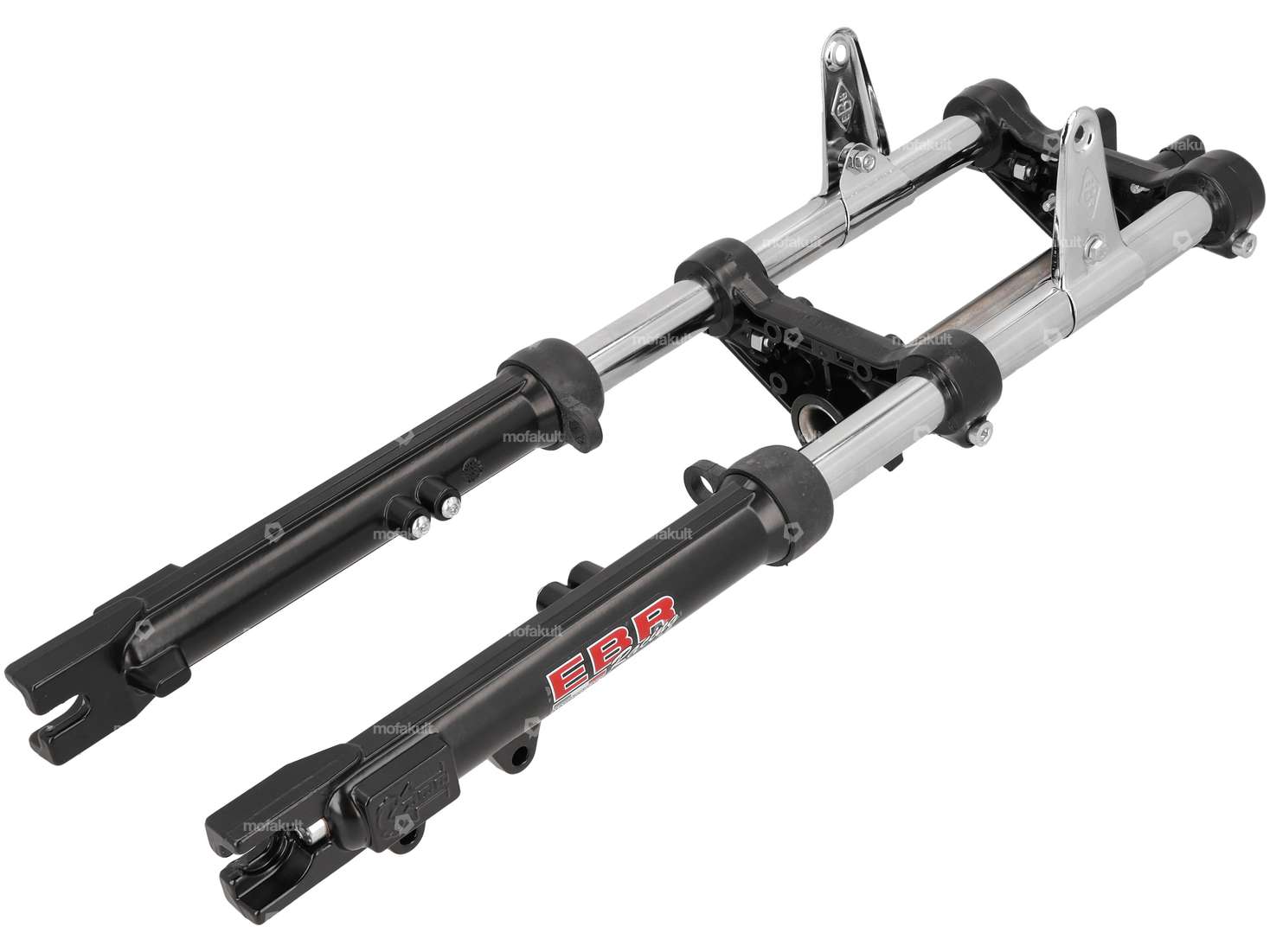

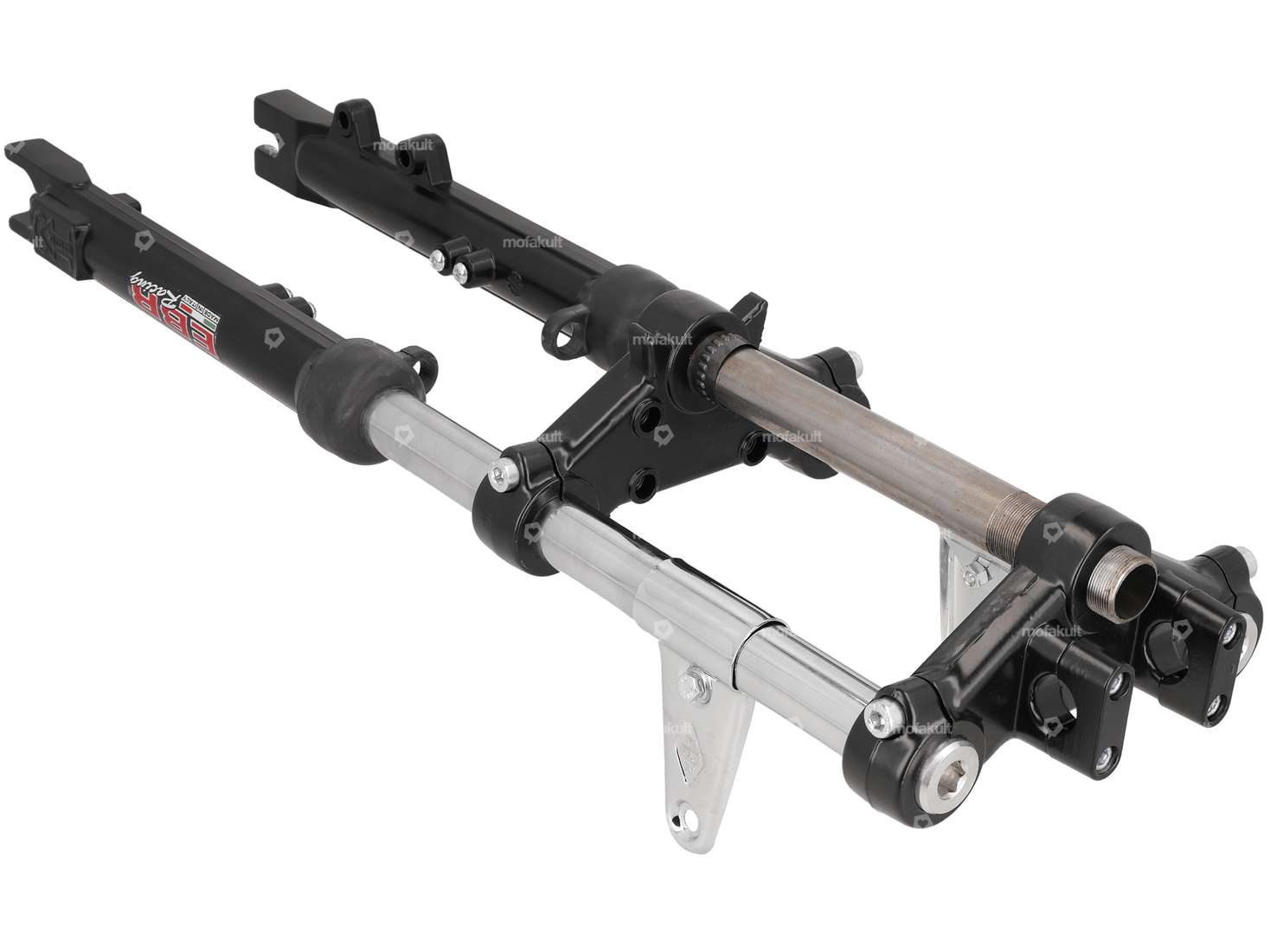

Hydraulic telescopic fork of the EBR brand suitable for Piaggio Ciao mopeds.
Special bracket for mounting a disc brake system. The lower mounting hole is 53 mm above the wheel axle.
The two mounting holes with Ø8.7 mm are 61 mm apart. The upper hole is therefore 114 mm above the wheel axle.
The two aluminum end bolts on the fork legs make it much easier to change the oil.
The solid fork is largely made of aluminum.
The snap ring is included in the scope of delivery. Further accessories can be found below.
Total length: 67 cm
Head tube length: 220 mm
Internal diameter of head tube (for stem mounting): 21.5 mm
Internal distance between fork legs (for mounting the rear axle): 120 mm
Head tube thread: 1" / 24G
Branded product from the Italian manufacturer EBR.
| Manufacturer | EWC |
| Material | Aluminum, Steel |
| Surface | varnished, chrome-plated |
| Color | black, Chrome |
| Thread type | FG25.4 (1" 24G) |
| Spar end distance (center-center) | 150 mm |
| Ø outer head tube | 25.4 mm |
| Total length | 660 mm, 635 mm |
| Ø spars | 28 mm |
| Ø head tube inside | 21 mm |
| Adjustable | Yes |
| Head tube length | 220 mm |
| Fork bridge - center wheel axle | 390 mm |
| Distance brake cam to wheel axle center-center | 35 mm |
| Thread length | 58 mm |
| Piaggio | Ciao - P, SC, PX, C24 |
Accessories & related products
GPO control bearing set | Piaggio Ciao
Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Bearing type: Bearing ring · Thread type: FG25.4 (1" 24G) · Ø inside: 27 mm · Ø mounting frame: 30.05 mm · Ø outside: 41.4 mm · Ø outside: 42 mm · Height: 10.5 mm · Height: 17 mm · Ø ball [inch] / [mm]: 5/32" (4.00 mm) · Color: silver
CHF 18.90
swiing® revival front fender Inox | Piaggio Ciao
Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Surface: polished · Folding the ends: open folded · Wheel size [inch]: 16 " · Wheel size [inch]: 17 " · Shape of the mudguard: partly round · Total length over ends: 510 mm · Scope: 640 mm · Wide mudguard profile: 76 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 162 mm · Mounting type: Nuts & bolts · Color: Chrome · Piaggio OEM number: 274184
CHF 34.90

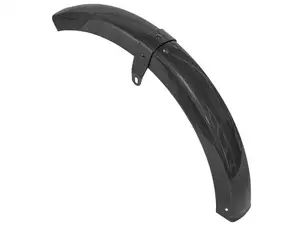

swiing® revival front fender Inox black | Piaggio Ciao
