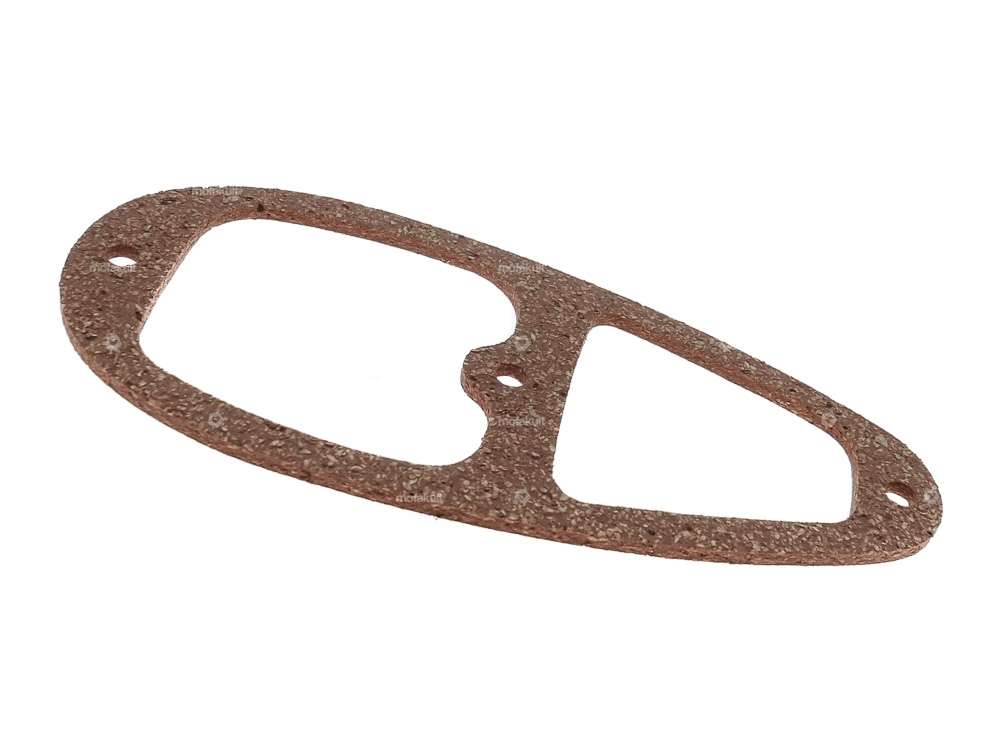

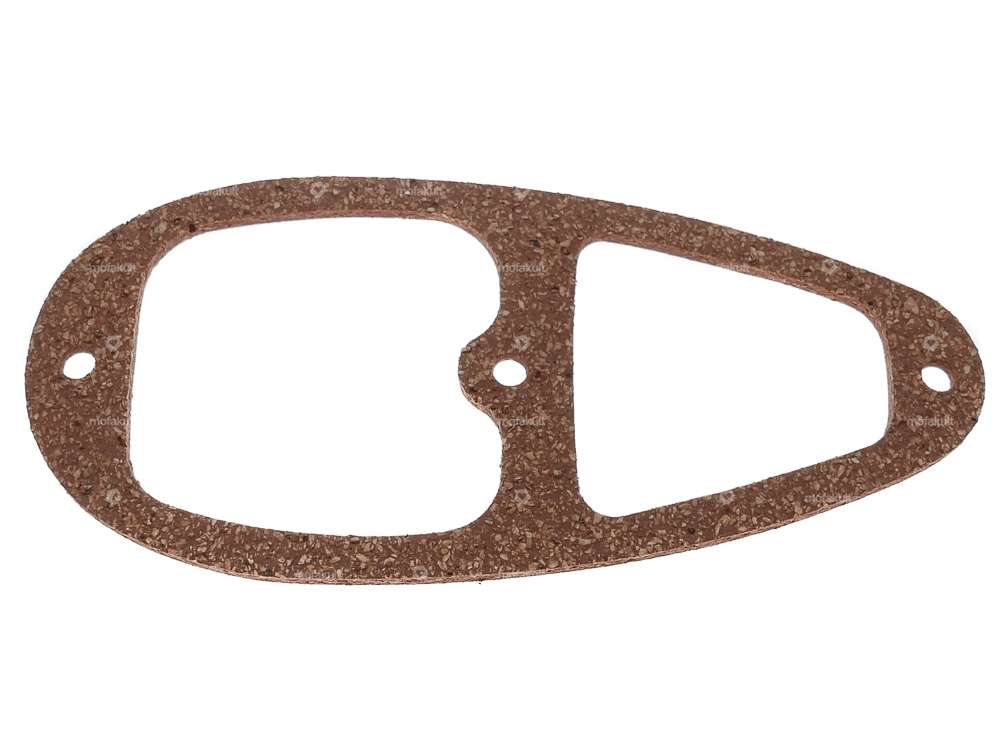

Cork gasket ignition cover | Sachs 50/3

Ignition cover (version with speedometer drive) | Sachs 50

Material: Aluminum · Pony OEM number: A1001 · Sachs OEM no.: 0211 066 001

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Cable length: 2200 mm · Area of application: Standard

Gearbox cover gasket manual transmission | Sachs 50/2, 50/3, 50/4 A1827 0.4 mm (1A quality)

Material: Sealing paper · Number of components: 1 pcs · Color: sand-colored · Thickness: 0.4 mm · Total length: 215 mm · Width: 130 mm · Number of fixing points: 5 pcs · Pony OEM number: A1827 · Sachs OEM no.: 0250 087 100

GPO seal housing cover cork | Sachs 50/2, 50/3, 50/4 (A3834)

Width: 45.5 mm · Manufacturer: GPO · Thickness: 2.1 mm · Material: Cork · Number of components: 1 pcs · Total length: 84.5 mm · Number of fixing points: 2 pcs · Pony OEM number: A3834 · Sachs OEM no.: 0650 001 000

Continental 2.00 - 2.50 x 19" tube

Manufacturer: Continental · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width: 2.5 " · Tire width [mm]: 25.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Wheel size: 19 " · Tire height [%]: 100 · Old designation: 23 x 2 " · Old designation: 23 x 2.25 " · Old designation: 23 x 2.5 " · Valve type: TR6 car valve

GPO sealing ring 12.8/19/2.4 shift/clutch lever | Sachs 50/2, 503 A3844

Ø inside: 12.8 mm · Ø outside: 19 mm · Thickness: 2.4 mm · Manufacturer: GPO · Material: NBR · Pony OEM number: A3844 · Sachs OEM no.: 0650 017 000

Gasket set diaphragm version | Sachs 3-speed 50/3 engine

Number of components: 9 pcs · Ø outlet inside: 28 mm · Hole pattern [mm]: 51 x 40 · Hole spacing inlet: 67 mm · Area of application: Standard

swiing® revival crankshaft "Original" | Sachs 50/2, 50/3

Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 42 mm · Connecting rod length center-center: 85 mm · Number of gears: 1 pcs · Number of gears: 3 pcs · Total length of crankpin on clutch side: 40.6 mm · Total length crankpin ignition side: 63.2 mm · Ø crank webs: 30 mm · Weight: 901 g · Area of application: Standard · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 8 mm · Thread length: 11 mm · Length 1st paragraph: 18.7 mm · Length 2nd paragraph: 14 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Length of shoulder (ignition side): 34 mm · Pony OEM number: A2565 · Sachs OEM no.: 0286 139 400

Repair instructions | Sachs 50 three-speed

Material: Paper · DIN format: A5 · Number of pages: 32 pcs · Language: German

Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)

Width: 7 mm · Shaft seal type: B DUO - With sheet metal outer casing / two sealing lips. · Ø inside: 15 mm · Manufacturer: Sachs · Material: NBR · Ø outside: 30 mm · Temperature resistance (min.): -30 - 100 °C · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Bearing type: Deep groove ball bearing · Stock number: E15 · Ø inside: 15 mm · Ø outside: 35 mm · Width: 8 mm · Inner ring width: 25.6 mm · Manufacturer: swiing® revival parts · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided · Material: Steel · Area of application: High End · Area of application: Standard · Thread type: MF20.8x1 LH (fine/left-hand thread) · Pony OEM number: A2531 · Sachs OEM no.: 0286 079 105
