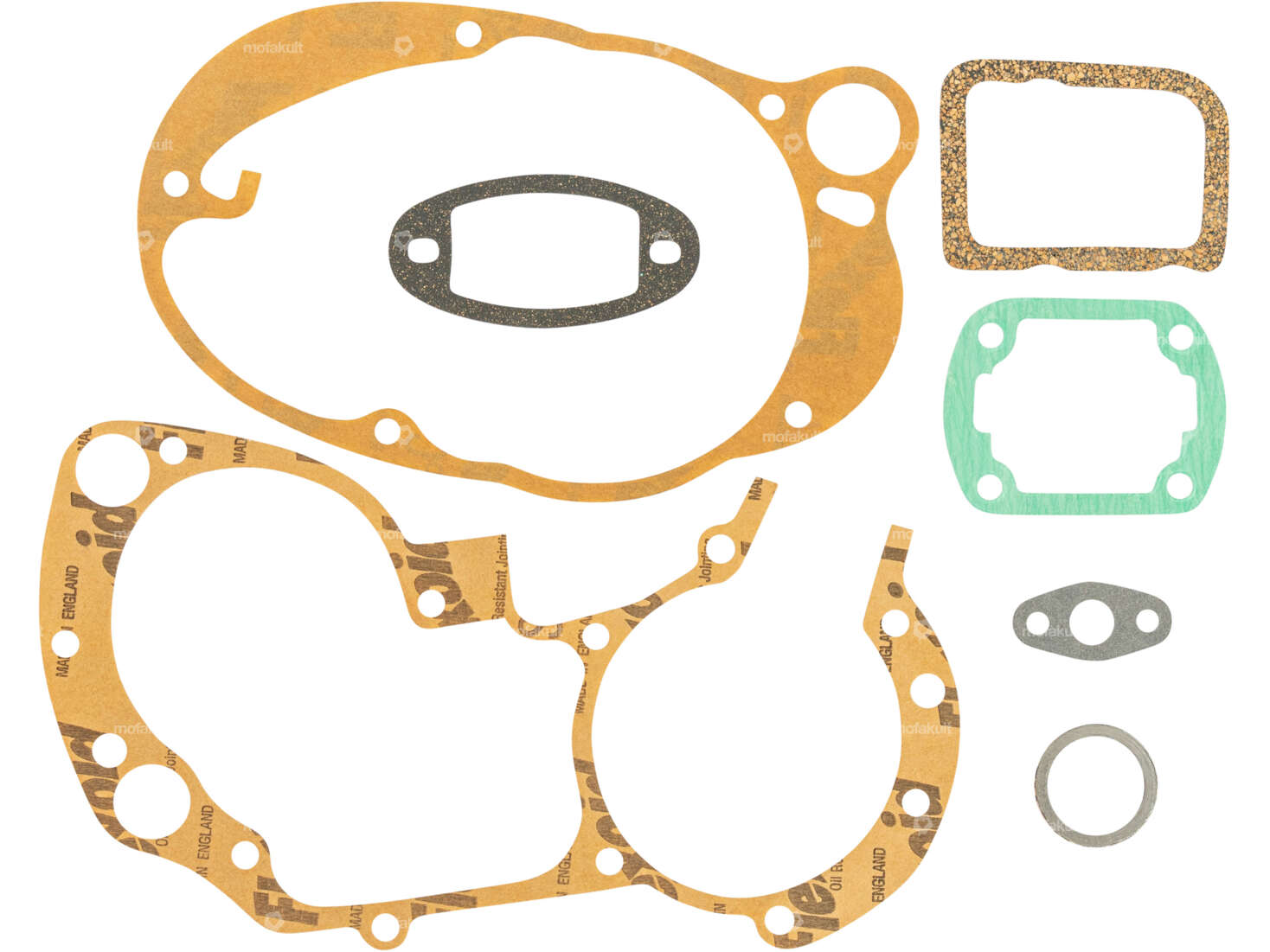

Gasket set for Sachs 50/3 mopeds / mopeds with three-speed engines and a slotted cylinder.
The gasket set contains the following gaskets:
- 1 pc. Center gasket 0.2 mm (paper)
- 1 pc. Gearbox cover gasket 0.2 mm (paper)
- 1 pc. Cylinder base gasket 0.3 mm (paper)
- 1 pc. Logo cover gasket 1.4 mm (rubber)
- 1 pc. Carburetor plate gasket 2 mm (cork)
- 1 pc. Exhaust squeeze ring Ø 26/33 mm
- 1 pc. Inlet gasket 1.1 mm, Ø 12 mm
Quality product from the Italian manufacturer Athena.
Details
| Number of components | 7 pcs |
| Manufacturer | Athena |
| Material | Sealing paper, Cork, Rubber |
| Thickness | 0.2 mm, 0.3 mm, 1.4 mm, 2 mm, 1.1 mm |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
