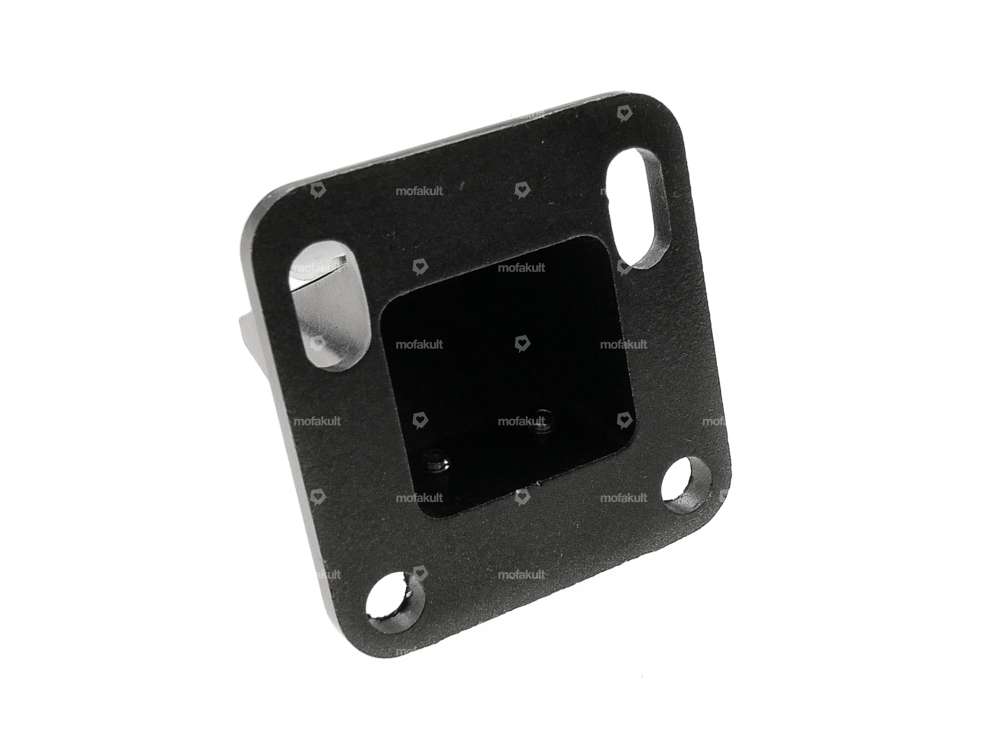

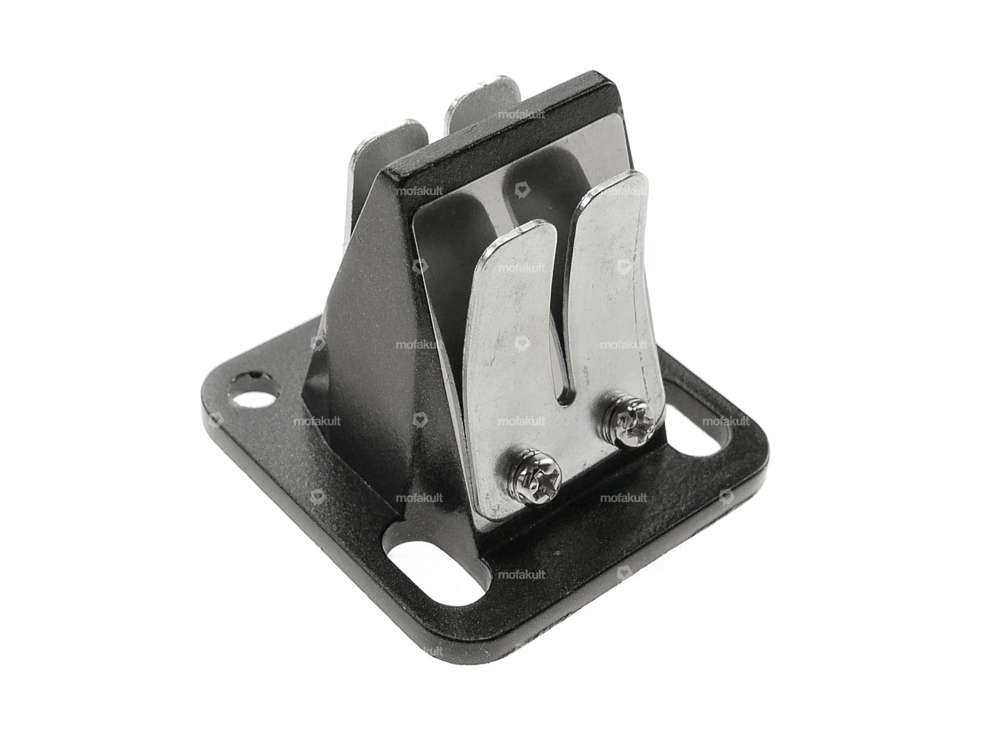

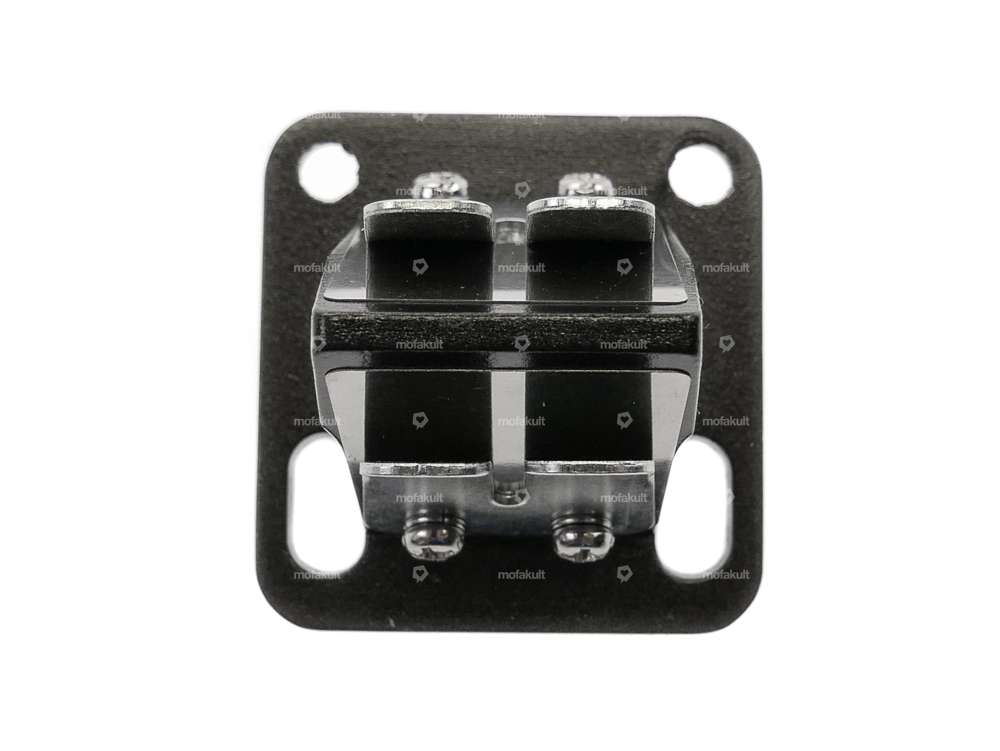

Membrane system from the Athena brand for cylinders with membrane system, both for Puch and Sachs mopeds.
The matching cylinders are listed below in the accessories.
The diaphragm plates are made of steel.
Quality product from the Italian manufacturer Athena.
| Manufacturer | Athena |
| Area of application | Tuning |
| Number of flaps | 2 pcs |
| Membrane material | Spring steel |
| Mounting type | Screws |
| Number of fixing points | 4 pcs |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
| Sachs | 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT), 2A (HG) 508 - 1 A 535 |
Accessories & related products
Athena 45 mm cylinder kit incl. diaphragm | Puch
Surface: sandblasted · Nominal diameter: 45 mm · Manufacturer: Athena · Camouflaged: No · Material: Aluminum · Displacement: 70 ccm · Area of application: Tuning · Crankshaft stroke: 43 mm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 24 mm · Ø Inlet inside: 20.5 mm · Hole spacing inlet: 31.5 mm · Inlet window: 22 x 27.5 · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 44 x 44 · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Decompressor: No · Number of fixing points: 4 pcs
CHF 259.90
Athena 38 mm cylinder kit incl. diaphragm | Puch
Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Nominal diameter: 38 mm · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Thread inlet: M5x0.8 (standard thread) · Outlet type: straight · Hole pattern [mm]: 44 x 44 · Thread outlet: M6x1 (standard thread) · Camouflaged: No · Area of application: Tuning
CHF 199.90
Not in stock
Athena 48 mm cylinder kit incl. diaphragm | Sachs (504), 505, 508
Surface: sandblasted · Nominal diameter: 48 mm · Manufacturer: Athena · Camouflaged: No · Material: Aluminum · Area of application: Tuning · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.8 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.7 mm · Ø Inlet inside: 17.8 mm · Hole spacing inlet: 32.5 mm · Inlet window: 31.9 x 36.2 · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 56/60 x 56 · Ø piston pin (B): 12 mm · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Decompressor: M10x1.5 · Number of fixing points: 4 pcs
CHF 299.90
Moped fans also bought
swiing® revival nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Quantity: 10 pcs · Total length: 8 mm · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 75 · Nozzle size: 78 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92
CHF 20.90
swiing® revival nozzle set M5 (92 - 110) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98 · Nozzle size: 100 · Nozzle size: 102 · Nozzle size: 104 · Nozzle size: 106 · Nozzle size: 108 · Nozzle size: 110 · Total length: 8 mm · Drive: Slot
CHF 20.90
Cable set cut with adjusting screws | Puch Maxi
Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Nipple shape: Barrel (transverse) · Nipple shape: Cylinder · Nipple shape: Pears · Manufacturer: Made in Germany · Material: Brass · Material: Steel · Quantity: 4 pcs · Total length: 1200 mm · Total length: 1250 mm · Total length: 1450 mm · Total length: 1830 mm · Color: black · Outer shell length: 1120 mm · Outer shell length: 1150 mm · Outer shell length: 1740 mm
CHF 34.90
Athena piston 45 mm #A | Puch
Manufacturer: Athena · Ø outside piston (A): 44.94 mm · Compression height (C): 22.4 mm · Curvature (D): 3.15 mm · Total piston height (E): 52.67 mm · Number of piston rings (F): 1 pcs · Piston ring impact: Internal fuse (IS) · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Tolerance group: A · Piston weight: 98 g
CHF 49.90
DMP 45 mm cylinder kit incl. diaphragm | Puch
Manufacturer: DMP · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 45 mm · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Area of application: Tuning
CHF 159.90
Not in stock

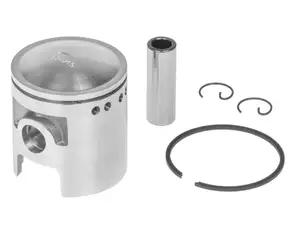

swiing® ingenious piston 45 mm | Puch
