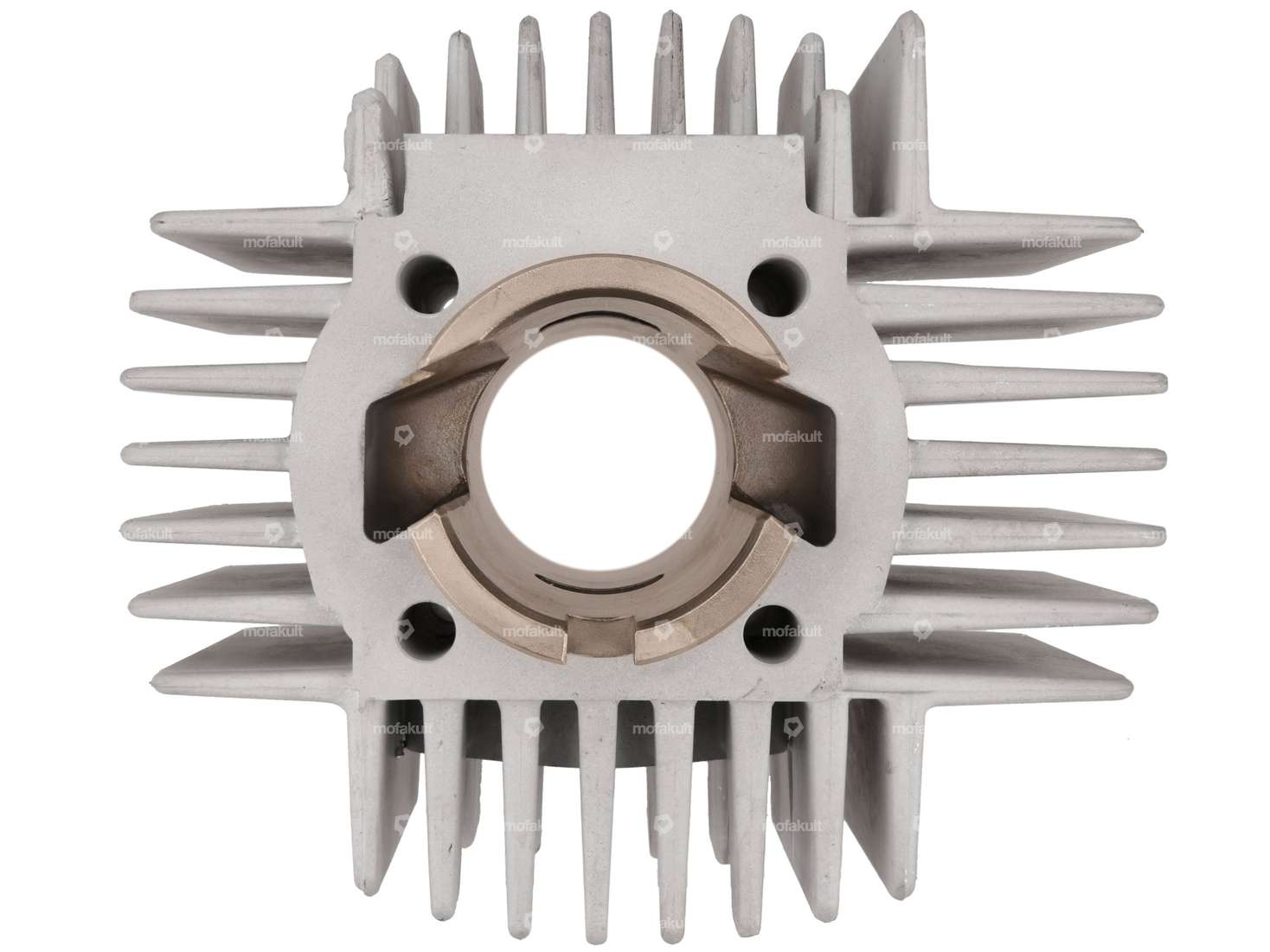

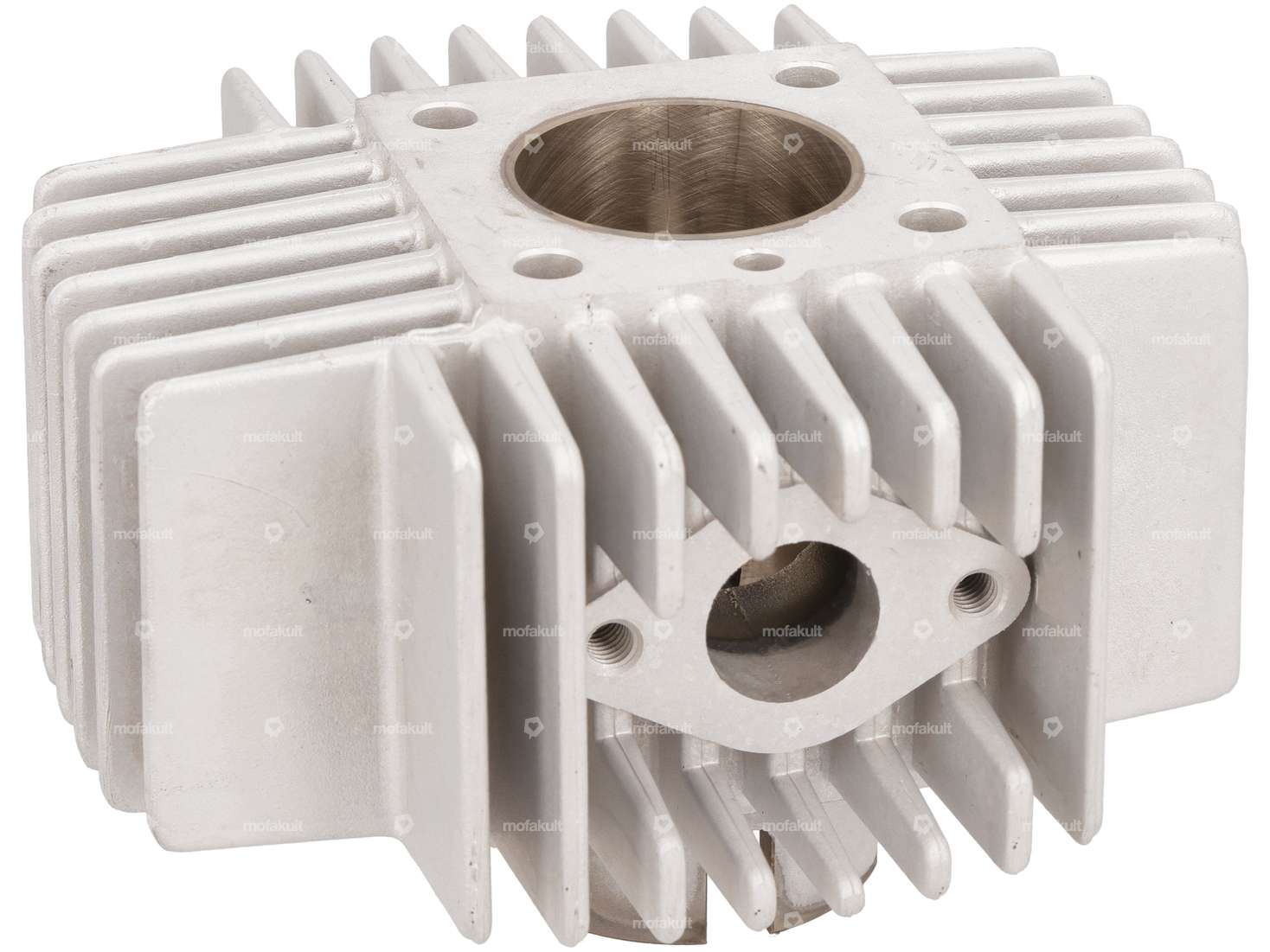

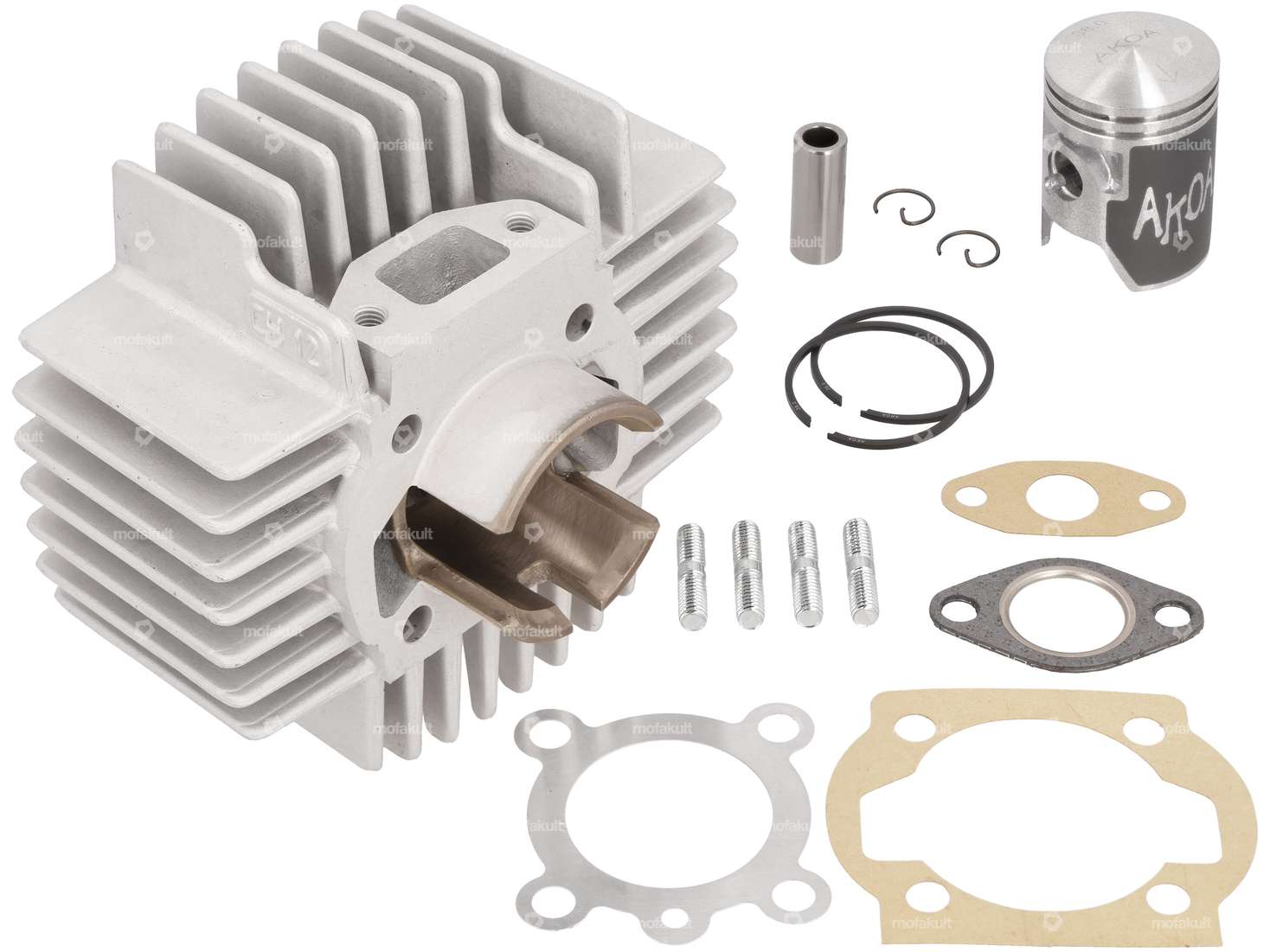

Grey cylinder in the 38 mm version, suitable for your Puch S / N, Supermaxi LG1 / LG2 and your X30 Sport NS / NL moped / moped with E50 / ZA50 (Fahrtwindgekühlt) / ZA50 (catalytic converter) or Z50 engine.

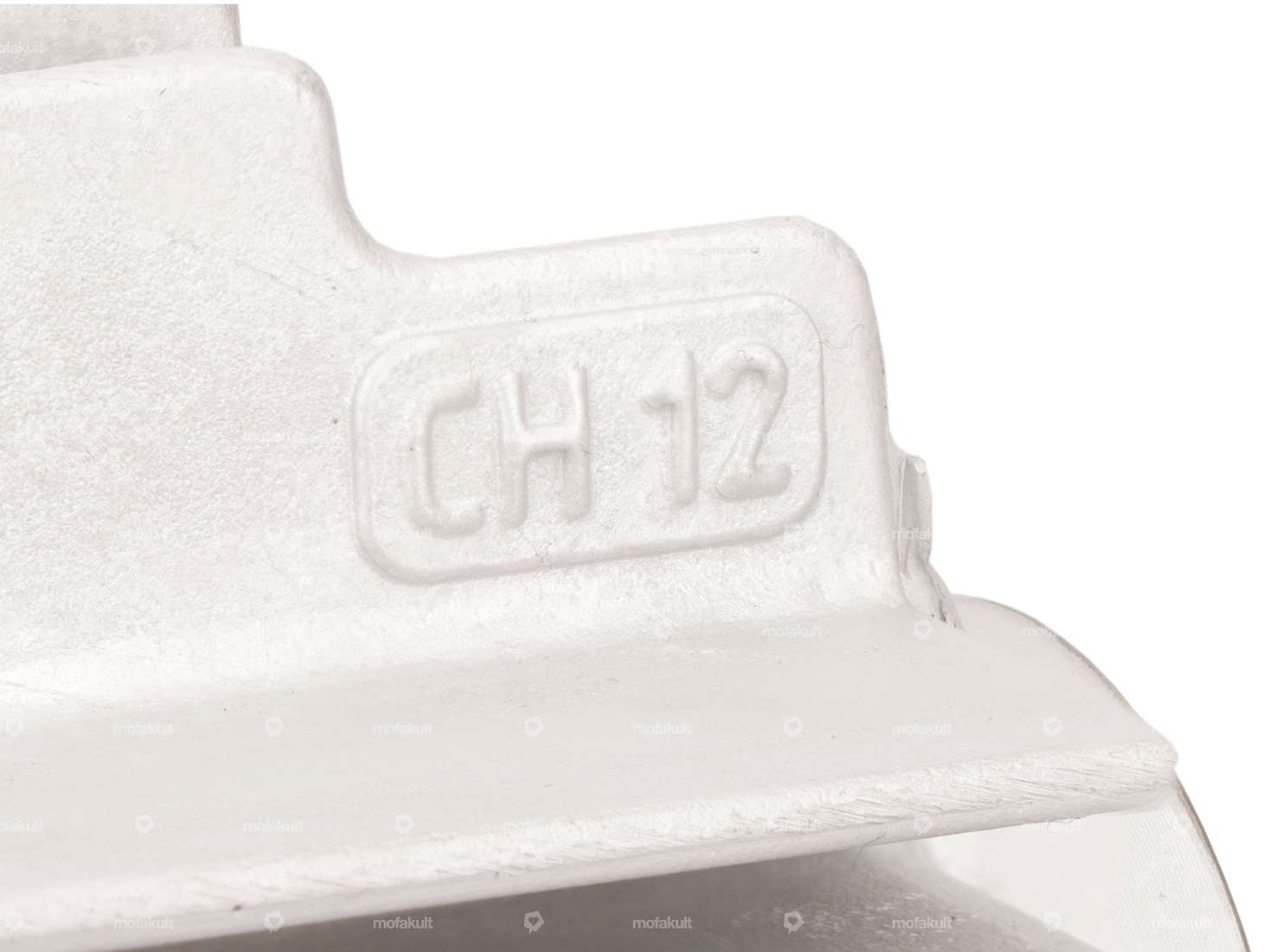

The camouflaged 50 cc cylinder is kept true to the original. The cooling fins and CH12 finish match the standard look. It is important to note that there is no decompressor bracket.
Manufacturer: AKOA · Camouflaged: No
| Manufacturer | AKOA |
| Material | Aluminum |
| Area of application | Standard |
| Surface | Nickel silicon carbide (colloquially known as Nikasil) |
| Displacement | 49 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 47.9 mm |
| Ø Outlet outside | 19.9 mm |
| Inlet window | 9 |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing inlet | 38 mm |
| Ø piston pin (B) | 12 mm |
| Outlet type | straight |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 44 x 44 |
| Decompressor | No |
| Camouflaged | No |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
