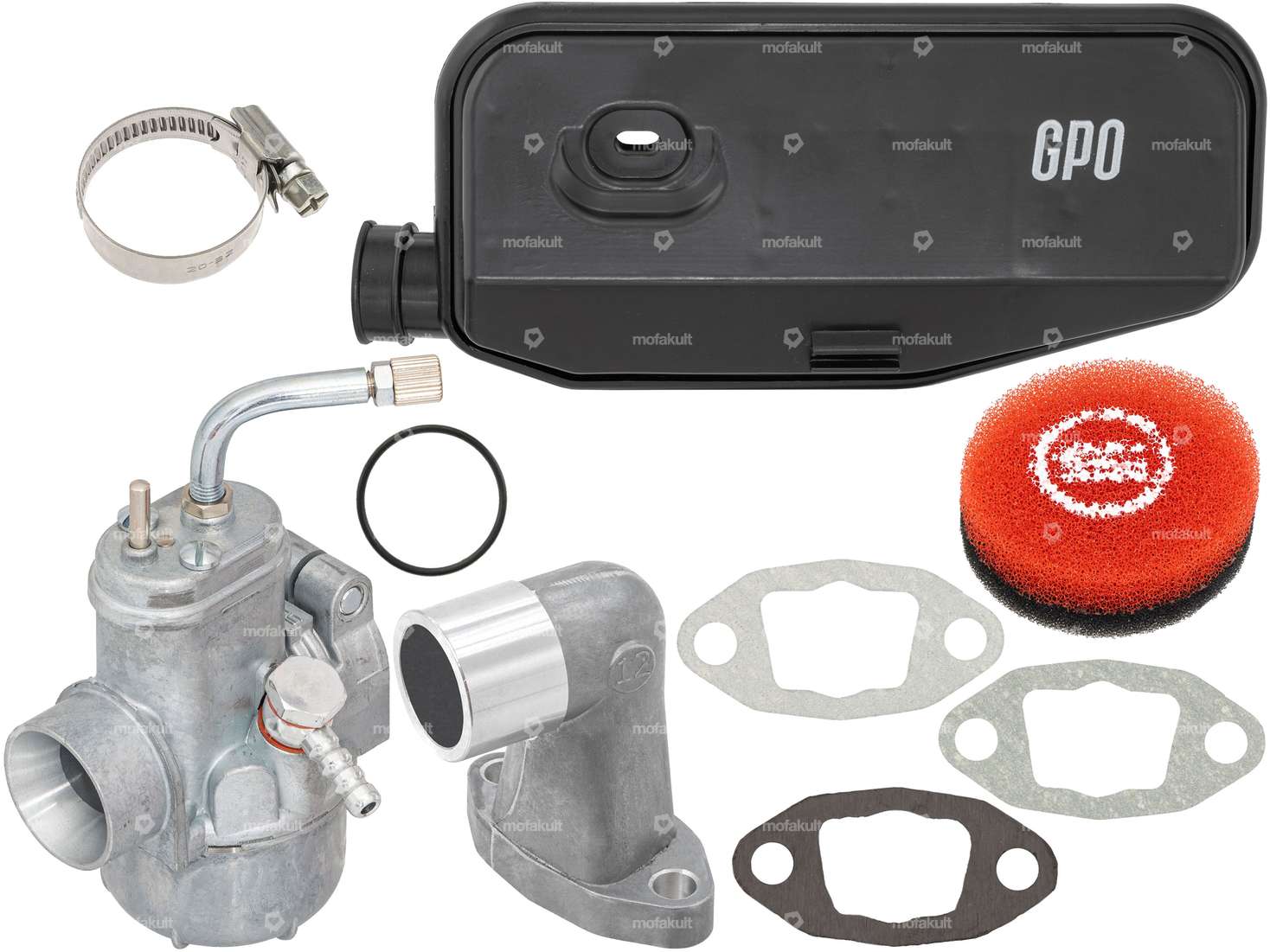

Carburetor set for your Puch Maxi S / N and Supermaxi LG1, LG2 moped, which has a 1-speed E50 engine installed.
The carburetor and intake manifold are visually almost identical to the original components of the time. For perfect camouflage, the tuning carburetor is provided with the original number «1/12/197». In addition, the intake manifold also has a cast-in «12». This means that the carburettor and intake manifold cannot be distinguished from the original when fitted.
The intake manifold from swiing has been perfectly adapted to the inlet of a Puch cylinder.
The components are of the best quality.

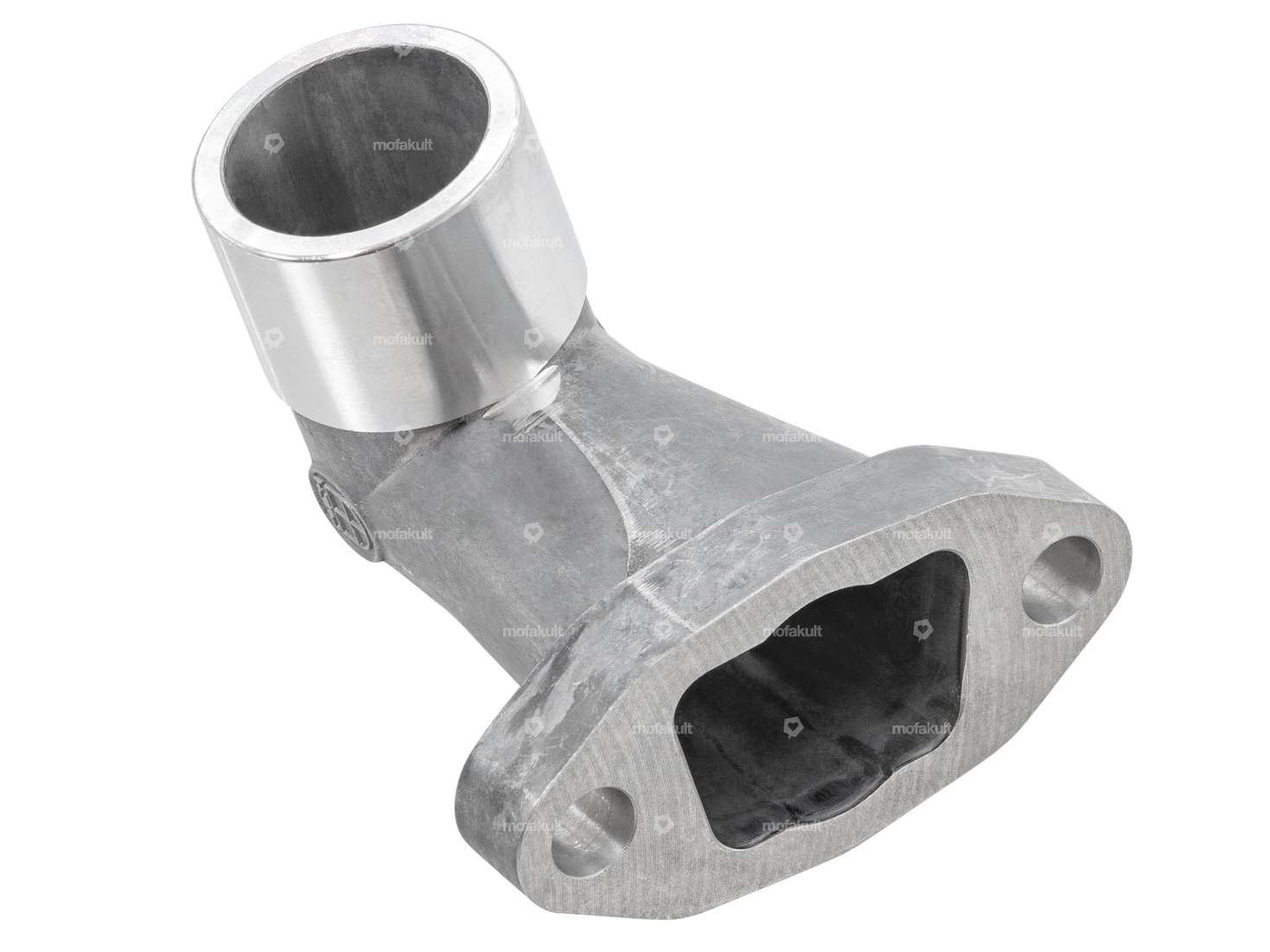

Intake manifold: 32083
swiing® ingenious intake manifold SRF 17 mm | Puch E50
Ø connection: 23 mm
Ø inside: 17 mm
Hole spacing: 38 mm

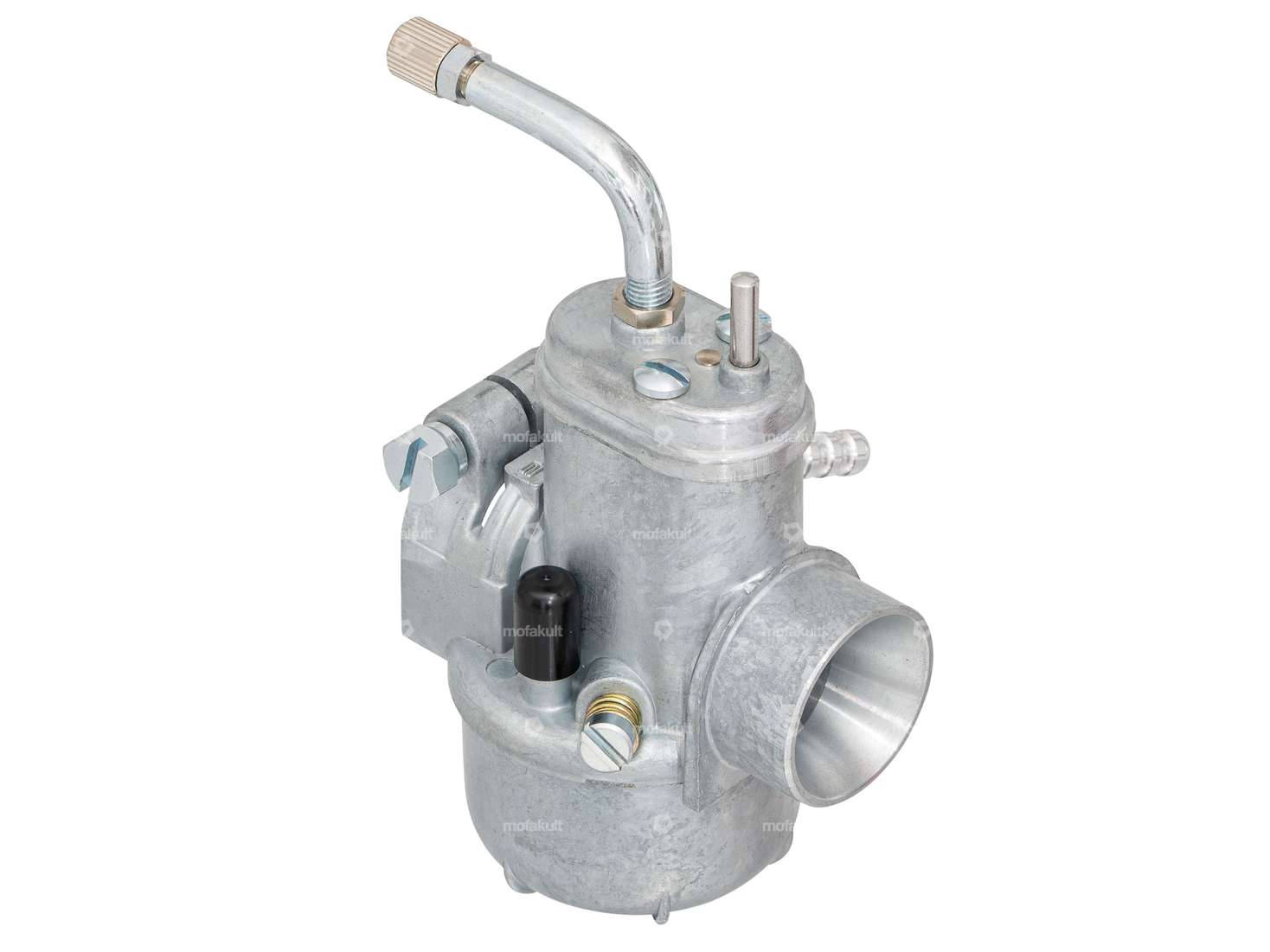

Carburetor: 28919
swiing® ingenious 17 mm SRF carburetor tuning (camouflaged) | Puch Maxi / Supermaxi
Installed throttle bodies: 74
Installed throttle body: 2.20, suitable for M3.5 nozzles
Ø Air filter connection: 28 mm
Ø Intake connection: 23 mm
Total length: 65 mm
Height from center of diffuser: 45 mm
Total height (without choke pin & pipe bend): 89 mm
Maximum tightening torque of the clamping screw: 3 - 4 Nm
Air filter: 28506
GPO air filter | Puch Supermaxi LG1, LG2 Cat
Ø connection: 28 mm
With its connection diameter of 28 mm, the air filter fits perfectly on the large carburettor connection (SRF) and is visually modeled on the original air filter box of the Maxi series.

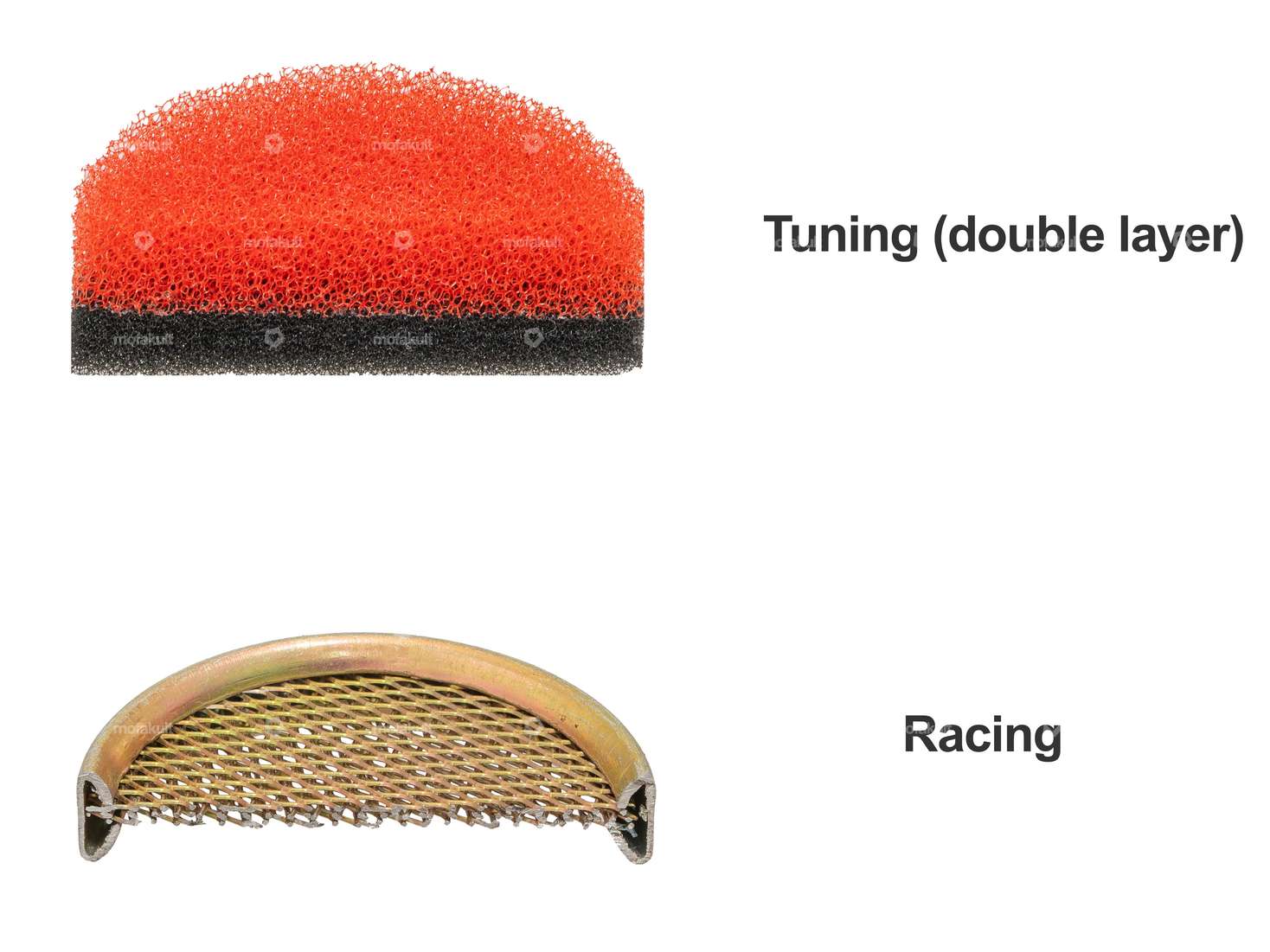

Filter element: 27997
swiing® ingenious air filter mat Ø 50 mm (Double Layer) Tuning
Filter type: Foam filter
Ø outer: 50 mm
Filter element: 17837
Air filter screen Ø 52 mm Racing
Filter type: screen filter
Ø outer: 52 mm
You can find individual parts and carburetors for other models in the accessories section.
When you purchase this complete set, you will receive a substantial percentage off the retail price of the individual parts.
Exclusive product for the highest demands of the quality brand swiing®.
The set includes the following fixed parts:
Manufacturer: GEMI · Material: Chrome steel (known as Nirosta®), Steel · Surface: blank, galvanized (blue) · Ø inside: 20 - 32 mm · Width: 9 mm
Manufacturer: swiing® ingenious parts · Material: Oiled paper, Phenolic resin (known as Bakelite®) · Thickness: 4 mm · Nominal diameter: 17 mm · Hole spacing inlet: 38 mm · Ø screw holder: 6.2 mm · Ø inside: 17 mm
Manufacturer: BING · Place of use: Carburetor · Ø outside: 23 mm
Manufacturer: GPO · Camouflaged: Yes · Color: black · Material: Plastic · Filter type: Box · Ø Internal connection: 20 mm, 28 mm · Mounting type: Plug connection clamped · Area of application: Tuning
Nozzle block: 2.2 · Nozzle size: 74 · Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 17 mm · Ø Internal connection: 23 mm · Ø Inside entrance: 17 mm · Ø Output inside: 17.1 mm · Ø Air filter connection: 27.5 mm · Ø fuel hose connection: 5 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Clamping screw torque (max.): 3 N/m, 4 N/m · Total length: 65 mm · Width: 47 mm · Height: 109 mm, 89 mm · Area of application: Tuning · Component group Carburetor: Carburetor complete
Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Material: Aluminum · Ø inside: 17 mm · Ø External connection: 23 mm · Mounting type: Stud bolts & nuts · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 53.5 mm · Height flange center hole: 42 mm · Total length: 38 mm · Area of application: Tuning, Racing, Performance
Details
| Manufacturer | swiing® ingenious parts |
| Component group Carburetor | Carburetor complete |
| Nominal diameter | 17 mm |
| Carburetor type | SRF |
| Camouflaged | Yes |
Suitable for the following models
| Puch | E50 |
