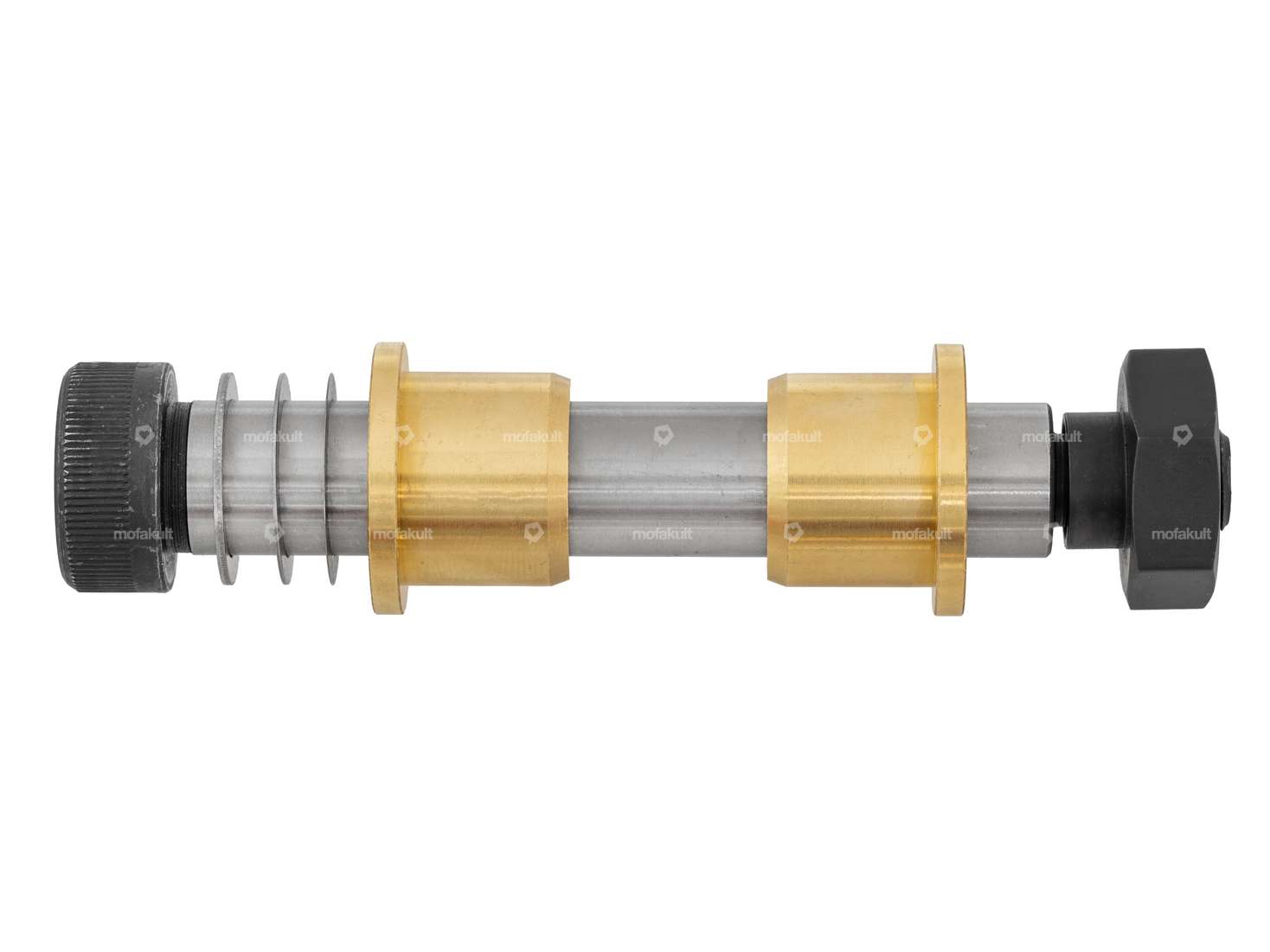

Complete swingarm bearing for the rear swingarm of Sachs and Alpa mopeds, mopeds and small motorcycles.
Please make sure in advance that the dimensions of your installed bushings / axle match, as there are different versions.
Dimension of bushings:
Ø inner: 16 mm
Ø outer: 22 mm
Length: 20 mm
Material: Brass
Dimension of swingarm bolt:
Ø shaft: 16 mm
Shaft length: 90 mm
Thread: M12
Material: hardened steel

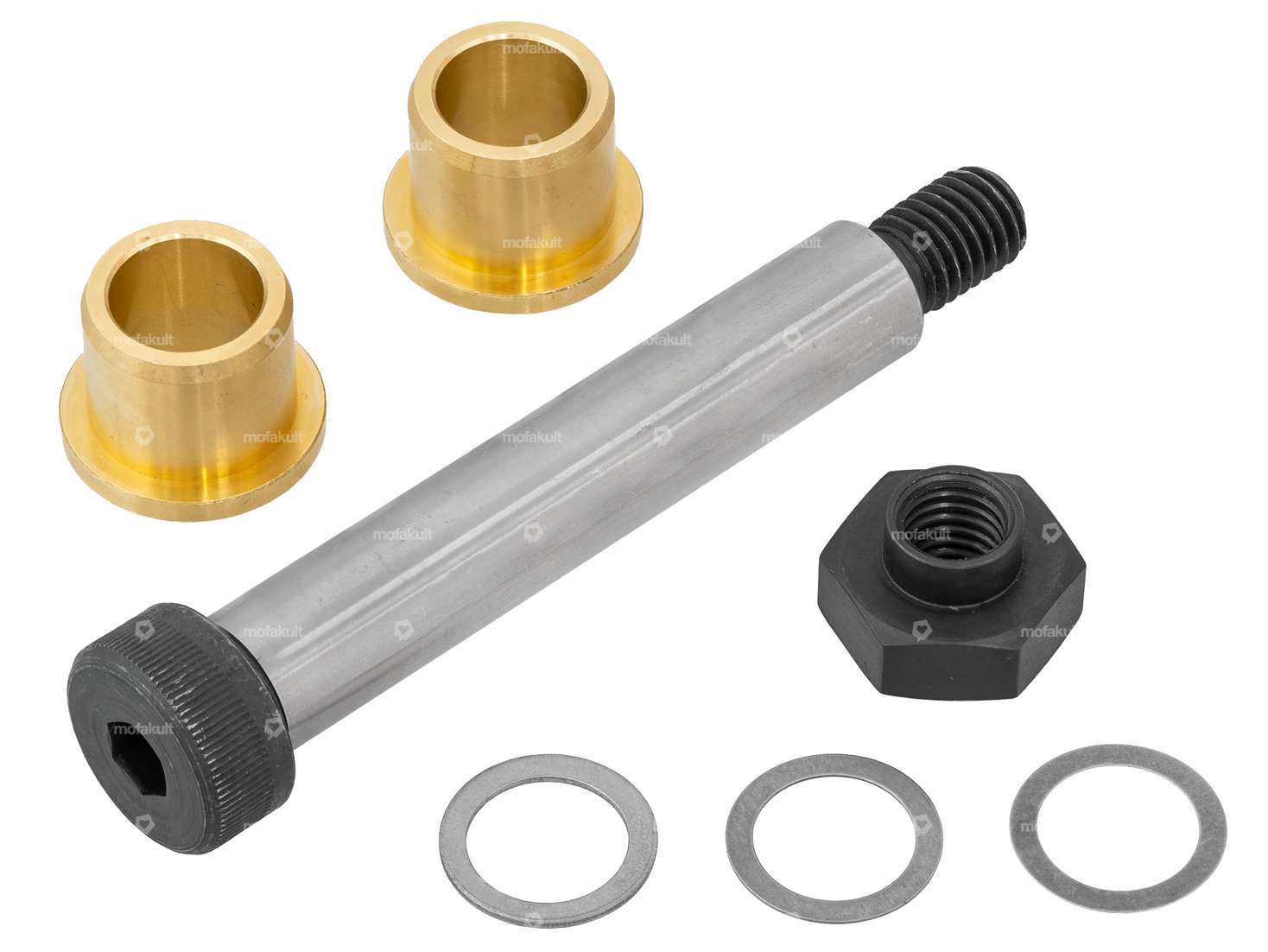

The black brünished and ground swingarm axle is fitted with a special nut, also hardened, and three spacers. The enclosed shim washers with thicknesses of 0.2, 0.5 and 1 mm make it possible to eliminate any axial play in the swing arm bolt.
Nostalgic product for the highest demands of the quality brand swiing®.
The set includes the following fixed parts:
Details
| Manufacturer | swiing® revival parts |
| Material | Steel, Brass |
| Surface | Hardened |
| Thread type | M12x1.75 (standard thread) |
| Ø inside | 12 mm |
| Drive | Hexagon socket, External hexagon |
| Ø Bearing inside | 16 mm |
| Total length | 90 mm, 20 mm |
| Ø axle | 12 mm |
| Ø outside | 16 mm |
| Ø External bearing | 22 mm |
Suitable for the following models
| Sachs | |
| Alpa Chopper / Turbo |
