swiing revival parts transparent

For: Cilo

17842

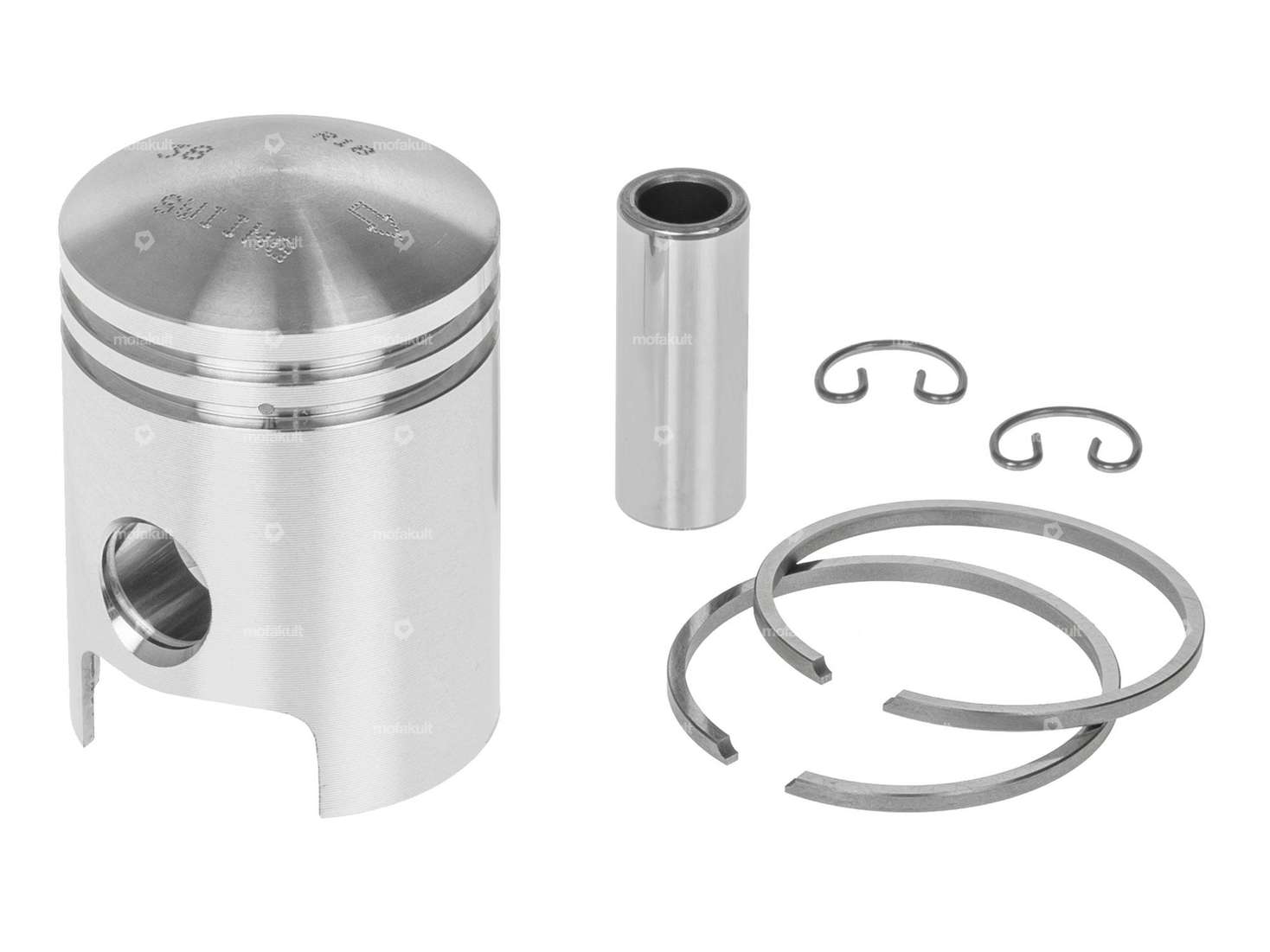

swiing® revival piston 39 mm | Cilo 502

CHF 69.90

Incl. 8.1% VAT.

Description

39 mm ¨um dimension piston with two pieces of 2 mm rectangular piston rings with flange lock (FS) suitable for the old Cilo 502 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter39 mm
Manufacturerswiing® revival parts
Ø outside piston (A)38.94 mm
Compression height (C)28 mm
Curvature (D)5.05 mm
Total piston height (E)54 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Ø piston pin (B)12 mm
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Weight piston kit85 g
Cilo

502 / 502t
