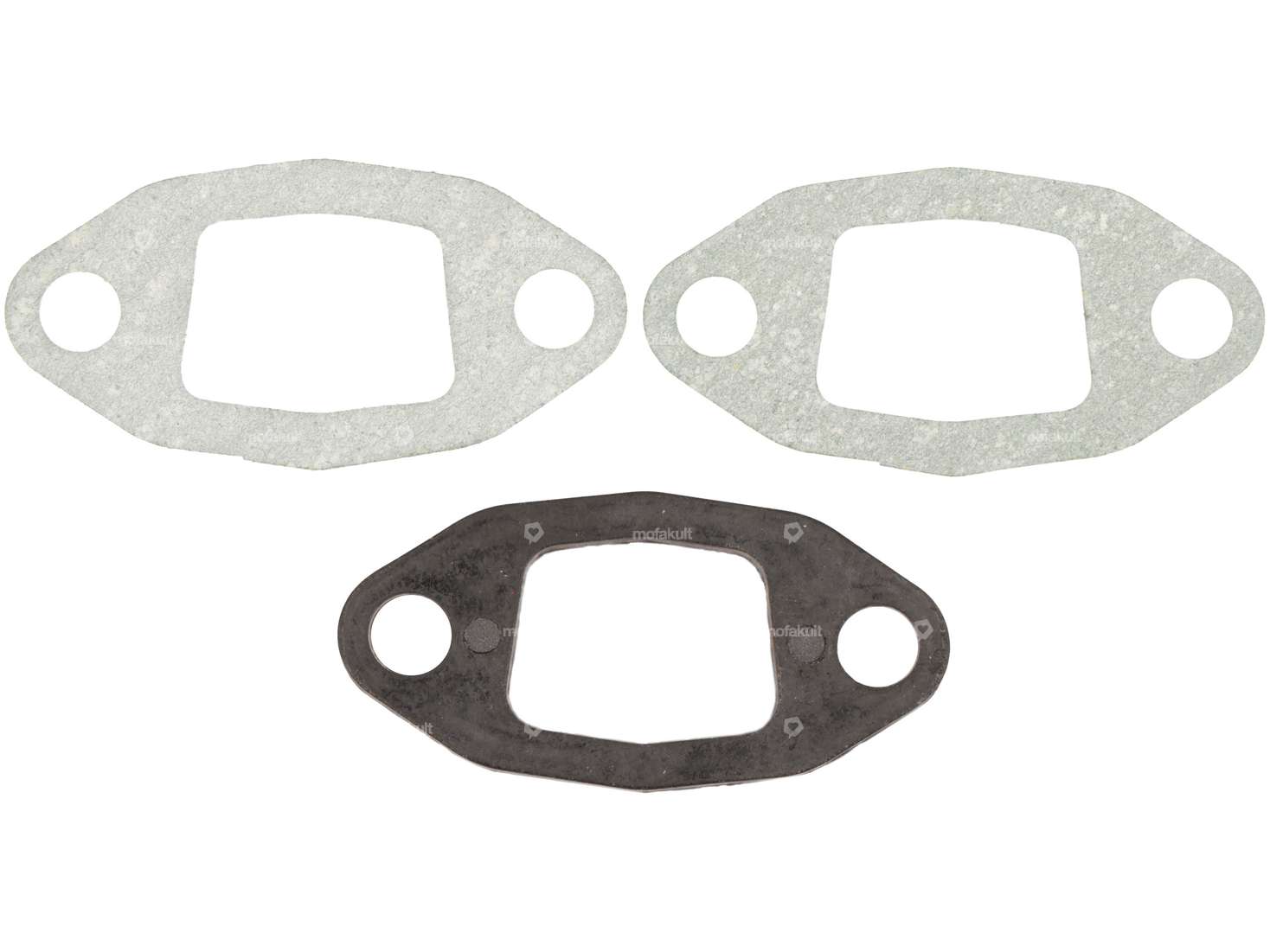

High-quality flange gasket for tuning intake manifold on your Puch Maxi S/N (E50), Supermaxi LG1 / LG2, X30 Sport NS / NL moped / moped.
The 4 mm special gasket consisting of a combination of oil absorbent paper and special polyamide prevents excessive heating of the intake tract, which could have a negative effect on the air-fuel mixture. Excessively high temperatures in the intake tract can reduce the air density and thus reduce the efficiency of the combustion process.
The intake gasket can also be used if the carburettor needs to be mounted at a greater distance from the cylinder.
| Nominal diameter | 15 mm |
| Manufacturer | swiing® ingenious parts |
| Place of use | Admission |
| Thickness | 4 mm |
| Material | Oiled paper, Phenolic resin (colloquially known as Bakelite) |
| Ø inside | 15 mm |
| Ø screw holder | 6.2 mm |
| Hole spacing inlet | 38 mm |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) 2-speed MS, MV, MV50 |
