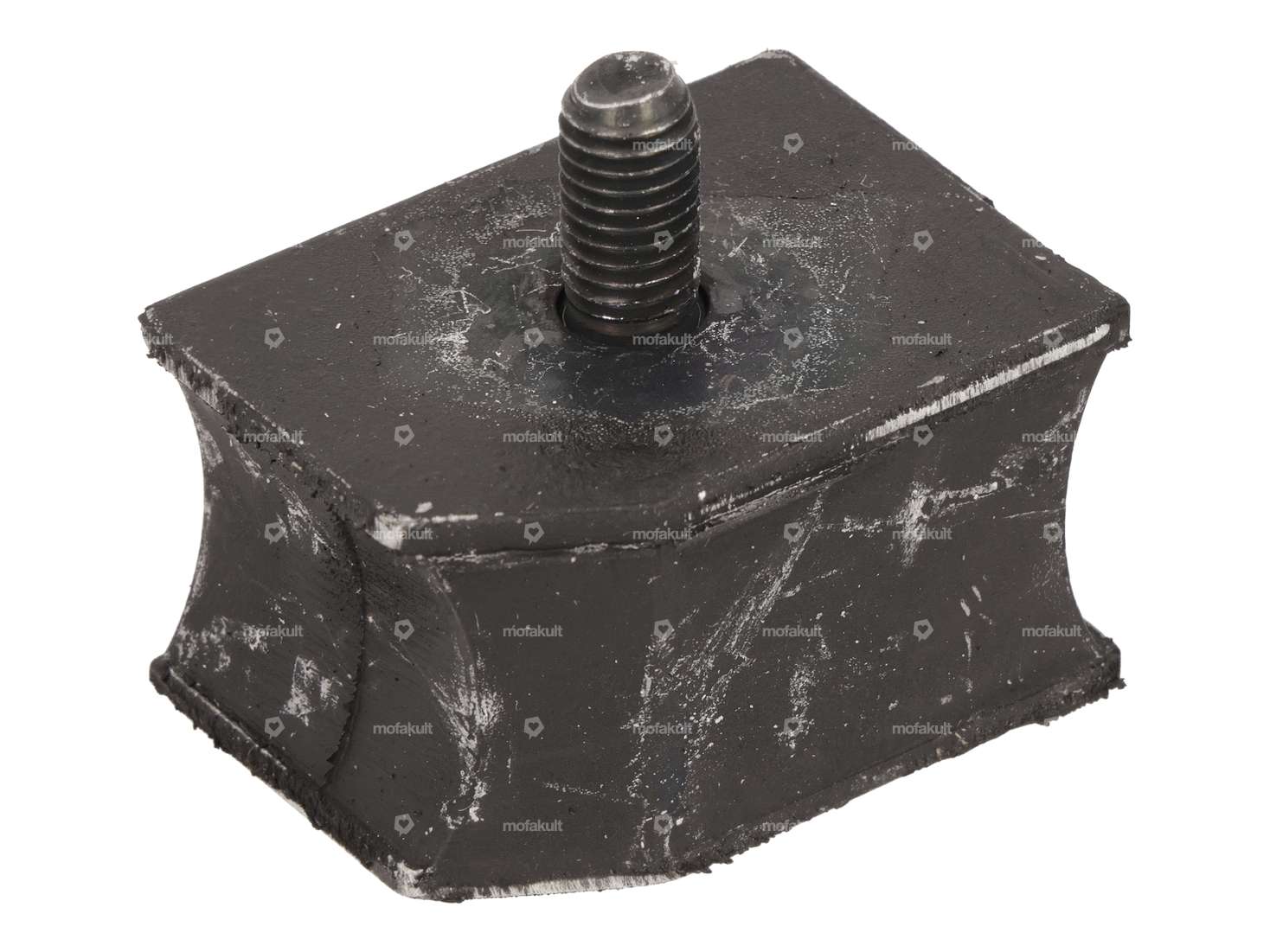

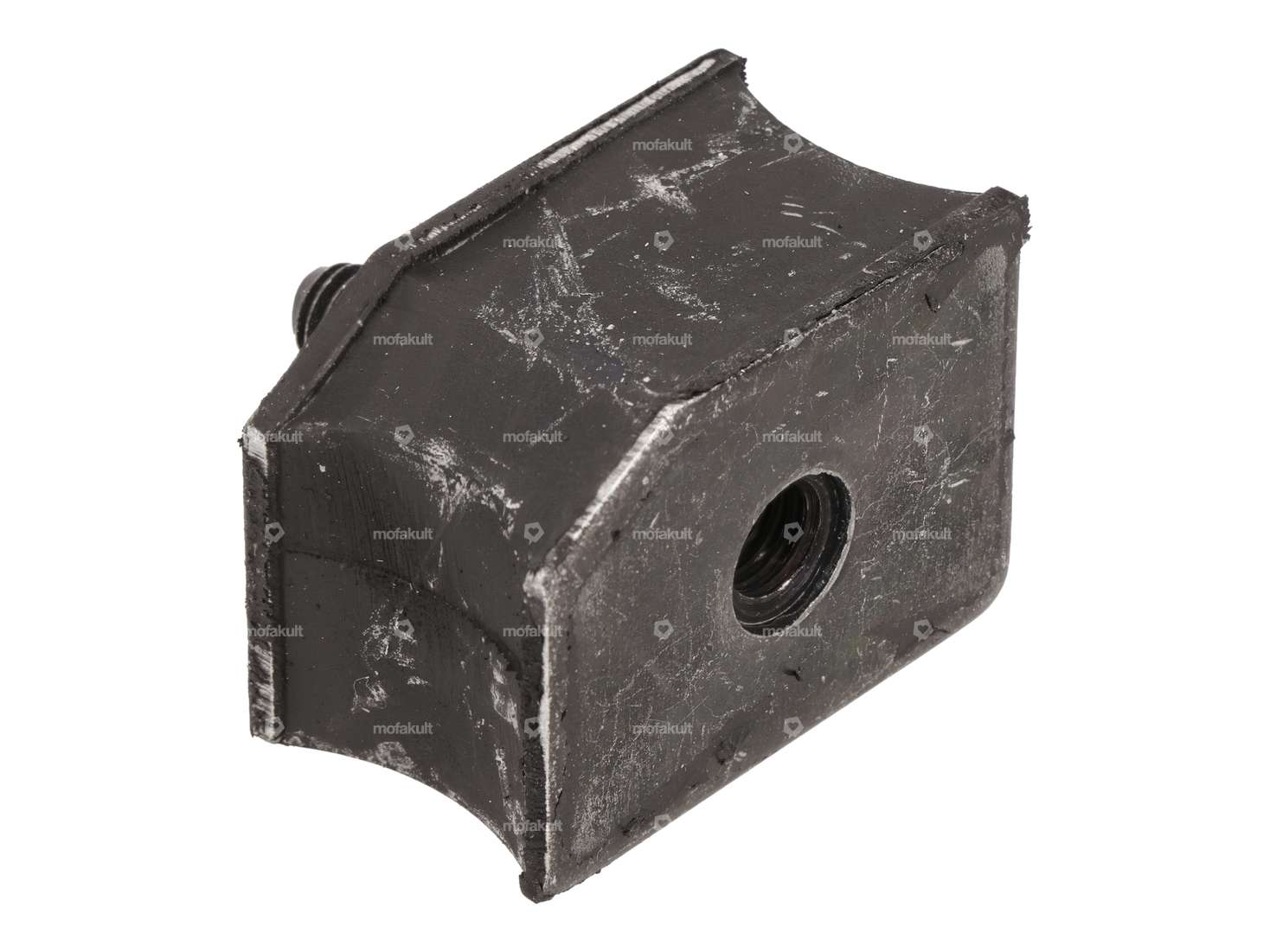

Rubber buffer for the upper mounting of the rear bumper to fit your Vespa Smallframe and Largeframe scooter. You can find a list of the exact models in the drop-down menu below under «suitable for the following models».
The silent rubber sits between the frame and the rear suspension of your scooter and ensures a clean mounting of the shock absorber. Over time, the rubber element becomes porous, which is often noticeable in the form of a spongy ride feeling. It is advisable to replace this buffer at the latest when changing to a new shock absorber. This will ensure that the rear shock absorber is correctly mounted again and unwanted play is avoided.
| Material | Rubber, Steel |
| Color | black |
| Thread type | M8x1.25 (standard thread), M9x1.25 (standard thread) |
| Nominal diameter (thread) | 8 mm, 9 mm |
| Height | 27 mm |
| Thread length | 14 mm, 13 mm |
| Total length | 45 mm |
| Width | 32.5 mm |
| Piaggio OEM number | 060536 |
| Vespa | Vespa PX, T5, Cosa - PX80 E Lusso · V8X1T · 1983 - 1993 Lusso / Arcobaleno , PX100E · VIX1T · Indien , P125X · VNX1T · 1977 - 1982 (PX alt) Aussenverschluss , P125X · VNX2T · 1981 - 1984 (PX alt) Innenverschluss , PX125 E · VNX2T · 1982 - 1993 / Lusso / Arcobaleno , PX125 · VNX2T · 1993 - 1996 Classic , PX125 · VNX2T · 1997 - 1999 (Disc) , T5 125 · VNX5T · 1985 - 1993 , PX125 · ZAPM471 · 2001 MY Katalysator (Millenium) , P150X · VLX1T · 1978 - 1993 , P150S · VBX1T · 1978 - 1990 , PX150 · ZAPM742 · 2001 MY Katalysator (Millenium) , P200E · VSX1T · 1977 - 1984 (Zündschloss Lenkkopf) , PX200 · VSX1T · 1984 - 1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993 - 1996 Classic , PX200 · VSX1T · 1997 - 1999 (Disc) , P80X · V8X1T · alt (Zündschloss Lenkkopf) |
Accessories & related products

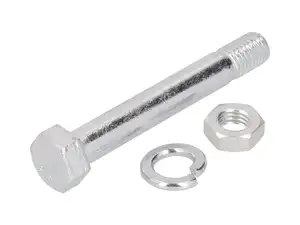

Screw set M9x65 rear lower shock absorber | Vespa Largeframe, Smallframe
Number of components: 3 pcs · Material: Steel · Surface: galvanized (blue) · Thread type: M9x1.25 (standard thread) · Nominal diameter (thread): 9 mm · Screw head: Hexagon · Thread length: 12.5 mm · Drive: External hexagon · Shank: Yes · Width across flats: 13 mm · Width across flats: 14 mm · Strength class: 8.8 · Piaggio OEM number: 12263 · Piaggio OEM number: 014689
CHF 4.90

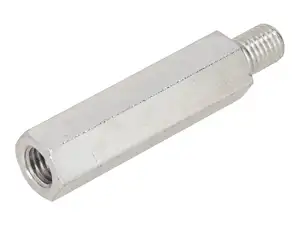

Spacer nut M9x52 rear shock absorber | Vespa P, PX
Material: Steel · Surface: galvanized (blue) · Thread type: M9x1.25 (standard thread) · Nut type: Special special nut · Nominal diameter (thread): 9 mm · External thread: M9x1.25 (standard thread) · Drive: External hexagon · Height: 52 mm · Width across flats: 14 mm · Thread depth: 27 mm · Piaggio OEM number: 149871
CHF 5.90
Spacer nut M9x48 mm rear shock absorber | Vespa PX Lusso, T5
Material: Steel · Surface: galvanized (blue) · Thread type: M9x1.25 (standard thread) · Nut type: Special special nut · Nominal diameter (thread): 9 mm · External thread: M9x1.25 (standard thread) · Drive: External hexagon · Height: 48 mm · Width across flats: 14 mm · Thread depth: 27 mm · Piaggio OEM number: 199344
CHF 5.90
