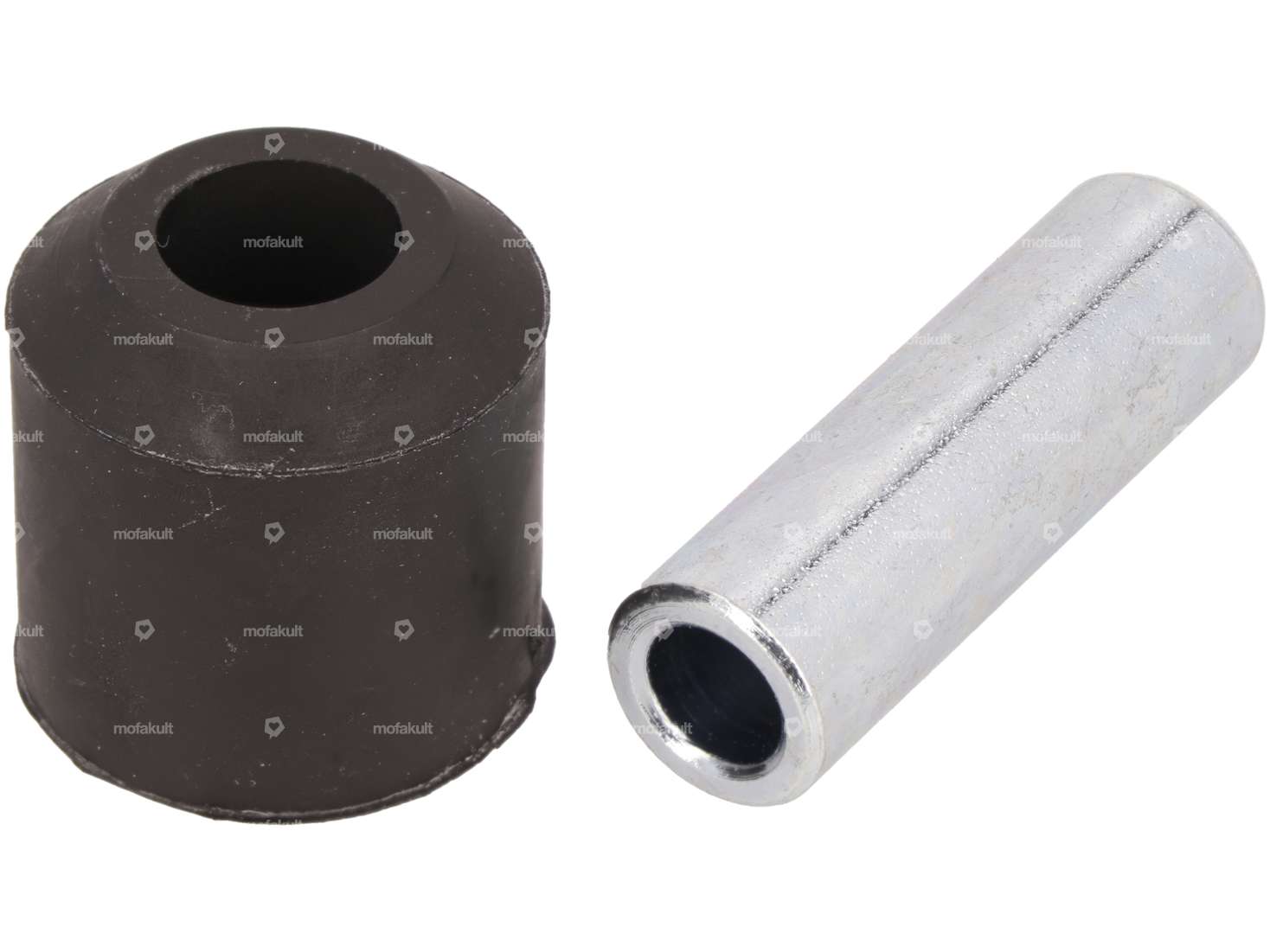

Silent rubber set with bushing for the rear shock absorber at the bottom, suitable for your Vespa Largeframe and Smallframe scooter. A list of the exact models can be found below in the drop-down menu under «suitable for the following models».
The rubber buffer is located in the shock absorber mount in the engine housing and serves as an elastic mount between the engine block and the suspension strut. As a result, vibrations are absorbed cleanly and the lower mounting of the shock absorber is relieved. The enclosed bushing ensures a clean fit of the fastening screw in the lower mount.
| Ø inside | 14 mm |
| Material | Rubber, Steel |
| Ø outside | 30 mm |
| Total length | 35 mm |
| Piaggio OEM number | 157103, 010316 |
| Vespa | Vespa PX, T5, Cosa - PX80 E Lusso · V8X1T · 1983 - 1993 Lusso / Arcobaleno , PX100E · VIX1T · Indien , P125X · VNX1T · 1977 - 1982 (PX alt) Aussenverschluss , P125X · VNX2T · 1981 - 1984 (PX alt) Innenverschluss , PX125 E · VNX2T · 1982 - 1993 / Lusso / Arcobaleno , PX125 · VNX2T · 1993 - 1996 Classic , PX125 · VNX2T · 1997 - 1999 (Disc) , T5 125 · VNX5T · 1985 - 1993 , PX125 · ZAPM471 · 2001 MY Katalysator (Millenium) , P150X · VLX1T · 1978 - 1993 , P150S · VBX1T · 1978 - 1990 , PX150 · ZAPM742 · 2001 MY Katalysator (Millenium) , P200E · VSX1T · 1977 - 1984 (Zündschloss Lenkkopf) , PX200 · VSX1T · 1984 - 1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993 - 1996 Classic , Cosa 125 · VNR1T · I 1988 - 1992 II 1992 - 1998 , PX200 · VSX1T · 1997 - 1999 (Disc) , Cosa 150 · VLR1T · I 1988 - 1991 II 1992 - 1995 , Cosa 200 · VSR1T · I 1988 - 1992 II 1992 - 1998 , P80X · V8X1T · alt (Zündschloss Lenkkopf) |
Ratings
Accessories & related products

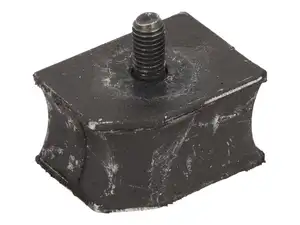

Silentblock rear upper shock absorber | Vespa Largeframe, Smallframe
Total length: 45 mm · Width: 32.5 mm · Height: 27 mm · Thread type: M8x1.25 (standard thread) · Thread type: M9x1.25 (standard thread) · Thread length: 13 mm · Thread length: 14 mm · Color: black · Material: Rubber · Material: Steel · Nominal diameter (thread): 8 mm · Nominal diameter (thread): 9 mm · Piaggio OEM number: 060536
CHF 14.90
Screw set M9x65 rear lower shock absorber | Vespa Largeframe, Smallframe
Thread length: 12.5 mm · Material: Steel · Nominal diameter (thread): 9 mm · Surface: galvanized (blue) · Thread type: M9x1.25 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Shank: Yes · Strength class: 8.8 · Number of components: 3 pcs · Width across flats: 13 mm · Width across flats: 14 mm · Piaggio OEM number: 12263 · Piaggio OEM number: 014689
CHF 4.90
Spacer nut M9x52 rear shock absorber | Vespa P, PX
Material: Steel · Surface: galvanized (blue) · Nut type: Special special nut · Thread type: M9x1.25 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 9 mm · External thread: M9x1.25 (standard thread) · Height: 52 mm · Thread depth: 27 mm · Width across flats: 14 mm · Piaggio OEM number: 149871
CHF 5.90
Spacer nut M9x48 mm rear shock absorber | Vespa PX Lusso, T5
Material: Steel · Surface: galvanized (blue) · Nut type: Special special nut · Thread type: M9x1.25 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 9 mm · External thread: M9x1.25 (standard thread) · Height: 48 mm · Thread depth: 27 mm · Width across flats: 14 mm · Piaggio OEM number: 199344
CHF 5.90
