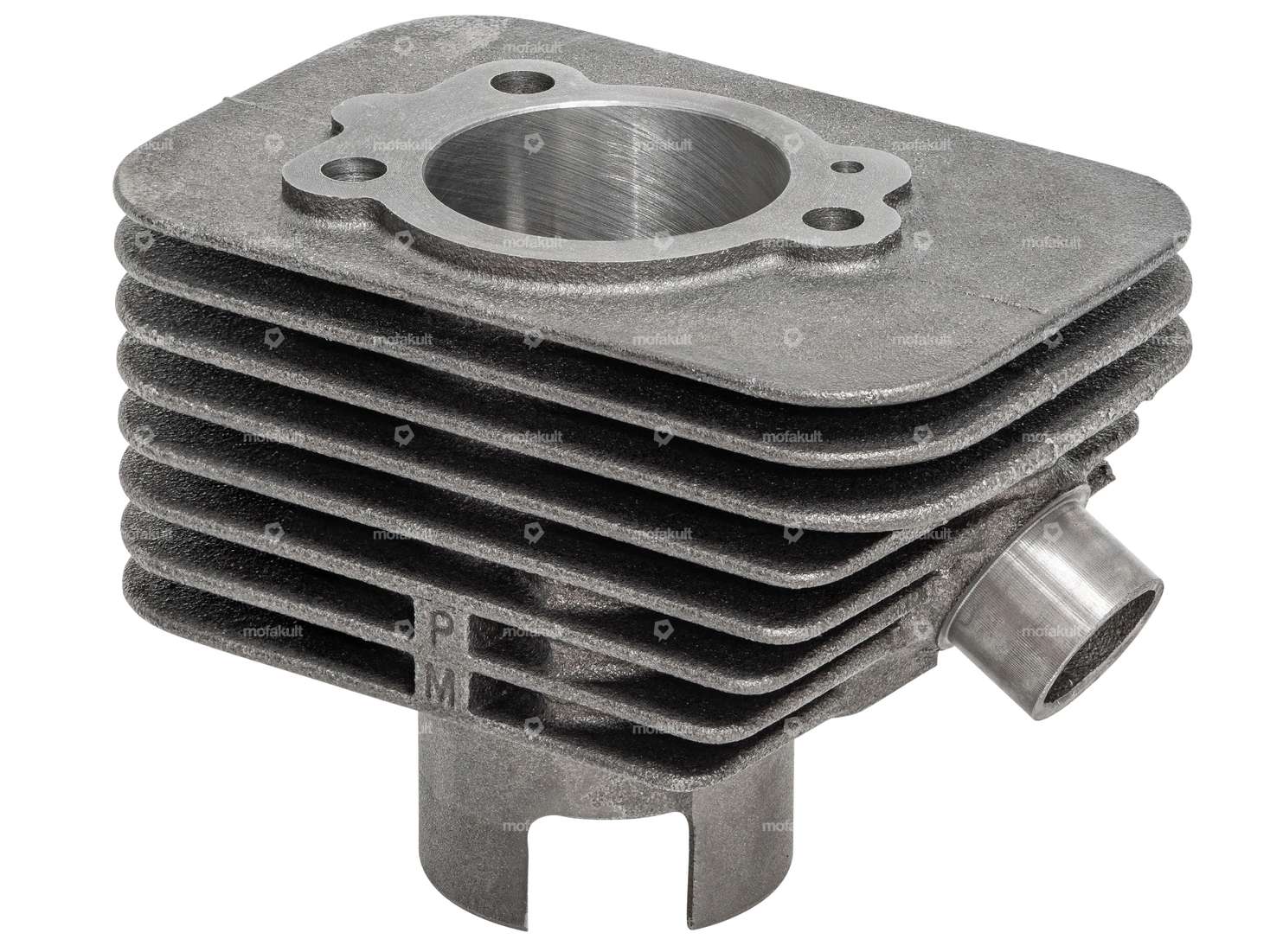

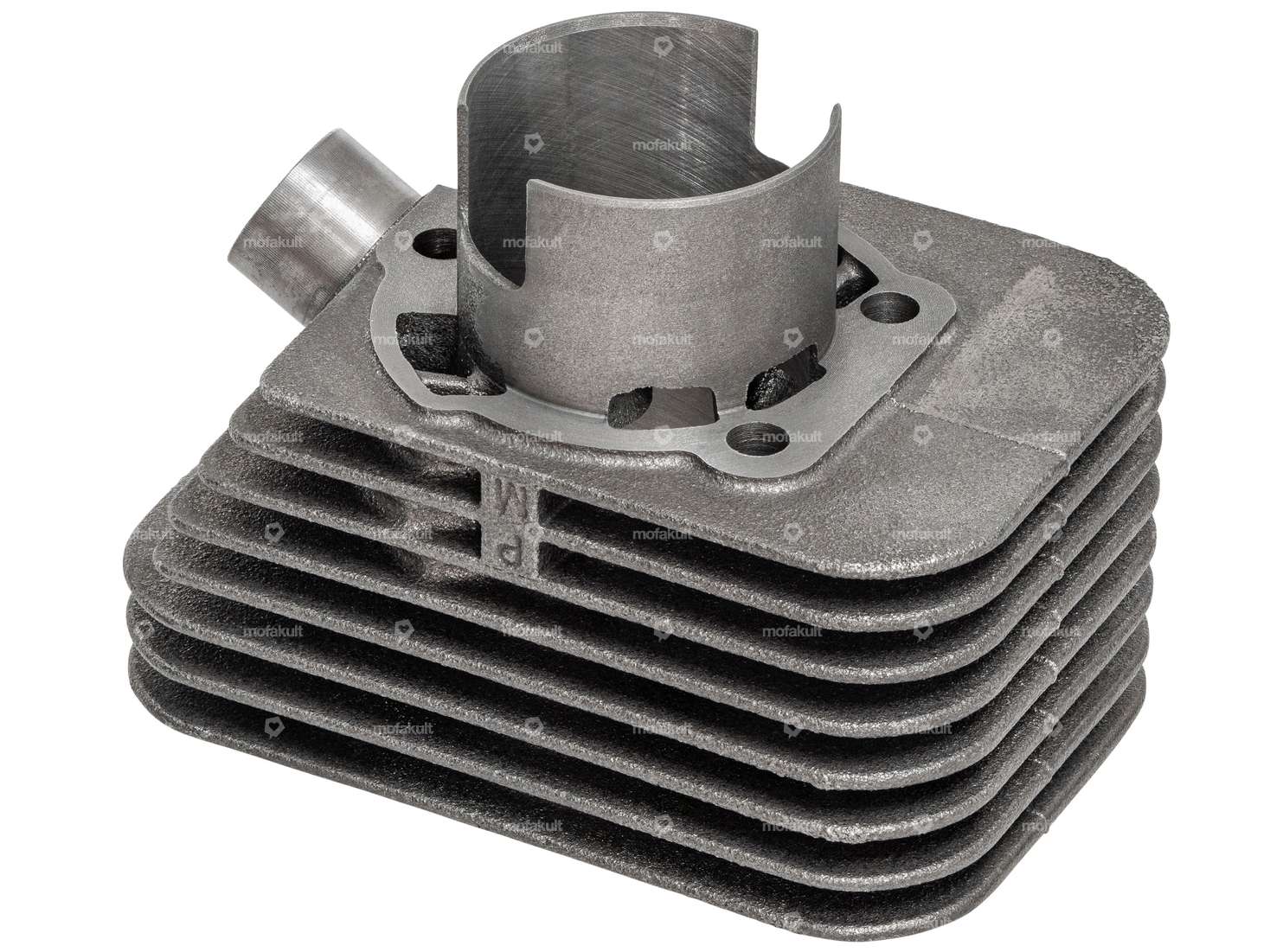

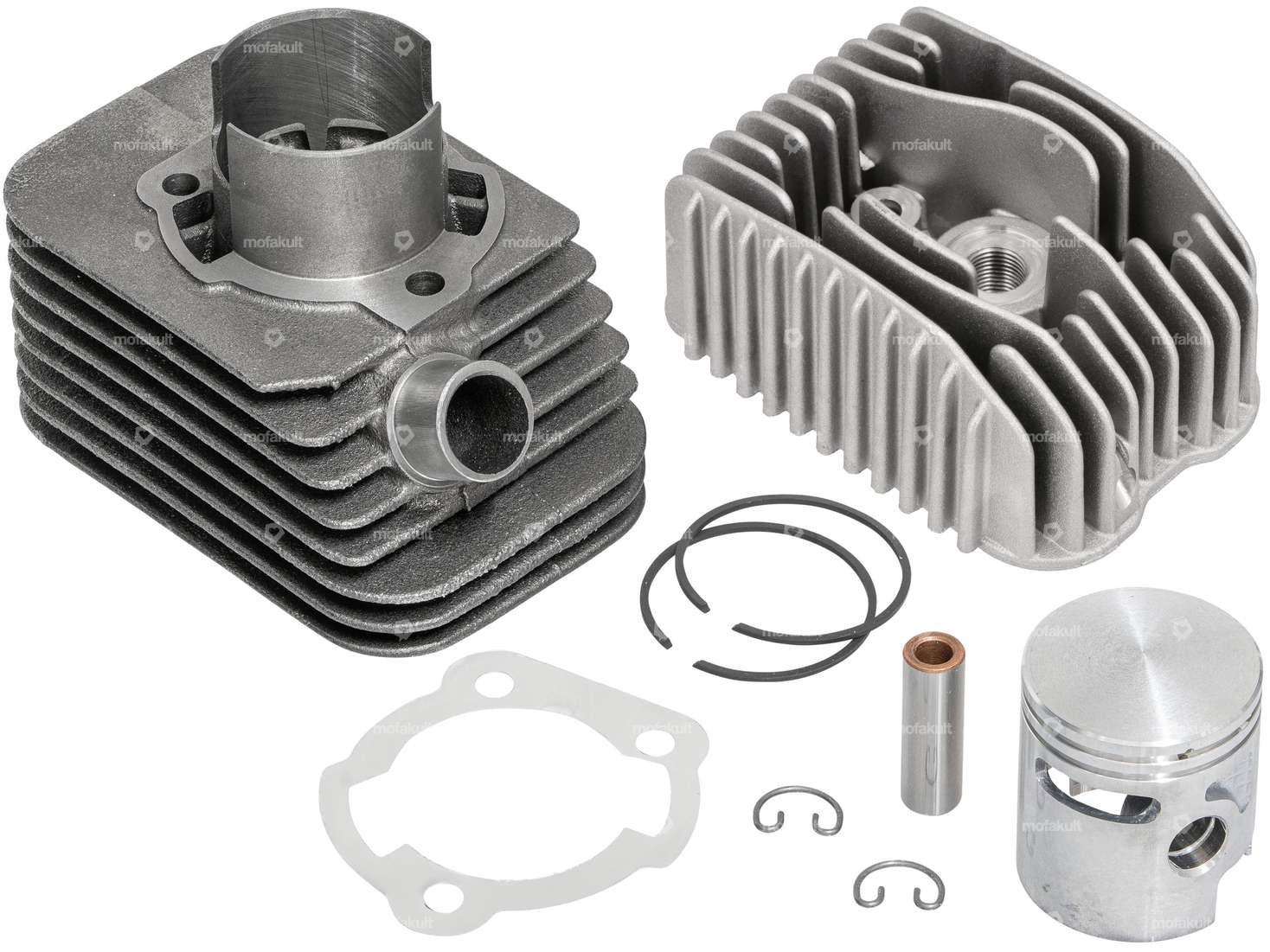

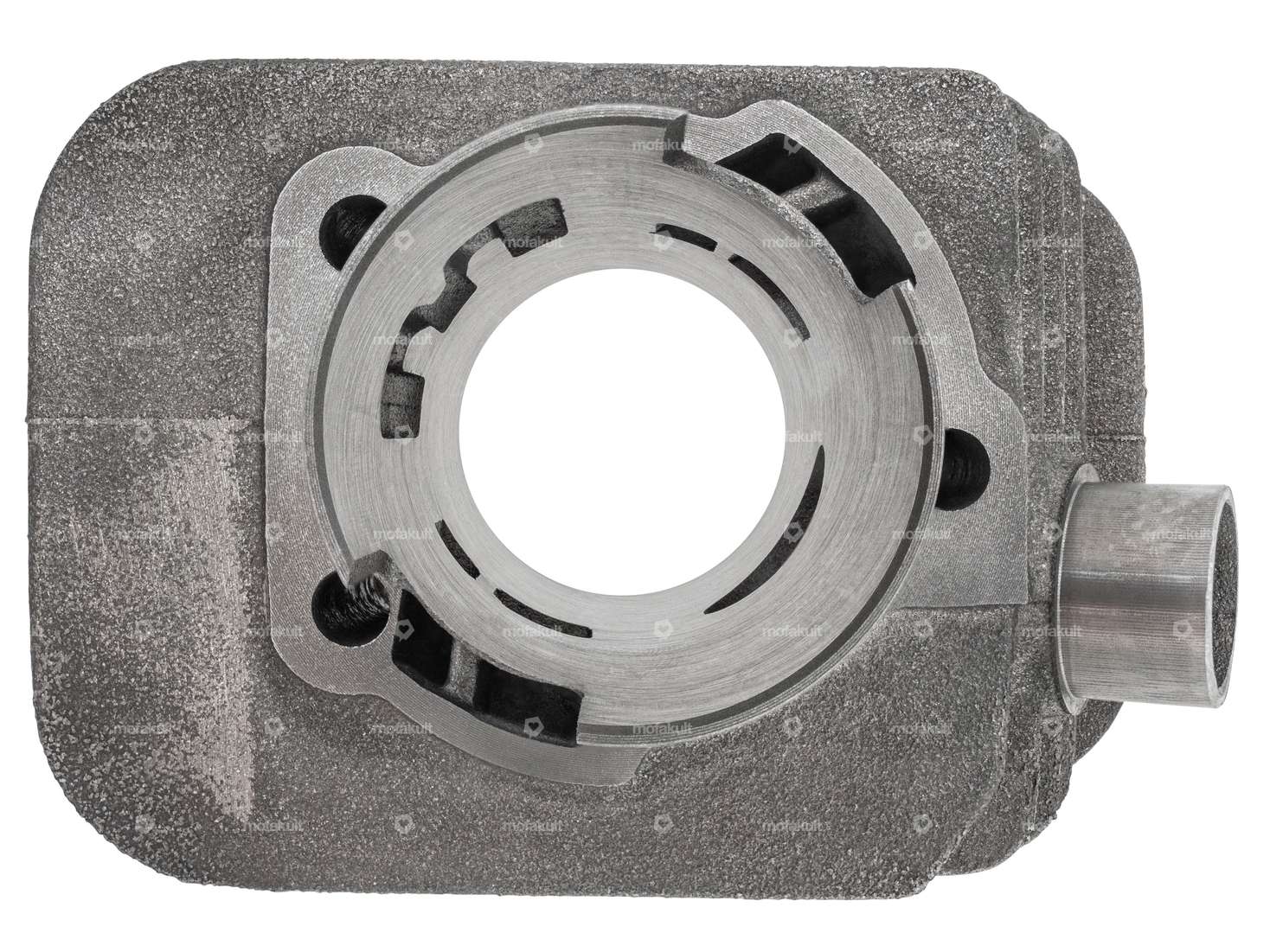

This cast iron cylinder, which is supplied with the matching cylinder head, fits all Piaggio Ciao, Bravo 1 and Boxer mopeds.
Excellent workmanship and durability, combined with an exceptional price-performance ratio make this cylinder one of the most popular on the market.
The piston pin has a diameter of 12 mm.
We can also offer you this cylinder kit without cylinder head, or with 10 mm piston pin diameter.
Quality product from the Italian manufacturer Polini.

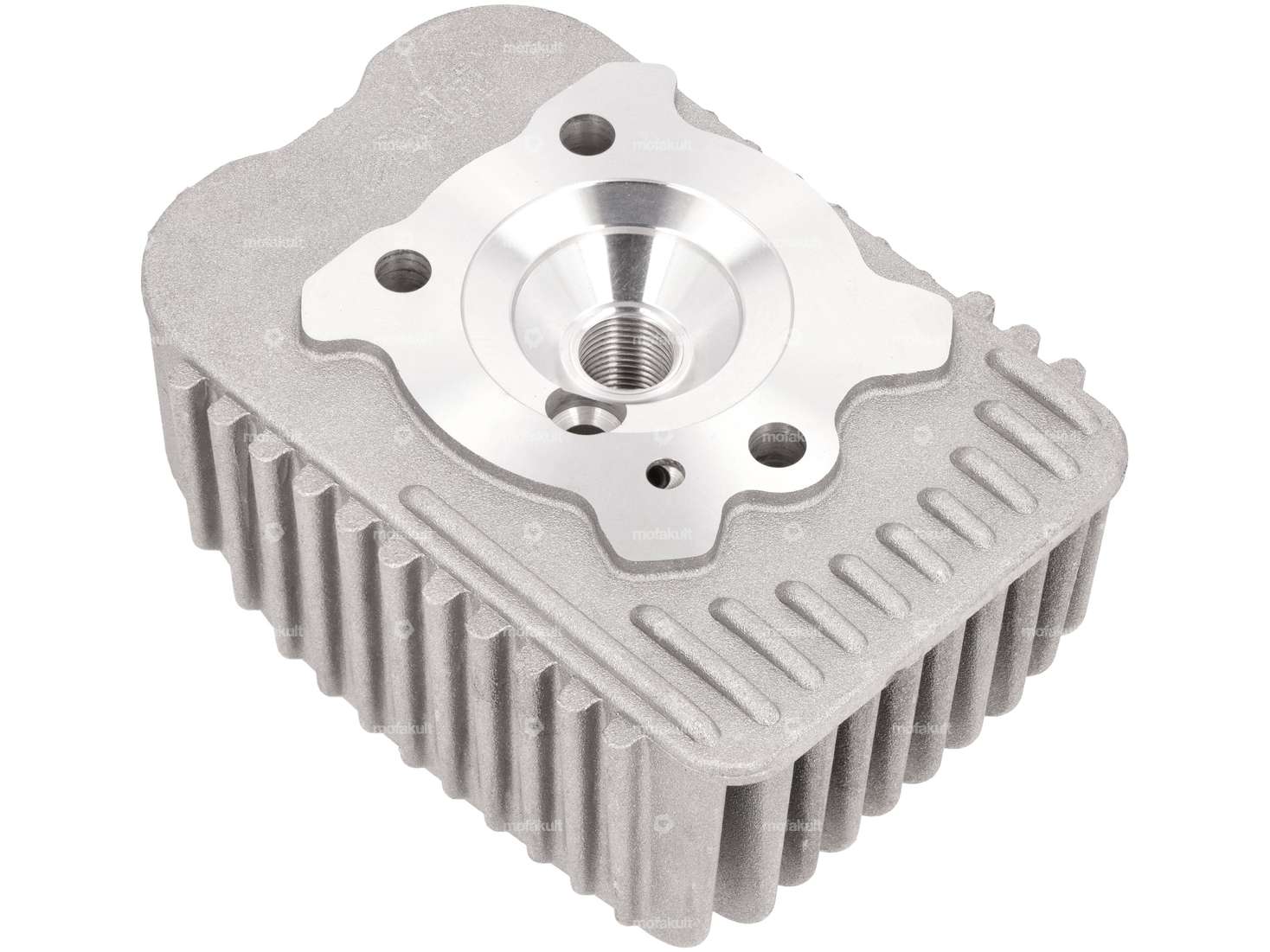

Manufacturer: Polini · Material: Aluminum · Ø cylinder: 38.4 - 43 mm · Camouflaged: No · Candle thread: long · Decompressor: Yes · Total length: 118 mm · Width: 85 mm · Height: 58 mm · Area of application: Tuning
Manufacturer: Polini · Material: Gray cast iron · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 45.8 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Decompressor: Yes · Camouflaged: No · Area of application: Tuning · Ø Outlet outside: 22.6 mm · Ø outlet inside: 18.4 mm · Hole pattern [mm]: 55 x 34
| Manufacturer | Polini |
| Material | Gray cast iron |
| Camouflaged | No |
| Area of application | Tuning |
| Surface | sandblasted |
| Displacement | 63 ccm |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 43 mm |
| Number of fixing points | 3 pcs |
| Ø piston pin (B) | 12 mm |
| Outlet type | clamped |
| Decompressor | Yes |
| Piaggio | Ciao - P , SC , PX , C24 Bravo / Super Bravo Boxer |
