Pinasco «Slave» engine case with crankshaft (43 mm stroke / 12 mm KoBo) and double intake suitable for your Piaggio Ciao, Si, Bravo, Boxer, Grillo moped / moped.

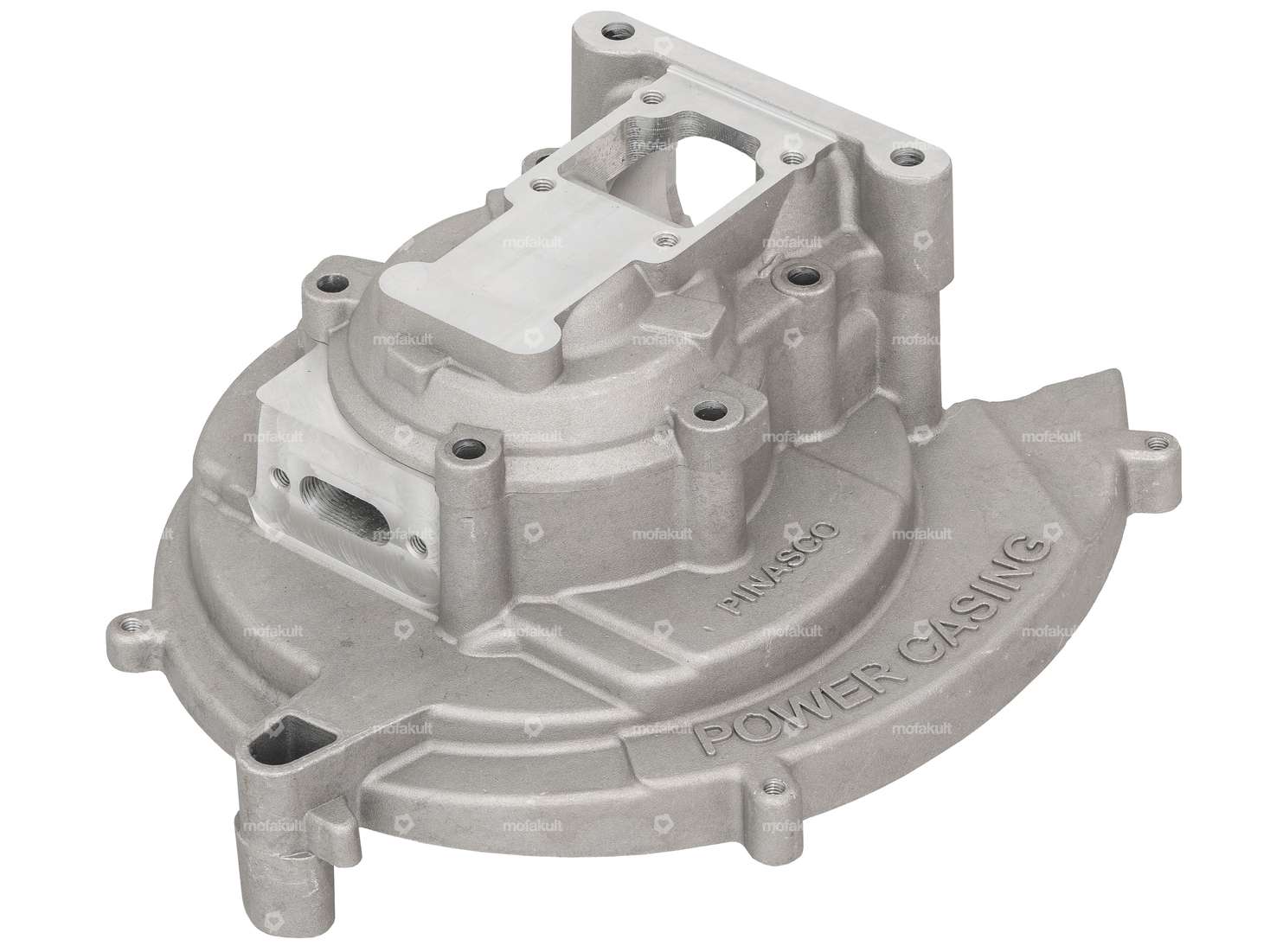

The Pinasco «Power Casing» engine case is supplied with a specially developed crankshaft, which has a wider cheek for controlling the intake at the rear intake.
A standard 13 mm Dellorto SHA carburettor can be fitted to the rear of this case, as well as any side-mounted carburettor with a 24 mm connection on the reed system. The frame may have to be adapted in this case.
This dual carburettor system can be used to tease the last horsepower out of your motorcycle.

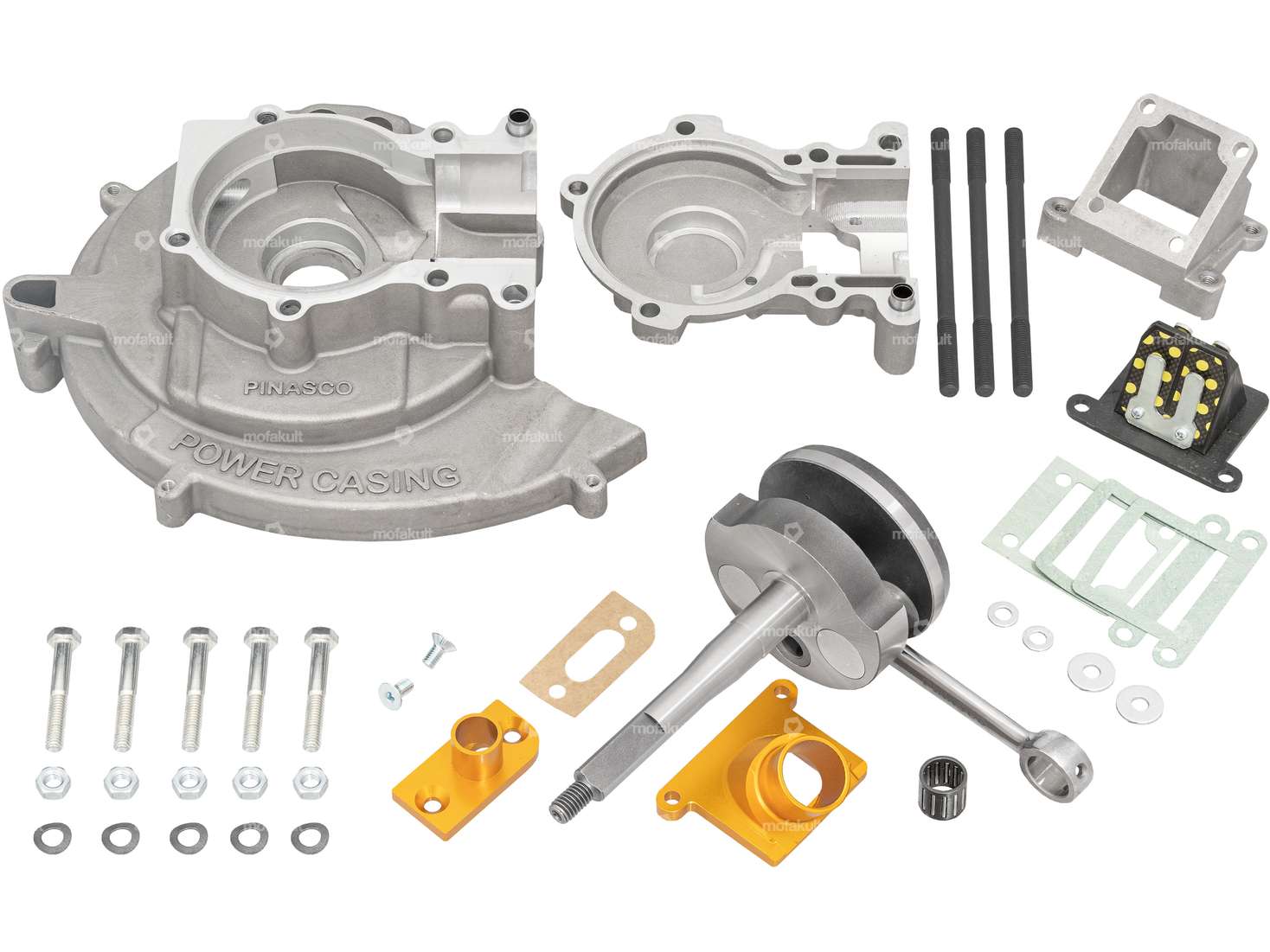

The following parts are included in the scope of delivery:
- Rear intake flange (connection 16 mm, &slash; inside 13 mm)
- Side diaphragm system incl. sealing plug for the 13 mm flange if this is not used.
- Mounting material for diaphragm flange (connection 24 mm, Ø inside 20 mm)
- Cylinder stud bolts
- Engine housing (Ø for cylinder neck up to 46 mm outside diameter)
- Engine housing screws

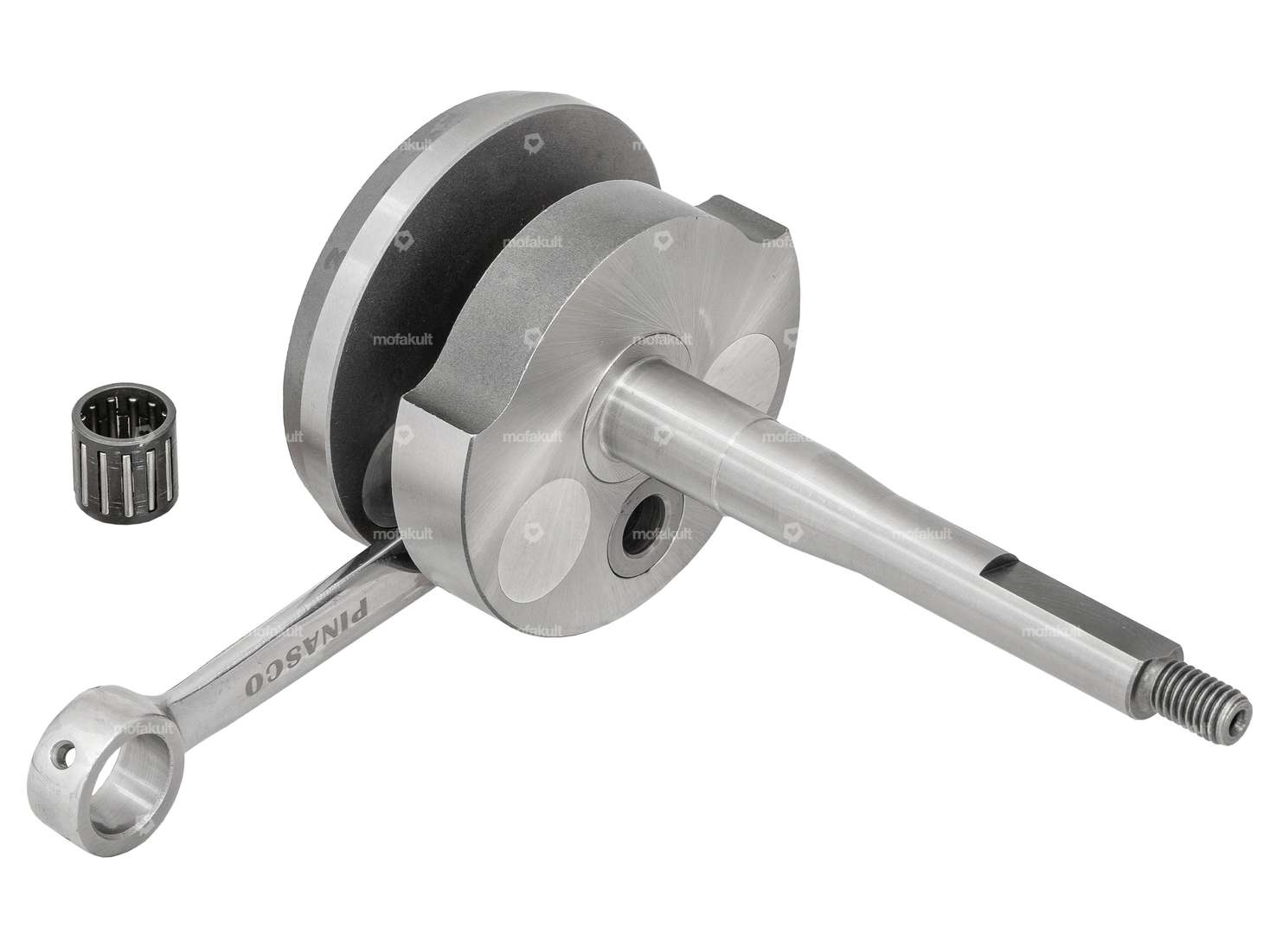

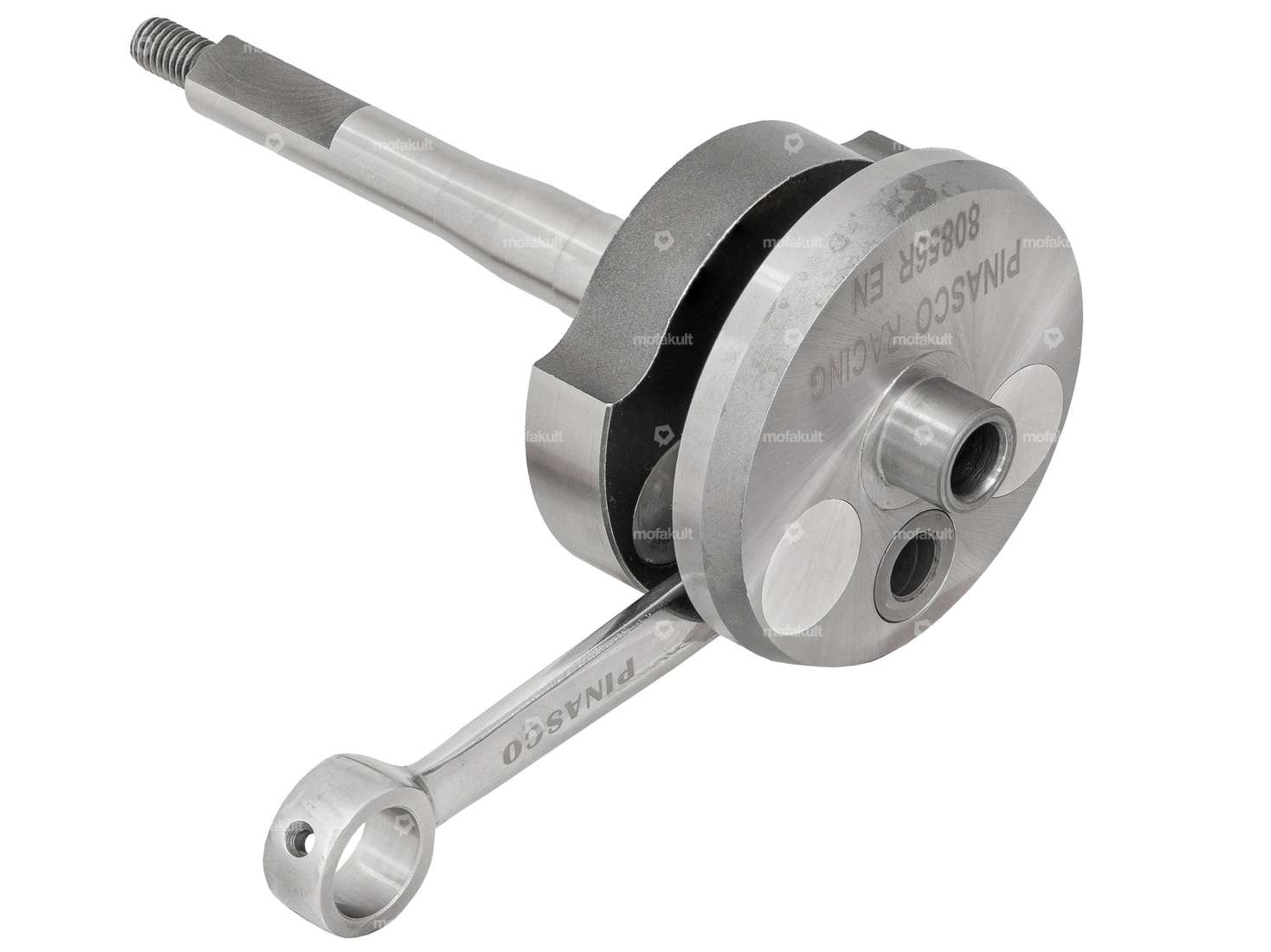

- ;crankshaft Pinasco Competition with 43 mm stroke and 12 mm piston pin (axe 12)
- Installation instructions in English & Italian
No housing gasket is supplied. Sealing compound is used for sealing.
We recommend using the 42 mm Pinasco cylinder kit for this racing gear. In addition, only electronic ignitions can be fitted to this housing.
If the engine is installed in a Piaggio Ciao frame, some material must be removed from the right-hand side of the housing and cylinder, as described in the installation instructions.
Corresponding add-on parts such as sealant, racing kit, racing ignition etc. can be found in the accessories section.
Quality product from the Italian manufacturer Pinasco.
Details
| Manufacturer | Pinasco |
| Material | Aluminum |
| Crankshaft stroke | 43 mm |
| Ignition type | Electronic |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
Dell'Orto 19 mm PHBG CS carburetor hand choke
Total length: 82 mm · Width: 70 mm · Height: 124 mm · Manufacturer: Dell'Orto · Area of application: Racing · Area of application: Tuning · Component group Carburetor: Carburetor complete · Material: Aluminum · Color: black · Carburetor type: PHBG CS · Choke control: Hand choke · Nominal diameter: 19 mm · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 26 mm · Ø Inside entrance: 19 mm · Ø Output inside: 19 mm · Mounting type: Plug connection clamped · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø Internal connection: 24 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke nozzle size: 60 · Camouflaged: No · Nozzle size: 75 · Size of secondary nozzle: 45
CHF 119.90
Malossi racing ignition 12V | Piaggio Ciao, SI, Bravo, Boxer
Material: Steel · Manufacturer: Malossi · Mounting type: Screws · Number of fixing points: 2 pcs · Light coil voltage: 12 V · Performance: 90 W · Direction of rotation: right · Ø Internal flywheel: 80.5 mm · Ø Flywheel outside: 105 mm · Ø Flywheel outside: 139.5 mm · Ø cable: 7 mm · Weight: 804 g · Weight: 890 g · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning
CHF 399.90
SKF 6202 C3 ball bearing 15/35/11
Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Stock number: 6202 · Bearing type: Deep groove ball bearing · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Puch OEM number: 900.4.6202
CHF 9.90
Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C
Manufacturer: Elring · Material: Silicone · Contents [ml]: 70 ml · Color: gray · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Temperature resistance (min.): -60 - 315 °C · Gap dimension (max.): 2 mm · Area of application: Chemistry
CHF 19.90
CHF 284.29/l
Pinasco flywheel carbon | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Pinasco · Material: Aluminum · Material: Carbon · Ø Internal flywheel: 106 mm · Surface: varnished · Direction of rotation: right · Ø cone small inside: 12.4 mm · Height: 38.7 mm · Ø cone large inside: 14.5 mm · Cone length: 12.5 mm · Cone ratio: 1:5 · Ø Flywheel outside: 135 mm · Thread type: MF16x1 (fine pitch thread) · Thread length: 7.5 mm · Weight: 650 g
CHF 209.90
Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao P, SC
Manufacturer: Dell'Orto · Material: Aluminum · Area of application: Tuning · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: SHA (Piaggio) · Nominal diameter: 13 mm · Total length: 55 mm · Width: 60 mm · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Plug connection clamped · Height: 110 mm · Ø without reducing sleeve: 18 mm · Nozzle size: 66 · Ø Inside entrance: 13 mm · Ø Internal connection: 16 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.9 mm · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Camouflaged: No
CHF 69.90
Not in stock

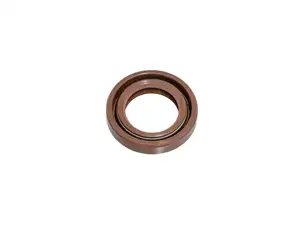

Malossi oil seal FPM 15/24/5 A crankshaft | Piaggio Ciao, SI, Bravo, Boxer
Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Malossi · Ø outside: 24 mm · Material: FPM / FKM (known as VITON®) · Surface: rubberized · Ø inside: 15 mm · Width: 5 mm
CHF 14.30

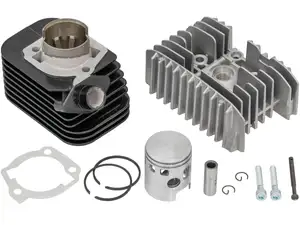

Pinasco 42 mm cylinder kit EVOTEN 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
