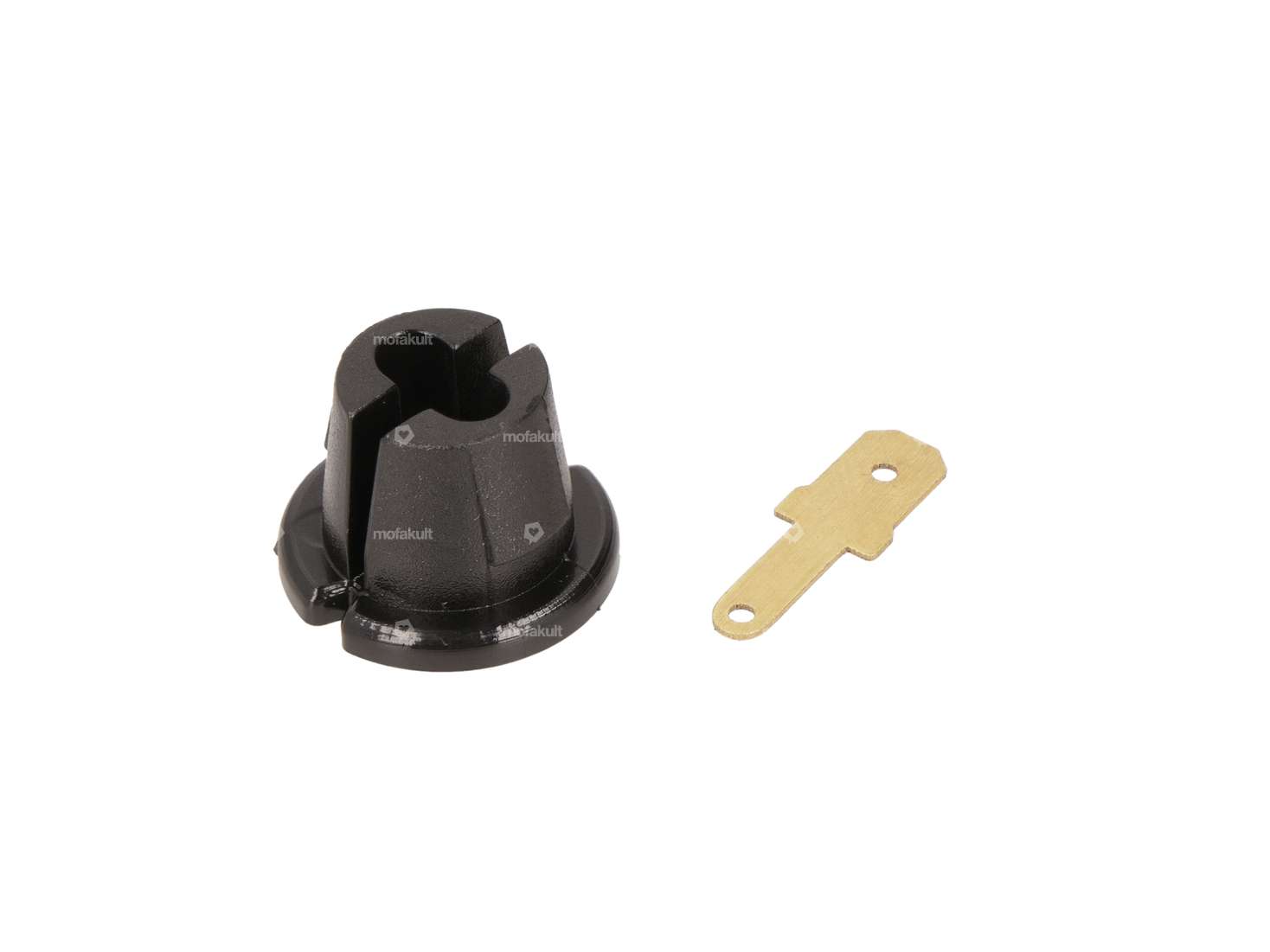

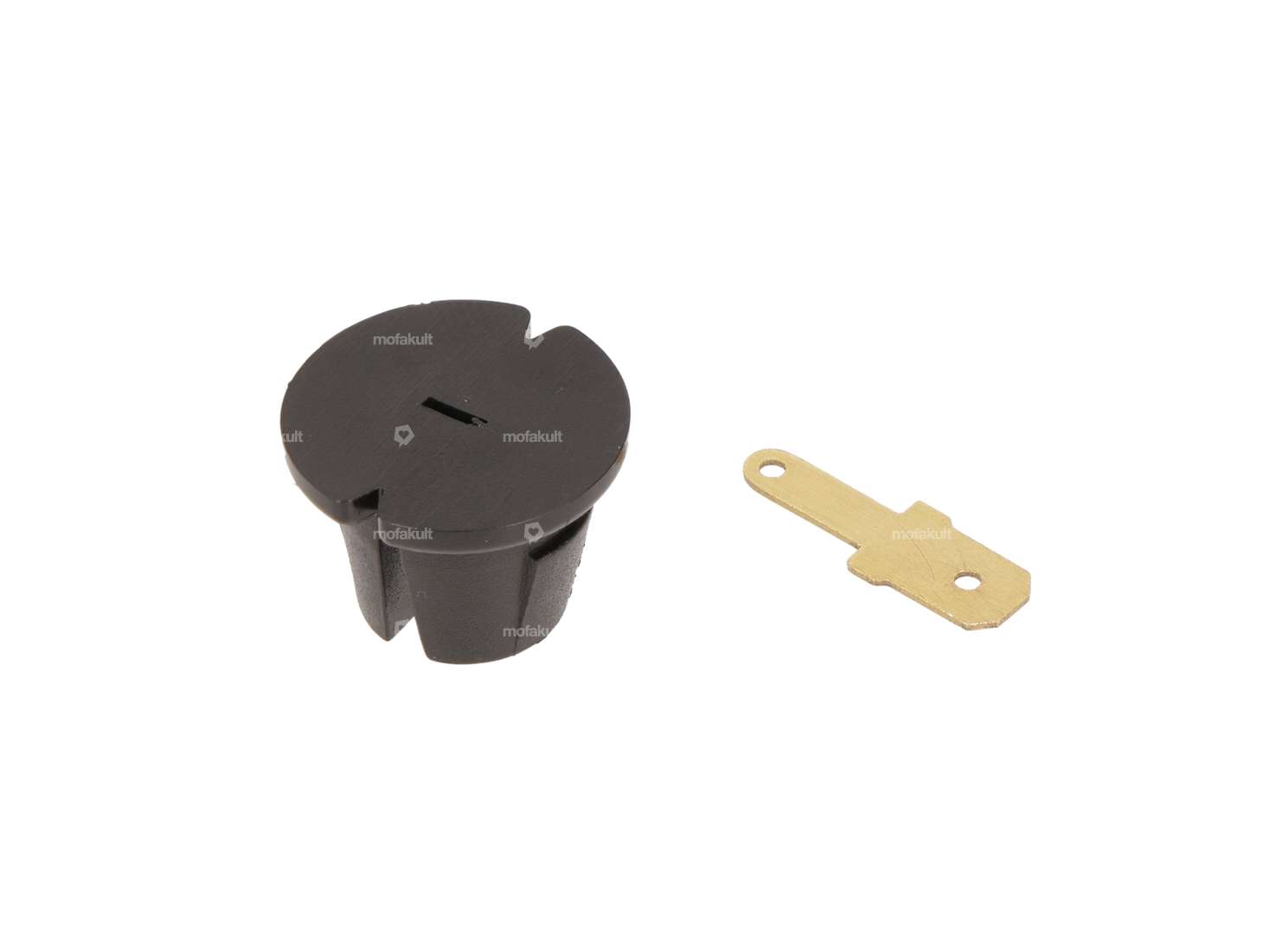

Round connector plug for the stator (with one output) compatible with your Piaggio Ciao, Si, Bravo, and Boxer moped with electronic ignition.

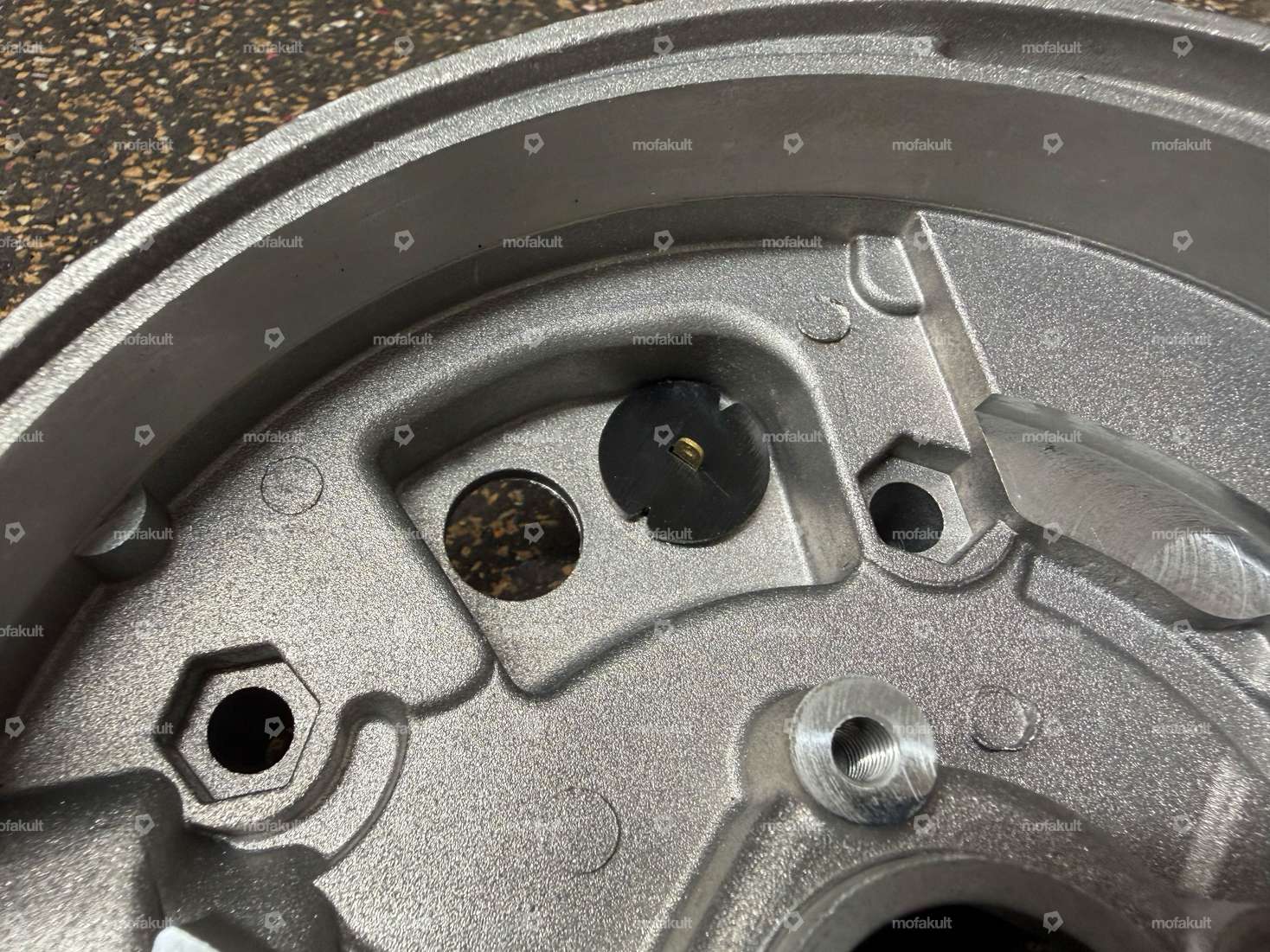

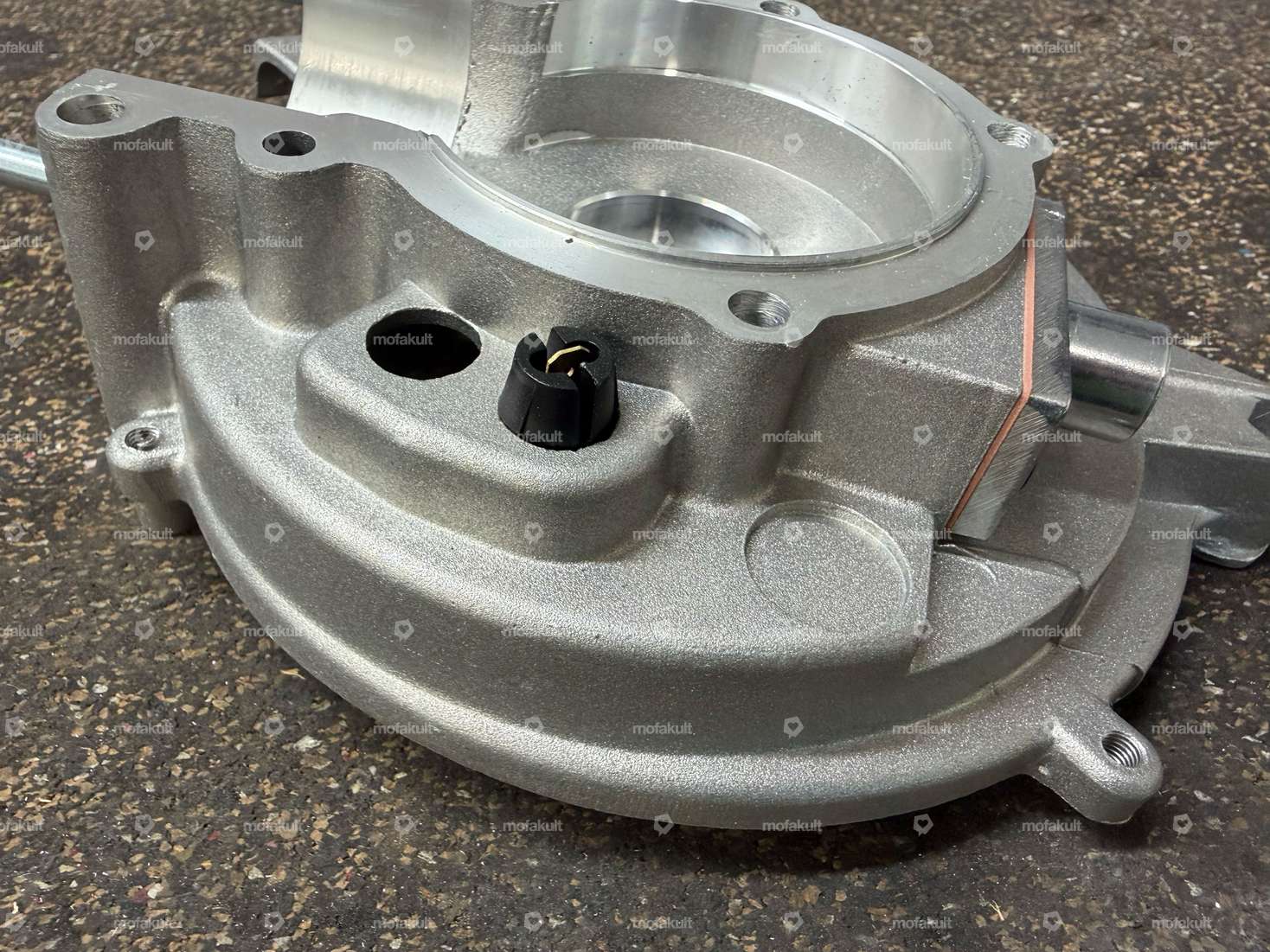

The connector clips into the engine housing to supply power to the light coil and to connect the wiring harness to it.
Thanks to its round design, the connector fits into the original engine housing as well as into all racing housings from manufacturers such as Polini, Malossi, or Pinasco.
Note: The connector is designed for 4.8 mm female cable lugs, as used in the standard wiring harness. The stator cable must be soldered to the connector on the back.
A good, affordable standard replacement part. GPO – GOOD PARTS ONLY.
| Color | black |
| Manufacturer | GPO |
| Material | Plastic, Copper |
| Number of connections | 1 pcs |
| Diameter | 17 mm |
| Number of components | 2 pcs |
| Total length | 12 mm |
| Clamping diameter | 12.5 mm |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
