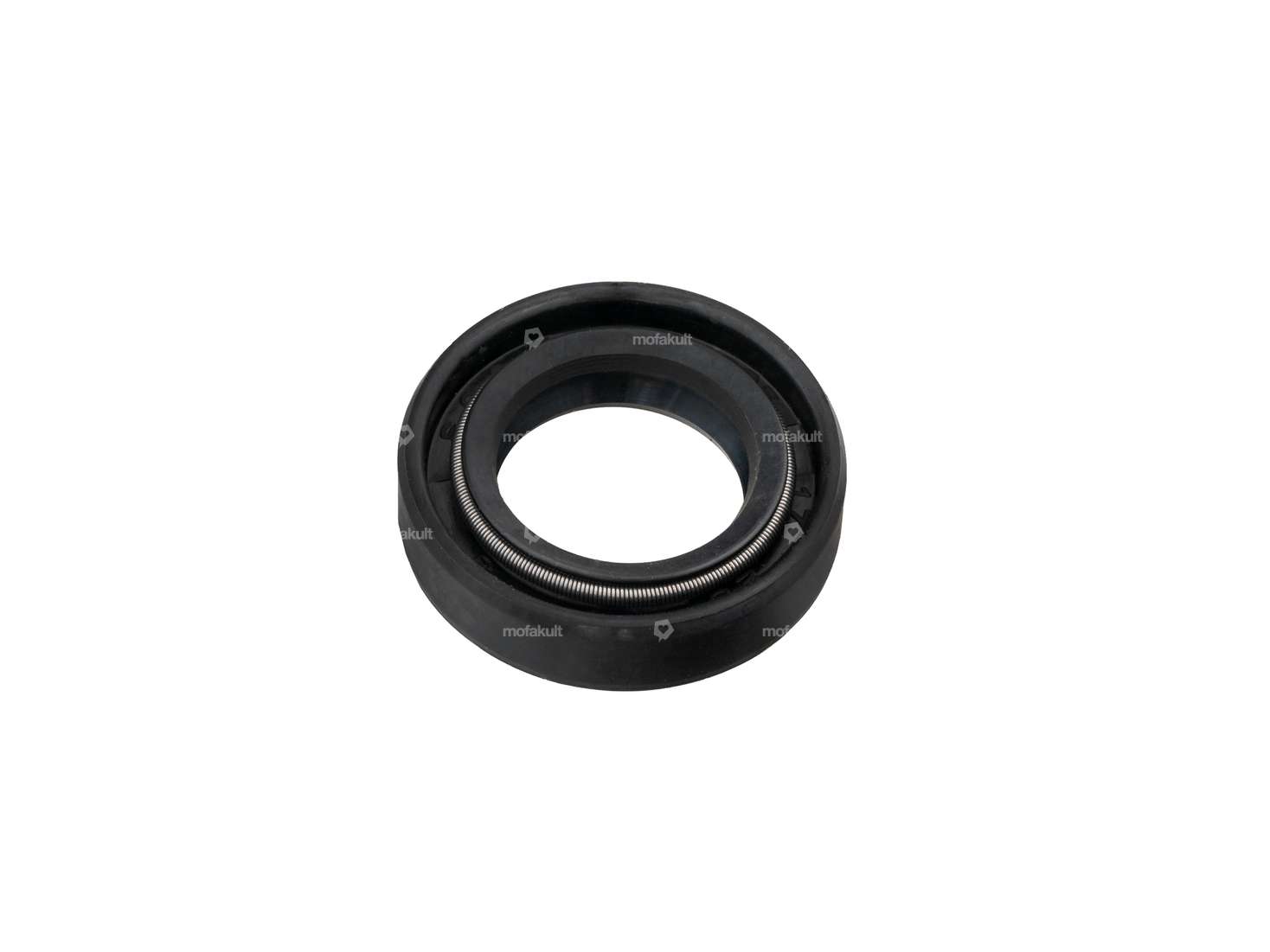

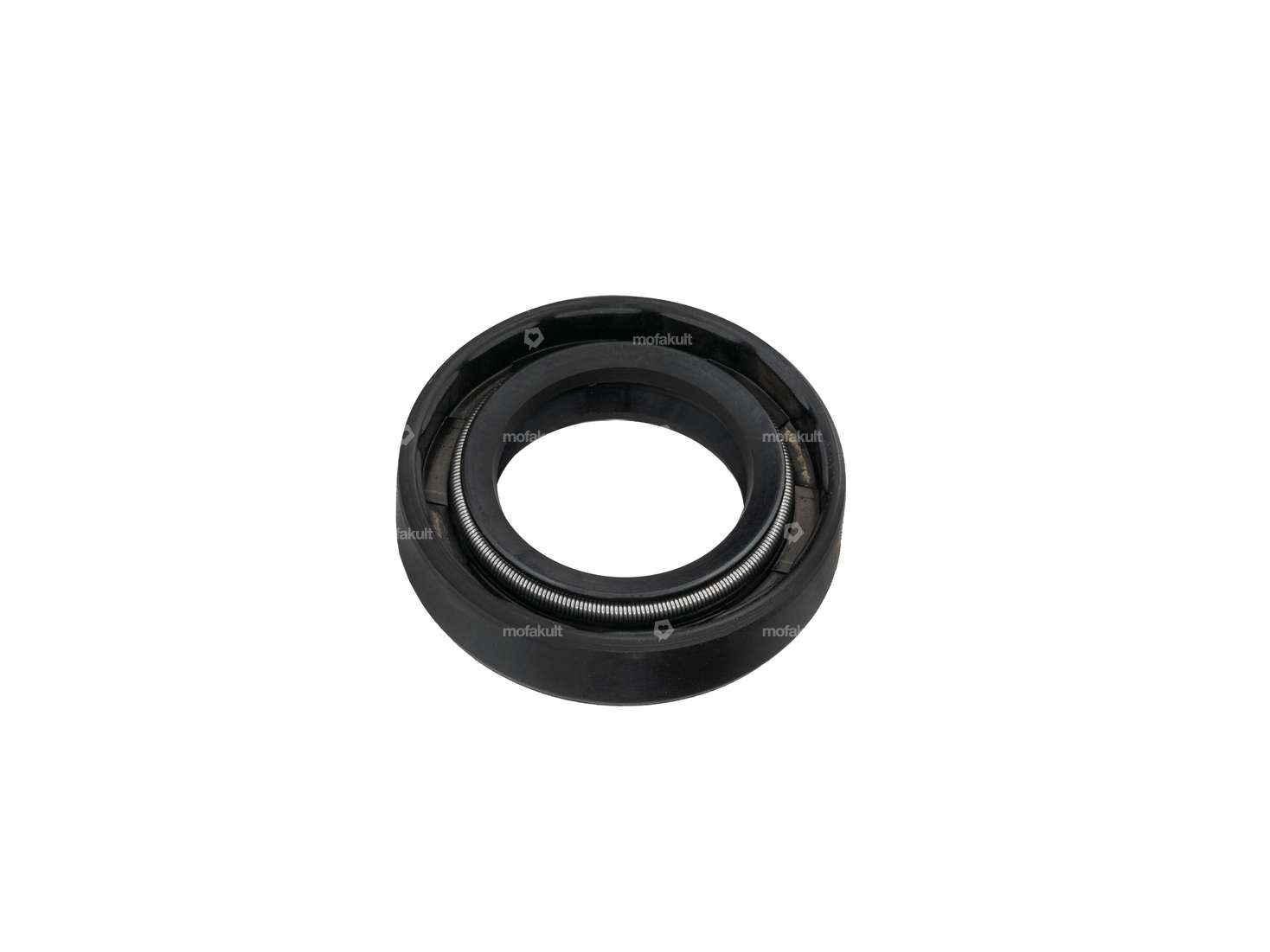

Shaft seal ring 17x28x7 mm for use on the gearbox shaft of your Puch moped / moped with Z50 engine.
This shaft seal ring (colloquially known as a radial shaft seal) is fitted to the gearbox shaft of the Z50 engine.
Ø inner: 17 mm
Ø outer: 28 mm
Width: 7 mm
Material: NBR
Temperature-resistant: -30 to +100 °C, briefly up to 120 °C
A DUO - With rubberized outer casing and two sealing lips.
| Temperature resistance (min.) | -30 - 100 °C |
| Shaft seal type | A DUO - With rubberized outer casing / two sealing lips. |
| Manufacturer | Puch |
| Material | NBR |
| Ø inside | 17 mm |
| Ø outside | 28 mm |
| Width | 7 mm |
| Puch | Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
