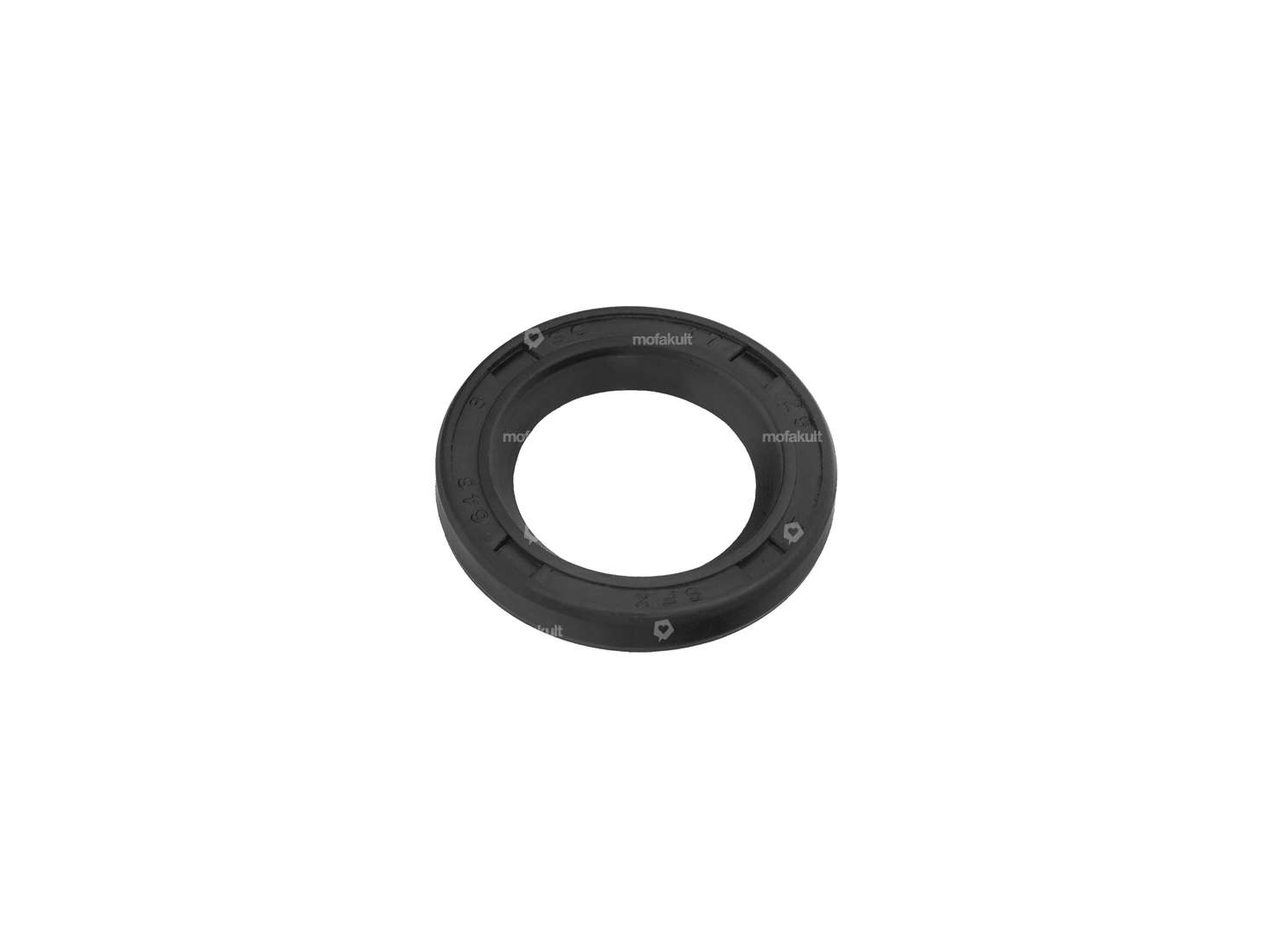

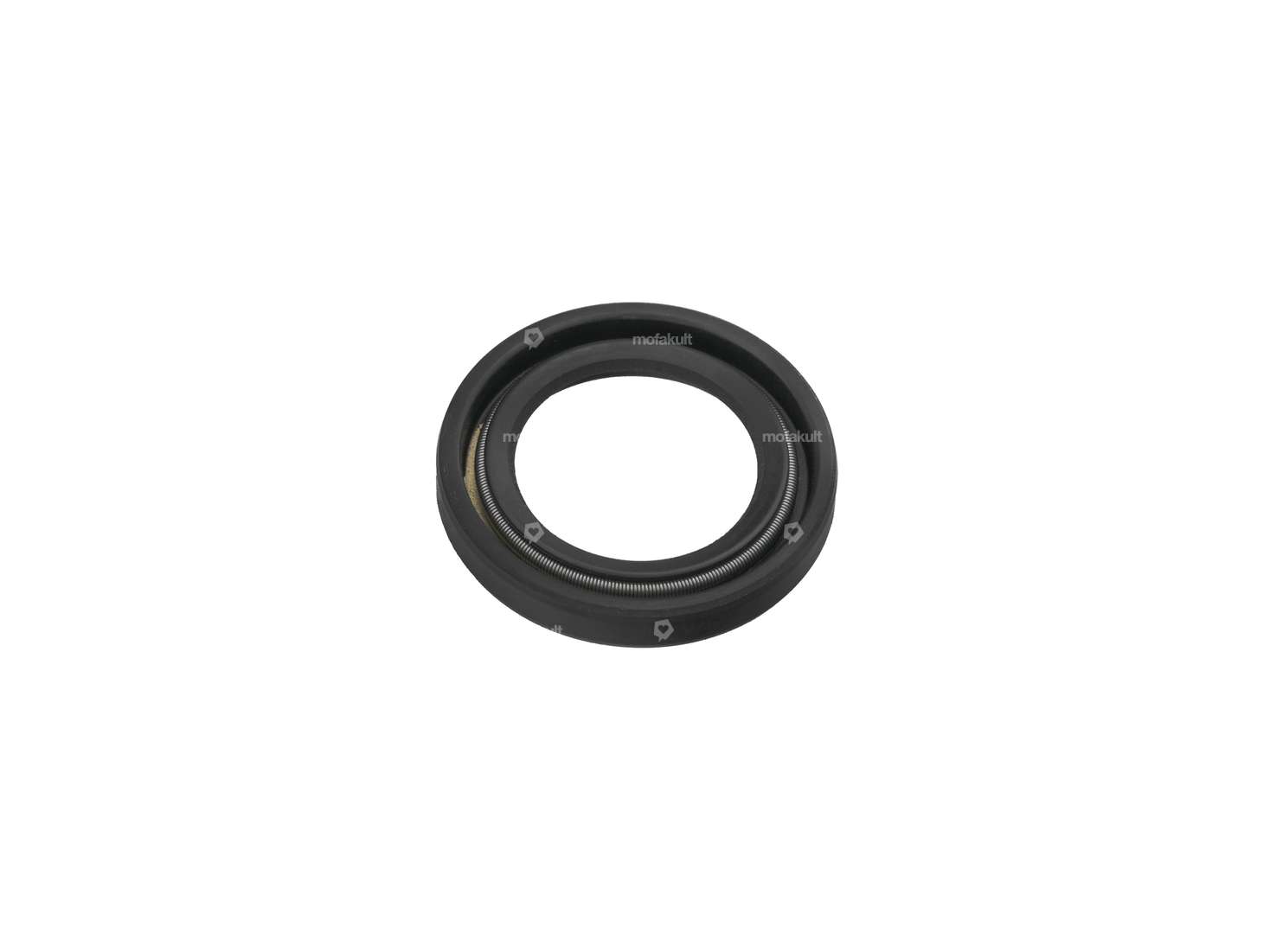

Shaft seal ring 17x25x4 mm for use on the pully shaft of your Piaggio Ciao, Si, Bravo & Boxer moped / moped.
This shaft seal ring (colloquially known as an oil seal) is fitted to the pully shaft (input shaft) on mono drives.
Ø inner: 17 mm
Ø outer: 25 mm
Width: 4 mm
Material: NBR
Temperature resistant: -30 to +100 °C, briefly up to 120 °C
Type: A - With rubberized outer casing and a sealing lip.
The oil seal for the output shaft as well as other parts can be found in the accessories.
Quality product from the Italian manufacturer Piaggio in original equipment quality.
Original Piaggio spare part number: 114469
| Shaft seal type | A - With rubberized outer part / one sealing lip. |
| Manufacturer | Piaggio |
| Material | NBR |
| Surface | rubberized |
| Width | 4 mm |
| Ø outside | 25 mm |
| Ø inside | 17 mm |
| Temperature resistance (min.) | -30 - 100 °C |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
