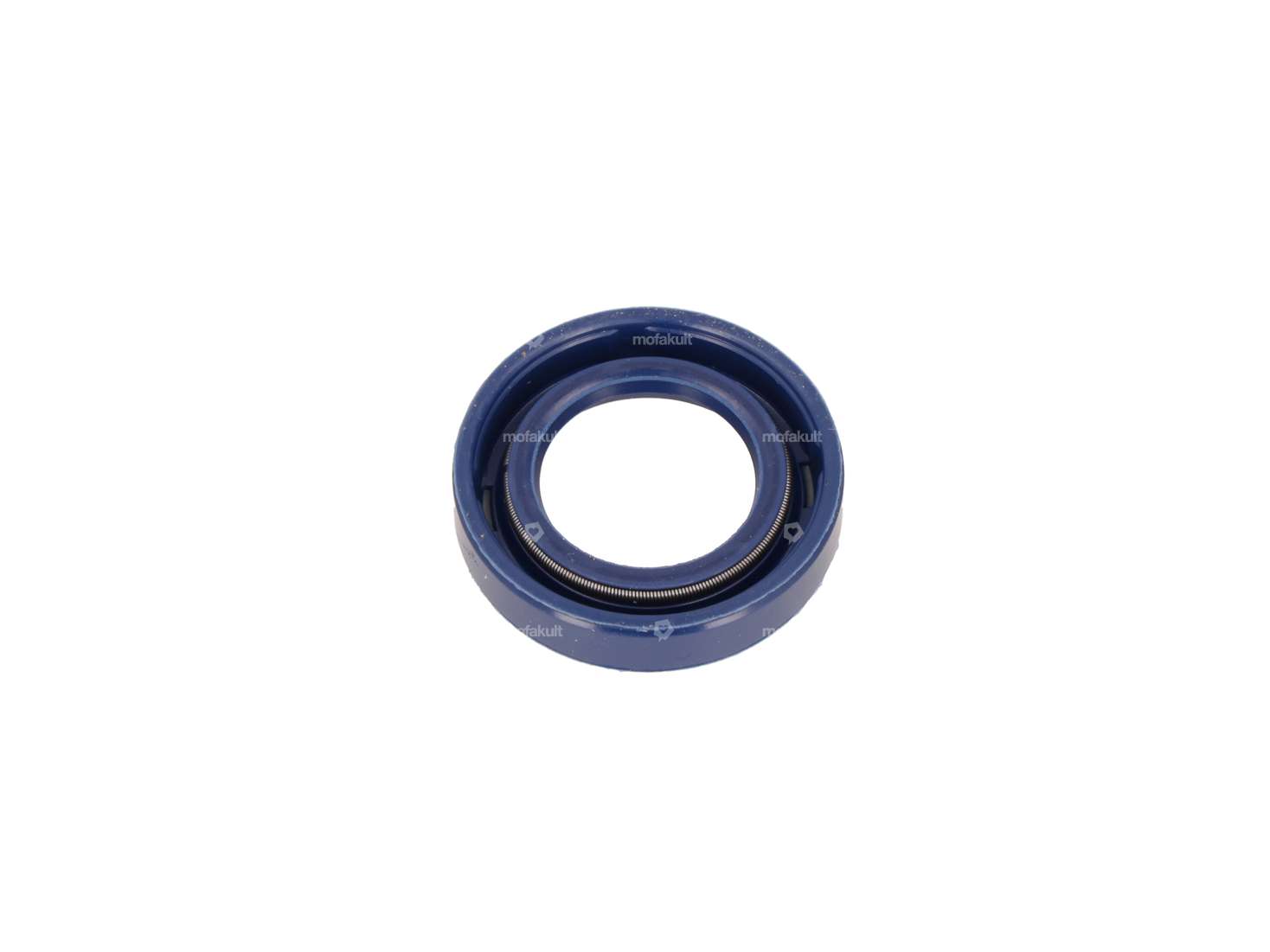

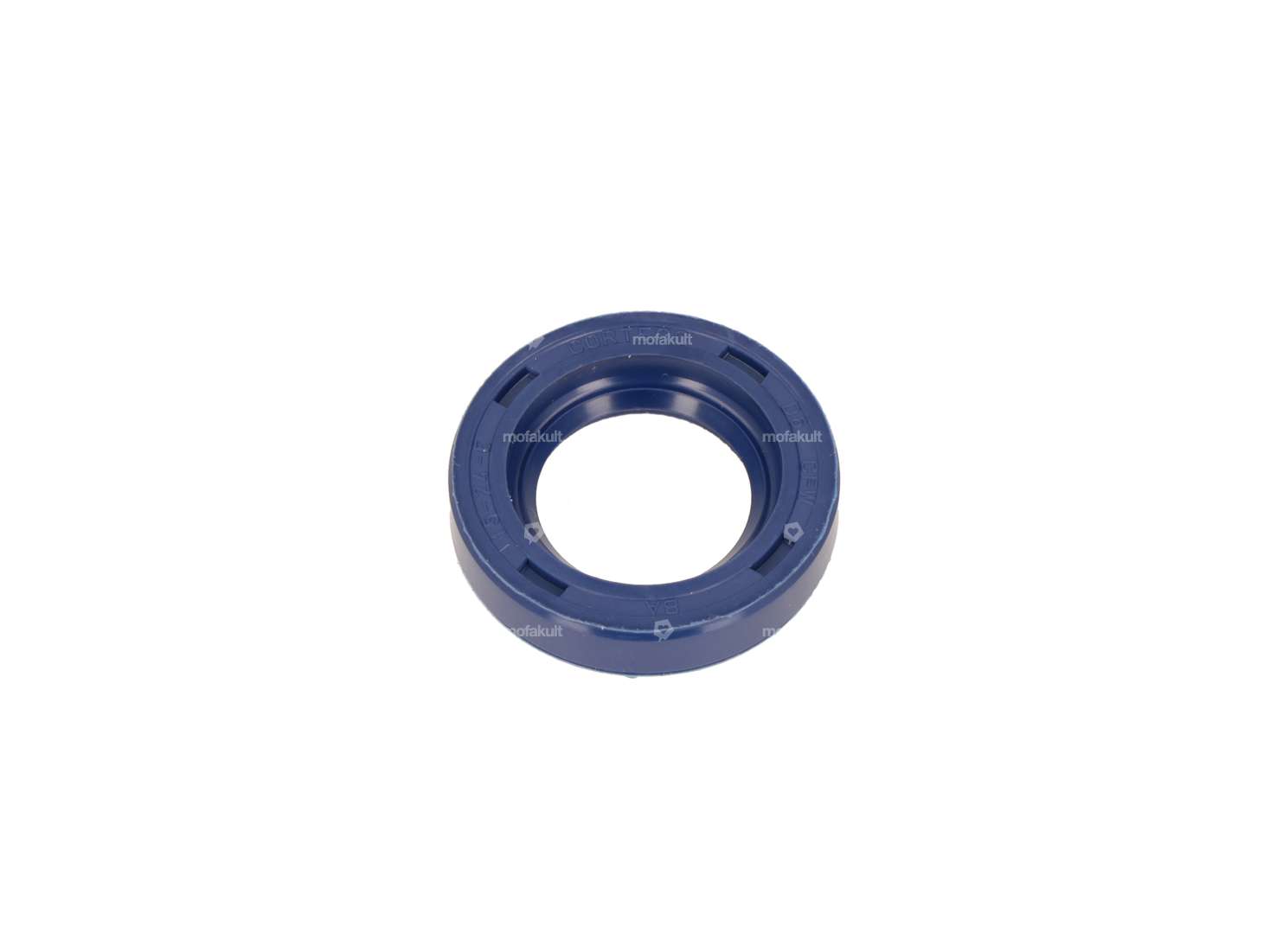

Shaft seal ring form A (also known under the protected brand name Simmerring®) with the dimensions 15x24x5 mm for the crankshaft of your Piaggio Ciao, Si, Bravo, Boxer moped / moped.
Other sealing rings and crankshafts can be found in the accessories section.
A quality product manufactured in Italy.
Original Piaggio spare part number: 480464
Details
| Place of use | Crankshaft |
| Temperature resistance (min.) | -30 - 100 °C |
| Simmering type | A - With rubberized outer part / one sealing lip. |
| Manufacturer | Made in Italy |
| Material | NBR |
| Surface | rubberized |
| Ø inside | 15 mm |
| Width | 5 mm |
| Ø outside | 24 mm |
| Piaggio OEM number | 480464 |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo Gilera CBA Gilera Citta |
