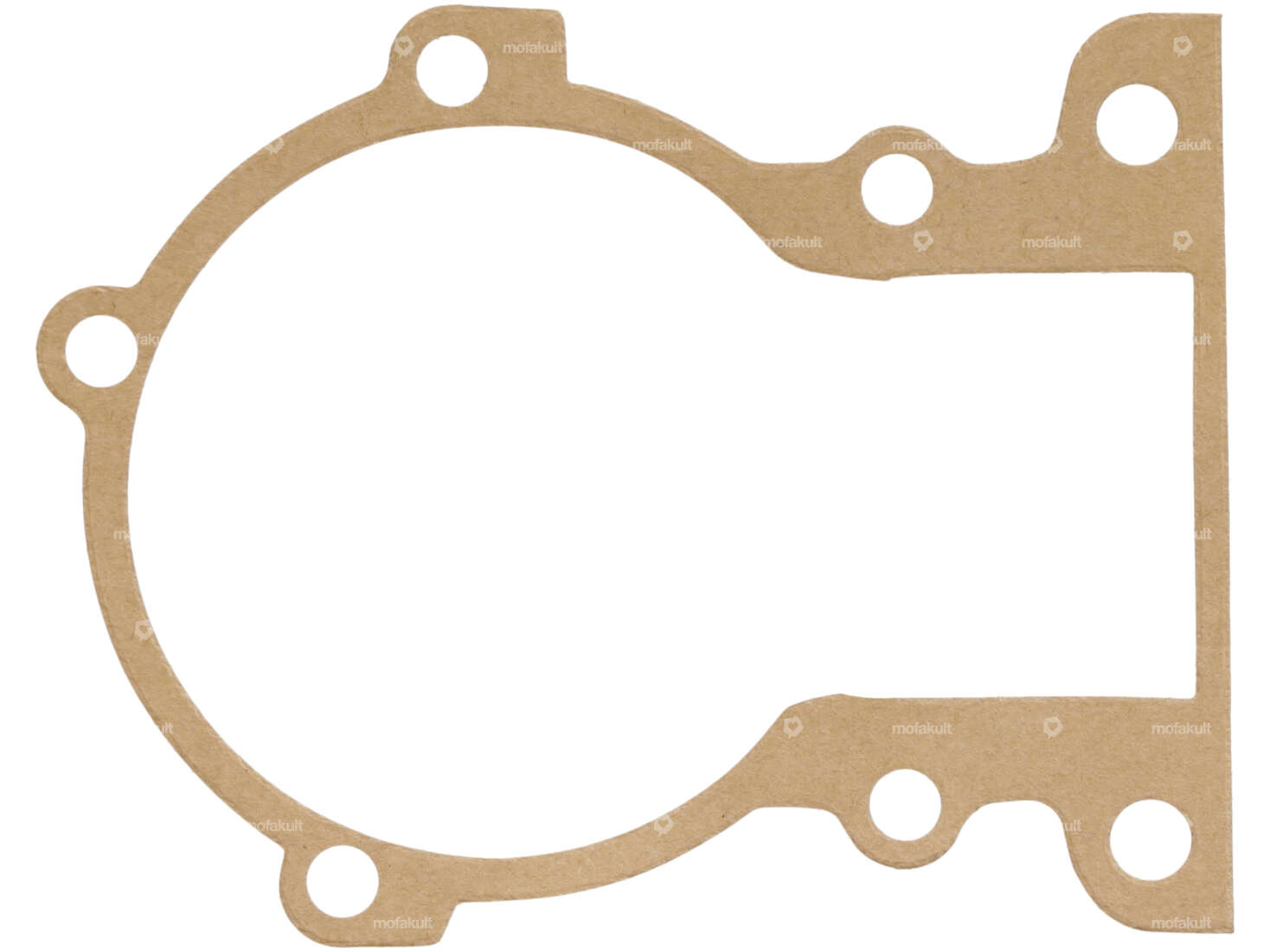

swiing® revival gasket engine | Piaggio Ciao, SI, Bravo, Boxer

GPO screw set engine housing galvanized | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Manufacturer: GPO · Screw head: Hexagon · Thread type: M6x1 (standard thread) · Shank: Yes · Strength class: 8.8 · Width across flats SW: 10 mm

swiing® revival 0.3 mm cylinder base gasket | Piaggio Ciao, SI, Bravo, Boxer

Material: Oiled paper · Thickness: 0.3 mm · Ø inside: 46 mm · Place of use: Cylinder base · Manufacturer: swiing® revival parts · Ø cylinder: 38 - 43 mm · Piaggio OEM number: 182519

swiing® revival 0.5 mm cylinder base gasket | Piaggio Ciao, SI, Bravo, Boxer

Material: Oiled paper · Thickness: 0.5 mm · Ø inside: 46 mm · Place of use: Cylinder base · Manufacturer: swiing® revival parts · Ø cylinder: 38 - 43 mm · Piaggio OEM number: 182519

swiing® revival engine overhaul kit with bearing selection | Piaggio Ciao, SI, Bravo, Boxer

Material: NBR · Material: Oiled paper · Material: Steel · Manufacturer: swiing® revival parts · Piaggio OEM number: 112967 · Piaggio OEM number: 113681 · Piaggio OEM number: 182519 · Piaggio OEM number: 241894 · Piaggio OEM number: 480464

swiing® revival gaskets & oil seal engine | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: NBR · Material: Oiled paper · Number of components: 3 pcs · Piaggio OEM number: 112967 · Piaggio OEM number: 182519 · Piaggio OEM number: 480464

SKF Bearing Set & Oil Seal Engine | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: SKF · Material: Plastic · Material: Steel · Number of components: 3 pcs · Area of application: Standard

EFFE breaker without cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Material: Steel · Cable available: No · Ø axle: 5 mm · Ø mounting hole: 4.5 mm · Number of fixing points: 1 pcs · Area of application: Original · Area of application: Standard · Piaggio OEM number: 103133

Shim 16/22/0.5

Material: Steel · Surface: blank / oiled · Nominal diameter inside: 16 mm · Thickness: 0.5 mm · Ø outside: 21 mm · Ø inside: 16 mm

Polini cylinder base gasket 43 mm | Piaggio Ciao, SI, Bravo, Boxer

Place of use: Cylinder base · Manufacturer: Polini · Area of application: Racing · Ø cylinder: 43 mm

Oil seal NBR 15/24/5 AS

Temperature resistance (min.): -30 - 100 °C · Material: NBR · Surface: rubberized · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Width: 5 mm · Ø outside: 24 mm · Ø inside: 15 mm

Mazzucchelli crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Manufacturer: Mazzucchelli · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Area of application: Racing · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø piston pin (B): 10 mm · Thread type: M8x1.25 (standard thread) · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 16 mm · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 ° · Weight: 698 g · Number of gears: 1 pcs

Oil seal 15/24/5 crankshaft original | Piaggio Ciao, SI, Bravo, Boxer

Place of use: Crankshaft · Ø inside: 15 mm · Ø outside: 24 mm · Width: 5 mm · Manufacturer: Piaggio

Oil seal FPM 15/24/5 AS

Temperature resistance (min.): -30 - 200 °C · Material: FPM - Fluororubber · Surface: rubberized · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Width: 5 mm · Ø outside: 24 mm · Ø inside: 15 mm

Shim 16/22/0.5 crankshaft original | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 16 mm · Nominal diameter inside: 16 mm · Ø outside: 22 mm · Thickness: 0.5 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled

Oil seal FPM 15/24/5 AS crankshaft original | Piaggio Ciao, SI, Bravo & Boxer

Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 24 mm · Width: 5 mm · Manufacturer: Piaggio · Material: FPM - Fluororubber · Surface: rubberized
