Piaggio gearbox

INA Needle roller bearing 15/21/12 Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing cage: Sheet steel cage · Stock number: HK1512 · Dimension needle bearing: 15/21 x 12 · Ø inside: 15 mm · Ø outside: 21 mm · Manufacturer: INA · Width: 12 mm · Piaggio OEM number: 103689

Nut Polini Vario input shaft | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut · Thread type: MF10x1.25 (fine pitch thread) · Drive: External hexagon · Height: 13 mm · Width across flats SW: 15 mm

INA needle roller bearing 9/13/12 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Stock number: BK0912 · Dimension needle bearing: 9/13 x 12 · Ø inside: 9 mm · Ø outside: 13 mm · Manufacturer: INA · Width: 12 mm

Polini Vario 13:1 / 11.5:1 gearbox ratio (selection) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Toothing type: straight toothed · Translation: 11.40 / 1 · Translation: 12.82 / 1 · Gearbox type: Vario

SKF needle roller bearing 13/19/12 Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1312 · Dimension needle bearing: 13/19 x 12 · Ø inside: 13 mm · Ø outside: 19 mm · Manufacturer: SKF · Width: 12 mm · Piaggio OEM number: 103614

Koyo needle bearing 13/19/12 Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1312 · Dimension needle bearing: 13/19 x 12 · Ø inside: 13 mm · Ø outside: 19 mm · Manufacturer: Koyo · Width: 12 mm · Piaggio OEM number: 103614

GPO oil seal set engine & gearbox (mono) | Piaggio Ciao, SI, Bravo, Boxer

Simmering type: A - With rubberized outer part / one sealing lip. · Simmering type: B - With sheet metal outer casing / one sealing lip. · Manufacturer: GPO · Material: NBR · Place of use: Clutch · Place of use: Crankshaft · Place of use: Gear hub · Place of use: Gearbox cover · Ø outside: 22 mm · Ø outside: 24 mm · Ø outside: 25 mm · Ø outside: 30 mm · Area of application: Original · Area of application: Standard · Width: 3 mm · Width: 4 mm · Width: 5 mm · Temperature resistance (min.): -30 - 120 °C · Ø inside: 15 mm · Ø inside: 16 mm · Ø inside: 17 mm · Ø inside: 20 mm

CIF gearwheel 29/10 teeth Mono / Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Surface: Hardened · Manufacturer: CIF · Material: Steel · Gearbox type: Mono · Gearbox type: Vario · Number of teeth: 10 pcs · Number of teeth: 29 pcs · Toothing type: helical toothed · Toothing type: straight toothed · Translation: 10.44 / 1 · Translation: 10.73 / 1 · Translation: 13.05 / 1

Olympia freewheel hub galvanized | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Olympia · Drive: External hexagon

Gearbox housing (two gears) original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Gearbox type: Mono

Spacer 10/18/1 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Surface: blank / oiled · Manufacturer: Piaggio · Material: Steel · Ø outside: 18 mm · Nominal diameter inside: 10 mm · Thickness: 1 mm · Ø inside: 10 mm

Spacer 15/28/1 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Surface: blank / oiled · Manufacturer: Piaggio · Material: Steel · Ø outside: 15 mm · Nominal diameter inside: 28 mm · Thickness: 1 mm · Ø inside: 28 mm

Spacer washer 14/24/1 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Surface: blank / oiled · Manufacturer: Piaggio · Material: Steel · Ø outside: 24 mm · Nominal diameter inside: 14 mm · Thickness: 1 mm · Ø inside: 14 mm

CIF gear set Variomatic 11:1 | Piaggio Ciao, SI, Bravo, Boxer

Surface: Hardened · Manufacturer: CIF · Material: Steel · Gearbox type: Vario · Area of application: Racing · Area of application: Tuning · Toothing type: helical toothed · Toothing type: straight toothed · Translation: 10.73 / 1

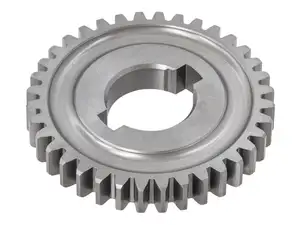

CIF gear wheel 37 teeth Mono / Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Surface: Hardened · Manufacturer: CIF · Material: Steel · Gearbox type: Mono · Gearbox type: Vario · Number of teeth: 37 pcs · Toothing type: straight toothed · Translation: 8.41 / 1 · Translation: 9.17 / 1 · Translation: 10.73 / 1 · Translation: 11.92 / 1

CIF gear set 9.5:1 long ratio | Piaggio Ciao, SI, Bravo, Boxer

Surface: Hardened · Manufacturer: CIF · Material: Steel · Gearbox type: Vario · Area of application: Tuning · Toothing type: helical toothed · Translation: 9.49 / 1

CIF revision set gearbox variator | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Gearbox type: Vario · Area of application: Original · Area of application: Standard

CIF gasket set engine / gearbox with shaft seals Vario | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Place of use: Gear hub · Gearbox type: Vario · Area of application: Standard · Piaggio OEM number: 008766 · Piaggio OEM number: 008771 · Piaggio OEM number: 112967 · Piaggio OEM number: 131511 · Piaggio OEM number: 182519 · Piaggio OEM number: 240222 · Piaggio OEM number: 480464 · Piaggio OEM number: 482552

Spacer 23/34/0.5 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Surface: blank / oiled · Manufacturer: Piaggio · Material: Steel · Ø outside: 34 mm · Nominal diameter inside: 23 mm · Thickness: 0.5 mm · Ø inside: 23 mm

Spacer 20/33/1 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Surface: blank / oiled · Manufacturer: Piaggio · Material: Steel · Ø outside: 33 mm · Nominal diameter inside: 20 mm · Thickness: 1 mm · Ø inside: 20 mm · Piaggio OEM number: 131513

Washer 18/29/1 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Surface: blank / oiled · Manufacturer: Piaggio · Material: Steel · Ø outside: 29 mm · Nominal diameter inside: 8 mm · Thickness: 1 mm · Ø inside: 18 mm

CIF oil seal set transmission Vario & torque converter | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF

swiing® ingenious rear wheel nut M14x1 SW19 Inox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® ingenious parts · Material: Chrome steel (known as Nirosta®) · Height: 24 mm · Thread type: MF14x1.5 (fine pitch thread) · Drive: External hexagon · Width across flats SW: 19 mm

Malossi gear set 8.92:1 long ratio | Piaggio Ciao, SI, Bravo, Boxer

Surface: Hardened · Manufacturer: Malossi · Material: Steel · Gearbox type: Vario · Area of application: Tuning · Toothing type: straight toothed · Translation: 8.92 / 1

Koyo HK1712 Needle roller bearing 17/23/12 Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing cage: Sheet steel cage · Stock number: HK1712 · Manufacturer: Koyo · Ø outside: 23 mm · Bearing type: Needle sleeve · Width: 12 mm · Ø inside: 17 mm · Dimension needle bearing: 17/23 x 12 · Piaggio OEM number: 103696

Needle bearing 15/21/12 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Ø outside: 21 mm · Bearing type: Needle box · Width: 12 mm · Ø inside: 15 mm · Dimension needle bearing: 15/21 x 12 · Piaggio OEM number: 103689

CIF gearwheel 23 teeth Mono / Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Surface: Hardened · Manufacturer: CIF · Material: Steel · Gearbox type: Mono · Gearbox type: Vario · Number of teeth: 23 pcs · Ø outside: 32 mm · Toothing type: helical toothed · Translation: 9.23 / 1 · Translation: 9.49 / 1 · Translation: 10.44 / 1 · Translation: 10.63 / 1 · Translation: 10.73 / 1 · Translation: 11.92 / 1 · Translation: 12.24 / 1 · Translation: 13.05 / 1 · Translation: 14.82 / 1

CIF gasket set engine / gearbox with oil seals Mono | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Place of use: Gear hub · Gearbox type: Mono · Area of application: Standard · Piaggio OEM number: 112967 · Piaggio OEM number: 114469 · Piaggio OEM number: 124571 · Piaggio OEM number: 131511 · Piaggio OEM number: 182519 · Piaggio OEM number: 480464 · Piaggio OEM number: 482552

swiing® revival screw set engine / gearbox Inox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®)

Gear wheel 74 teeth mono gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Surface: Hardened · Manufacturer: Piaggio · Material: Steel · Gearbox type: Mono · Number of teeth: 74 pcs · Toothing type: straight toothed

Shift lever bicycle gear NOS | Piaggio Ciao, SI, Bravo, Boxer

Surface: galvanized (blue) · Manufacturer: Piaggio · Material: Steel · Color: silver · Piaggio OEM number: 131031

Transmission shaft 11 teeth variator NOS | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Number of teeth: 11 pcs · Area of application: Original · Toothing type: helical toothed · Ø shaft: 13 mm · Total length: 137 mm

CIF revision set gearbox Mono MG2 | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Gearbox type: Mono · Area of application: Standard

swiing® revival gasket set mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: NBR · Material: Oiled paper · Material: Sealing carton · Gearbox type: Mono

swiing® revival screw set gearbox frame mounting galvanized | Piaggio Ciao, SI, Bravo, Boxer

Surface: galvanized (blue) · Manufacturer: swiing® revival parts · Strength class: 8.8 · Material: Steel · Number of components: 8 pcs · Screw head: Hexagon · Thread type: M10x1.5 (standard thread) · Shank: No · Drive: External hexagon · Width across flats SW: 17 mm · Thread length: 14 mm · Piaggio OEM number: 016410 · Piaggio OEM number: 031150

Pinasco variator gearbox housing | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Pinasco · Material: Aluminum · Gearbox type: Vario · Area of application: Tuning

swiing® revival shim set VG4 & VG5 Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Surface: Hardened · Surface: blank / oiled · Manufacturer: swiing® revival parts · Material: Steel · Piaggio OEM number: 131512 · Piaggio OEM number: 131513 · Piaggio OEM number: 131514 · Piaggio OEM number: 175747 · Piaggio OEM number: 175751

Shift fork Velogang | Piaggio Ciao, SI, Bravo, Boxer

Surface: burnished · Surface: galvanized (blue) · Material: Steel · Gearbox type: Mono · Gearbox type: Vario · Ø outside: 8.95 mm · Area of application: Standard · Width: 43 mm · Total length: 60 mm · Piaggio OEM number: 131523

Polini Vario 11.5:1 gear ratio 3rd & 4th gear | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Gearbox type: Vario · Number of teeth: 11 pcs · Number of teeth: 30 pcs · Number of teeth: 46 pcs · Toothing type: straight toothed · Translation: 11.40 / 1

Polini Vario input shaft & 1st gear | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Gearbox type: Vario · Number of teeth: 11 pcs · Number of teeth: 23 pcs · Toothing type: straight toothed · Translation: 11.40 / 1 · Translation: 12.82 / 1

Bolt M10x14 Gearbox frame mounting | Piaggio Ciao, SI, Bravo, Boxer

Thread type: M10x1.5 (standard thread) · Total length: 22.3 mm · Strength class: 8.8 · Material: Steel · Surface: galvanized (blue) · Screw head: Hexagon · Shank: No · Drive: External hexagon · Thread length: 14.5 mm · Width across flats SW: 17 mm · Piaggio OEM number: 031150

CIF gear wheel 36 teeth Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Surface: Hardened · Number of teeth: 36 pcs · Toothing type: straight toothed · Translation: 8.92 / 1 · Translation: 9.49 / 1 · Translation: 10.44 / 1 · Gearbox type: Vario

CIF gearwheel 29/11 teeth Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Surface: Hardened · Number of teeth: 11 pcs · Number of teeth: 29 pcs · Toothing type: helical toothed · Toothing type: straight toothed · Translation: 9.23 / 1 · Translation: 9.49 / 1 · Gearbox type: Vario · Ø outside: 23 mm · Ø outside: 39 mm

Polini shim set Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Surface: Hardened · Surface: blank / oiled · Piaggio OEM number: 131512 · Piaggio OEM number: 131513 · Piaggio OEM number: 131514 · Piaggio OEM number: 175747 · Piaggio OEM number: 175751

swiing® revival gasket & oil seals mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: NBR · Material: Oiled paper · Gearbox type: Mono

Rear brake pad fuse | Piaggio Ciao, SI, Bravo, Boxer

Fuse type: Inside · Material: Steel · Surface: galvanized (blue) · Place of use: Brake · Piaggio OEM number: 103112

Pinasco gearbox 9.2-12.3 Vario | Piaggio Ciao, SI, Bravo, Boxer, Grillo

Manufacturer: Pinasco · Gearbox type: Vario · Area of application: Tuning · Toothing type: helical toothed · Toothing type: straight toothed · Translation: 7.40 / 1 · Translation: 9.23 / 1 · Translation: 9.49 / 1 · Translation: 10.44 / 1 · Translation: 11.92 / 1 · Translation: 12.27 / 1

Oil filler plug M8x10 Inox original | Piaggio Ciao, SI, Bravo, Boxer

Thread type: M8x1.25 (standard thread) · Manufacturer: Piaggio · Drive: Slot · Thread length: 10 mm

swiing® revival gasket set Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: NBR · Material: Oiled paper · Material: Sealing carton · Gearbox type: Vario

CUBE 6202 2RS ball bearing 15/35/11 triangular bearing plate | Piaggio Ciao, SI, Bravo, Grillo

Width: 11 mm · Stock number: 6202 · Manufacturer: CUBE · Dust protection type: 2RS - NBR contact seal on both sides · Bearing type: Deep groove ball bearing · Ø inside: 15 mm · Ø outside: 35 mm · Ball bearing closed: Yes
