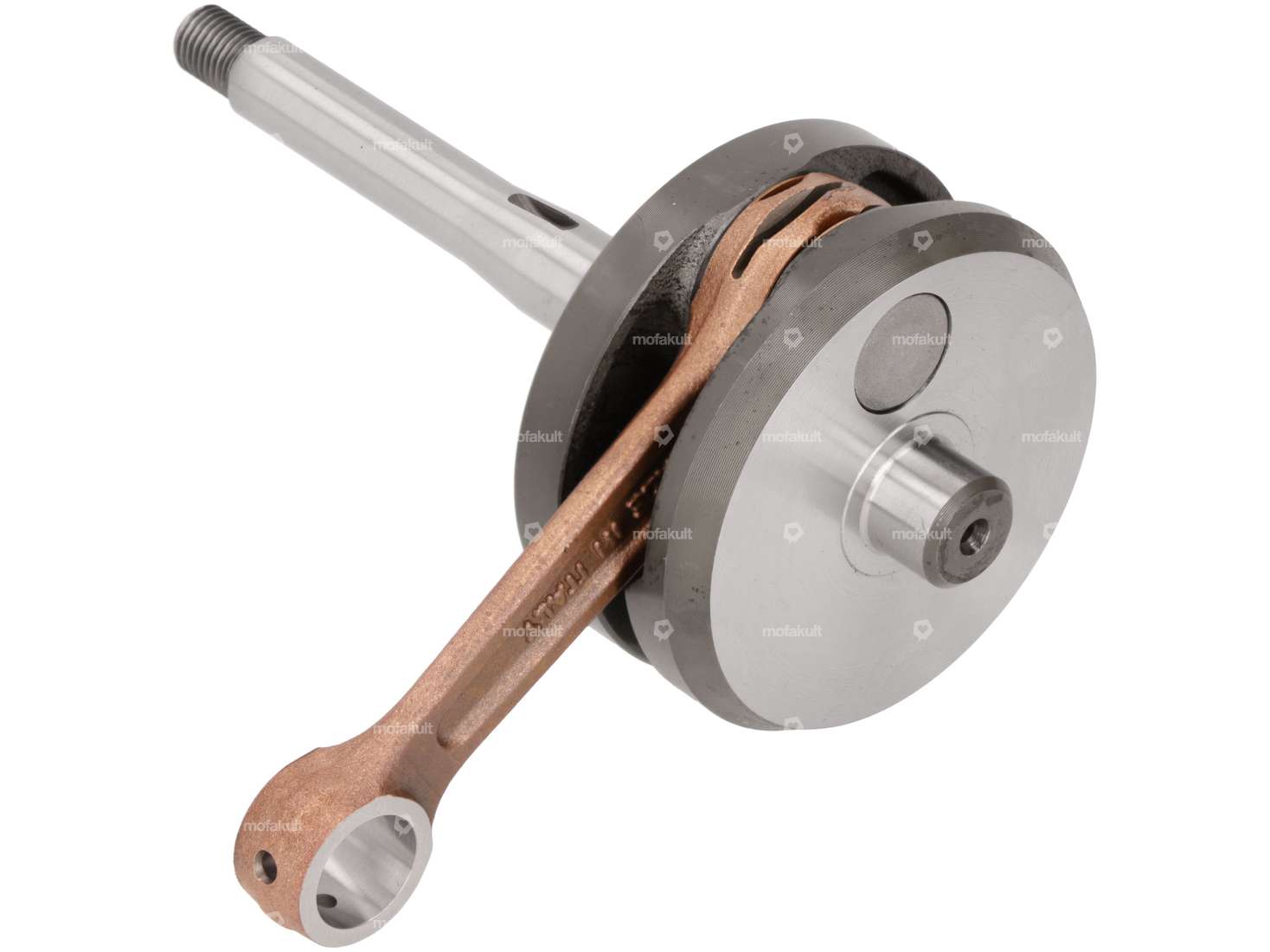

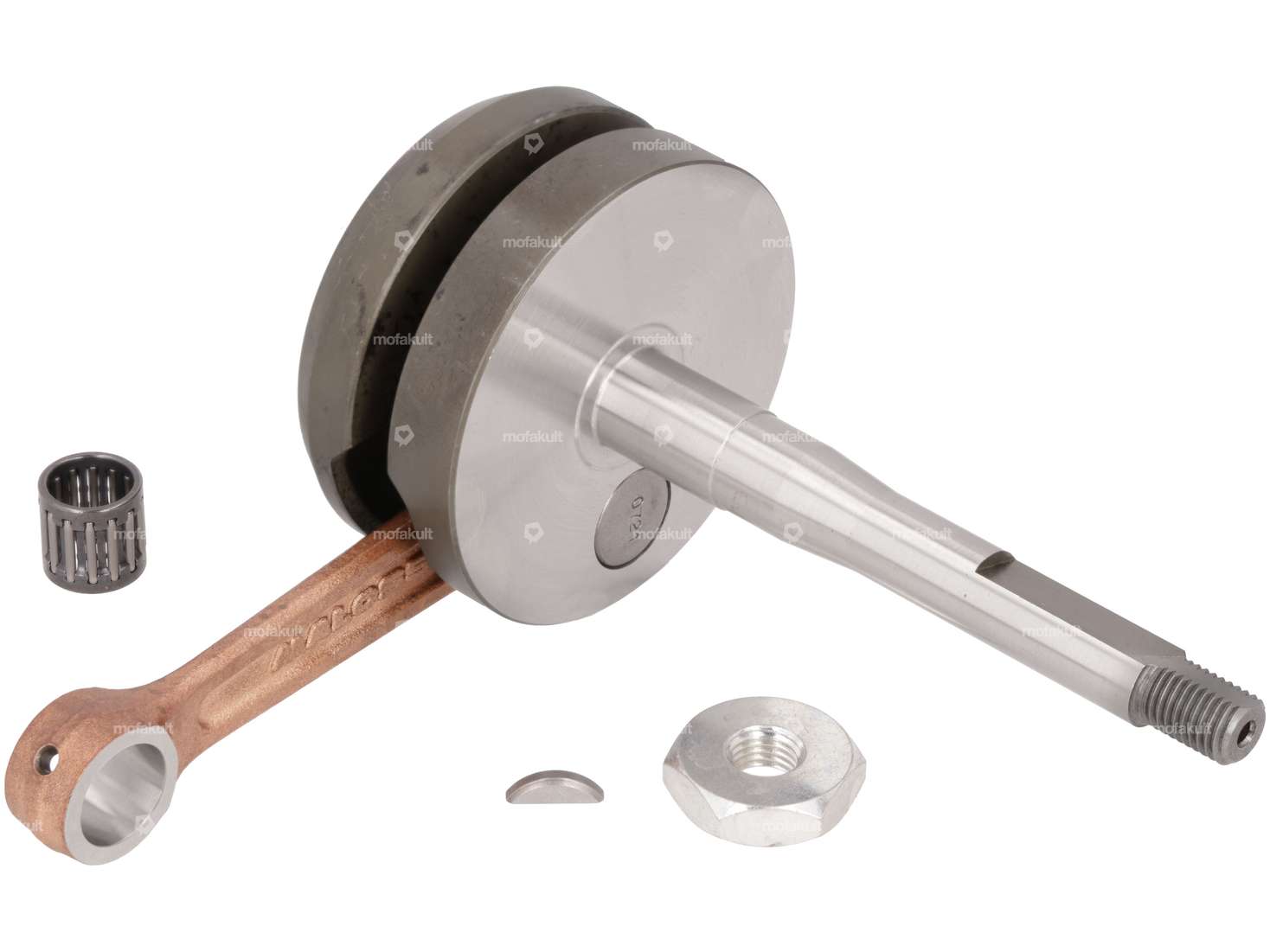

Racing crankshaft suitable for your Piaggio Ciao, SI, Bravo and Boxer moped / moped.
The finely balanced tuning crankshaft has been tested up to 16,000 rpm and fits all cylinders with 12 mm piston pins. The quality of the workmanship and the steel used is exceptionally high, which ensures impressive durability.
Note: This crankshaft can only be used in conjunction with a Malossi engine case.
No shim needs to be inserted between the racing crankshaft and its main bearings for installation.
Quality product from the Italian manufacturer Malossi.
| Manufacturer | Malossi |
| Weight | 813 g |
| Material | Steel |
| Cheek type | Full cheeks |
| Area of application | Racing |

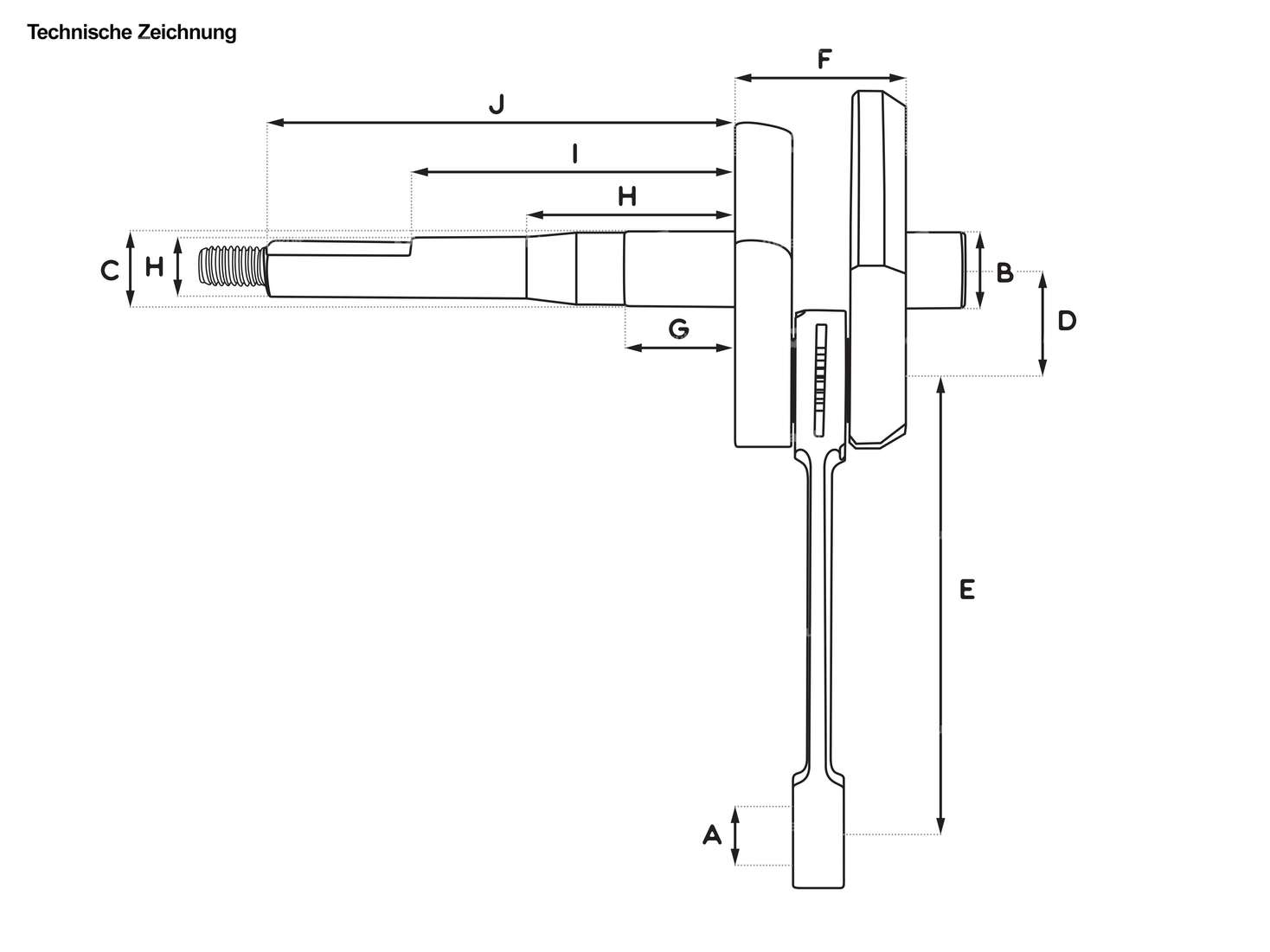

| Crankshaft stroke | 43 mm |
| Ø coupling pin / vario pin | 12 mm |
| Connecting rod length center-center | 87 mm |
| Total length crankpin ignition side | 91 mm, 106 mm |
| Ø crank webs | 69.95 mm |
| Ø Connecting rod eye | 15 mm |
| Bearing seat right | 15 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Thread type | M10x1.5 (standard thread) |
| Thread length | 15 mm |
| Dimension needle bearing | 12 / 15 x 14.7 mm (axe 12) |
| Wide crank webs | 32.4 mm |
| Length 1st paragraph | 21.3 mm |
| Length 2nd paragraph | 43.7 mm |
| Length 3rd paragraph | 63 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Ø 2nd shoulder (on the clutch side) | 14.4 mm |
| Ø 3rd step (on the clutch side) | 12 mm |
| Number of gears | 1 pcs |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage
Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Ø outside: 15 mm · Width: 16.2 mm · Ø inside: 12 mm · Dimension needle bearing: 12/15 x 16.2 · Tomos OEM number: 035548
CHF 13.90
swiing® ingenious puller flywheel | Piaggio Ciao, SI, Bravo, Boxer
Diameter: 12 mm · Diameter: 24 mm · Thread type: MF12x1.5 (fine pitch thread) · Thread type: MF17x1 (fine pitch thread) · Width across flats (trigger): 10 mm · Width across flats (trigger): 17 mm · Width across flats Screw: 19 mm · Manufacturer: swiing® ingenious parts · Total length: 100 mm · Area of application: (Dis)assembly tool · Material: Steel · Surface: blackened · Surface: galvanized (blue) · Number of components: 2 pcs
CHF 17.90
Moped fans also bought
Dell'Orto 19 mm PHBG CS carburetor hand choke
Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Color: black · Total length: 82 mm · Carburetor type: PHBG CS · Width: 70 mm · Nominal diameter: 19 mm · Height: 124 mm · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 26 mm · Ø Inside entrance: 19 mm · Mounting type: Plug connection clamped · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø Internal connection: 24 mm · Area of application: Racing · Area of application: Tuning · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 75 · Size of secondary nozzle: 45
CHF 119.90
Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom
Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Mounting type: Union nut · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Ø fuel hose connection: 6 mm · Reserve level: 70 mm
CHF 9.90
Malossi MP-One engine case electronic ignition | Piaggio Ciao, SI, Bravo, Boxer
Height: 174 mm · Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Width: 104 mm · Ø inside: 24 mm · Ø outside: 140 mm · Total length: 220 mm · Color: silver · Ignition type: Electronic
CHF 229.90
Not in stock
Hot
Malossi 47 mm cylinder kit BIG DEPS incl. head 12 mm KoBo | Piaggio Ciao, Bravo, Boxer
Nominal diameter: 47 mm · Manufacturer: Malossi · Material: Aluminum · Displacement: 75 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 49.9 mm · Surface: sandblasted · Ø Outlet outside: 22 mm · Ø Outlet outside: 27 mm · Ø outlet inside: 18 mm · Ø outlet inside: 24 mm · Hole pattern [mm]: 55 x 34 · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Outlet type: clamped · Outlet type: slanted · Hole spacing outlet: 23 mm · Hole spacing outlet: 38.5 mm · Thread outlet: M6x1 (standard thread) · Decompressor: Yes · Camouflaged: No · Area of application: Tuning
CHF 334.90
Malossi racing ignition 12V | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Material: Steel · Ø Internal flywheel: 80.5 mm · Ø cable: 7 mm · Light coil voltage: 12 V · Direction of rotation: right · Performance: 90 W · Mounting type: Screws · Number of fixing points: 2 pcs · Ø Flywheel outside: 105 mm · Ø Flywheel outside: 139.5 mm · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Weight: 804 g · Weight: 890 g
CHF 399.90
SKF 6202 C3 ball bearing 15/35/11
Bearing type: Deep groove ball bearing · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Width: 11 mm · Ø inside: 15 mm · Ø outside: 35 mm · Puch OEM number: 900.4.6202
CHF 9.90
Hot

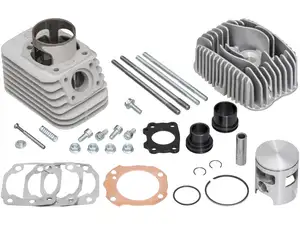

Malossi 47 mm cylinder kit BIG DEPS 4 MHR incl. head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
