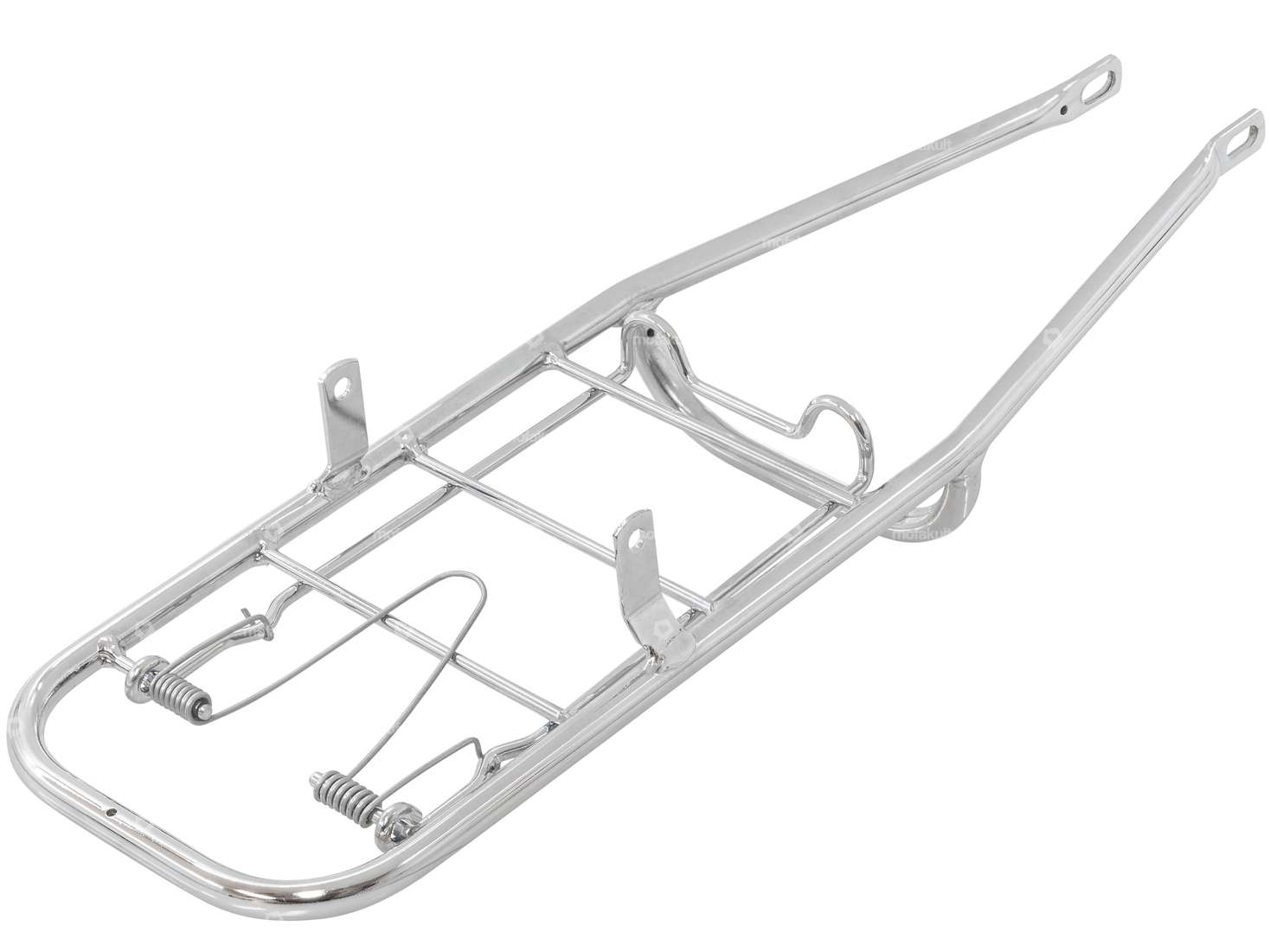

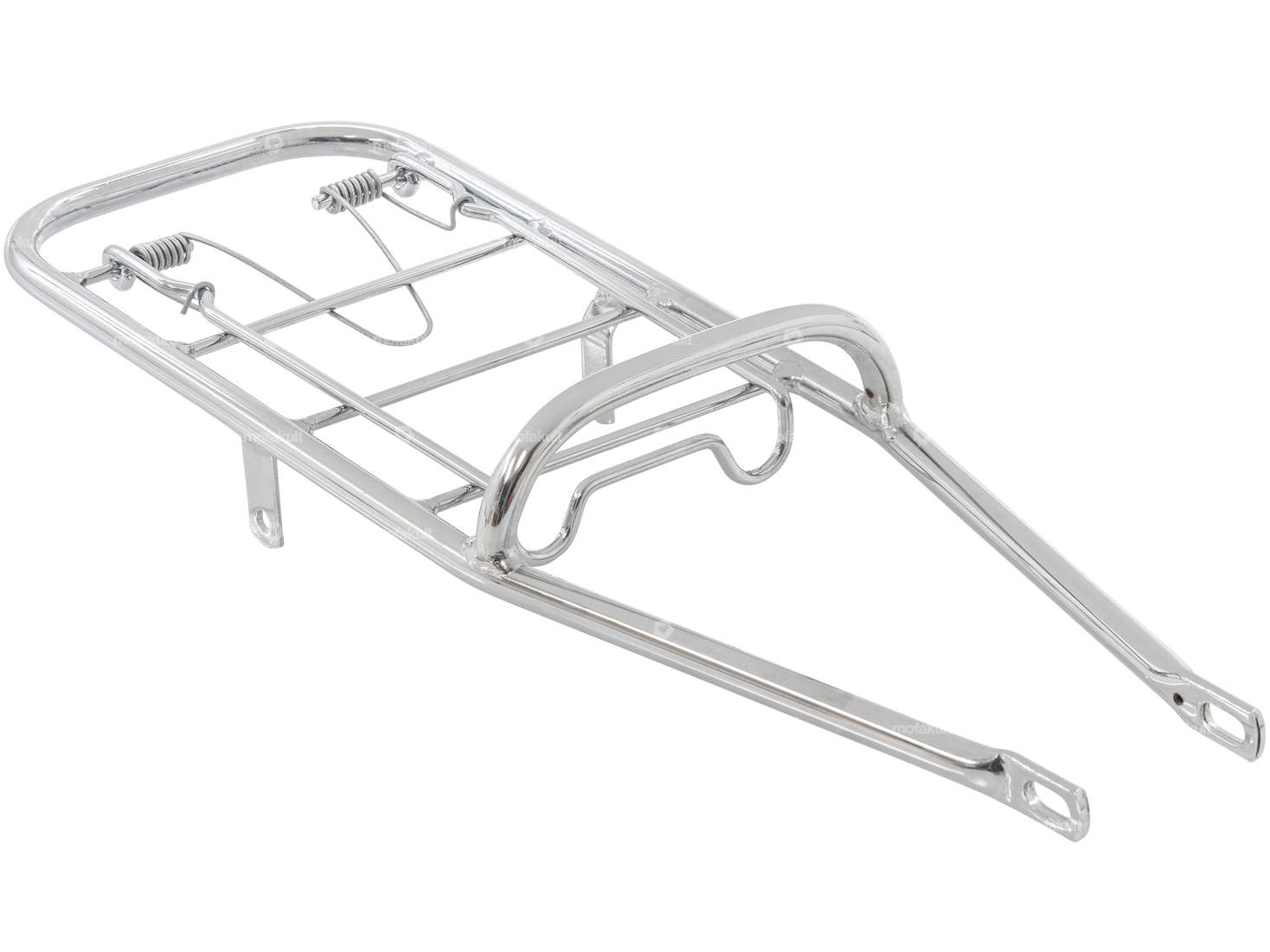

Oldie luggage carrier with clamp for your older Piaggio Ciao P moped / moped.
The rear luggage carrier is only suitable for the old model with rigid, square seat post and rear light on the mudguard.
Mounting takes place at the original attachment points under the saddle and on the screws of the seat stays. The tool compartment remains accessible.

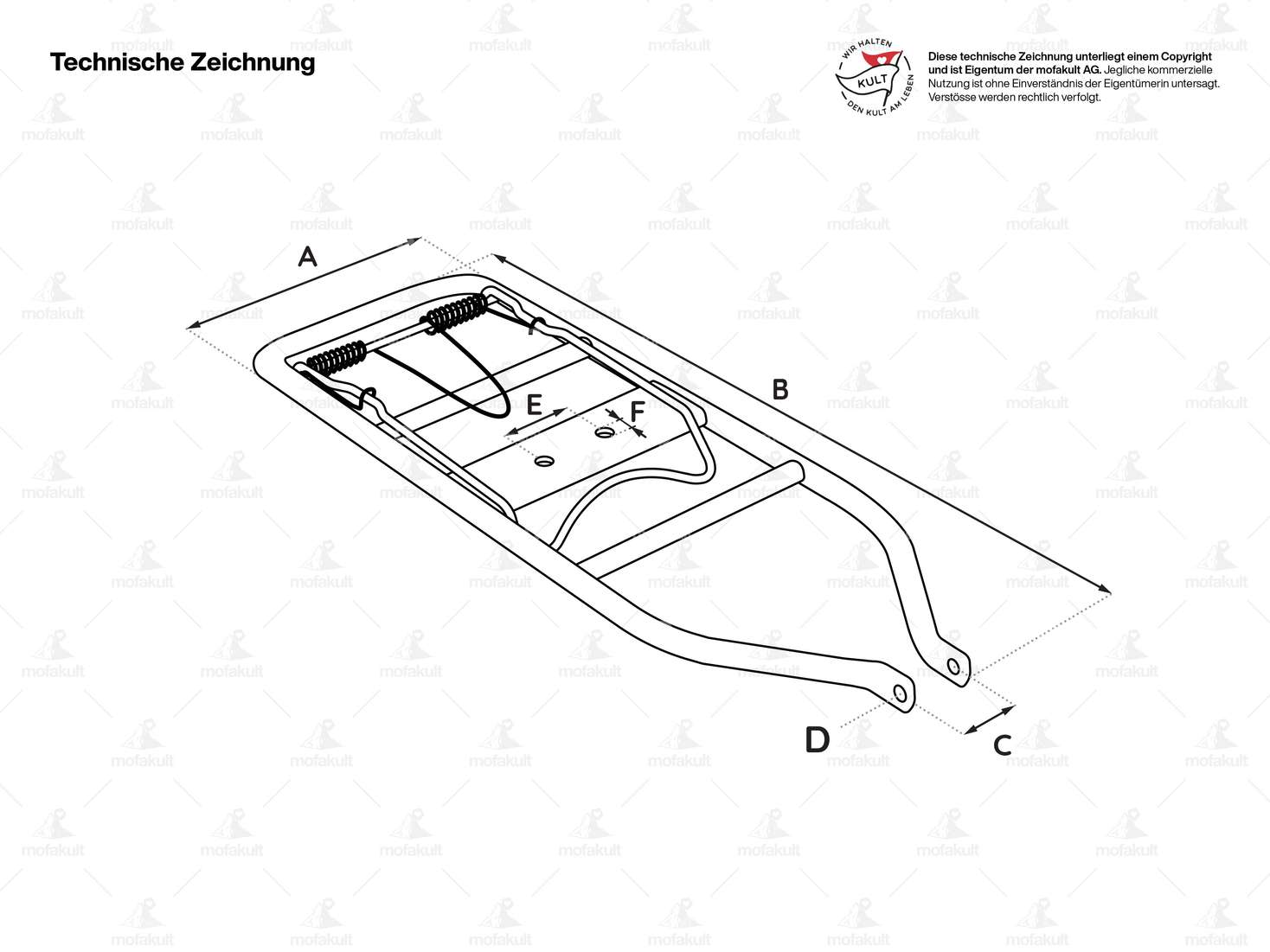

Total length: 500 mm
Width: 165 mm
Height: 100 mm
Fixing distance front: 60 mm
Fixing distance rear: 131 mm
Length of luggage carrier clamp: 220 mm
Matching luggage bags as well as an alternative luggage carrier can be found in the accessories section.
A quality product made in Italy.
Details
| Manufacturer | Made in Italy |
| Total length | 500 mm |
| Color | Chrome |
| Material | Steel |
| Surface | chrome-plated |
| Width | 165 mm |
| Height | 100 mm |
| Ø mounting hole | 6.5 mm, 9 mm |
| Hole spacing | 60 mm, 131 mm |
| Number of fixing points | 4 pcs |
| Mounting type | Screws, Nuts & bolts |
Suitable for the following models
| Piaggio | Ciao - P |
