For: Fantic

34024

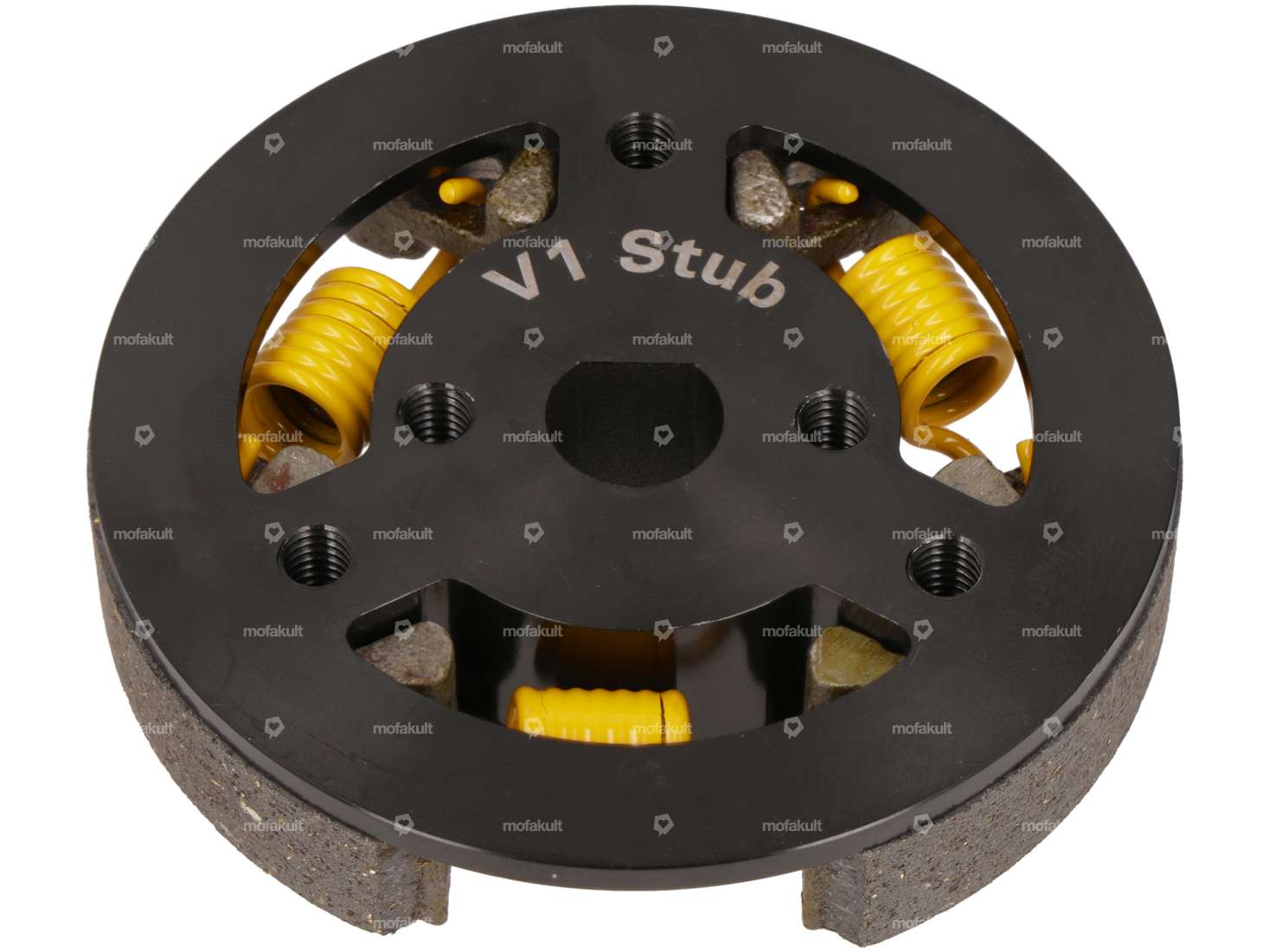

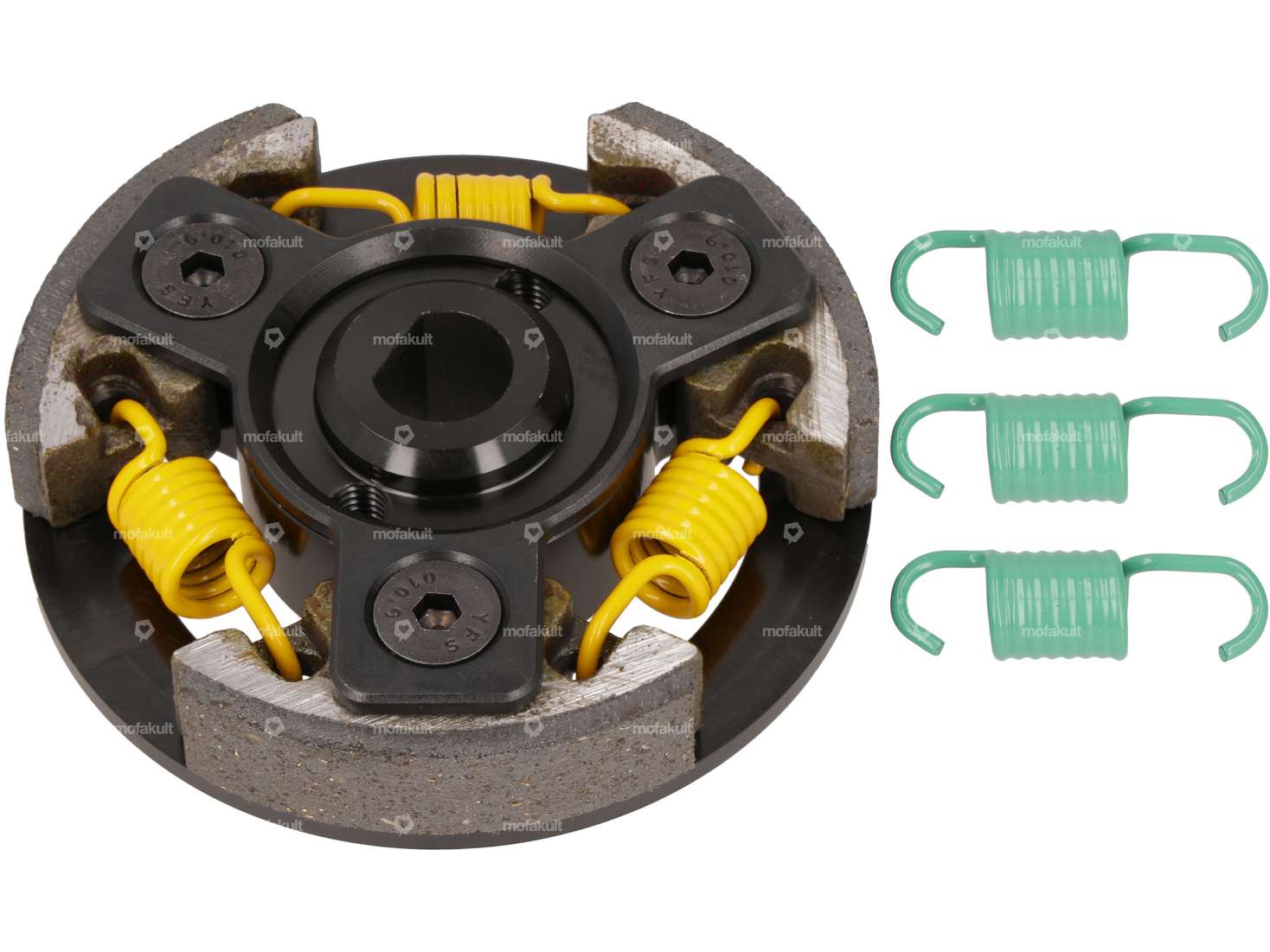

Jammer clutch flange version | Minarelli V1

CHF 199.90

Incl. 8.1% VAT.

Description

Racing clutch from Jammer with flange mount for your moped / moped with Minarelli V1 engine

.

This high-quality racing clutch was manufactured from heavy-duty steel using laser cutting

Two different spring rates are included in the scope of delivery for the corresponding application area.

  • grün: 1.8 mm wire diameter for souped-up motors
  • Yellow: 2 mm wire diameter for extremely souped-up motors

Note: The clutch is not compatible with crankshafts that have a cone mount. The racing clutch is supplied pre-assembled. The M6 screws are not yet tightened and must be secured and tightened with Loctite before use. The tightening torque is 6 Nm.

ManufacturerJammer
Area of applicationTuning, Racing
MaterialSteel, Composite materials
Recording type2-edge
Number of jaws3 pcs
Number of springs6 pcs
Thickness20.3 mm
Ø outside82.5 mm
Fantic
