For: Puch

11856

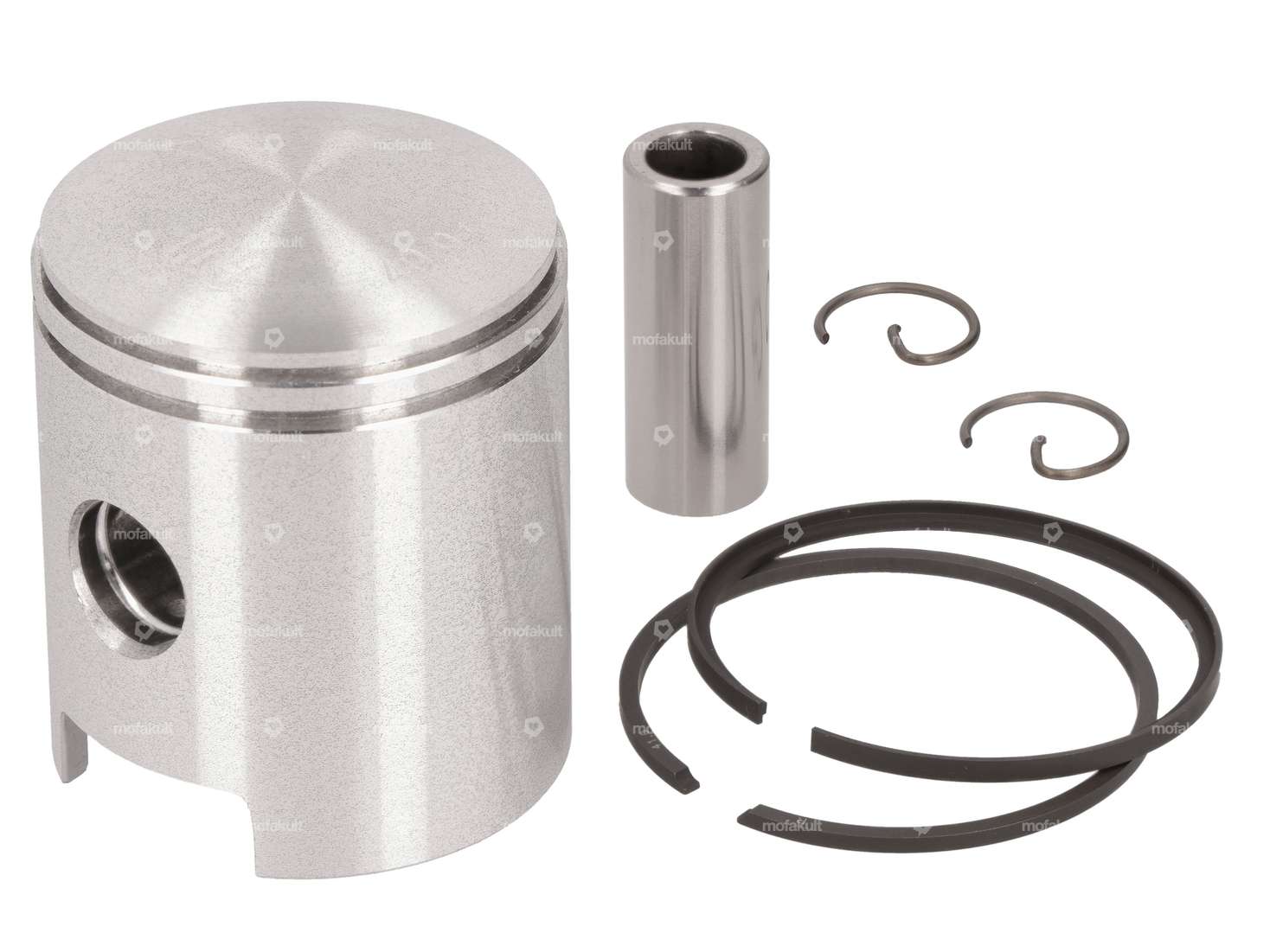

GPO piston 41 mm (12 mm KoBo) | Puch X30 Velux, M50, MS50, VS50, DS50, VZ50

rating iconrating iconrating iconrating iconrating icon
No reviews
CHF 49.90

Incl. 8.1% VAT.

Description

41.0 mm replacement piston with a rectangular piston ring with flank circlip (FS) and an L-shaped piston ring with internal circlip (IS) for the blown 41 mm Puch X30 Velux mopeds / mopeds and M50, MS50, VS50, DS50, VZ50 small engine bikes with 12 mm piston pin.

The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerGPO
Ø outside piston (A)40.94 mm
Compression height (C)23.2 mm
Curvature (D)3.7 mm
Total piston height (E)49.3 mm
Number of piston rings (F)2 pcs
Nominal diameter41 mm
Piston ring moldL-ring, Rectangular ring
Piston ring impactInternal fuse (IS), Flank safety device (FS)
Ø piston pin (B)12 mm
Weight piston kit85 g
Puch

ZA50 (fan-cooled)

Z50 (X30 Velux)

2-speed MS, MV, MV50

3-speed VSD, DS, VZ, MC

Accessories & related products

Airsal piston pin lock Ø 12 mm (single)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

10240

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Number of sensors / lugs: 1 pcs · Ø outside: 12 mm

CHF 1.20

Hot Hot
Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L
undefined

Universal

10610

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

CHF 25.90

CHF 25.90/l

Buzzetti pliers for piston ring assembly
undefined

For: Sachs · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp · Franco Morini

15195

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

CHF 13.50

Meteor piston pin lock Ø 12 mm (double)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

17313

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

CHF 1.20

GPO piston pin extractor Ø 10, 12, 14 mm
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp

17988

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm · Number of components: 7 pcs · Area of application: (Dis)assembly tool

CHF 19.90

Piston rings 41 mm cylinder fan-cooled (pair) | Puch Velux, NG-2AH

For: Puch

18163

Piston rings 41 mm cylinder fan-cooled (pair) | Puch Velux, NG-2AH

Nominal diameter: 41 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS)

CHF 14.90

GPO 41 mm cylinder kit fan-cooled 12 mm KoBo | Puch X30 Velux, NG-2AH
undefined
angle-right

For: Puch

21177

GPO 41 mm cylinder kit fan-cooled 12 mm KoBo | Puch X30 Velux, NG-2AH

Nominal diameter: 41 mm · Manufacturer: GPO · Manufacturer: swiing® revival parts · Material: Gray cast iron · Surface: sandblasted · Displacement: 60 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 43.2 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.6 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Camouflaged: No · Area of application: Tuning

CHF 109.90

Explore categories from Piston

S-10-60-020-010_Kolbenring
Piston ring
S-10-60-020-020_Kolbenbolzen
Piston pin
S-10-60-020-030_Kolbenbolzenclip
Piston pin clip
S-10-60-020-040_Kolbenkit
Piston kit
S-10-60-020-050_Werkzeug
Tool

Moped fans also bought

swiing® revival stud bolt inlet/outlet M6 x 30 (10.9 strength)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Zündapp Belmondo · Solex · Tomos

10126

swiing® revival stud bolt inlet/outlet M6 x 30 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nominal diameter (thread): 6 mm · Thread type: M6x1 (standard thread) · Diameter: 5.95 mm · Thread length: 12 mm · Total length: 30 mm · Strength class: 10.9

CHF 1.80

GPO gasket set 40 - 41 mm cylinder fan-cooled | Puch X30 NG-2AH, Velux
undefined

For: Puch

18208

GPO gasket set 40 - 41 mm cylinder fan-cooled | Puch X30 NG-2AH, Velux

Manufacturer: GPO · Ø cylinder: 40 mm · Ø cylinder: 41 mm · Hole spacing inlet: 38 mm · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Area of application: Tuning · Hole pattern [mm]: 44 x 44 mm · Number of components: 4 pcs · Decompressor: Yes

CHF 8.90

swiing® ingenious centering sleeves cylinder head (M7 stud bolt) | Puch X30 Velux
undefined

For: Puch

28512

swiing® ingenious centering sleeves cylinder head (M7 stud bolt) | Puch X30 Velux

Nominal diameter inside: 7 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Ø outside: 8 mm · Ø inside: 7.1 mm · Total length: 17 mm

CHF 9.70

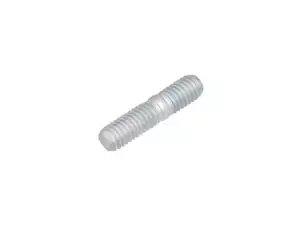

swiing® revival stud bolt cylinder base M6x26 (10.9 strength) | Sachs
