For: Piaggio

16867

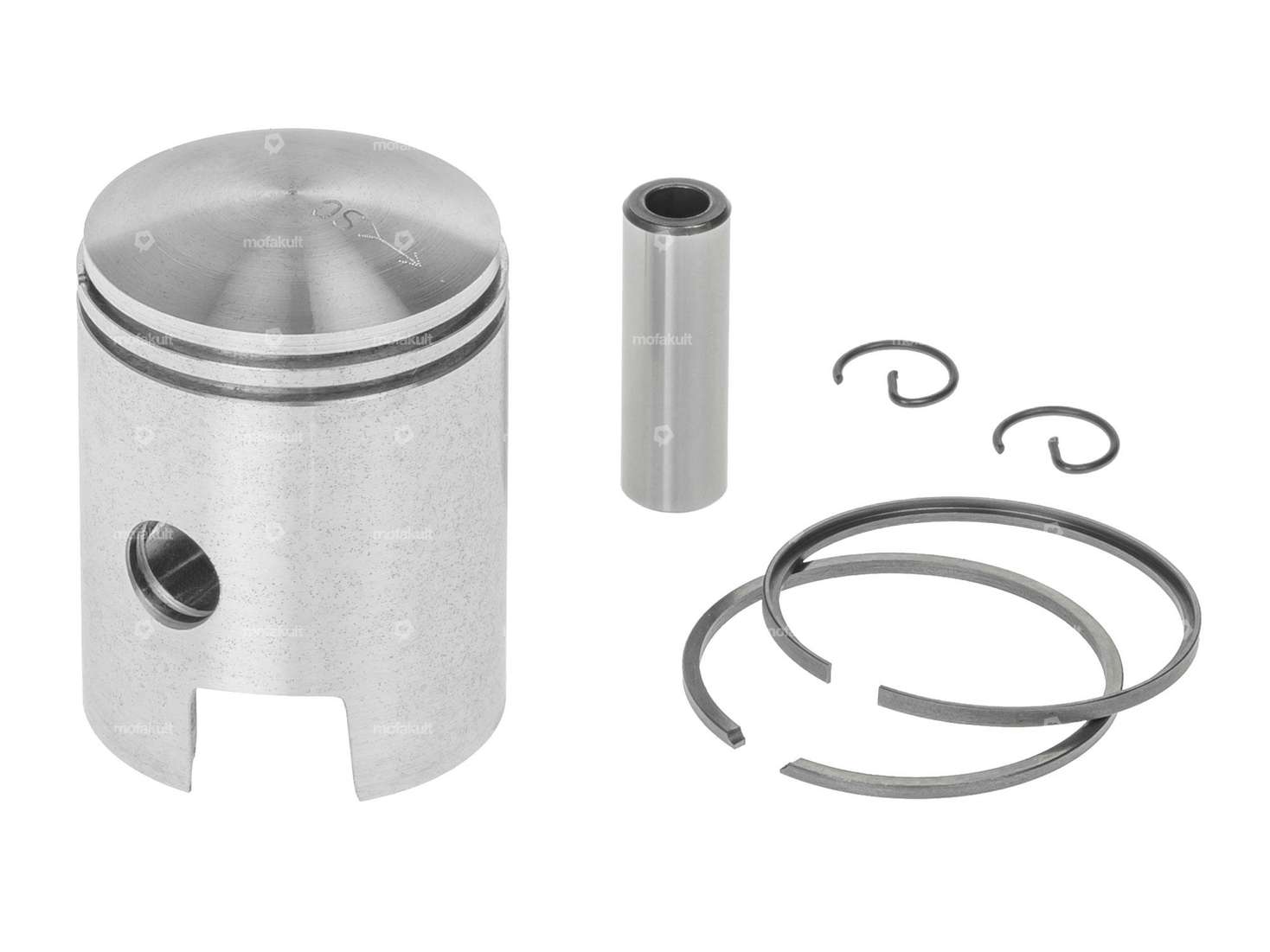

GPO piston 38.4 mm (10 mm KoBo) oversize | Piaggio Ciao, SI, Bravo, Boxer

rating iconrating iconrating iconrating iconrating icon
No reviews
CHF 29.90

Incl. 8.1% VAT.

Description

38.4 mm diameter piston with a 1.5 mm rectangular piston ring with side protection and a 2 mm L-shaped piston ring with internal protection (IS) suitable for various Piaggio mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter38 mm
ManufacturerGPO
Ø outside piston (A)38.35 mm
Compression height (C)26 mm
Curvature (D)3.7 mm
Total piston height (E)51.7 mm
Number of piston rings (F)2 pcs
Piston ring moldL-ring, Rectangular ring
Piston ring impactInternal fuse (IS), Flank safety device (FS)
Piston ring height2 mm, 1.5 mm
Ø piston pin (B)10 mm
Weight piston kit75 g
Piaggio

Ciao - P , SC , PX , C24

Si

Bravo / Super Bravo

Boxer

Grillo
