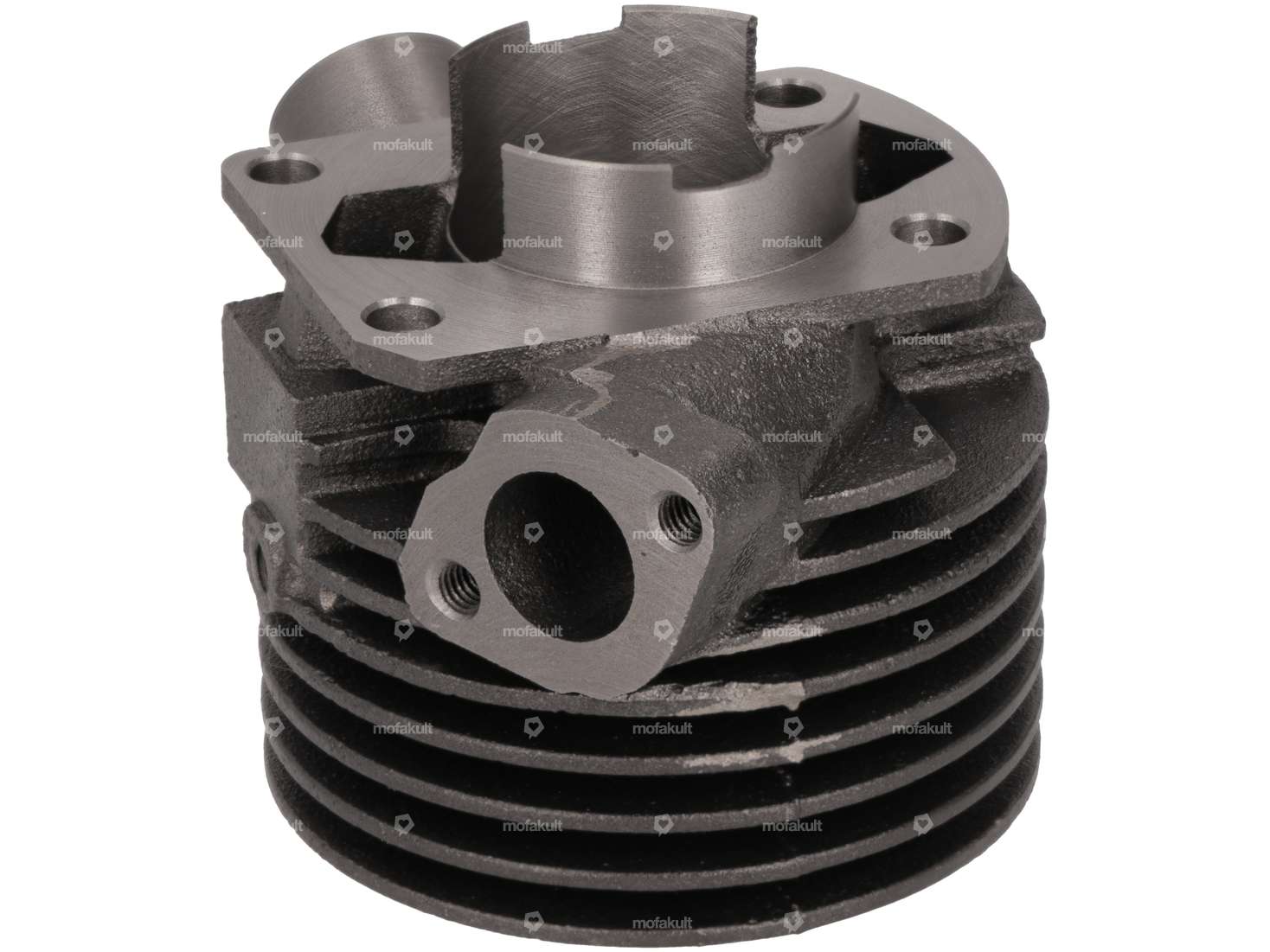

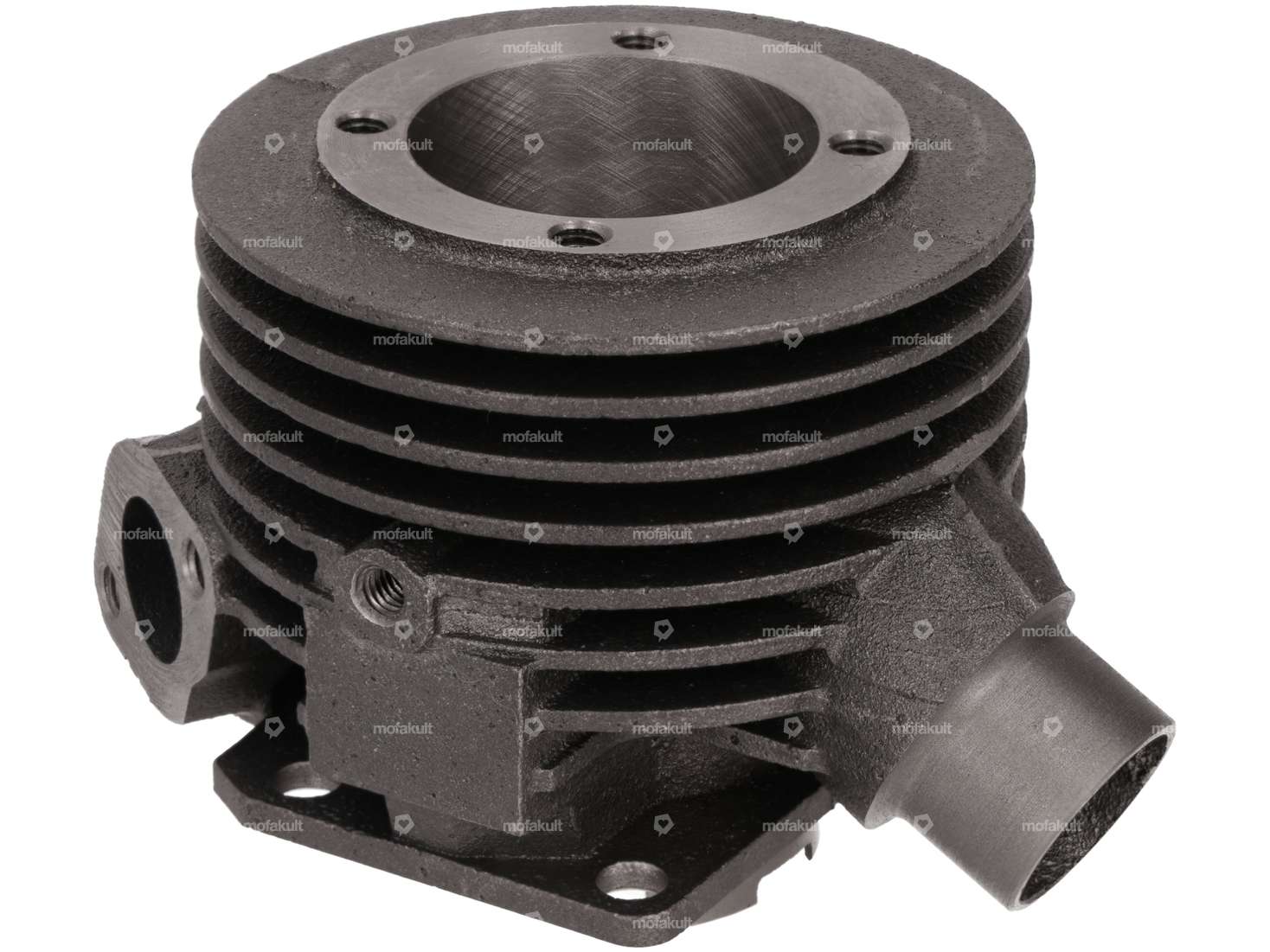

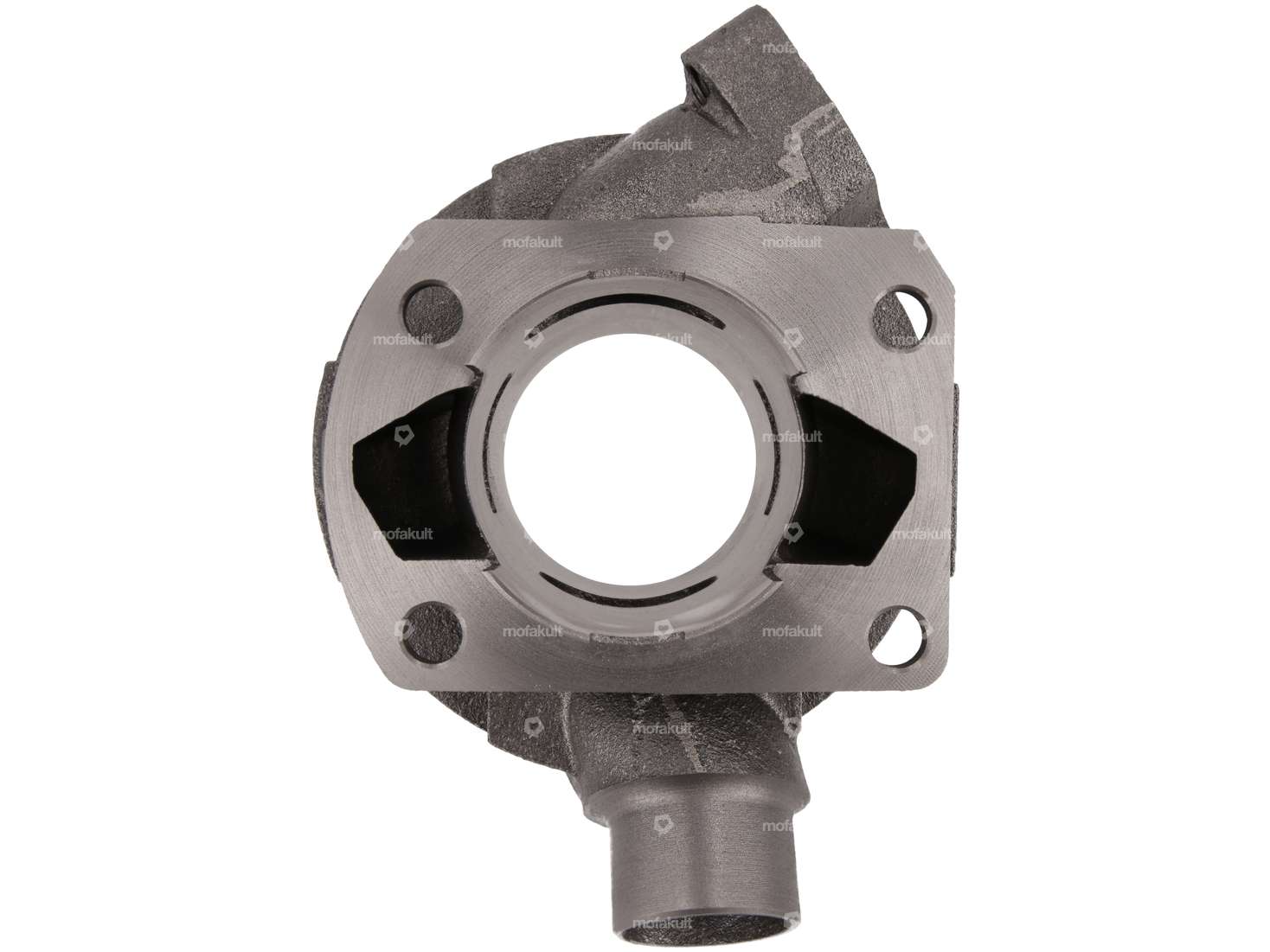

Mediterranean 43 mm gray cast iron racing cylinder with 63 cc for your Sachs moped / moped with 503 2AL, AAL, 2BL, ABL CH engine.
The GPO Pomodoro cylinder kit (Italian for tomato) is the sun-ripened, refreshing alternative to comparable greenhouse racing cylinders. It impresses with its freshness in the lower rev range, powerful acceleration and pulling power, as well as a fruity finish in the upper rev range. The cylinder absorbs more nutrients than original ones, transforming them into juicy, powerful pulp and exuding a tantalizing aroma of oil. A real treat for your engine that fills the streets with passionate flavors.
Details:
- Cast iron reproduction cylinder with Ø 43.0 mm bore
- slot-controlled
- Ø 19 mm intake
- optimized Öoverflow channels
- improved timing
- no spindling of the engine housing necessary (Ø cylinder neck 45.0 mm)
- Ø external connection exhaust manifold: 26 mm
- incl. Ø 43 mm GPO piston
Differences to the original BADASS cylinder:
- Original or swiing® intake manifolds can be fitted
- The BADASS 15 mm & 17 mm intake manifolds cannot be fitted
- The cylinder cannot be adapted to a 502 or 50/2 engine
- Higher intake timing vs;higher intake timing compared to the BADASS
Due to the correct angle of the intake surface, both original and swiing® brand intake manifolds and carburettors fit under the side valving without the need for adjustments.
The GPO piston improves intake timing, resulting in higher engine speeds. The edges of all ports are smoothed, which enables optimum mixture flow.
Note: Replace the rubber silentblocs on 503 BL engines with aluminum bladders to avoid exhaust flange fatigue fractures at increased power. Ideally, you should use reinforced clutch springs to ensure that all the vitamins and minerals end up on the plate. For an additional flavor note, you can install a 32 mm resonance pot.
Protect the Pomodoro cylinder from heat with the original Sachs cylinder shield or the Pergola cylinder head in the optionally available accessories. You will also find a suitable swiing® irrigation system and piping there.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY, in cooperation with GFO – GOOD FOOD ONLY.

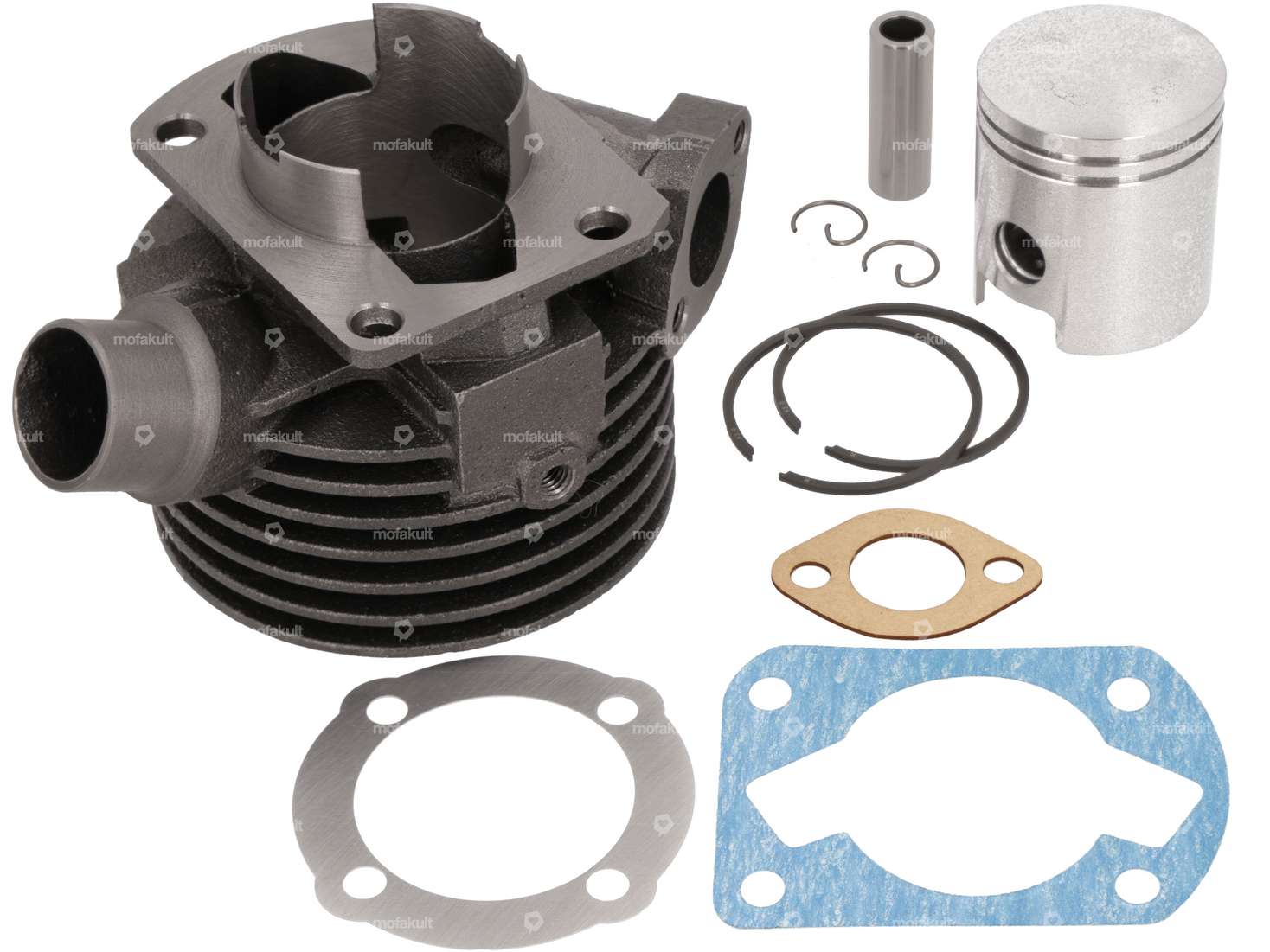

The set includes the following fixed parts:
Hole pattern [mm]: 40 x 60 / 37 x 37 · Manufacturer: GPO · Material: Gray cast iron · Displacement: 63 ccm · Nominal diameter: 43 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 22 mm · Ø Inlet inside: 19 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 32 mm · Outlet type: clamped
Manufacturer: GPO · Nominal diameter: 43 mm · Ø outside piston (A): 42.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 27.7 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.2 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm
Manufacturer: GPO · Material: Sealing paper, Sealing carton, Aluminum · Number of components: 3 pcs · Thickness: 0.3 mm, 0.4 mm, 1 mm · Ø cylinder: 43 mm · Hole spacing inlet: 0 - 32 mm
Details
| Manufacturer | GPO |
| Material | Gray cast iron |
| Displacement | 63 ccm |
| Area of application | Tuning |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 43 mm |
| Ø cylinder neck | 45 mm |
| Ø Outlet outside | 26 mm |
| Ø Inlet inside | 19 mm |
| Hole spacing inlet | 32 mm |
| Ø outlet inside | 22 mm |
| Thread inlet | M6x1 (standard thread) |
| Ø piston pin (B) | 12 mm |
| Outlet type | clamped |
| Hole pattern [mm] | 40 x 60 / 37 x 37 |
Suitable for the following models
| Sachs | 503 - AAL, ABL, 2AL / 2BL |
Accessories & related products
Exhaust system tuning set chrome | Sachs 503 2AL/2BL
Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Total length: 700 mm · Ø outside: 70 mm · Color: Chrome · Ø Flame tube outside: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp · Flame tube attachment: Plug connection clamped
CHF 99.90
swiing set exhaust resonance Ø 28 / 70 mm | Sachs 503
Total length: 730 mm · Manufacturer: swiing · Ø outside: 70 mm · Material: Steel · Color: Chrome · Surface: chrome-plated · Mounting type: Screwed clamp · Ø Internal connection: 28 mm · Exhaust type: Cigar · Flame tube attachment: Plug connection clamped
CHF 139.90
swiing® revival silent blocks Alu Racing | Sachs 503 / 504 / 505 / 535
Ø inside: 8.3 mm · Nominal diameter: 8.5 mm · Ø outside: 21.95 mm · Ø Bundle: 26 mm · Manufacturer: swiing® revival parts · Material: Aluminum · Surface: anodized · Total length: 13 mm · Alternative version of the Pony Spare part no.: A4286 · Alternative version of Sachs spare part no.: 0251 121 000
CHF 23.90
GPO Ø 41 mm "Pomodoro" cylinder kit | Sachs 503
Nominal diameter: 41 mm · Manufacturer: GPO · Material: Gray cast iron · Area of application: Tuning · Crankshaft stroke: 43 mm · Displacement: 55 ccm · Ø piston pin (B): 12 mm · Hole spacing inlet: 32 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Ø Inlet inside: 19 mm · Ø outlet inside: 22 mm · Thread inlet: M5x0.8 (standard thread) · Outlet type: clamped · Hole pattern [mm]: 40 x 60 / 37 x 37
CHF 199.90
Moped fans like you also bought:
NSK BO15 shoulder ball bearing 15/40/10 (A4502)
Bearing type: Shoulder bearing · Stock number: BO15 · Inner ring width: 10 mm · Manufacturer: NSK · Ball bearing closed: No · Bearing cage: Brass cage ball-guided · Area of application: Standard · Material: Brass · Material: Steel · Width: 10 mm · Surface: blank · Ø inside: 15 mm · Ø outside: 40 mm · Pony spare part no.: A4502 · Sachs spare part no.: 0932 007 001
CHF 24.90
swiing 15 mm carburetor tuning camouflaged | Sachs 503
Manufacturer: swiing · Total length: 66 mm · Area of application: Tuning · Camouflaged: Yes · Material: Aluminum · Width: 50 mm · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Mounting type: Plug connection clamped · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5 · Nozzle block: 2.17 · Nozzle size: 62 · Height: 95 mm · Clamping screw torque (max.): 4 N/m
CHF 79.90
swiing® revival air filter Racing | Sachs 503
Manufacturer: swiing® revival parts · Total length: 165 mm · Camouflaged: No · Area of application: Tuning · Material: Plastic · Width: 68 mm · Filter type: Racing screen · Ø Internal connection: 20 mm · Color: black · Mounting type: Plug connection clamped · Height: 52 mm
CHF 59.90
swiing® ingenious 15 mm intake manifold long version | Sachs 503 2AL, 2BL
Total height: 80 mm · Manufacturer: swiing® ingenious parts · Ø inside: 15 mm · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Total length: 70 mm · Mounting type: Screws · Thread type: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Number of fixing points: 2 pcs · Height flange center hole: 70 mm · Ø External connection: 20 mm · Pony spare part no.: A2176
CHF 59.90
swiing® revival silent blocks Alu Racing | Sachs 503 / 504 / 505 / 535
Ø inside: 8.3 mm · Nominal diameter: 8.5 mm · Ø outside: 21.95 mm · Ø Bundle: 26 mm · Manufacturer: swiing® revival parts · Material: Aluminum · Surface: anodized · Total length: 13 mm · Alternative version of the Pony Spare part no.: A4286 · Alternative version of Sachs spare part no.: 0251 121 000
CHF 23.90

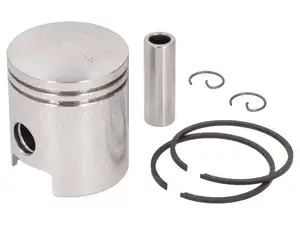

GPO piston 43 mm | Sachs 50/2, 50/3, 50/4
