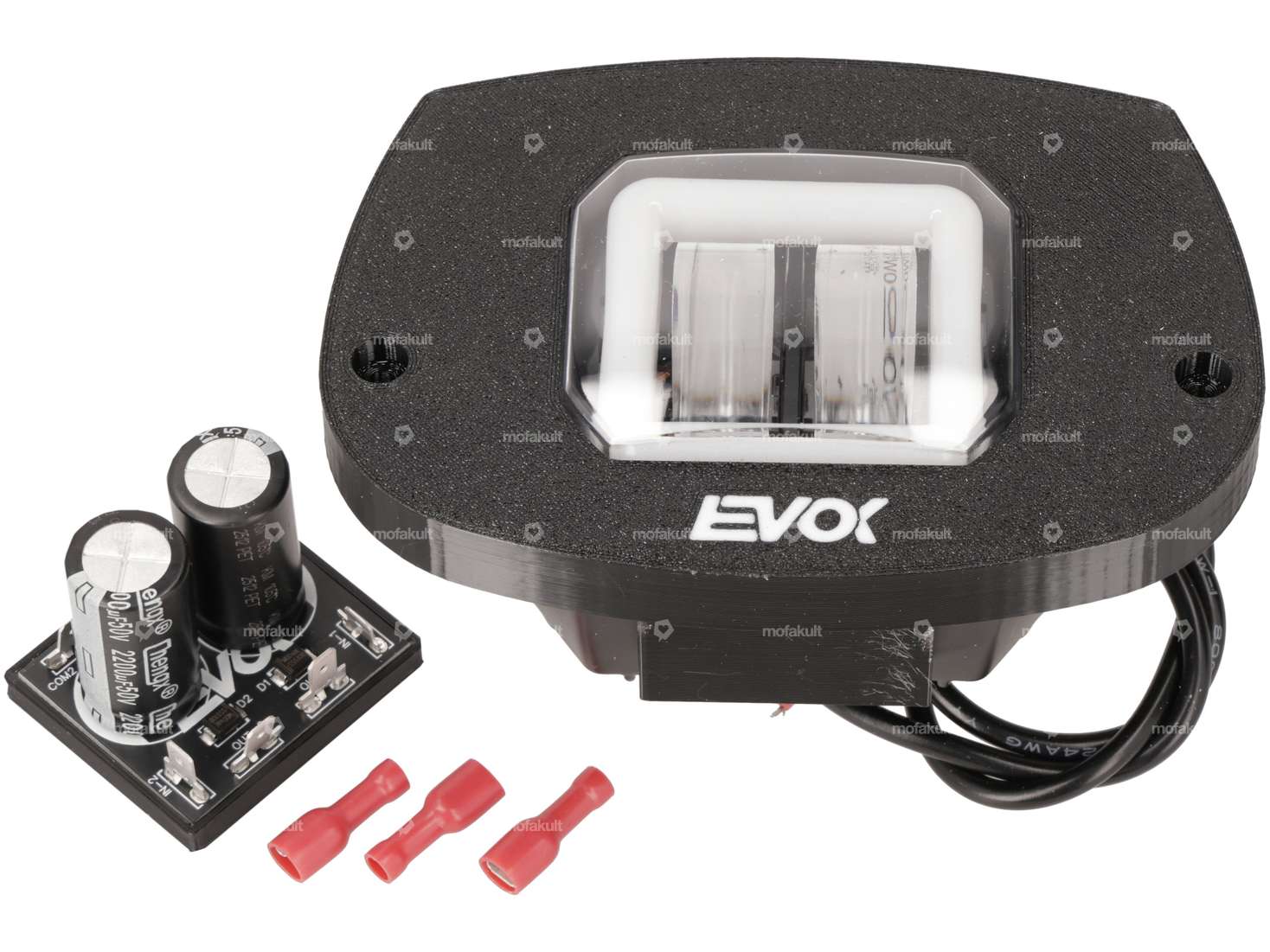

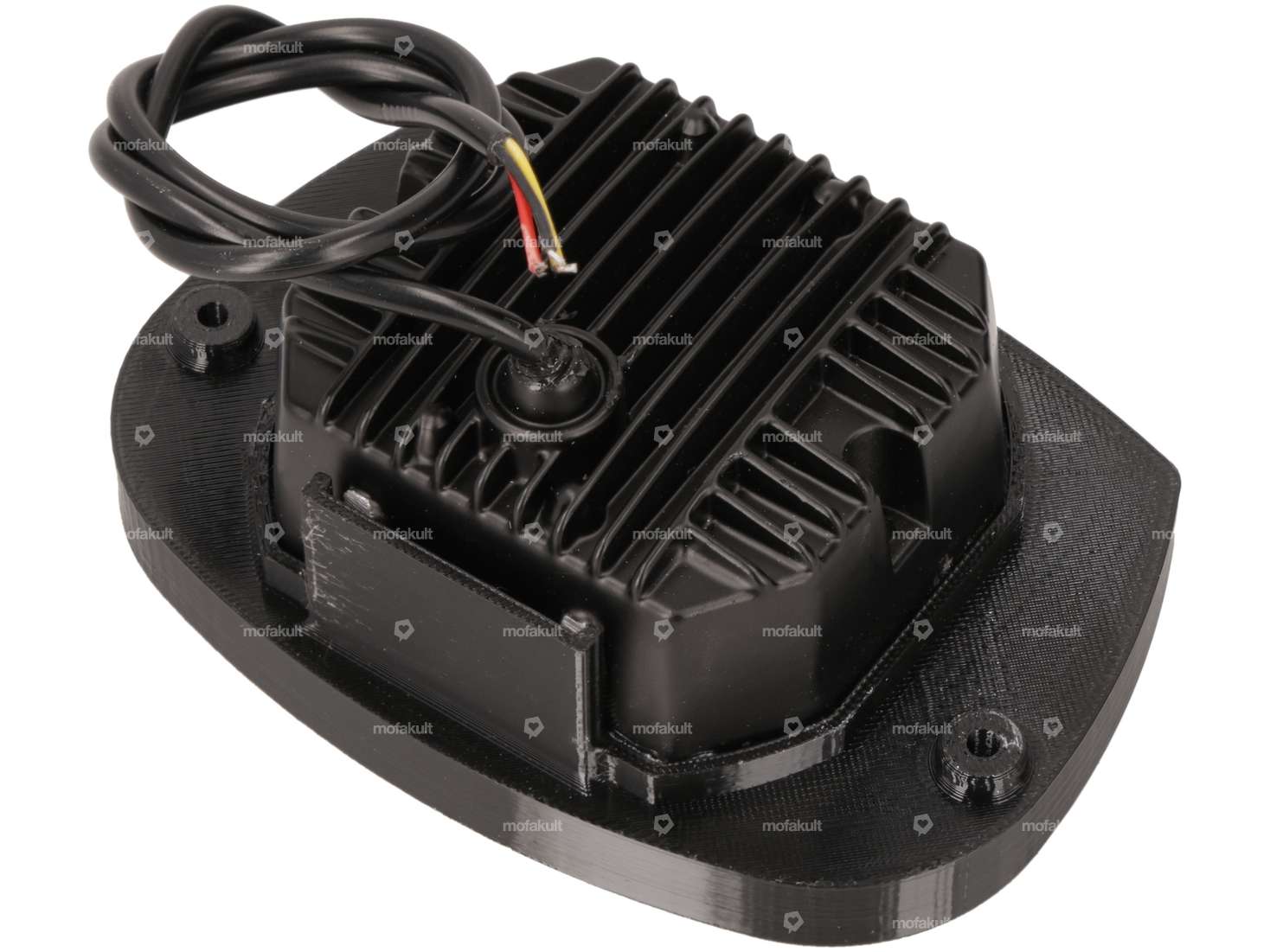

Headlight assembly with dual LED headlights and a square parking light ring for your Piaggio Ciao moped with a 6V or 12V electrical system.
With this marvel of modern lighting technology, you can skillfully pimp your racing moped or custom ride to ensure a bright, eye-catching appearance wherever you go.
The package includes a circuit board required for installation. Three cable lugs are also included for connection.
Connect according to the following diagram:
COM – Black wire from the LED headlight
COM1 - Black ground wire from the original wiring harness
COM2 - nothing connected
IN-1 - purple wire from the original wiring harness (interior light - driving light)
IN-2 - brown wire from the original wiring harness (outer ring – parking light)
OUT-1 – red wire from the LED headlight
OUT-2 – yellow wire from the LED headlight
Notes:
The manufacturer recommends using a voltage regulator to extend the service life.
The LED light is only compatible with newer headlights, which were installed as standard starting with the PX model featuring a cast wheel.
You can find the appropriate tools and additional wiring materials in the accessories section.
Brand-name product from the manufacturer EVOK.
| Manufacturer | EVOK |
| Test mark | none |
| Color | black |
| Bulb holder | LED (permanently installed) |
| Tension | 6 V, 12 V |
| Ø Lamp head | 60.8 mm |
| LED | Yes |
| Total length | 52 mm |
| Width | 120 mm |
| Height | 84.6 mm |
| Piaggio | Ciao - PX , C24 |
