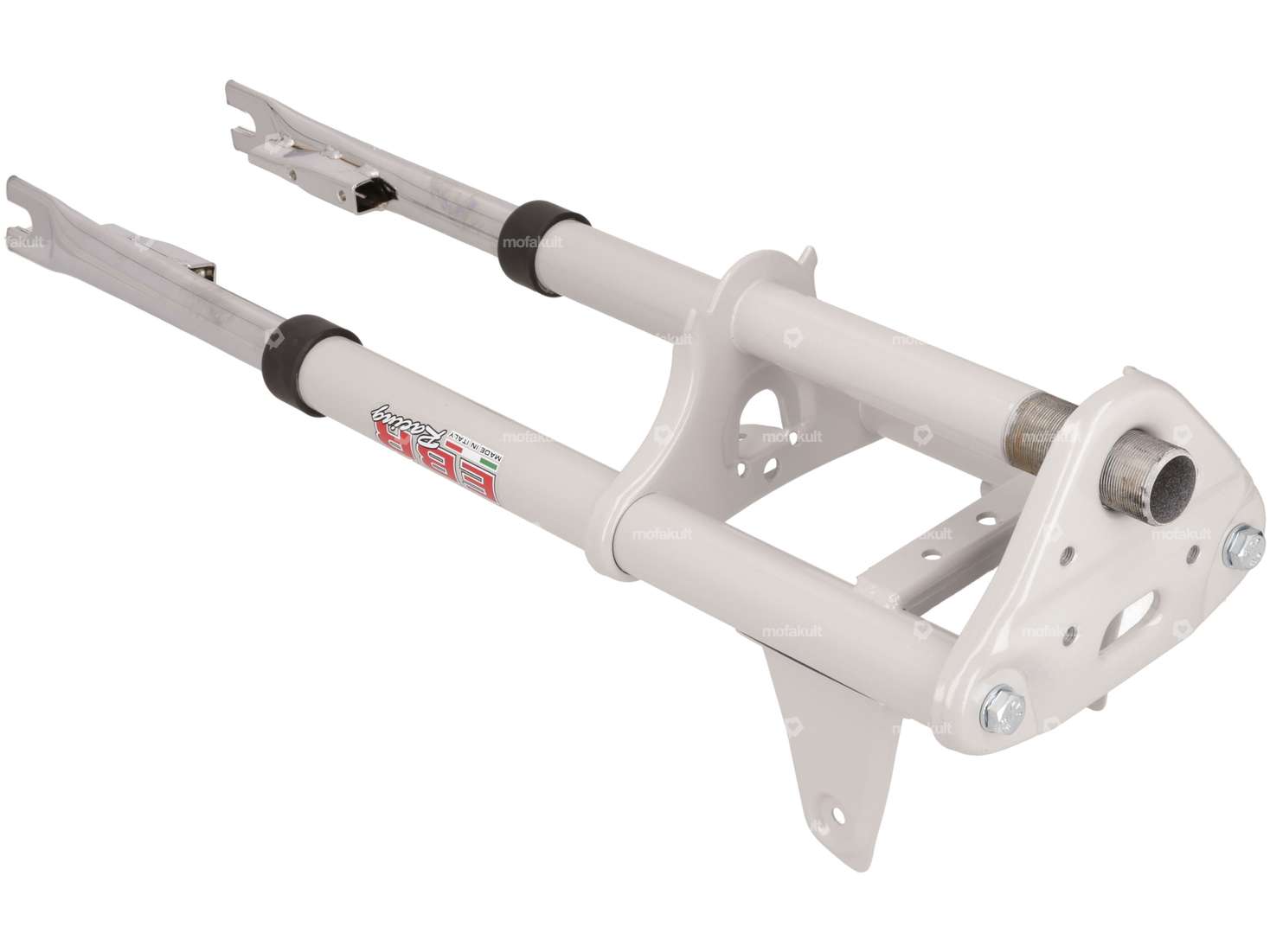

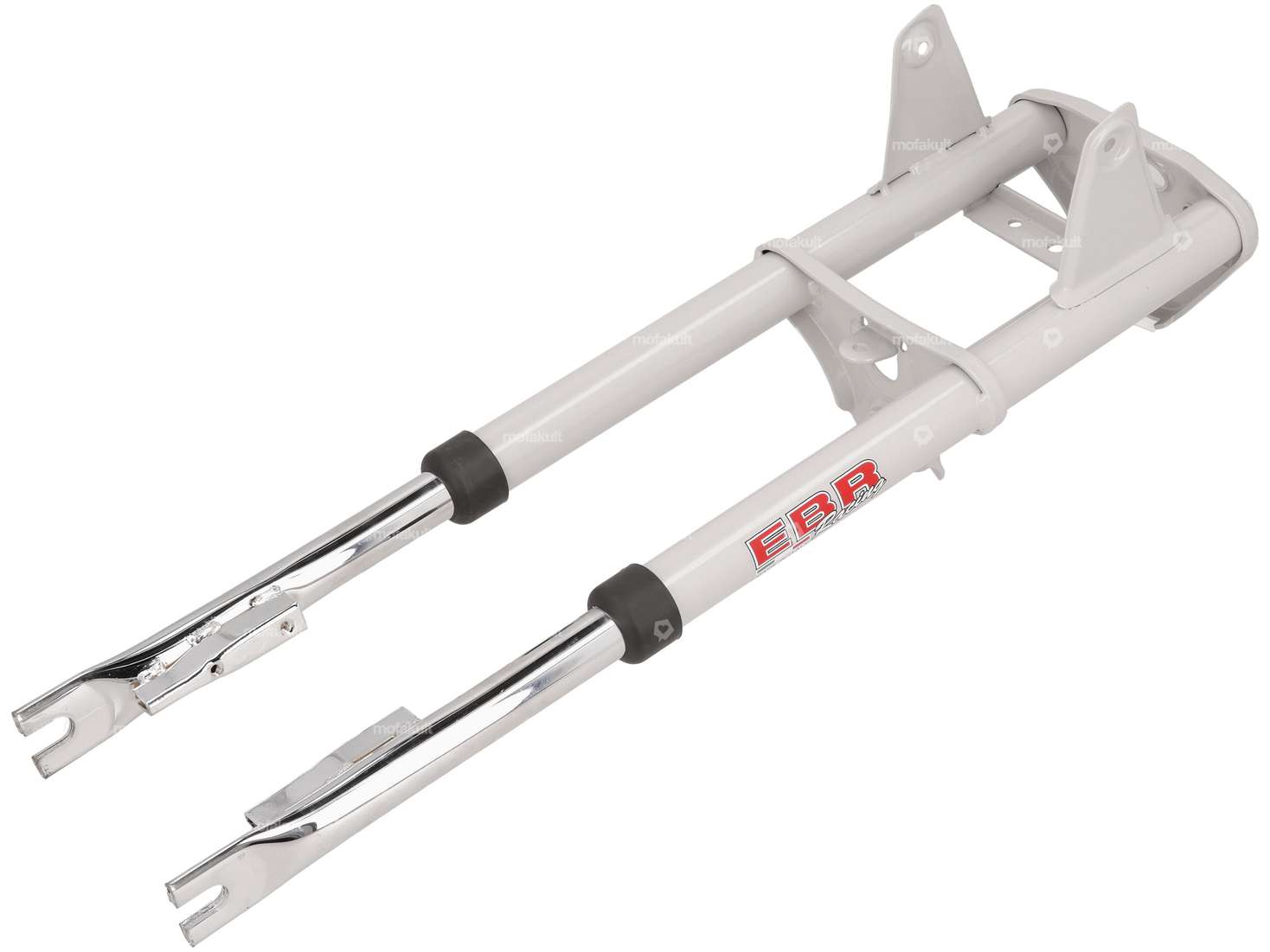

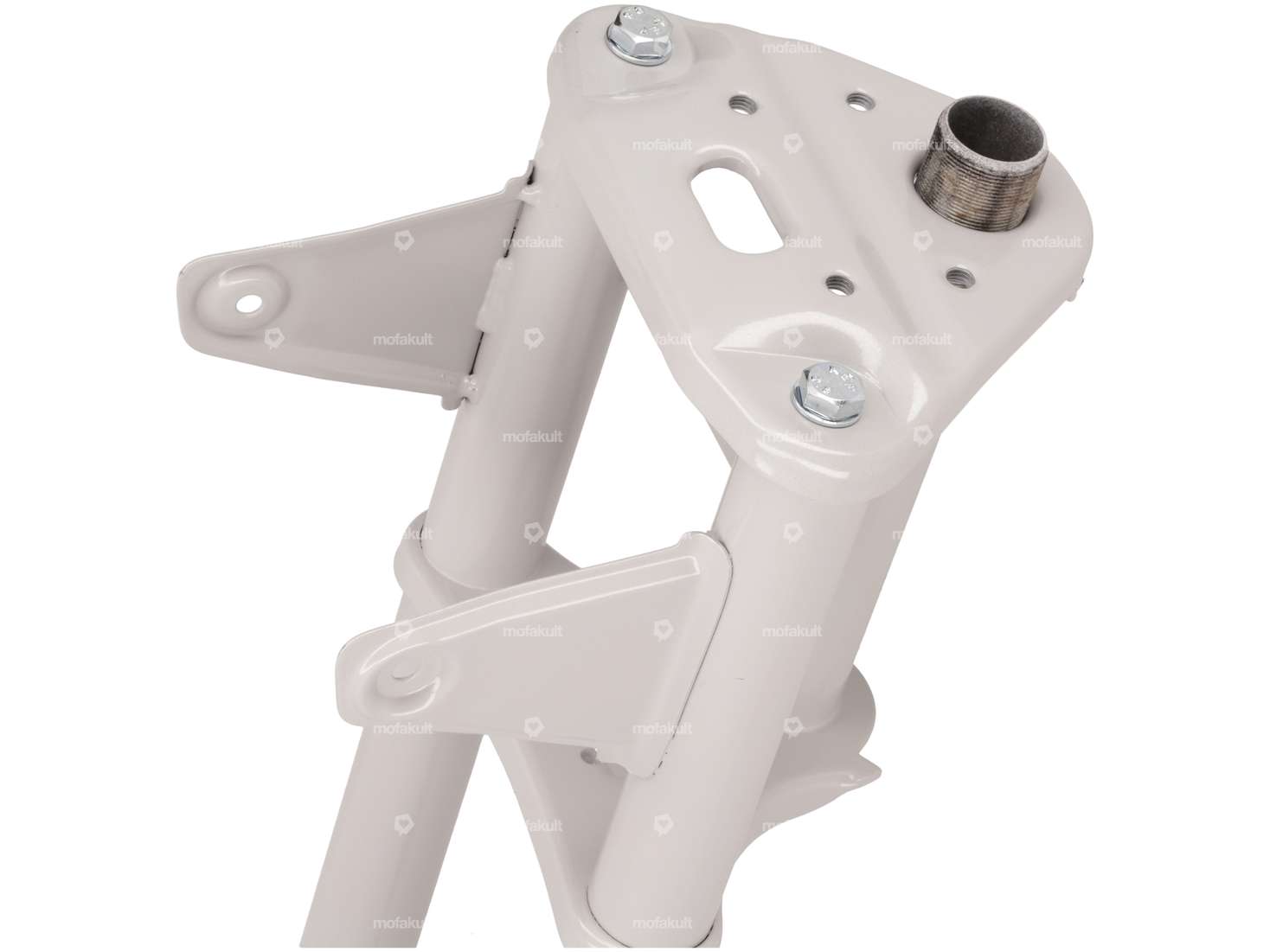

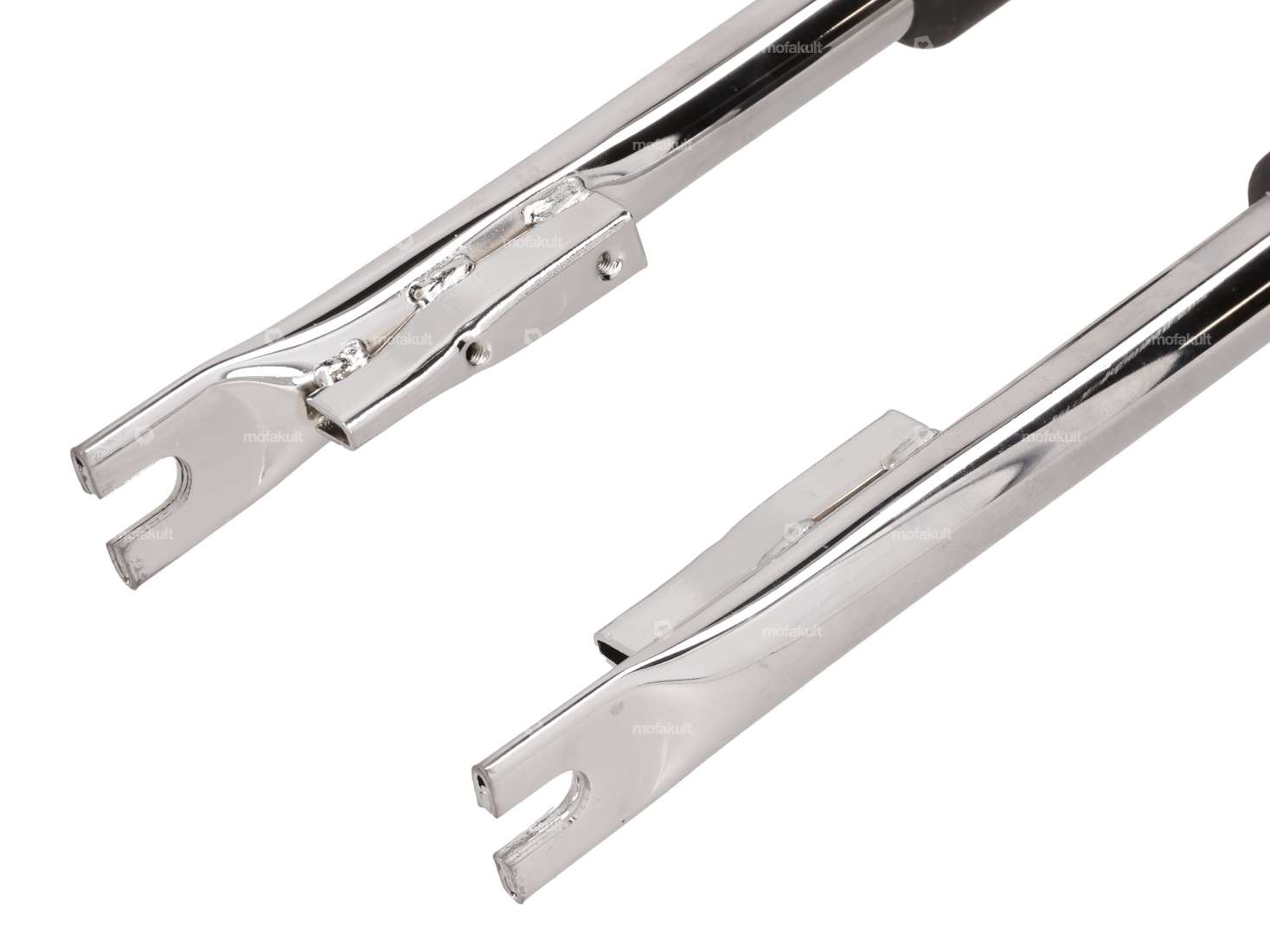

EBR standard fork gray | Puch

GPO control bearing set M26x1 | Puch

Bearing type: Bearing ring · Ø inside: 26.8 mm · Ø outside: 41 mm · Manufacturer: GPO · Thread type: MF26x1 (fine pitch thread) · Material: Steel · Surface: galvanized (blue) · Color: silver · Ø mounting frame: 31 mm

swiing® revival snap ring low control bearing set

Height: 7 mm · Nominal diameter: 20 mm · Nominal diameter: 28 mm · Thickness: 0.6 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Puch OEM number: 349.1.30.015.1 · Sachs OEM no.: P0521

swiing® revival bellows Ø 23/30 x 100 | Puch

Manufacturer: swiing® revival parts · Material: Rubber · Color: black · Ø inside: 23 mm · Ø inside 2: 30 mm · Ø outside: 35 mm · Ø outside: 45 mm · Total length: 103 mm

swiing® revival cover sleeve fork | Puch / Hercules

Total length: 40 mm · Ø inside: 23 mm · Ø outside: 34 mm · Manufacturer: swiing® revival parts · Material: Rubber · Color: black · Ø inside 2: 30 mm · Mounting type: Plug connection · Hercules OEM number: POO 927 993 31 18 000 · Puch OEM number: 349.1.30.137.1

Clamping bridges aluminum | Puch

Width: 21.5 mm · Height: 24.6 mm · Total length: 48.9 mm · Clamping diameter: 22 mm · Material: Aluminum · Surface: raw · Color: silver · Ø mounting hole: 8 mm · Hole spacing: 30 mm · Number of fixing points: 2 pcs

swiing® revival screw M7x35 clamping bridge | Puch

Total length: 41.6 mm · Drive: Hexagon socket · Width across flats: 5 mm · Manufacturer: swiing® revival parts · Thread type: M7x1 (standard thread) · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Area of application: Standard · Screw head: Cylinder head · Nominal diameter (thread): 7 mm · Ø External head: 10.5 mm · Shank: No · Thread length: 34.6 mm · Strength class: 8.8

EBR standard fork chrome | Puch

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 570 mm · Thread type: MF26x1 (fine pitch thread) · Adjustable: No · Spar end distance (center-center): 140 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Ø spars: 23 mm · Head tube length: 180 mm · Thread length: 57 mm · Fork bridge - center wheel axle: 383 mm · Distance brake cam to wheel axle center-center: 40 mm

EBR standard fork black | Puch

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Color: black · Total length: 570 mm · Thread type: MF26x1 (fine pitch thread) · Adjustable: No · Spar end distance (center-center): 120 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Ø spars: 23 mm · Head tube length: 180 mm · Thread length: 57 mm · Fork bridge - center wheel axle: 383 mm · Distance brake cam to wheel axle center-center: 40 mm

EBR standard fork red | Puch

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: red · Total length: 570 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm

EBR standard fork green | Puch

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: green · Total length: 570 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm

swiing® revival fork lock incl. block | Puch

Manufacturer: swiing® revival parts · Material: Brass · Material: Steel

swiing® revival clamping bridges chrome | Puch

Manufacturer: swiing® revival parts · Material: Aluminum · Surface: chrome-plated · Color: Chrome · Total length: 47 mm · Height: 26 mm · Width: 17 mm · Number of fixing points: 2 pcs · Hole spacing: 30 mm · Ø mounting hole: 7.3 mm

swiing® revival clamping bridges aluminum black | Puch

Width: 17 mm · Height: 26 mm · Total length: 47 mm · Manufacturer: swiing® revival parts · Material: Aluminum · Surface: anodized · Color: black · Ø mounting hole: 7.3 mm · Hole spacing: 30 mm · Number of fixing points: 2 pcs

swiing® revival triple clamp top stem black | Puch Maxi

Manufacturer: swiing® revival parts · Material: Steel · Surface: primed · Color: black · Spar end distance (center-center): 120 mm · Ø head tube inside: 26.5 mm · Puch OEM number: 349.1.30.207.1

swiing® revival cable guide mudguard black | Puch

Height: 12.5 mm · Total length: 74 mm · Manufacturer: swiing® revival parts · Material: Plastic · Color: black · Hole spacing: 63 mm · Mounting type: Plug connection · Number of fixing points: 2 pcs

BERU spark plug connector 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Ø cable: 5 mm · Ø cable: 7 mm · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Subcategory: Spark plug connector · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

Black bench seat

Height: 80 mm · Height: 115 mm · Width: 215 mm · Total length: 300 mm · Manufacturer: Made in Portugal · Material: Imitation leather · Ø Saddle tube holder: 22 mm · Color: black · Spring-loaded: No · Lettering: No · Number of fixing points: 1 pcs

GPO control bearing set M26x1 | Puch

Bearing type: Bearing ring · Ø inside: 26.8 mm · Ø outside: 41 mm · Manufacturer: GPO · Thread type: MF26x1 (fine pitch thread) · Material: Steel · Surface: galvanized (blue) · Color: silver · Ø mounting frame: 31 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Manufacturer: GPO · Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Reserve level: 70 mm

GPO mudguard strut silver | Puch Maxi S, N

Manufacturer: GPO · Material: Steel · Outer width: 25.5 mm · Color: silver · Surface: varnished · Total length: 240 mm · Distance mudguard - center hole: 197 mm · Distance mudguard - center hole: 231 mm · Ø mounting hole: 6 mm · Hole spacing: 40 mm · Wide intake: 53 mm · Wheel size: 17 " · Mounting type: Nuts & bolts · Number of fixing points: 8 pcs

swiing® revival 17" front fender square Inox | Puch Maxi S, N

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Color: Chrome · Surface: polished · Folding the ends: closed folded · Shape of the mudguard: angular · Total length over ends: 565 mm · Scope: 740 mm · Wide mudguard profile: 82 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 200 mm · Wheel size: 17 " · Mounting type: Nuts & bolts

GPO front mudguard strut 17" chrome

Manufacturer: GPO · Material: Steel · Outer width: 160 mm · Color: Chrome · Surface: chrome-plated · Total length: 305 mm · Distance mudguard - center hole: 300 mm · Ø mounting hole: 12.5 mm · Wheel size: 17 " · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs

GPO steerer tube nut M26x1 closed fork plate chrome

Height: 13.8 mm · Drive: External hexagon · Width across flats: 30 mm · Ø outside: 28.9 mm · Ø outside: 36.4 mm · Manufacturer: GPO · Thread type: MF26x1 (fine pitch thread) · Material: Steel · Surface: chrome-plated · Area of application: Standard · Nut type: Cap nut · Nominal diameter (thread): 26 mm · Thread depth: 12 mm

swiing® revival 17" front fender set angular silver / chrome | Puch Maxi S, N

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Material: Rubber · Material: Steel · Color: Chrome · Color: black · Surface: chrome-plated · Color: silver · Surface: varnished · Folding the ends: closed folded · Shape of the mudguard: angular · Total length over ends: 565 mm · Scope: 740 mm · Wide mudguard profile: 82 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 200 mm · Wheel size: 17 " · Mounting type: Nuts & bolts
