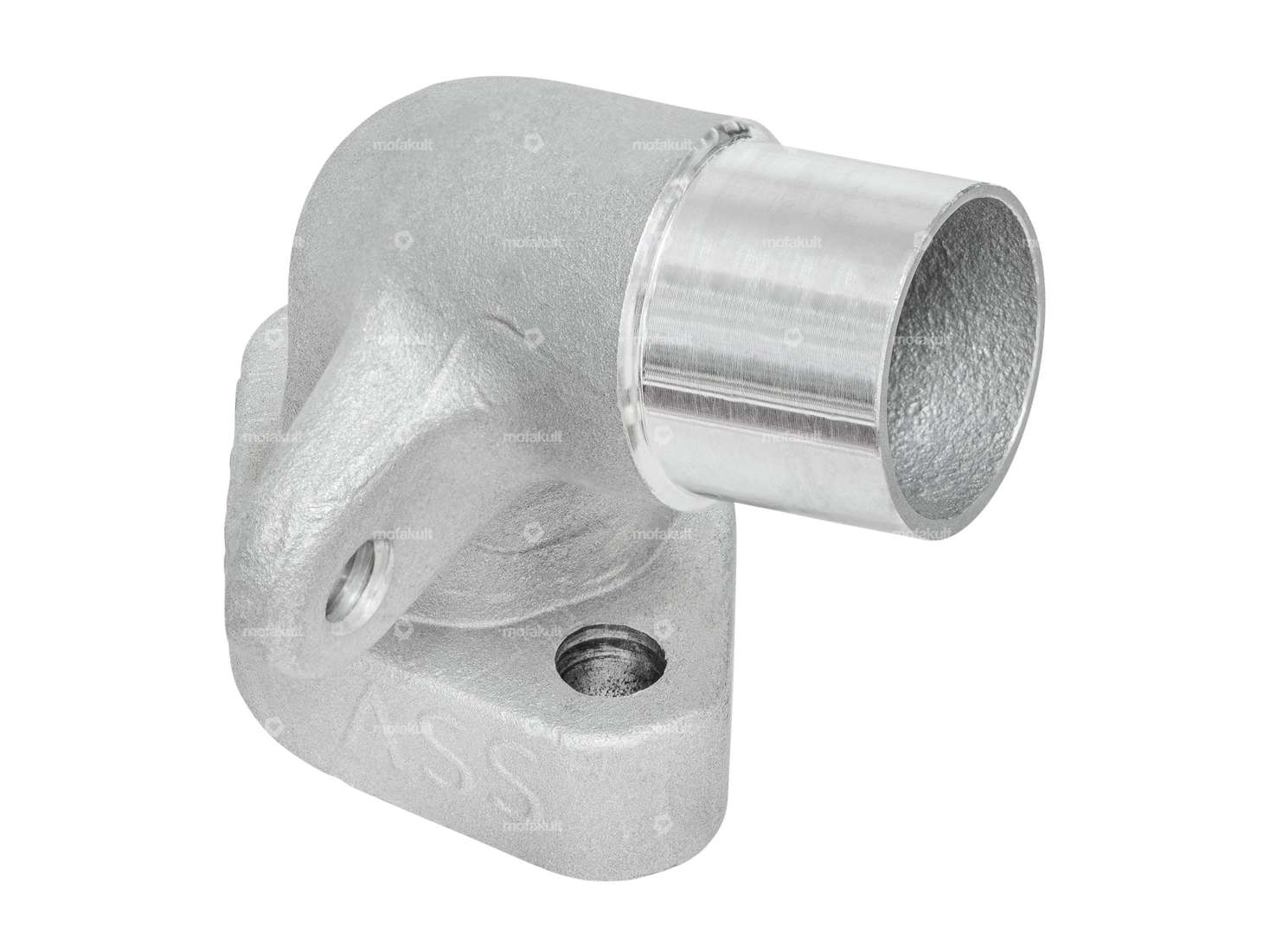

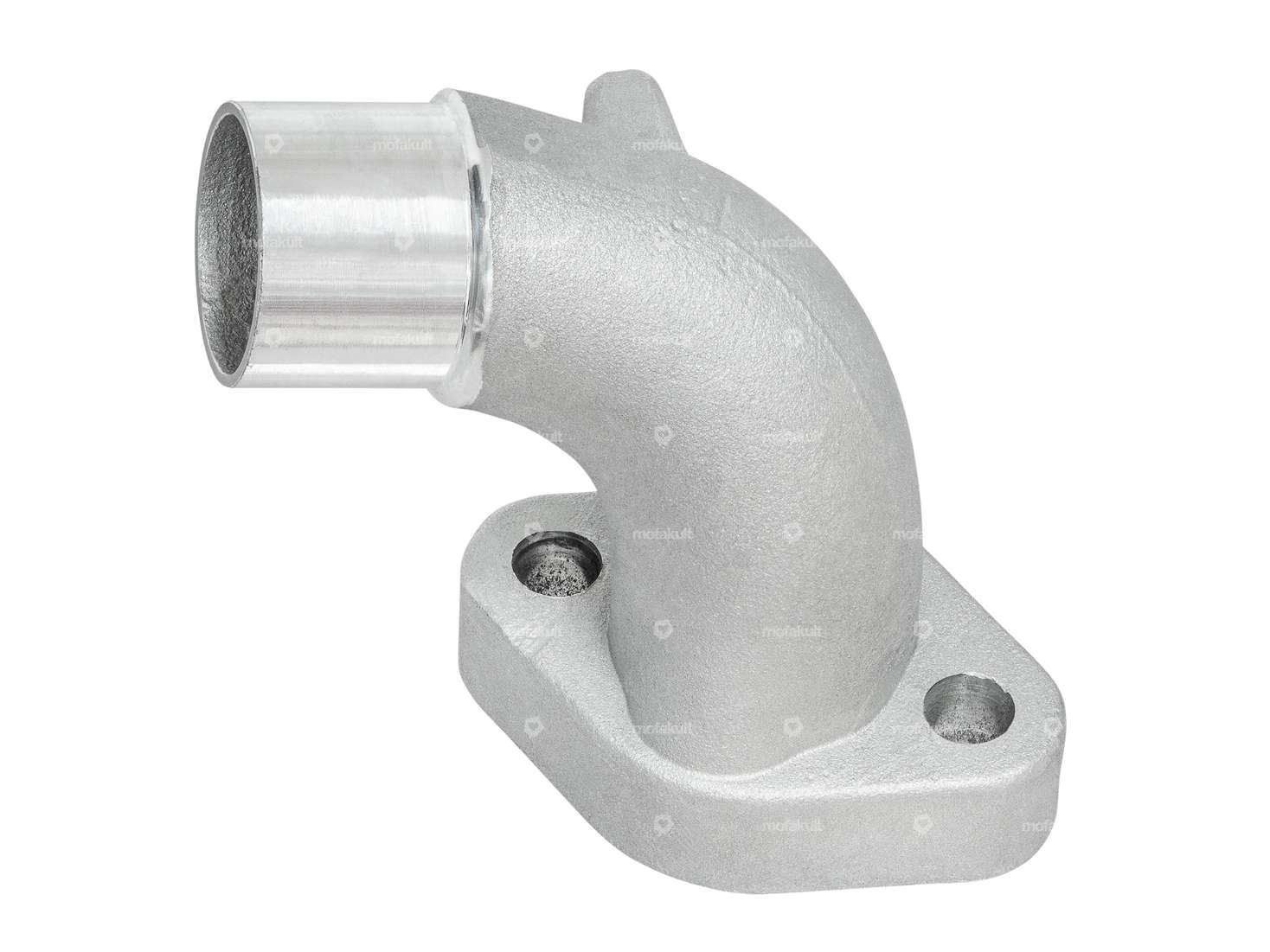

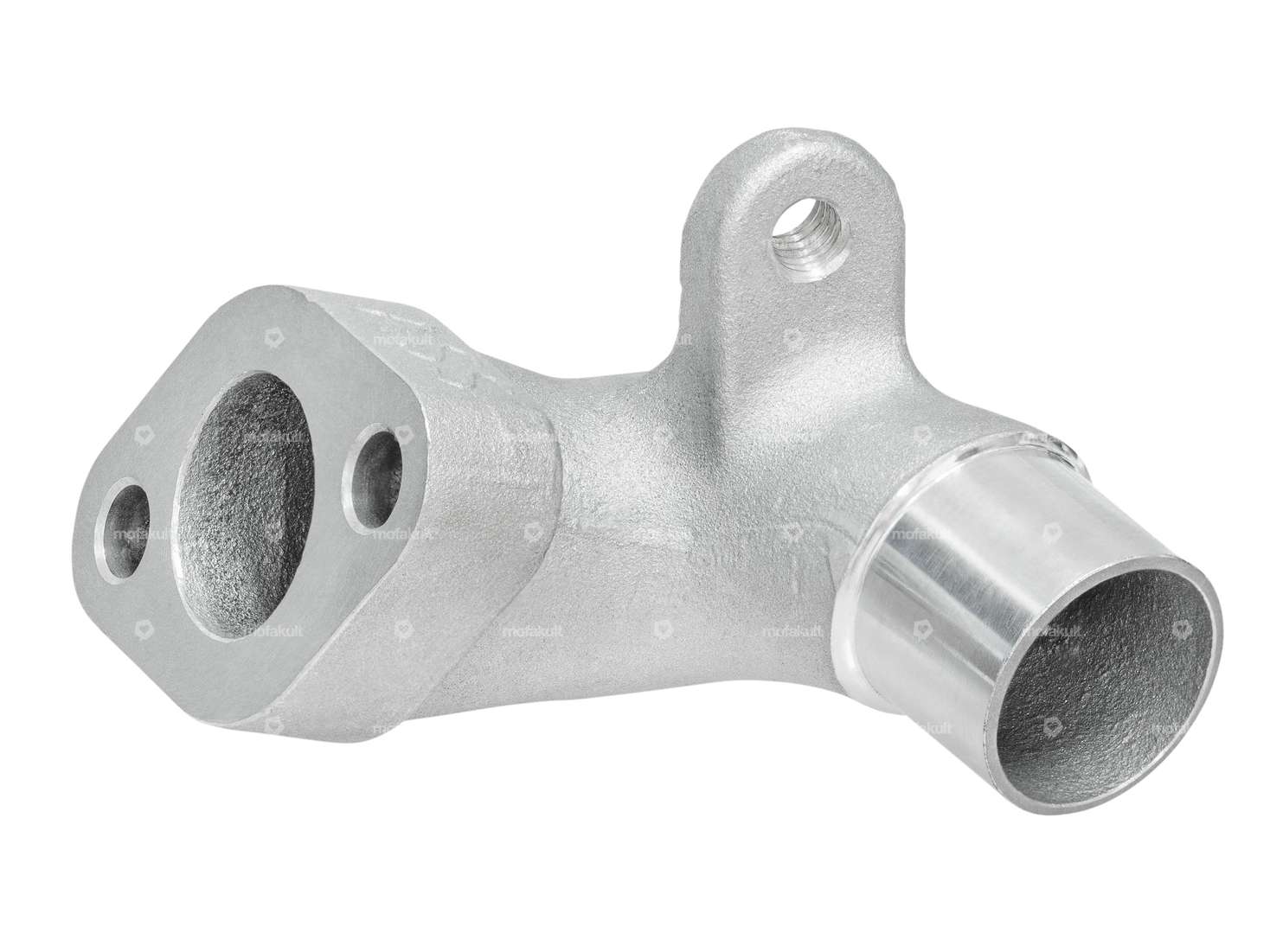

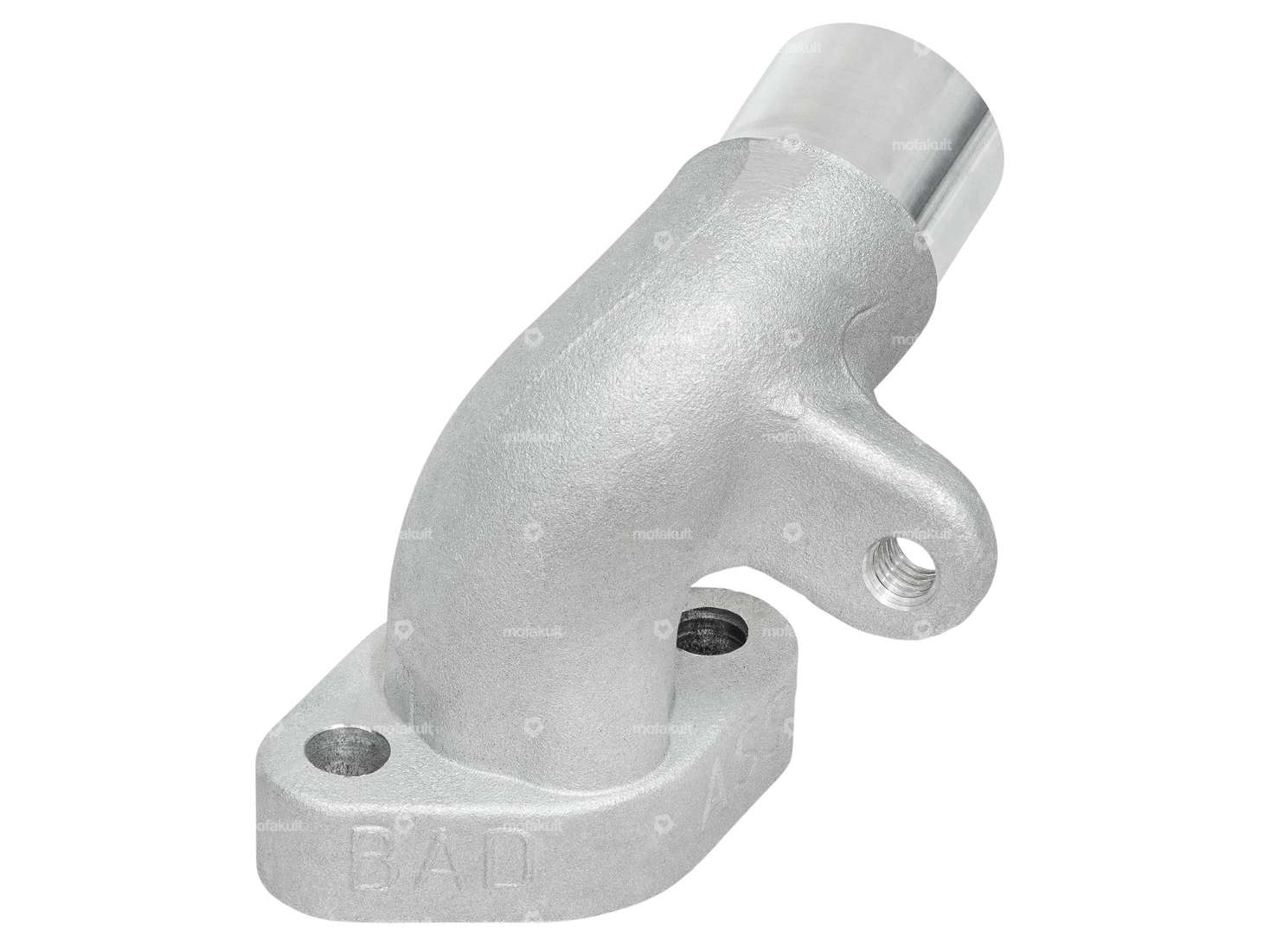

Short intake manifold for manual Sachs mopeds / mopeds with 503 2AL / 2BL engines.
This manifold makes it possible to fit a 17 mm carburetor with a 20 mm connection. This is highly recommended in combination with the 41 mm BAD ASS Pandora tuning cylinder, as the angle also fits perfectly.
Ø Carburettor connection: 20 mm
Ø Inside: 17 mm throughout
Hole spacing: 32 mm
Threaded lug: M6
This is the short version (50 mm).
To simplify installation, we recommend using M6 nuts with reduced key width. These special nuts, the intake manifold with 23 mm connection diameter and other attachments can be found in the accessories section.
This is the tuning version of the original Sachs spare part with the number A2177.
Made by the BADASS brand.
| Ø inside | 17.8 mm |
| Total length | 65 mm |
| Manufacturer | BAD ASS |
| Material | Aluminum |
| Hole spacing inlet | 32 mm |
| Mounting type | Stud bolt |
| Number of fixing points | 2 pcs |
| Area of application | Tuning |
| Total height | 55 mm |
| Height flange center hole | 45 mm |
| Ø External connection | 20 mm |
| Camouflaged | No |
| Sachs | 503 - AAL , ABL , 2AL / 2BL |
