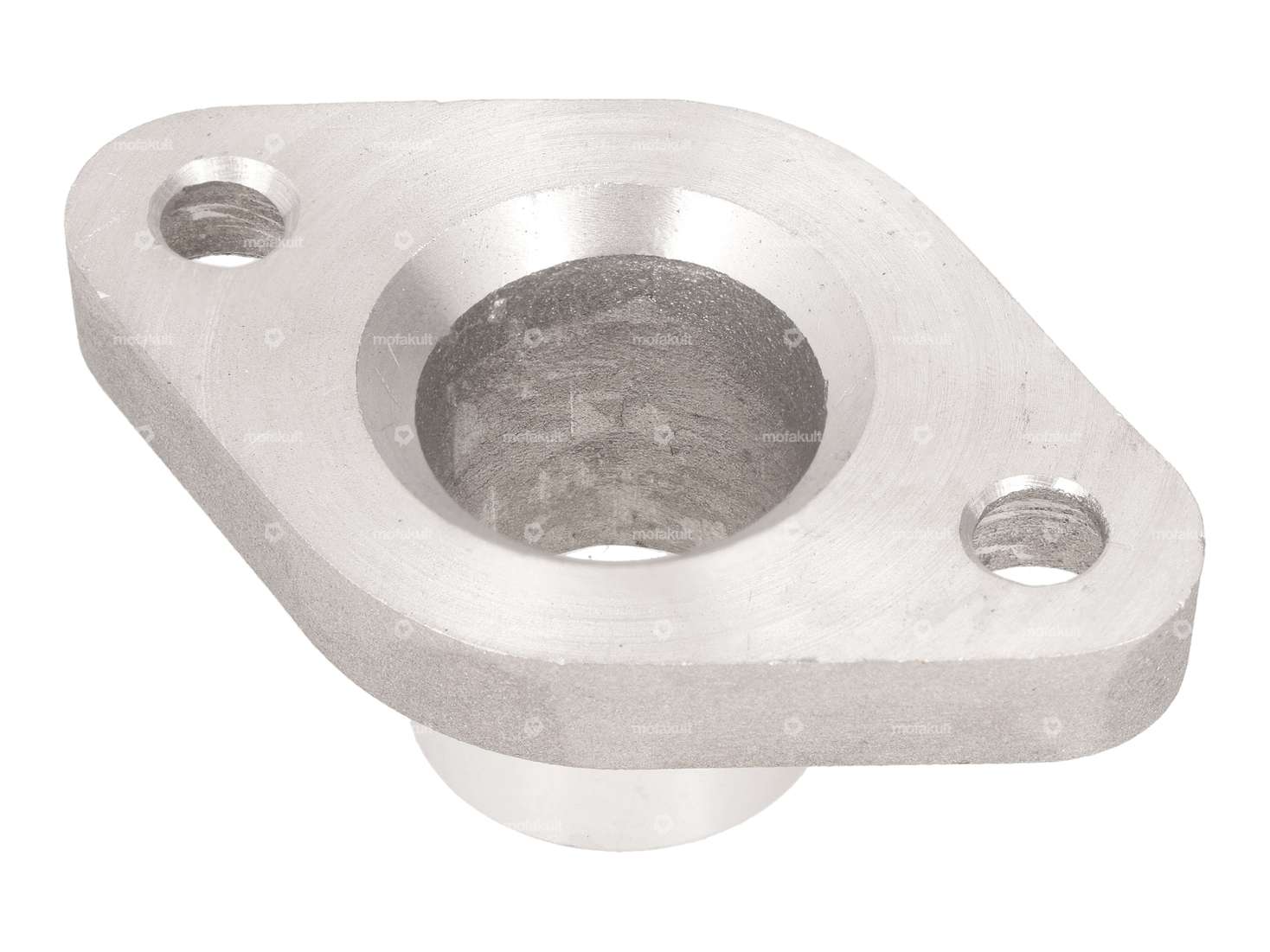

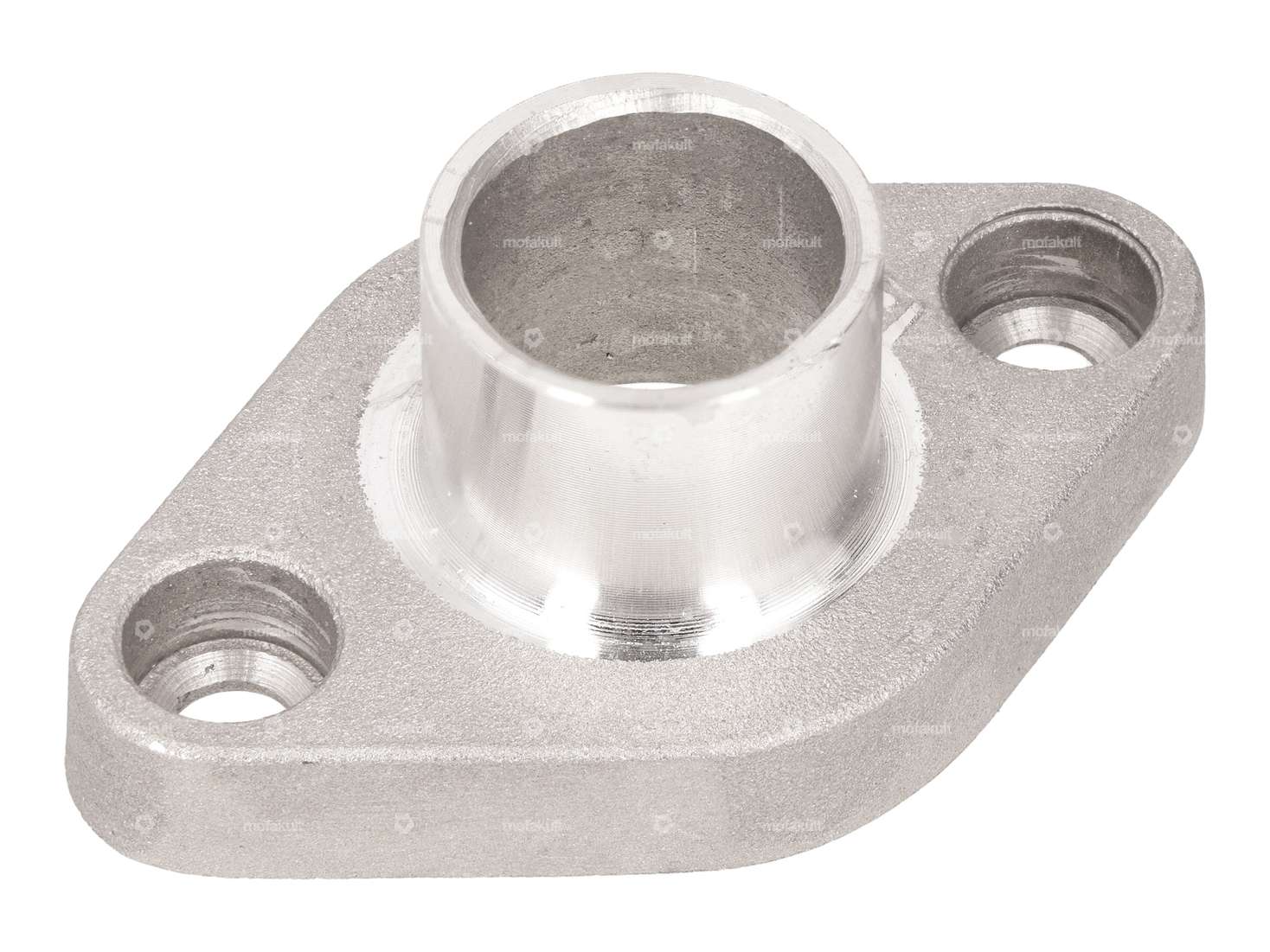

Athena exhaust adapter 24 mm cylinder kit | Sachs

Athena 38 mm cylinder kit without mounting parts | Sachs (504), 505, 508

Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 44 mm · Nominal diameter: 38 mm · Ø cylinder neck: 51.7 mm · Area of application: Tuning · Ø piston pin (B): 12 mm · Inlet window: 23.6 x 12.8 / 16.5 · Hole spacing inlet: 32 mm · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Ø outlet inside: 28.3 mm · Hole spacing outlet: 50 mm · Decompressor: M10x1.5 · Outlet type: straight · Camouflaged: No · Hole pattern [mm]: 56/61 x 56 · Thread outlet: M8x1.25 (standard thread)

Athena 45 mm cylinder kit incl. mounting parts | Sachs (504), 505, 508

Manufacturer: Athena · Camouflaged: No · Area of application: Tuning · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 44 mm · Nominal diameter: 45 mm · Ø cylinder neck: 51.7 mm · Ø Outlet outside: 25.9 mm · Ø outlet inside: 19.5 mm · Ø Inlet inside: 14.3 mm · Inlet window: 23.4 x 12.6 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 56 (61) x 56 · Decompressor: M10x1.5 · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Hole spacing inlet: 31.5 mm

Athena 48 mm cylinder kit incl. diaphragm | Sachs (504), 505, 508

Manufacturer: Athena · Camouflaged: No · Area of application: Tuning · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 44 mm · Nominal diameter: 48 mm · Ø cylinder neck: 51.8 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.7 mm · Ø Inlet inside: 17.8 mm · Inlet window: 31.9 x 36.2 · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 56/60 x 56 · Decompressor: M10x1.5 · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Hole spacing inlet: 32.5 mm

Athena 48 mm cylinder kit | Sachs 503 AB, AC, ADV

Manufacturer: Athena · Camouflaged: No · Area of application: Tuning · Material: Aluminum · Surface: sandblasted · Displacement: 80 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 48 mm · Ø Outlet outside: 26 mm · Thread inlet: M6x1 (standard thread) · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Outlet type: clamped · Outlet type: slanted · Thread outlet: M6x1 (standard thread)

Athena gasket set 38 / 45 mm cylinder kit Sachs 504, 505, 535

Manufacturer: Athena · Ø cylinder: 38 mm · Ø cylinder: 45 mm · Area of application: Standard · Area of application: Tuning · Number of components: 4 pcs

NGK B7ES spark plug long thread

Manufacturer: NGK · Candle designation: B7ES · Candle thread type: long · Thread type: MF14x1.25 (fine pitch thread) · Spark plug socket: M4 · Suppressed: No · Spark plug socket: SAE · Width across flats SW: 21 mm · Area of application: Performance · Area of application: Racing · Area of application: Tuning

NGK CR6 Racing ignition cable & plug High End red

Manufacturer: NGK · Material: Rubber · Cable available: Yes · Suppressed: Yes · Color: red · Resistance: 5000 Ω · Component group Carburetor: Ignition cable · Component group Carburetor: Spark plug connector · Cable length: 1000 mm · Ø cable: 7 mm

GPO exhaust clamp 70 mm chrome

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Nominal diameter: 70 mm · Color: Chrome · Clamping diameter: 66 - 70 mm · Ø mounting hole: 8.5 mm · Thickness: 2.5 mm · Width: 18 mm · Number of fixing points: 1 pcs

swiing® revival solid exhaust clamp 26 - 28 mm galvanized (strength 12.9)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Width: 42 mm · Ø inside: 26 - 28 mm · Material thickness: 1.5 mm · Ø outside: 39 mm · Mounting type: Nuts & bolts

Gasket outlet set Ø 27 mm large

Width: 67 mm · Hole spacing: 44 - 50 mm · Total length: 44 mm · Thickness: 2 mm · Ø inside: 27 mm · Ø mounting hole: 8.5 mm

Dell'Orto reduction rifle SHA (21/19-17.7 mm)

Manufacturer: Dell'Orto · Material: Plastic · Component group Carburetor: Adjusting screws, float, etc. · Color: white · Total length: 14 mm · Ø inside: 19 mm · Carburetor type: SHA · Ø outside: 21 mm · Ø Passage: 17.7 mm

Rear muffler cigar Ø 28 / 70 mm chrome

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø outside: 70 mm · Total length: 700 mm · Exhaust type: Cigar · Ø Internal connection: 28.6 mm · Mounting type: Screwed clamp

Mushroom air filter foam red 28 - 32 mm

Material: Foam · Camouflaged: No · Material: Rubber · Color: red · Total length: 110 mm · Filter type: Foam · Ø Internal connection: 28 mm · Ø Internal connection: 32 mm · Ø outside: 60 mm · Mounting type: Plug connection clamped · Area of application: Tuning

Exhaust set "Tuning" Ø 28 / 70 mm chrome | Sachs 503 2AL/2BL

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø outside: 70 mm · Total length: 700 mm · Ø Flame tube outside: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp · Flame tube attachment: Plug connection clamped

swiing flame tube 28 mm Sport Chrome | Sachs 503

Manufacturer: swiing · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø inside: 26 mm · Ø outside: 28 mm · Total length: 410 mm · Mounting type: Bride · Flame tube attachment: inserted

Polini float chamber CP carburetor transparent

Manufacturer: Polini · Component group Carburetor: Adjusting screws, float, etc. · Material: Plastic · Thread type: M4x0.7 (standard thread) · Carburetor type: CP · Number of fixing points: 4 pcs
