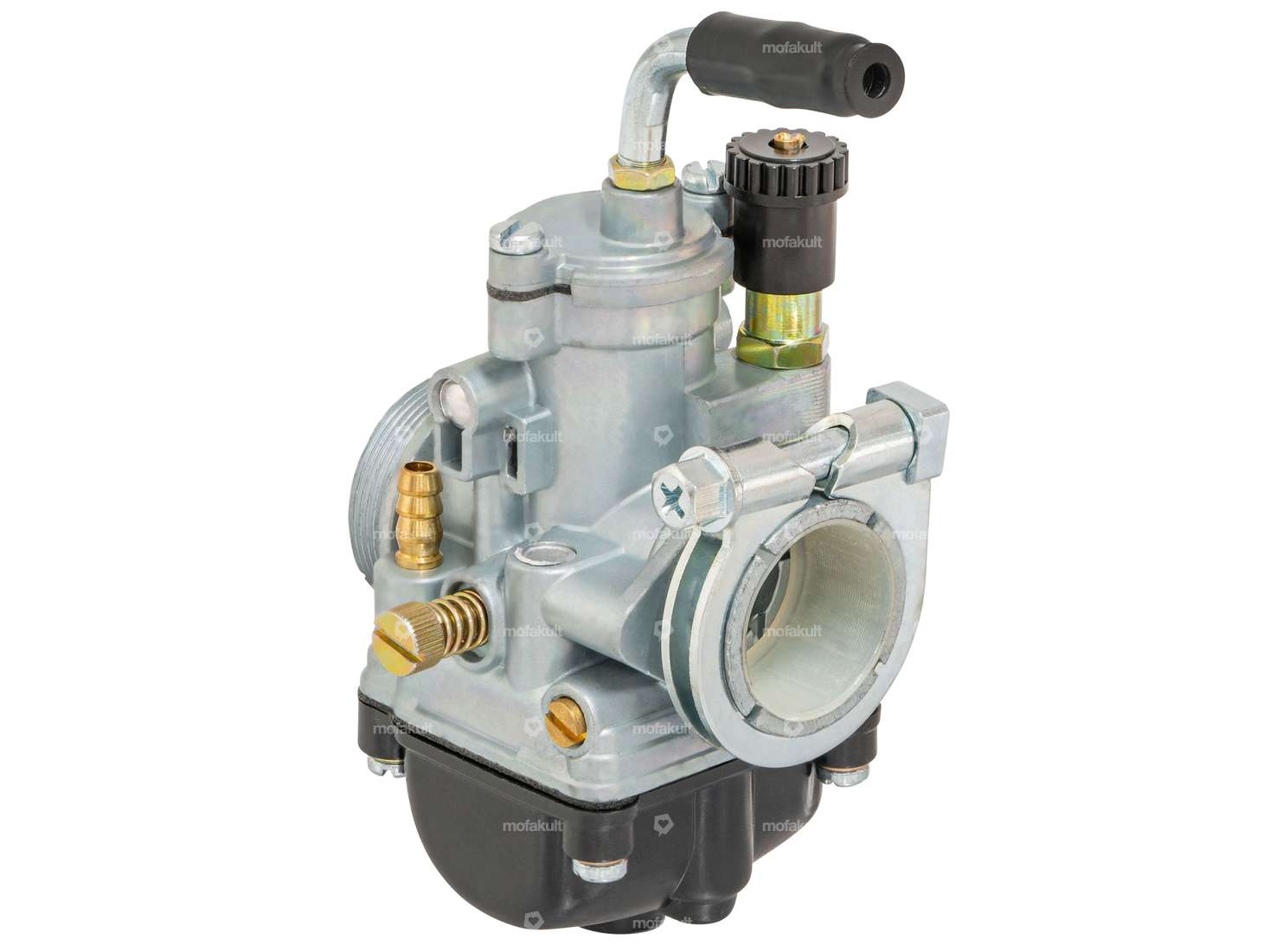

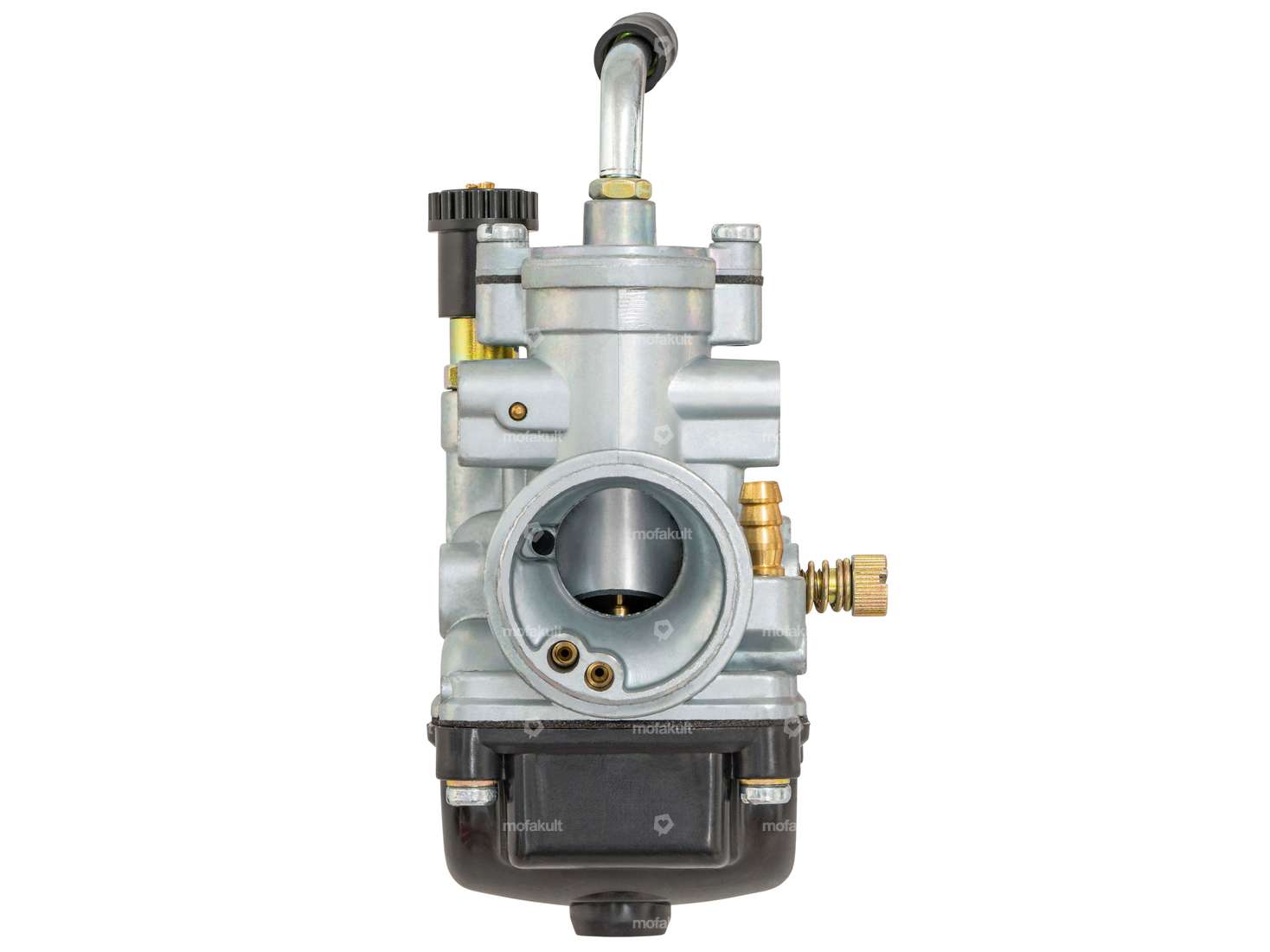

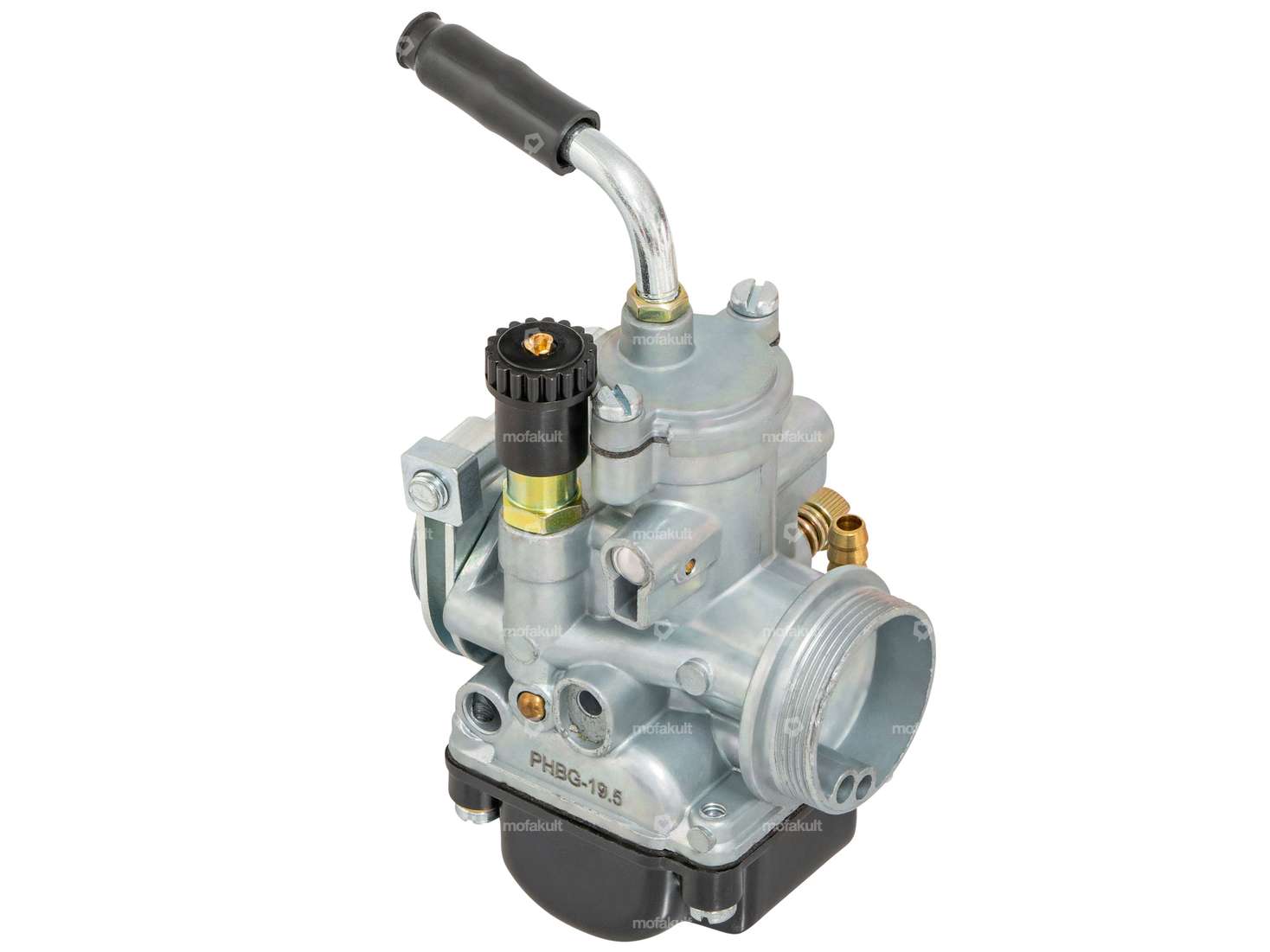

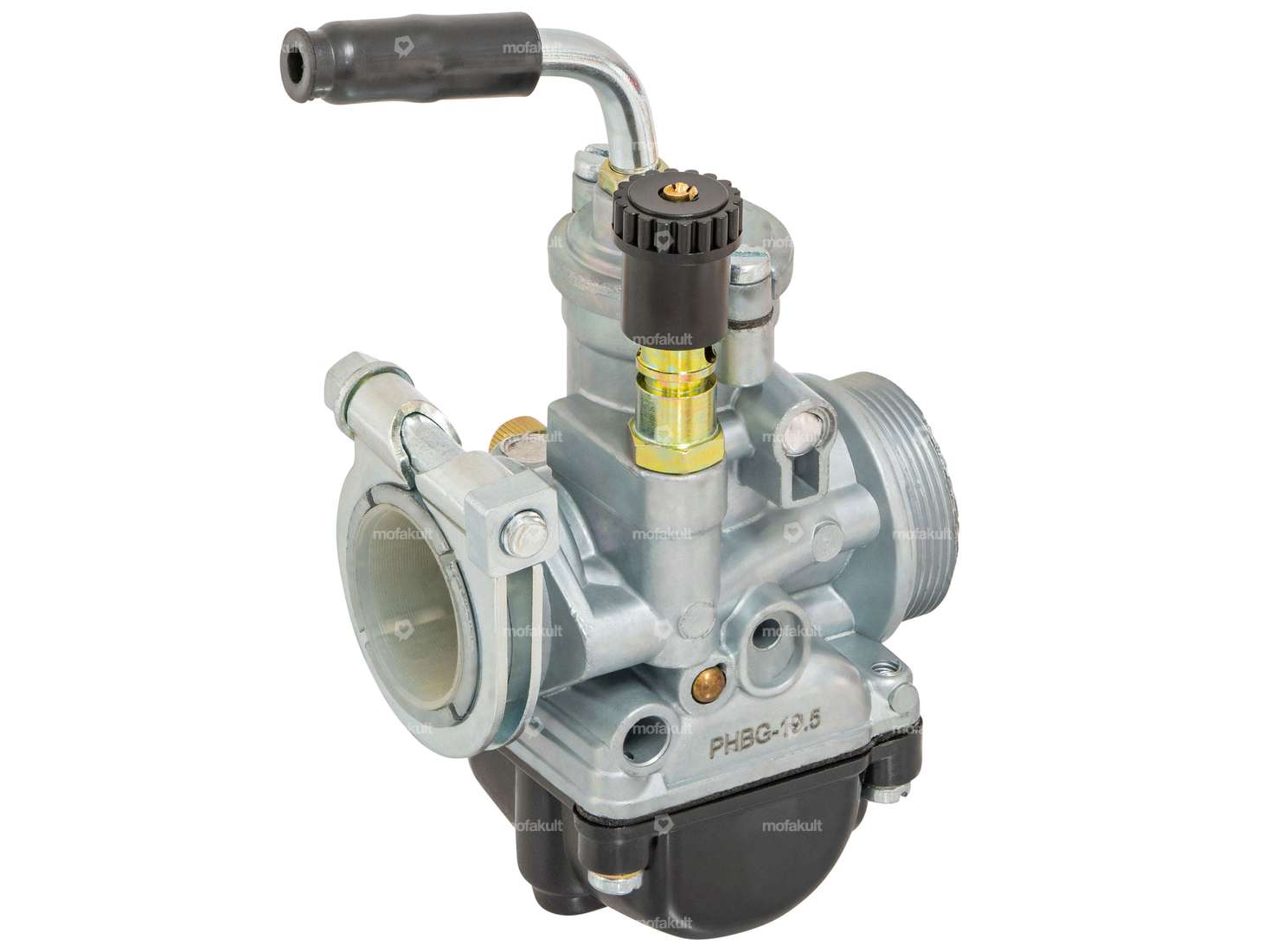

19.5 mm PHBG AS carburetor hand choke (Dell'Orto replica)

CHF 65.50

Incl. 8.1% VAT.

Description

19.5 mm PHBG replica racing carburetor for universal use for your moped, moped and small motorcycle.
This racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 75 cc.

The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and auxiliary valves and the mixture adjustment screw.

The carburetor has an M32x1.25 thread on the air filter side. The air filter can be attached directly to the thread.

Main thread size (M5): 85
Side thread size (idle thread): 55
Choked thread size: 53
Air filter connection diameter: 32 mm (M32 x 1.25)
Inlet connection diameter: 24 mm (or 26 mm after removing the reducer). 26 mm after removing the reduction sleeve)
Total height: 132 mm
Total length: 70 mm
Total width: 60 mm

High-quality alternatives, matching nozzles, air filters and intake manifolds can be found in the accessories section.

Good-quality aftermarket product from the Asian market.

Nominal diameter19.5 mm
Total length70 mm
Width60 mm
ManufacturerQuenching
CamouflagedNo
Area of applicationTuning
Component group CarburetorCarburetor complete
MaterialAluminum
Carburetor typePHBG
Nozzle threadM5x0.8 (standard thread)
Nozzle size85
Height132 mm
Ø Inside entrance24 mm, 26 mm
Colorblack
Ø Air filter connection32 mm
Air filter connection threadMF32x1.25 (fine pitch thread)
Mounting typePlug connection clamped
Mixed oil connectionNo
Vacuum connectionNo
Choke controlHand choke
Choke nozzle size53
Size of secondary nozzle55
