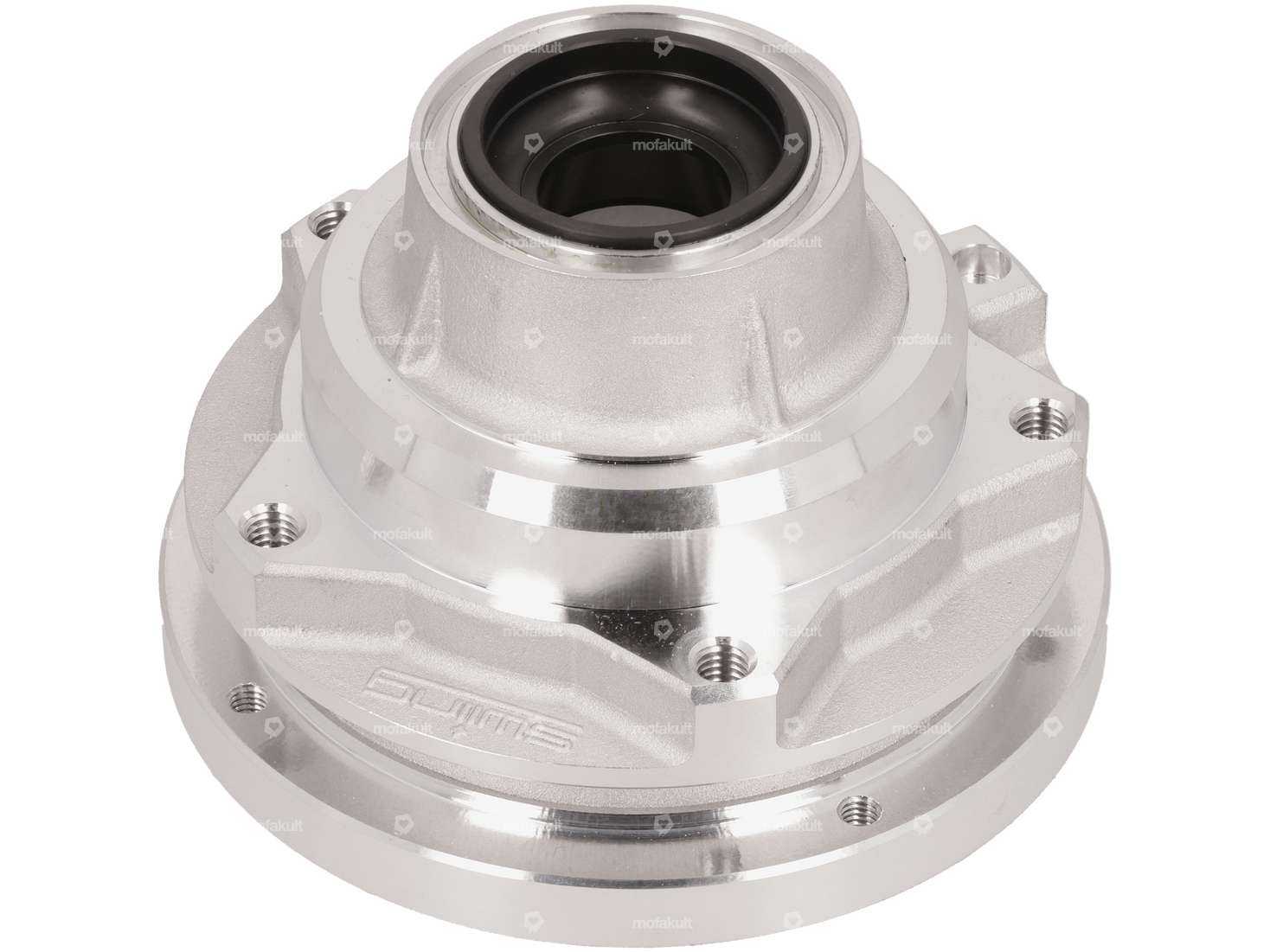

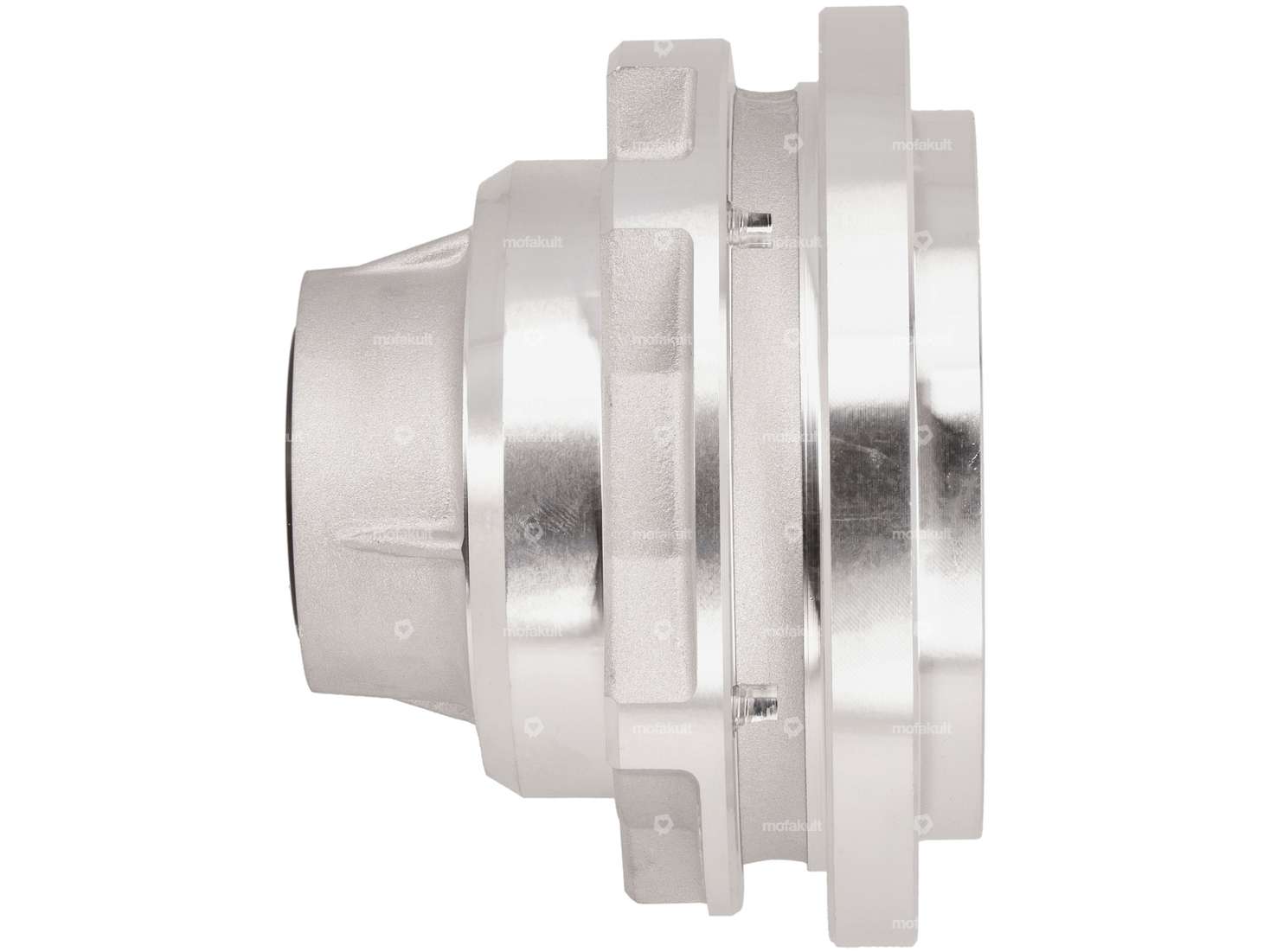

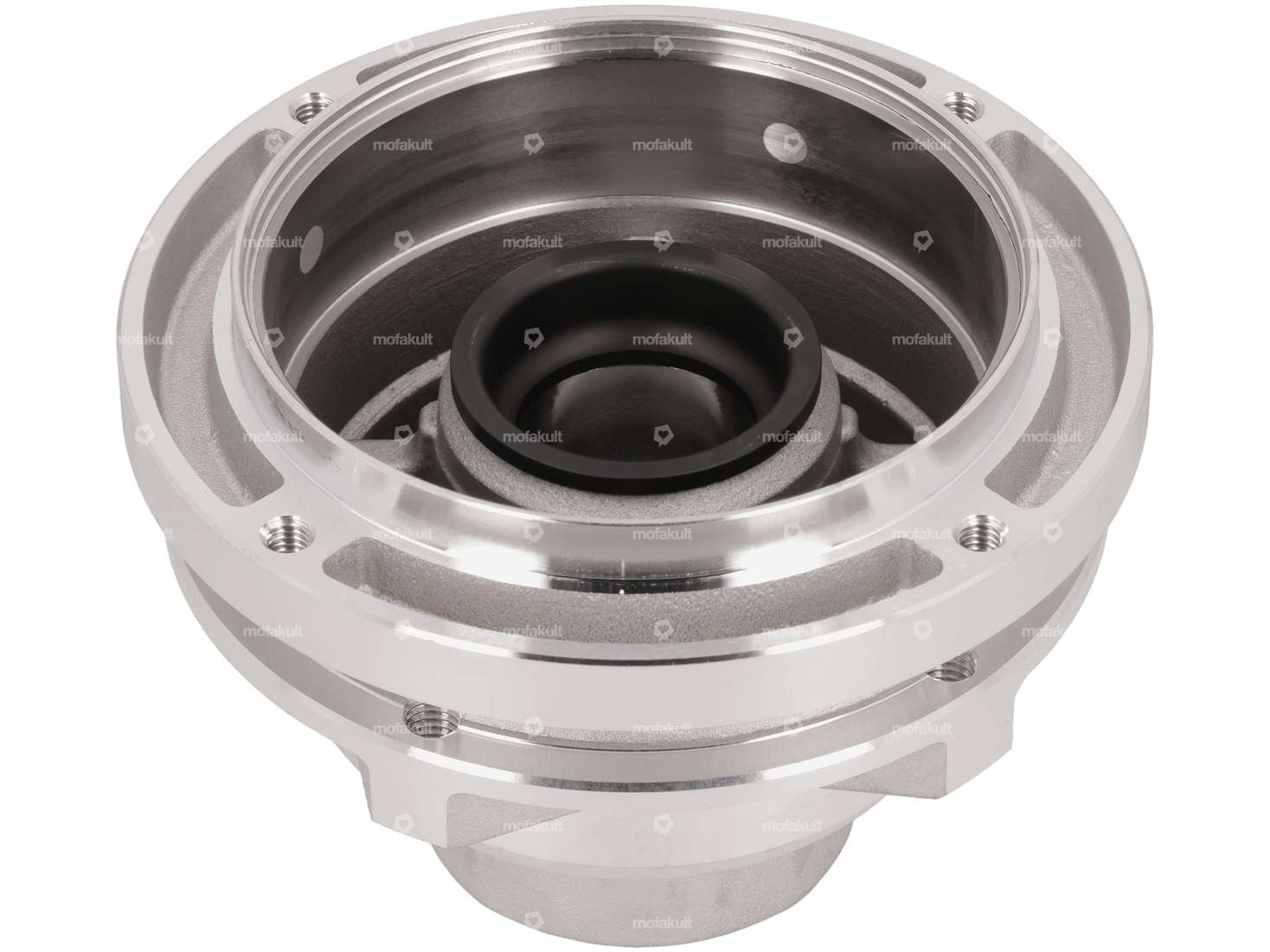

Cast aluminum rear wheel hub compatible with the cast wheel rim on your Puch Maxi S moped with a Z50 engine.
Among other things, this wheel hub can also be installed on Puch Maxi and Supermaxi models with an E50 engine or an air-cooled ZA50 engine, as well as on Puch X30 NG-2AH or NG-2A models with a fan-cooled ZA50 engine, provided that a conversion to a coaster brake is desired.
The high-quality wheel hub was manufactured using the casting process, just like the original from back then, and then precisely machined using CNC technology. The press-fit brake drum is made of high-quality special steel and is firmly connected to the cast hub by cast-in aluminum pins.
To put a huge smile on your face right from the moment you start the installation, the hardened bearing shells are already pressed into the coaster brake hub.
Notes:
This wheel hub was installed as standard on Puch Maxi S models with coaster brakes in Germany. Swiss models can be retrofitted accordingly.
Sprockets with a bolt circle diameter of 115 mm and an inner diameter of 98 mm are required.
You’ll find a complete coaster brake mechanism, a matching brake anchor plate, as well as brake cams, brake pads, and sprockets in the accessories section.
A nostalgic product from the premium swiing® brand that meets the highest standards.
| Manufacturer | swiing® revival parts |
| Material | Aluminum |
| Surface | glass bead blasted |
| Number of fixing points | 5 pcs |
| Total length | 89 mm |
| Ø drum | 90 mm |
| Ø bolt circle | 115 mm, 106 mm |
| Puch |
Accessories & related products
swiing® revival wheel nut M10.5x1 x 7 SW22 coaster brake Inox
Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Nut type: Hexagon nut 0.8D · Nominal diameter (thread): 10.5 mm · Drive: External hexagon · Height: 7 mm · Width across flats: 22 mm · Thread type: MF10.5x1 (fine pitch thread)
CHF 7.90
Not in stock
swiing® revival wheel nut M10.5x1 x 5 SW22 coaster brake Inox
Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Nut type: Hexagon nut 0.5D · Nominal diameter (thread): 10.5 mm · Drive: External hexagon · Height: 5 mm · Width across flats: 22 mm · Thread type: MF10.5x1 (fine pitch thread)
CHF 7.40
GPO sprocket 45 teeth 4-hole Grimeca/Snowflake rim
Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Number of teeth: 45 pcs · Ø inside: 98 mm · Cranking (offset): 9 mm · Ø bolt circle: 115 mm · Color: silver · Number of fixing points: 4 pcs
CHF 43.90
ESJOT spider 45 teeth (4/5/6 hole) Ø 98 mm cranked galvanized
Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: ESJOT · Material: Steel · Surface: galvanized (blue) · Color: silver · Number of teeth: 45 pcs · Thickness: 4.5 mm · Ø mounting hole: 6.6 mm · Cranking (offset): 10 mm · Ø inside: 98 mm · Ø bolt circle: 115 mm · Number of fixing points: 4 pcs · Number of fixing points: 5 pcs · Number of fixing points: 6 pcs
CHF 34.90
ESJOT spider 42 teeth (4/5/6 hole) Ø 98 mm cranked galvanized
Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: ESJOT · Material: Steel · Surface: galvanized (blue) · Color: silver · Number of teeth: 42 pcs · Thickness: 4.5 mm · Ø mounting hole: 6.6 mm · Cranking (offset): 10 mm · Ø inside: 98 mm · Ø bolt circle: 115 mm · Number of fixing points: 4 pcs · Number of fixing points: 5 pcs · Number of fixing points: 6 pcs
CHF 34.90
ESJOT spider 40 teeth (4/5/6 hole) Ø 98 mm cranked galvanized
Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: ESJOT · Material: Steel · Surface: galvanized (blue) · Color: silver · Number of teeth: 40 pcs · Ø bolt circle: 115 mm · Thickness: 4.5 mm · Cranking (offset): 10 mm · Ø inside: 98 mm · Ø mounting hole: 6.6 mm · Number of fixing points: 4 pcs · Number of fixing points: 5 pcs · Number of fixing points: 6 pcs
CHF 34.90
swiing® revival brake anchor plate HR 905 rear coaster hub | Puch Maxi S, X30 NS / NL
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø bore: 10 mm · Ø External brake pads: 90 mm · Ø axle: 10.6 mm · Ø shaft: 10 mm · Cranking (offset): 13 mm · Ø outside: 91.9 mm · Total length: 193 mm · Puch OEM number: 349.541.507.0
CHF 129.90
swiing® revival bearing cone M10.5x1 with dust ring back pedal
Manufacturer: swiing® revival parts · Material: Steel · Surface: gas nitrided · Ø ball [inch] / [mm]: 1/4" (6.35 mm) · Height: 13.3 mm · Width across flats: 15 mm · Thread type: MF10.5x1 (fine pitch thread) · Puch OEM number: 320.2.41.014.1
CHF 29.90
